The AE Solar METEOR AE440CMD-108BDE is a 440W N-type TOPCon bifacial double-glass solar panel designed for residential and commercial rooftop systems. It delivers 22.57% module efficiency in a compact 1721 × 1133 × 30 mm format, combining high power density with a black double-glass design.
Its 108 half-cut cells, bifacial generation capability and 21.5 kg module weight make it a practical option where roof space, durability and long-term energy output are important.
440W rated front-side power
22.57% module efficiency
N-type TOPCon technology
Bifacial double-glass design
108 half-cut cells
80 ±5% bifaciality coefficient for Pmax
Black 30 mm anodised aluminium frame
IP68 junction box with 3 bypass diodes
Low Pmax temperature coefficient: -0.29%/°C
Mechanical load: 5400 Pa front / 2400 Pa rear
The AE440CMD-108BDE uses N-type TOPCon half-cut cells to support high conversion efficiency, low degradation and reliable energy generation.
The panel also offers a positive power binning range of 0–3%, helping ensure delivered output meets or exceeds the nominal rating.

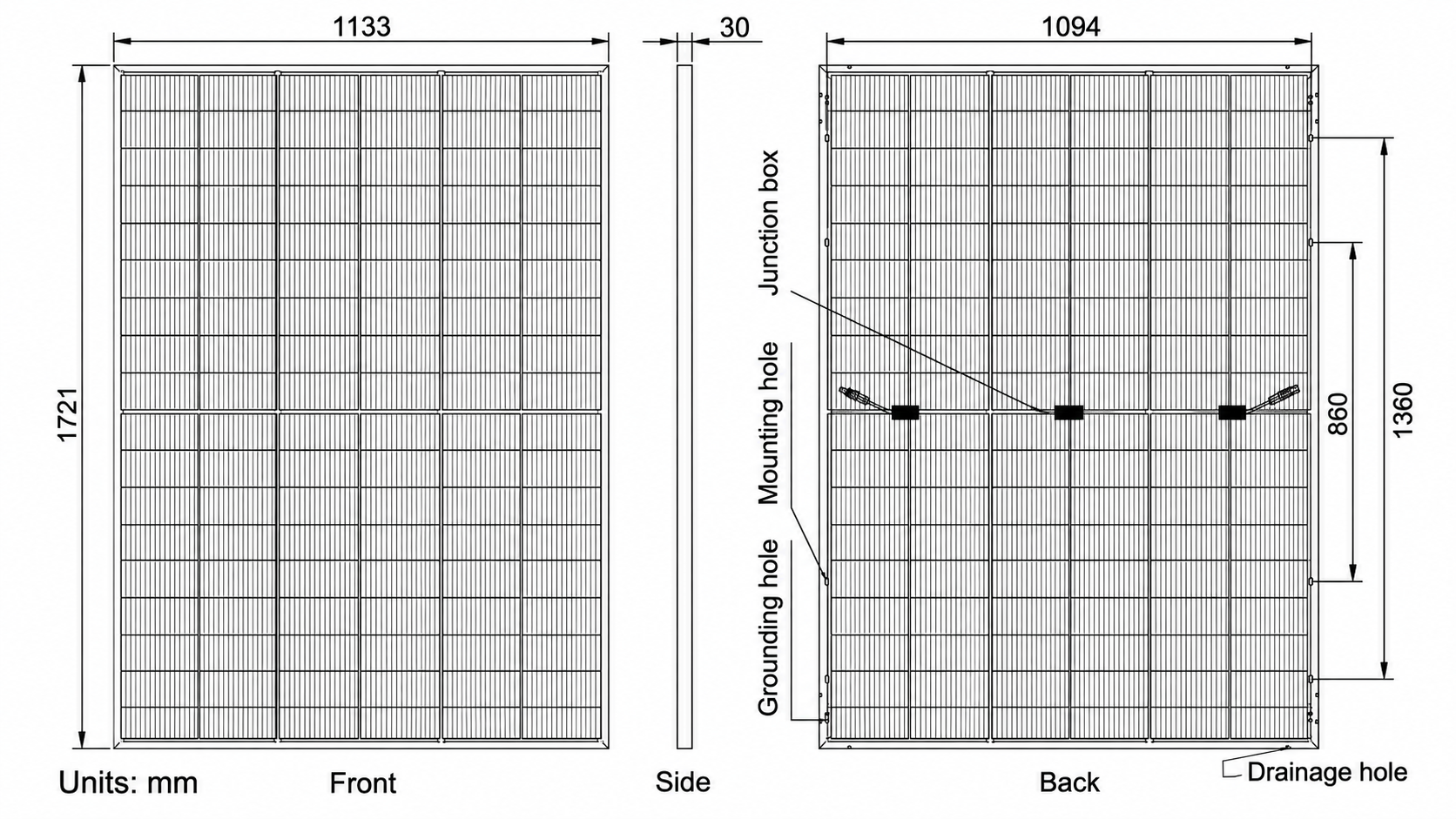

With dimensions of 1721 × 1133 mm, this is a relatively compact 440W module.
In practical rooftop installations, it can suit:
Metal roofs with compatible rail mounting
Concrete and terracotta tiled roofs
Residential roofs with limited usable panel area
Small to medium commercial rooftops
Installations where a shorter module can improve layout flexibility
Its 22.57% efficiency allows useful system capacity to be achieved without moving to a larger commercial-format panel.
The module uses black dual glass in 1.8 mm thickness, depending on version.
The bifaciality coefficient for Pmax is: 80 ±5%.
Rear-side generation can increase total energy yield when reflected light reaches the back surface, particularly in elevated or open mounting layouts.
The Pmax temperature coefficient is: -0.29%/°C.
The operating temperature range is: -40°C to +70°C.
Maximum static load is: 5400 Pa front / 2400 Pa rear.
Hail resistance is: 25 mm diameter hail at 23 m/s.
| Specification | AE440CMD-108BDE |
|---|---|
| Cell Type | N-type TOPCon, half-cut |
| No. of Cells | 108 |
| Module Dimensions | 1721 × 1133 × 30 mm |
| Weight | 21.5 kg |
| Glass | Dual glass, 1.8 mm |
| Frame | 30 mm anodised aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Encapsulation | POE |
| Cable | 1 × 4 mm², 1200 mm |
| Connector | MC4 compatible (PV-XT101.2) |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 25A |
| Fire Rating | Class A (UL 790) |
| Specification | AE440CMD-108BDE |
|---|---|
| Maximum Power – Pmax | 440W |
| Maximum Power Voltage – Vmp | 33.01V |
| Maximum Power Current – Imp | 13.33A |
| Open Circuit Voltage – Voc | 38.95V |
| Short Circuit Current – Isc | 14.12A |
| Module Efficiency | 22.57% |
| Power Binning | 0–3% |
Values are specified under STC conditions of 1000 W/m² irradiance, 25°C cell temperature and AM1.5.
Under BNPI conditions, the 440W model reaches:
Nominal maximum power: 485W
Open-circuit voltage: 38.95V
Short-circuit current: 15.56A
This reflects the additional contribution from rear-side irradiance under bifacial test conditions.
| Parameter | Rating |
|---|---|
| NOCT | 42 ±2°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.046%/°C |
First-year retained power is: 99%.
Guaranteed power after 30 years is: 87.4%.
15-year product warranty
30-year performance warranty
IEC 61215
IEC 61730
ISO 9001:2015
ISO 14001
ISO 45001:2018
The AE Solar METEOR 440W combines N-type TOPCon technology, bifacial generation and compact double-glass construction in a residential-friendly module size. It is particularly suitable for rooftop systems where high efficiency, rear-side energy gain and durable glass-glass construction are priorities.
