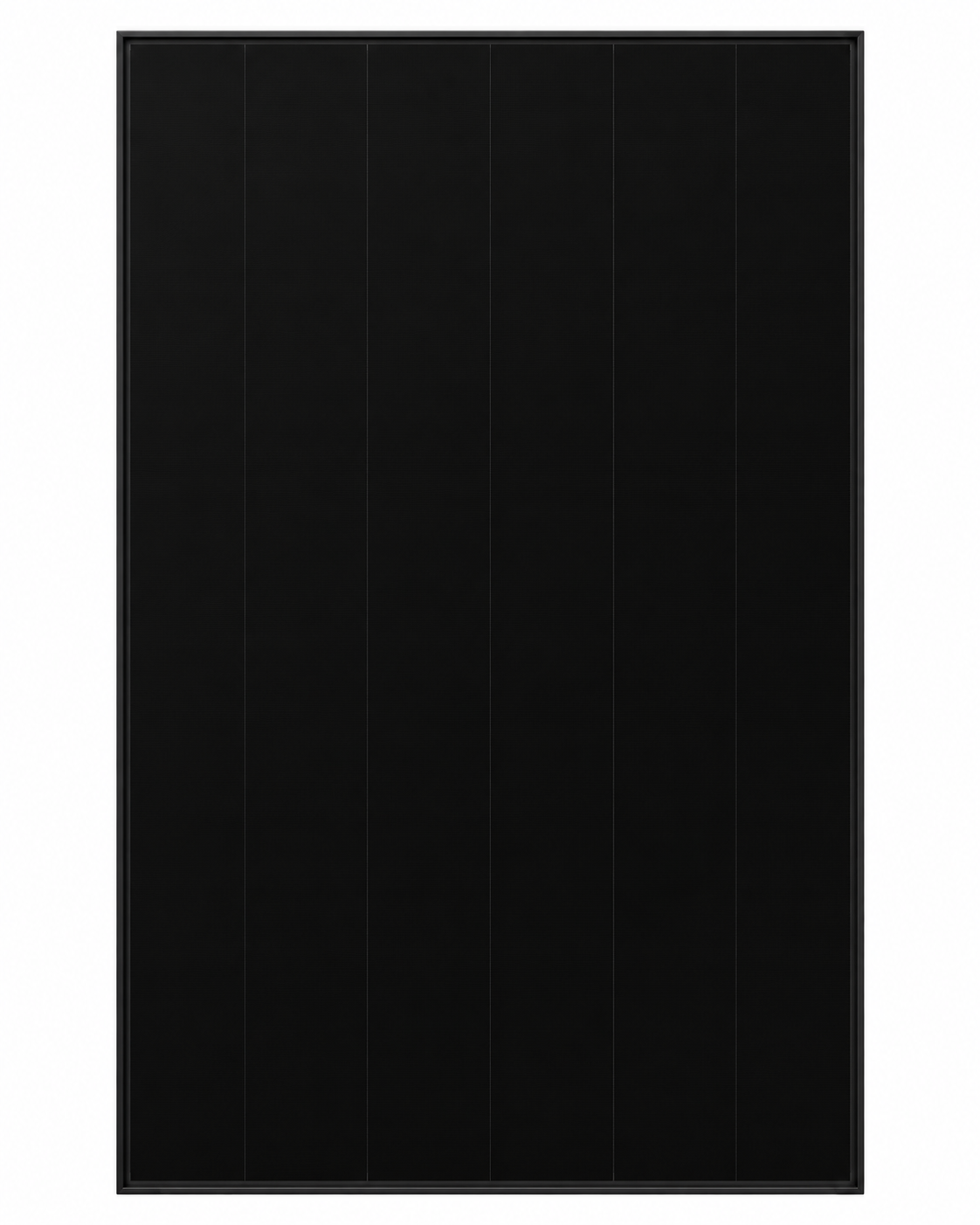

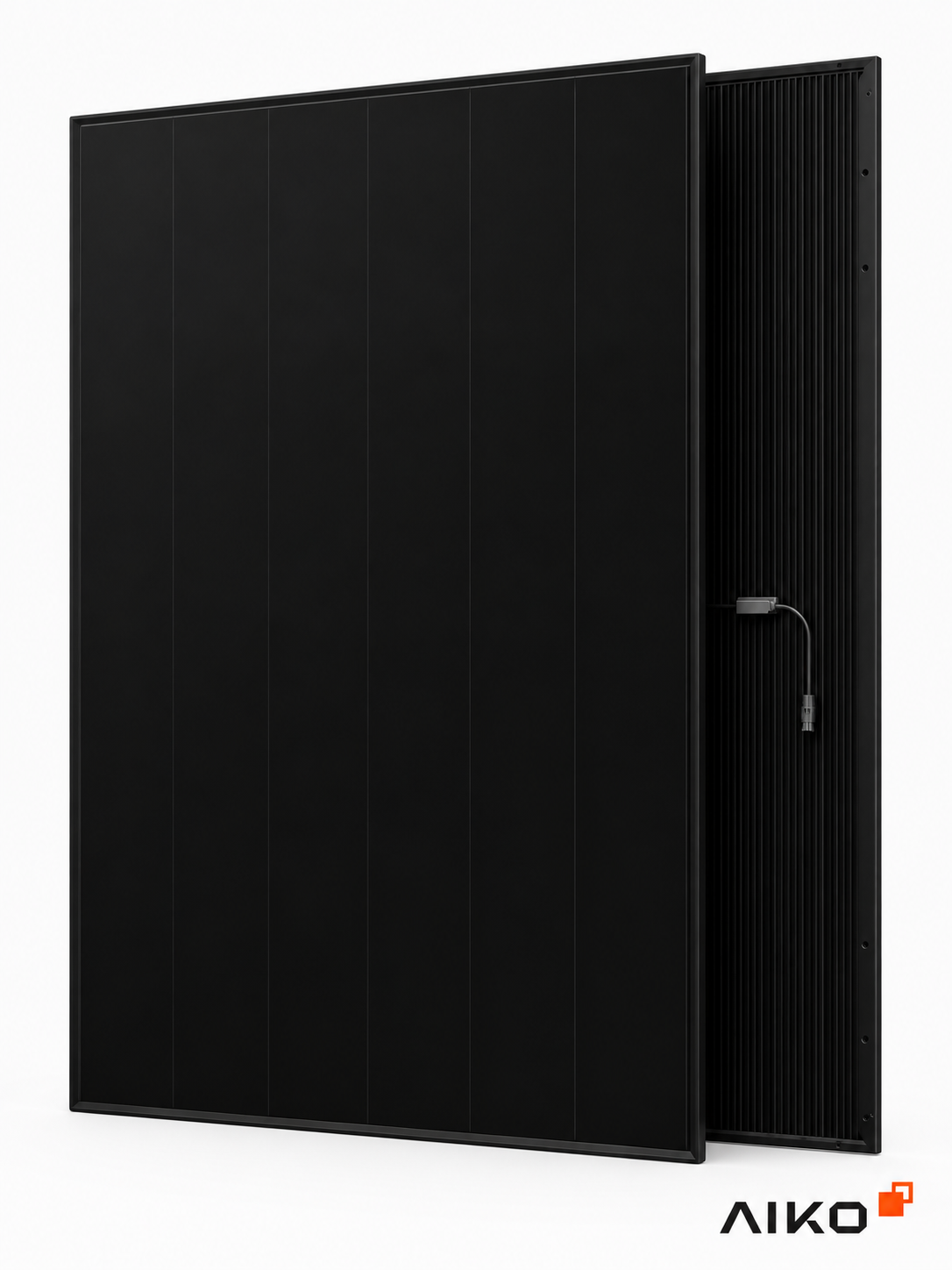

The AIKO Neostar 3S AIKO-A495-MCE54Mb is a high-efficiency 495W N-type BC mono-glass solar panel designed for premium residential rooftop systems. It delivers 24.8% module efficiency in a compact 1762 × 1134 × 30 mm format, combining high power density with AIKO’s clean back-contact cell design.
Its 3.2 mm tempered glass, high-weather-resistant backsheet, partial-shading optimisation and strong temperature performance make it a practical choice where roof space, appearance and long-term energy yield are priorities.
495W rated power
24.8% module efficiency
N-type BC cell technology
Mono-glass construction
Partial-shading optimisation
108-cell configuration: 6 × 18
Black anodised aluminium frame
Stäubli EVO2A connectors
Low Pmax temperature coefficient: -0.26%/°C
Mechanical load: 5400 Pa front / 2400 Pa rear
AIKO’s N-type back-contact architecture moves electrical contacts away from the visible front surface, helping improve light utilisation while creating a cleaner module appearance.
The Neostar 3S platform also incorporates partial-shading optimisation, micro-crack resistance and high-temperature restriction features to support reliable rooftop performance.
With dimensions of 1762 × 1134 mm and a weight of 20.6 kg, the Neostar 3S is compact for a 495W module.
In practical rooftop installations, it can suit:
Colorbond and other metal roofs using compatible mounting systems
Concrete and terracotta tiled roofs
Homes with limited usable roof area where higher wattage per panel is valuable
Segmented roof layouts where a shorter residential-format module offers more placement flexibility
Visible roof areas where a clean black appearance is preferred
Its 24.8% efficiency helps increase system capacity without moving to a larger commercial-format panel.
The module uses 3.2 mm tempered front glass with a high-weather-resistant backsheet and black anodised aluminium frame.
Maximum static load is: 5400 Pa front / 2400 Pa rear.
The panel is also tested against 40 mm diameter hail travelling at 27.5 m/s.
The Pmax temperature coefficient is: -0.26%/°C.
The operating temperature range is: -40°C to +85°C.
| Parameter | Rating |
|---|---|
| Temperature Coefficient of Isc | +0.05%/°C |
| Temperature Coefficient of Voc | -0.22%/°C |
| Temperature Coefficient of Pmax | -0.26%/°C |
| Specification | AIKO-A495-MCE54Mb |
|---|---|
| Cell Type | N-Type BC |
| No. of Cells | 108 (6 × 18) |

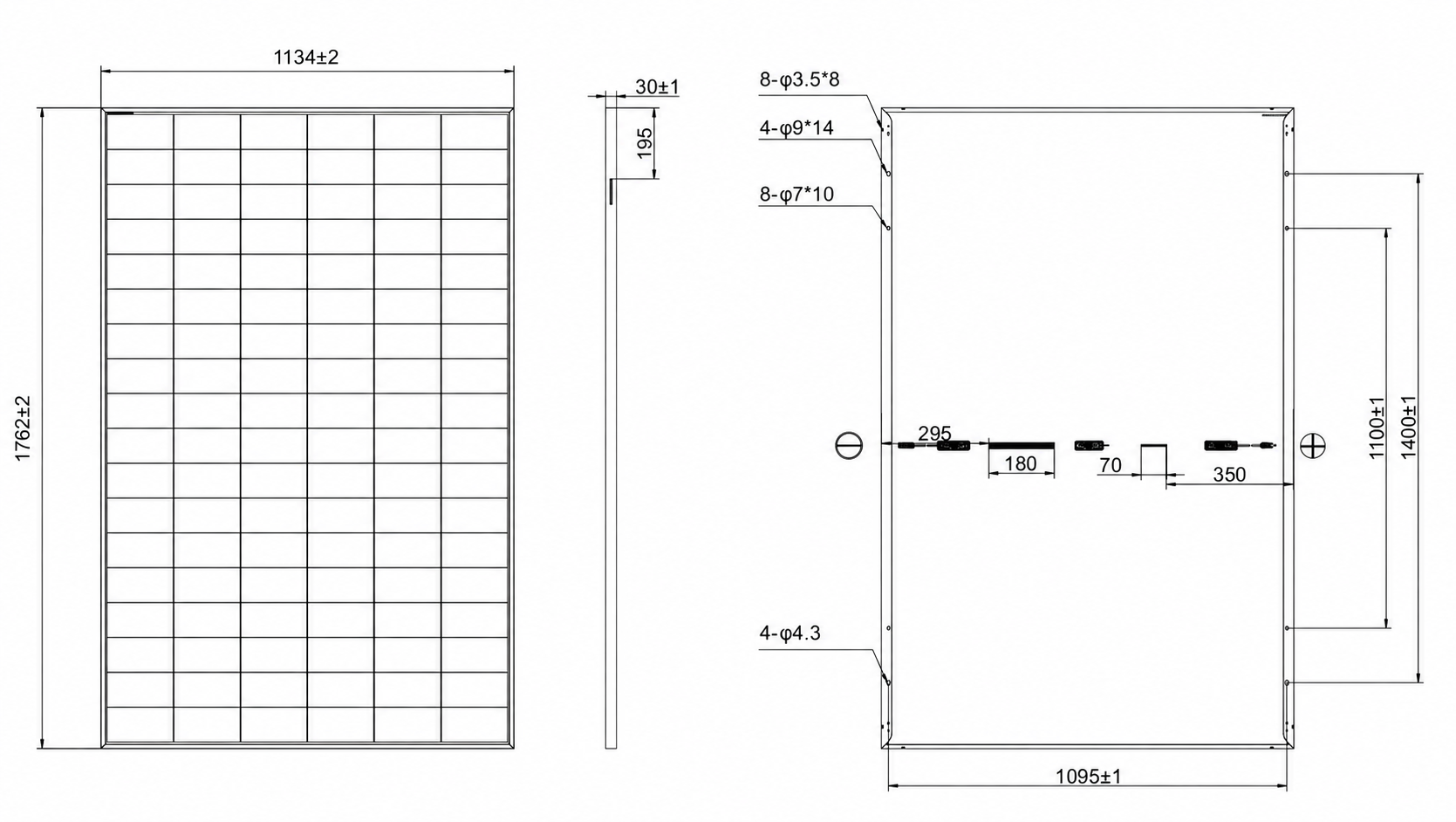

| Module Dimensions | 1762 × 1134 × 30 mm |
| Weight | 20.6 kg ±3% |
| Glass | 3.2 mm tempered glass |
| Backsheet | High-weather-resistant backsheet |
| Frame | Black anodised aluminium |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4 mm², ±1200 mm |
| Connector | Stäubli PV-KST4-EVO 2A/6I / PV-KBT4-EVO 2A/6I |
| Maximum System Voltage | DC 1500V |
| Maximum Series Fuse Rating | 25A |
| Protection Class | Class II |
| Fire Rating | IEC Class C |
| Specification | AIKO-A495-MCE54Mb |
|---|---|
| Maximum Power – Pmax | 495W |
| Maximum Power Voltage – Vmp | 34.80V |
| Maximum Power Current – Imp | 14.23A |
| Open Circuit Voltage – Voc | 41.20V |
| Short Circuit Current – Isc | 14.92A |
| Module Efficiency | 24.8% |
| Power Binning Tolerance | 0 to +3% |
Values are specified under STC conditions of AM1.5, 1000 W/m² irradiance and 25°C.
First-year degradation is: 1%.
Annual degradation from years 2–30 is: 0.35%.
Guaranteed power after 30 years is: 88.85%.
25-year product warranty
30-year performance warranty
The AIKO Neostar 3S 495W combines 24.8% efficiency, N-type BC technology and a compact residential-format design. It is particularly suitable for rooftops where high output per square metre, strong heat performance, partial-shading optimisation and clean aesthetics are important.
