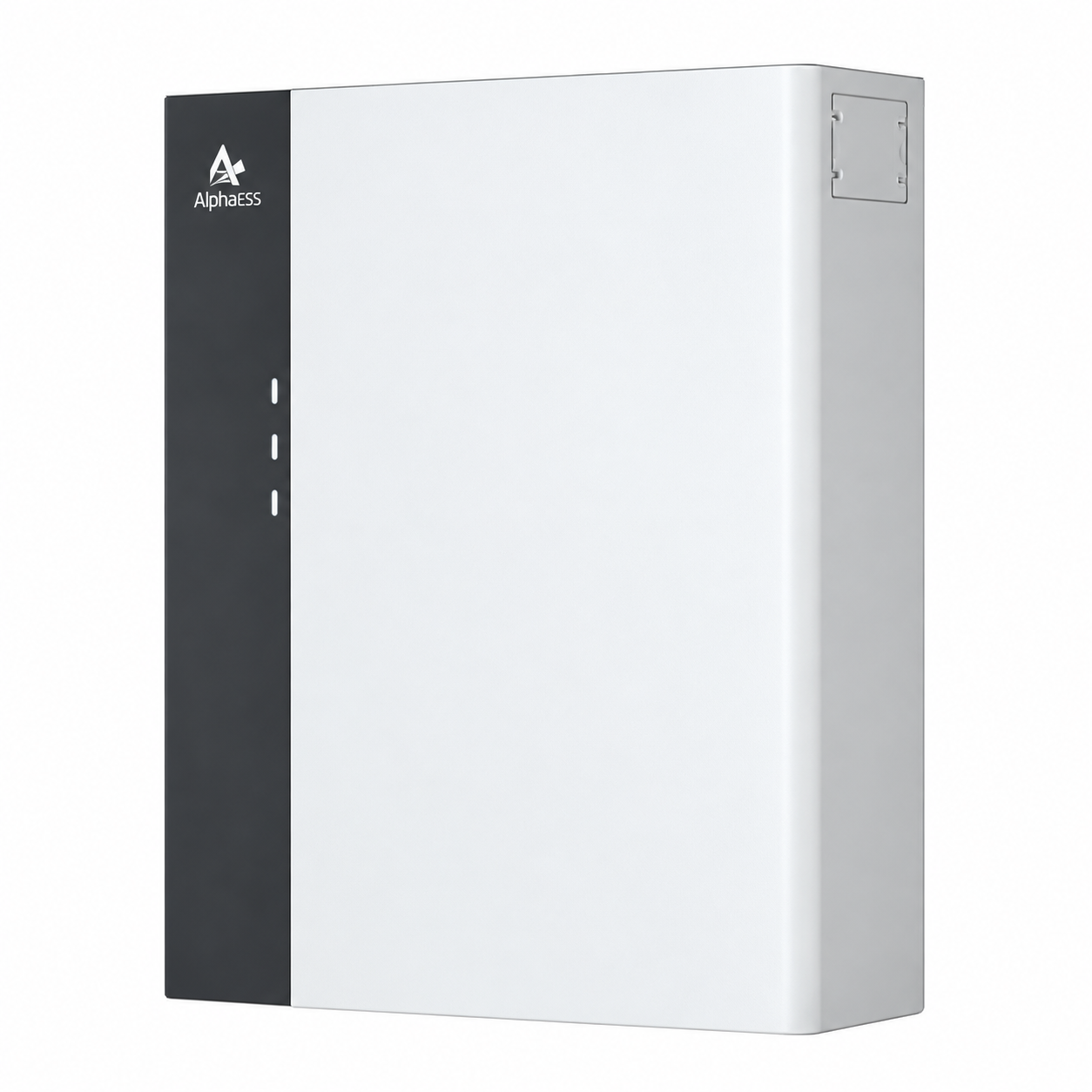

The AlphaESS SMILE-G3-BAT-10.1P is a 10.1kWh secondary battery designed to expand the storage capacity of a compatible existing AlphaESS SMILE-G3 system.
This listing is for the secondary battery only. No inverter is included.
Each battery provides 10.1kWh nominal capacity and 9.6kWh usable capacity, with up to six 10.1kWh battery modules able to operate in parallel.
The modular design allows additional battery capacity to be added as household energy requirements increase.
| Battery Modules | Nominal Capacity | Usable Capacity |
|---|---|---|
| 1 Γ 10.1kWh | 10.1kWh | 9.6kWh |
| 2 Γ 10.1kWh | 20.2kWh | 19.2kWh |
| 3 Γ 10.1kWh | 30.3kWh | 28.8kWh |
| 4 Γ 10.1kWh | 40.4kWh | 38.4kWh |
| 5 Γ 10.1kWh | 50.5kWh | 48.0kWh |
| 6 Γ 10.1kWh | Up to 60.5kWh system capacity | 57.6kWh |
AlphaESS specifies the 10.1kWh battery configuration as expandable up to 60.5kWh.
The SMILE-G3-BAT-10.1P uses Lithium Iron Phosphate (LiFePOβ) battery chemistry and provides a 95% depth of discharge.
LFP technology is widely used in residential energy storage and provides a strong combination of safety, cycle life and long-term performance.
Adding a secondary battery allows a compatible AlphaESS system to store more excess solar generation during the day for use later.
Additional storage can be particularly useful for larger households, EV charging, electric hot water, pool equipment, high evening consumption and homes with larger solar systems.
10.1kWh nominal battery capacity
9.6kWh usable battery capacity
95% depth of discharge
LiFePOβ (LFP) battery chemistry
Expandable with up to 6 batteries in parallel
Up to 60.5kWh system capacity
96V nominal battery voltage
60A maximum charging/discharging current
10,000-cycle specification under AlphaESS test conditions
Designed for compatible AlphaESS SMILE-G3 systems
The battery specifications are confirmed in the AlphaESS G3 datasheet.
Model: SMILE-G3-BAT-10.1P
Product Type: Secondary / Expansion Battery
Battery Chemistry: LFP (LiFePOβ)
Nominal Capacity: 10.1kWh
Usable Capacity: 9.6kWh
Depth of Discharge: 95%
Nominal Voltage: 96V
Battery Voltage Range: 91.5β106.5V
Maximum Charging/Discharging Current: 60A
Operating Temperature Range: -10Β°C to 50Β°C
Battery Connection: 1β6 batteries in parallel
Cycle Life: 10,000 cycles under specified test conditions
AlphaESS specifies a 10-year battery performance warranty for the SMILE-G3 residential system.
This product is an expansion battery only and does not include an inverter.
It is intended for expansion of a compatible AlphaESS SMILE-G3 system. Compatibility with the existing inverter, battery configuration and system should be confirmed before purchase.
Additional cables, connection equipment or other expansion hardware may be required depending on the existing installation.
Installation and commissioning must be carried out in accordance with AlphaESS requirements and applicable Australian electrical standards.
1 Γ AlphaESS SMILE-G3-BAT-10.1P 10.1kWh Secondary Battery
Inverter and installation are not included unless specifically stated.
All our products are covered by the Manufacturer's Warranty, which guarantees that they will be free from defects in materials and workmanship under normal use and service. The specific terms and duration of the warranty may vary depending on the product and the manufacturer. Please refer to the product's documentation or contact our customer support team for detailed warranty information.
Warranty Claim Process
In the unfortunate event that you encounter a faulty product, we want to make the warranty claim process as seamless as possible for you. To initiate a warranty claim, please follow these steps:
If damage is confirmed to be from normal wear-and-tear, drops, unauthorized repairs, or other non-warranty factors, service and shipping fees will apply. In such cases, we will contact the customer for approval before proceeding with paid repairs.
Unfortunately we cannot provide loaner units during the warranty repair process. For mission-critical equipment, we highly recommend purchasing backup units to prevent downtime in case of defects.
You have 30 calendar days to return an item from the date you received it.
To be eligible for a return:
Upon receiving your order, we kindly request that you thoroughly inspect all packages within 7 days of delivery. This inspection period is crucial as it allows you ample time to identify any visible damage caused during transit. Please keep in mind that promptly reporting any freight damage is vital in safeguarding your right to file a claim and ensuring a swift resolution.
Should you identify any freight damage during the inspection, we urge you to notify us immediately. Our customer support team is ready to assist you through the claim filing process and provide the necessary guidance to ensure a smooth and hassle-free experience.
The advertised price for this product includes the applicable STC battery rebate, applied as a pre-discount at the time of purchase.
To be eligible for the battery rebate:
Supply-only purchases are not eligible for the battery rebate.
By proceeding with this purchase, the customer agrees to assign all eligible Small-scale Technology Certificates (STCs) associated with the battery installation to Solar Battery Supermarket (or its nominated agent).
This assignment allows the rebate to be applied as a point-of-sale discount.
If the customer does not agree to assign the STCs, the full non-rebated price of the battery system will apply.
Installation by a licensed and accredited installer is mandatory to qualify for the rebate-adjusted price.
Standard metro installation is available from $500, subject to property assessment.
Additional works (including switchboard upgrades, long cable runs, or non-standard installations) may incur extra charges and will be quoted and approved prior to installation.
To assess eligibility and proceed with installation, the customer may be required to provide:
Failure to provide required information may delay installation or affect rebate eligibility.
This rebate offer does not limit your rights under Australian Consumer Law.
