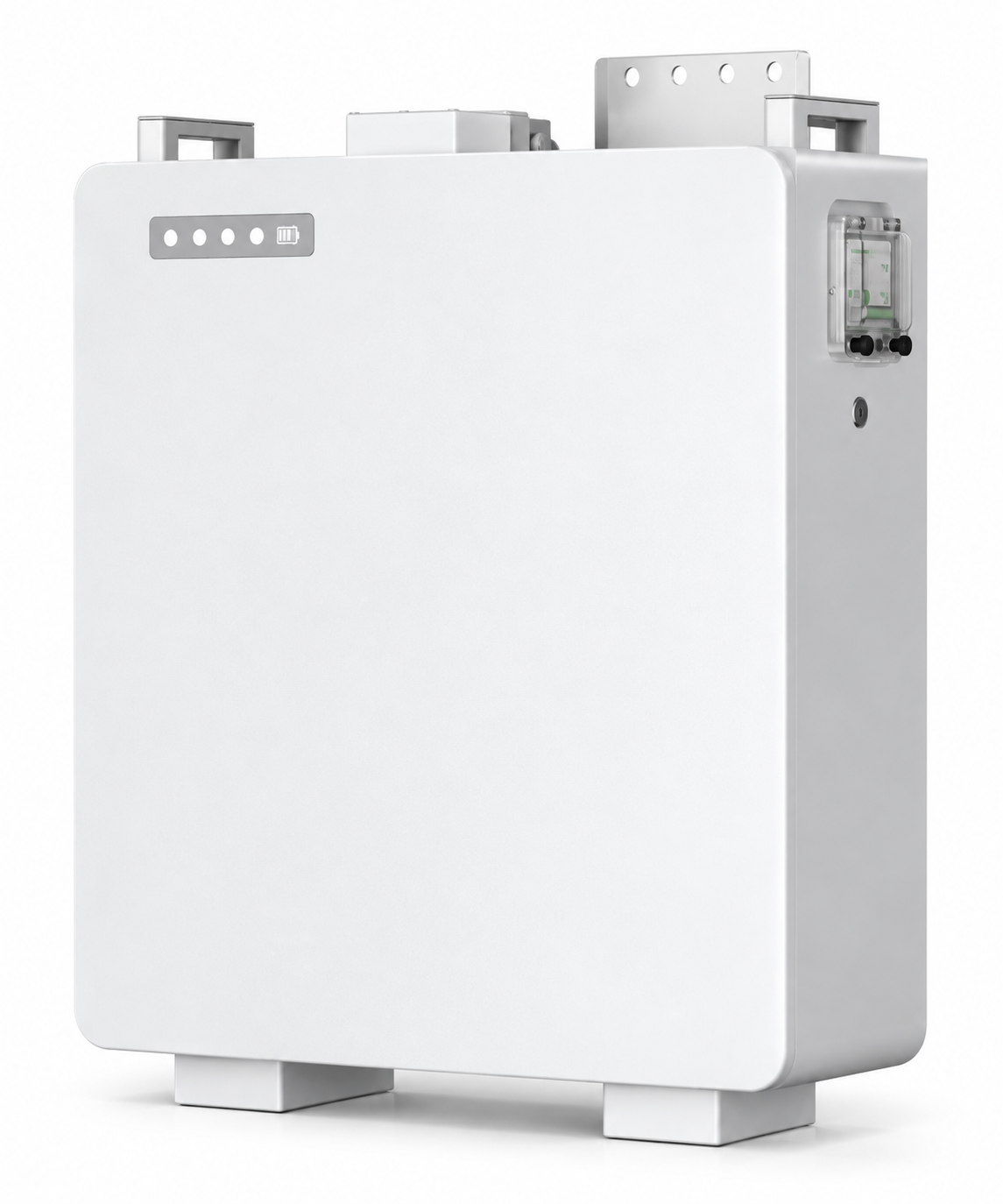

The AlphaESS SMILE-M-BAT-13.9P is a 13.99kWh expansion battery designed to increase the storage capacity of a compatible existing AlphaESS SMILE-M5 battery system.
This listing is for the battery expansion module only. It is intended for customers who already have a compatible AlphaESS SMILE-M5 system and want to add additional battery capacity.
Each SMILE-M-BAT-13.9P provides 13.99kWh of usable battery capacity, allowing compatible systems to be expanded in 13.99kWh increments. AlphaESS specifies configurations of up to four BAT-13.9P batteries connected in parallel.
Adding additional SMILE-M-BAT-13.9P batteries allows an existing compatible system to be configured for:
| Battery Configuration | Total Usable Capacity |
|---|---|
| 1 Γ BAT-13.9P | 13.99kWh |
| 2 Γ BAT-13.9P | 27.98kWh |
| 3 Γ BAT-13.9P | 41.97kWh |
| 4 Γ BAT-13.9P | 55.96kWh |
The manufacturer's datasheet specifies 1β4 battery modules in parallel.
Adding additional battery capacity can allow your home to store more excess solar generation for use later in the day or overnight.
Additional storage may be particularly useful for homes with larger solar systems, high evening electricity consumption, EV charging, electric hot water, pool equipment or increasing household electricity requirements.
Expansion also allows an existing AlphaESS system to be upgraded without replacing the complete battery system, subject to system compatibility and AlphaESS installation requirements.
The SMILE-M-BAT-13.9P uses LFP (LiFePO4) battery chemistry and provides 13.99kWh of energy capacity per module.
AlphaESS specifies a 100% Depth of Discharge (DoD) for the BAT-13.9P, providing 13.99kWh of usable capacity from each battery module.
The battery management system monitors key operating parameters including:
System voltage
Current
Cell voltage
Cell temperature
PCBA temperature
Communication with the system is via CAN.
The SMILE-M-BAT-13.9P has an IP65 protection rating for installation in suitable locations in accordance with AlphaESS installation requirements.
Model: SMILE-M-BAT-13.9P
Product Type: Battery Expansion Module
Battery Chemistry: LFP (LiFePO4)
Energy Capacity: 13.99kWh
Usable Capacity: 13.99kWh
Depth of Discharge: 100%
Nominal Voltage: 48V
Operating Voltage Range: 45β54V
Maximum Charging Current: 105A
Maximum Discharging Current: 105A
Rated DC Power: 5.04kW
Communication: CAN
Installation Method: Base Installation
IP Rating: IP65
Dimensions: 620 Γ 240 Γ 710mm
Weight: 115kg
Battery Connection: 1β4 in parallel
Battery Performance Warranty: 10 Years
Charge Operating Temperature: 0Β°C to 50Β°C
Discharge Operating Temperature: -10Β°C to 50Β°C
Relative Humidity: 0β95%, non-condensing
1 Γ AlphaESS SMILE-M-BAT-13.9P 13.99kWh Battery Expansion Module
Hybrid inverter and other system components are not included unless specifically stated.
