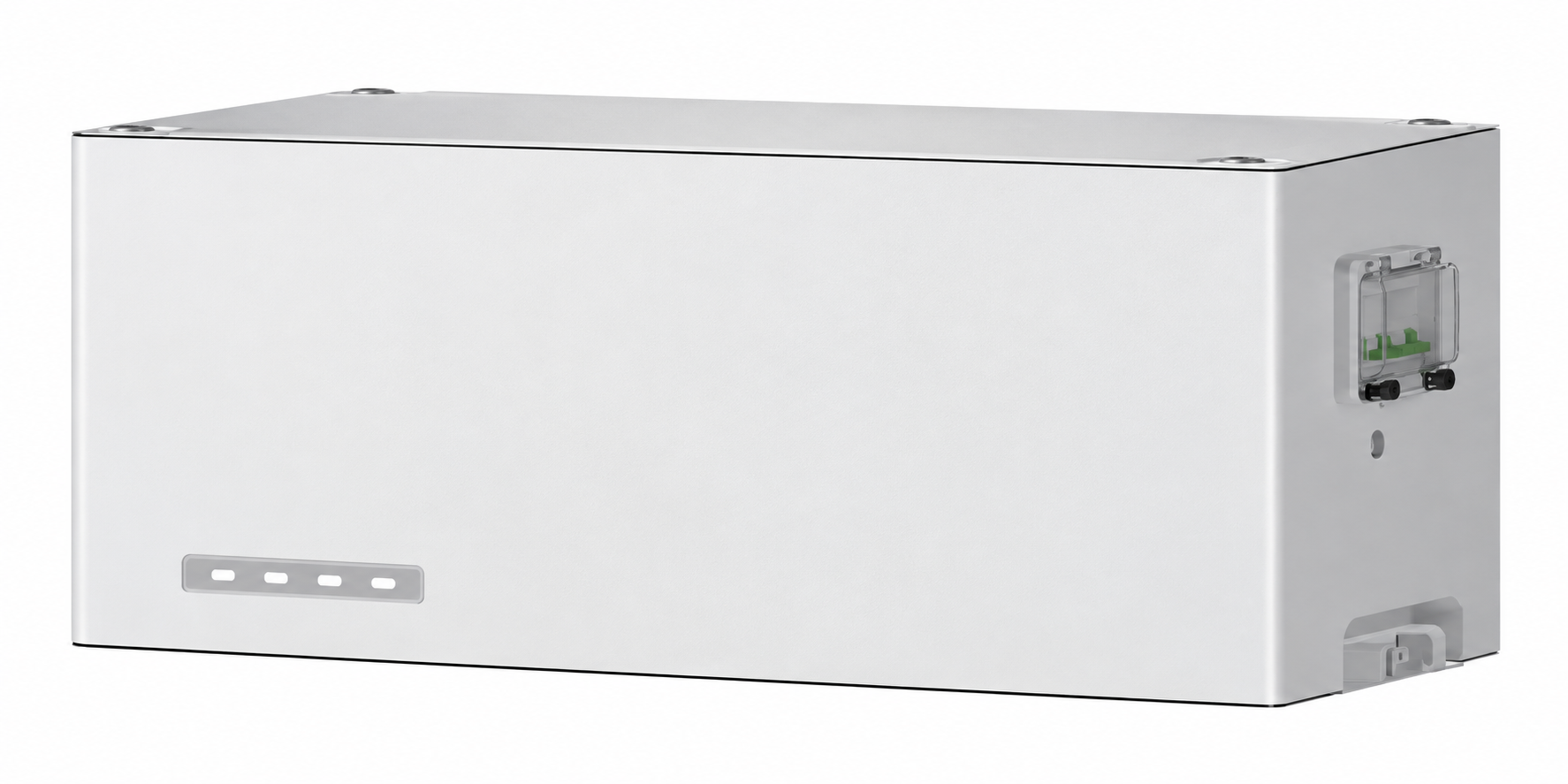

The AlphaESS SMILE-M-BAT-5P is a 5kWh lithium iron phosphate (LiFePO4) expansion battery module designed for compatible AlphaESS SMILE-M5 residential energy storage systems.
This listing is for one 5kWh expansion battery module only. It is intended for expanding an existing compatible SMILE-M5 battery system and is not a complete solar battery system or hybrid inverter.
The SMILE-M5 platform supports 5kWh to 30kWh of battery capacity using 5kWh battery modules.
Each SMILE-M-BAT-5P provides:
5kWh nominal capacity
LFP (LiFePO4) battery chemistry
Up to 100A charging/discharging current
Stackable modular design
IP65 protection
Indoor/outdoor capable system design
Designed for expansion of the AlphaESS SMILE-M5 system
The datasheet specifies support for 1 to 6 battery modules in parallel, allowing the SMILE-M5 platform to scale up to 30kWh.
The SMILE-M-BAT-5P is designed around a simple stackable architecture, making it possible to increase the storage capacity of a compatible SMILE-M5 system as energy requirements grow.
AlphaESS specifically highlights quick setup through its stackable design.
The SMILE-M5 platform uses LFP (LiFePO4) battery chemistry with a stated 100% depth of discharge for the system.
LFP chemistry is particularly well suited to stationary solar storage applications where long-term cycling, safety and regular charging and discharging are important.
Compatible SMILE-M5 systems can be configured with up to six 5kWh battery modules:
| Modules | Nominal Capacity |
|---|---|
| 1 | 5kWh |
| 2 | 10kWh |
| 3 | 15kWh |
| 4 | 20kWh |
| 5 | 25kWh |
| 6 | 30kWh |
The datasheet specifies 1–6 modules in parallel.
The SMILE-M-BAT-5P carries an IP65 protection rating, providing protection against dust and water ingress for suitable installations.
The battery module is specified for:
Charging: 0°C to +50°C
Discharging: -10°C to +50°C
5kWh expansion battery module
Model SMILE-M-BAT-5P
LFP / LiFePO4 battery technology
Designed for AlphaESS SMILE-M5 systems
Stackable modular architecture
1–6 battery modules supported
Expandable system capacity up to 30kWh
Up to 100A charging/discharging current
IP65 protection
Compact integrated design
Suitable for expanding an existing compatible SMILE-M5 installation
| Specification | SMILE-M-BAT-5P |
|---|---|
| Product Type | Expansion Battery Module |
| Nominal Capacity | 5kWh |
| Battery Chemistry | LFP / LiFePO4 |
| Module Connection | 1–6 in parallel |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Charging Temperature | 0°C to +50°C |
| Discharging Temperature | -10°C to +50°C |
| IP Rating | IP65 |
| Dimensions | 620 × 390 × 240mm |
| Weight | 49.5kg |
| Compatible System | AlphaESS SMILE-M5 |
This product is one 5kWh SMILE-M-BAT-5P expansion battery module only.
It does not include the SMILE-M5 5kW hybrid inverter or a complete AlphaESS battery system. Compatibility with the customer's existing AlphaESS system should be confirmed before purchase.
