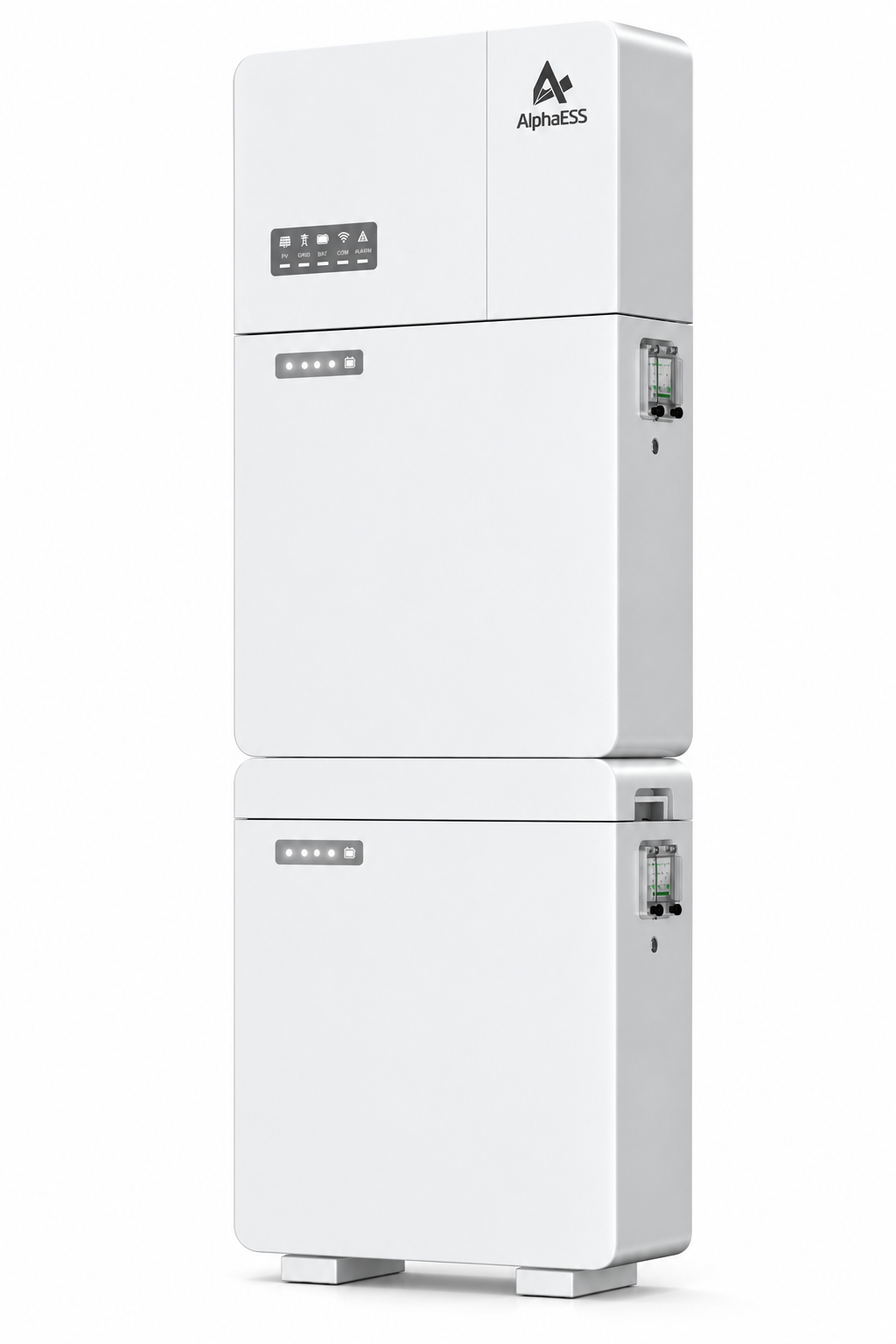

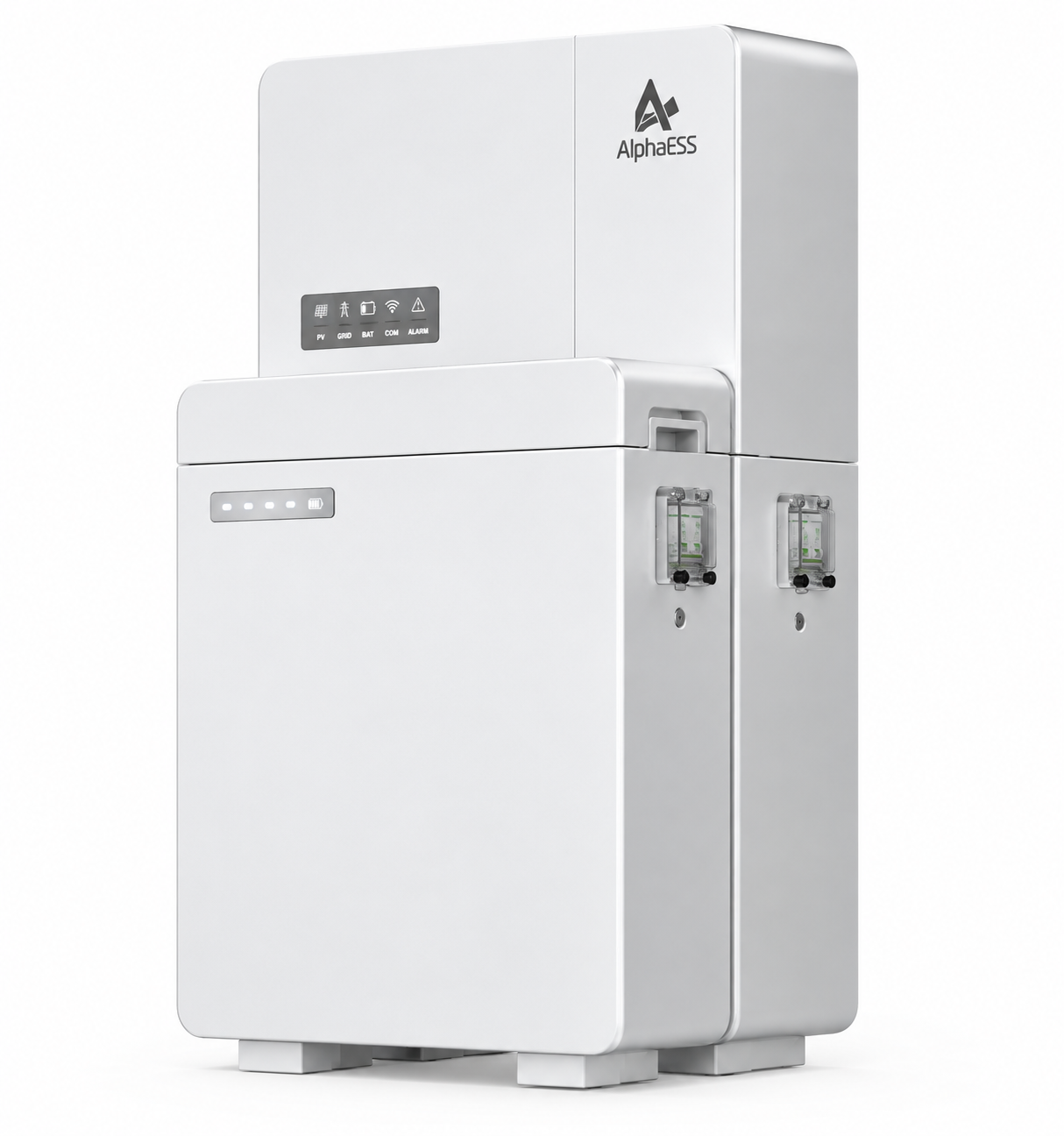

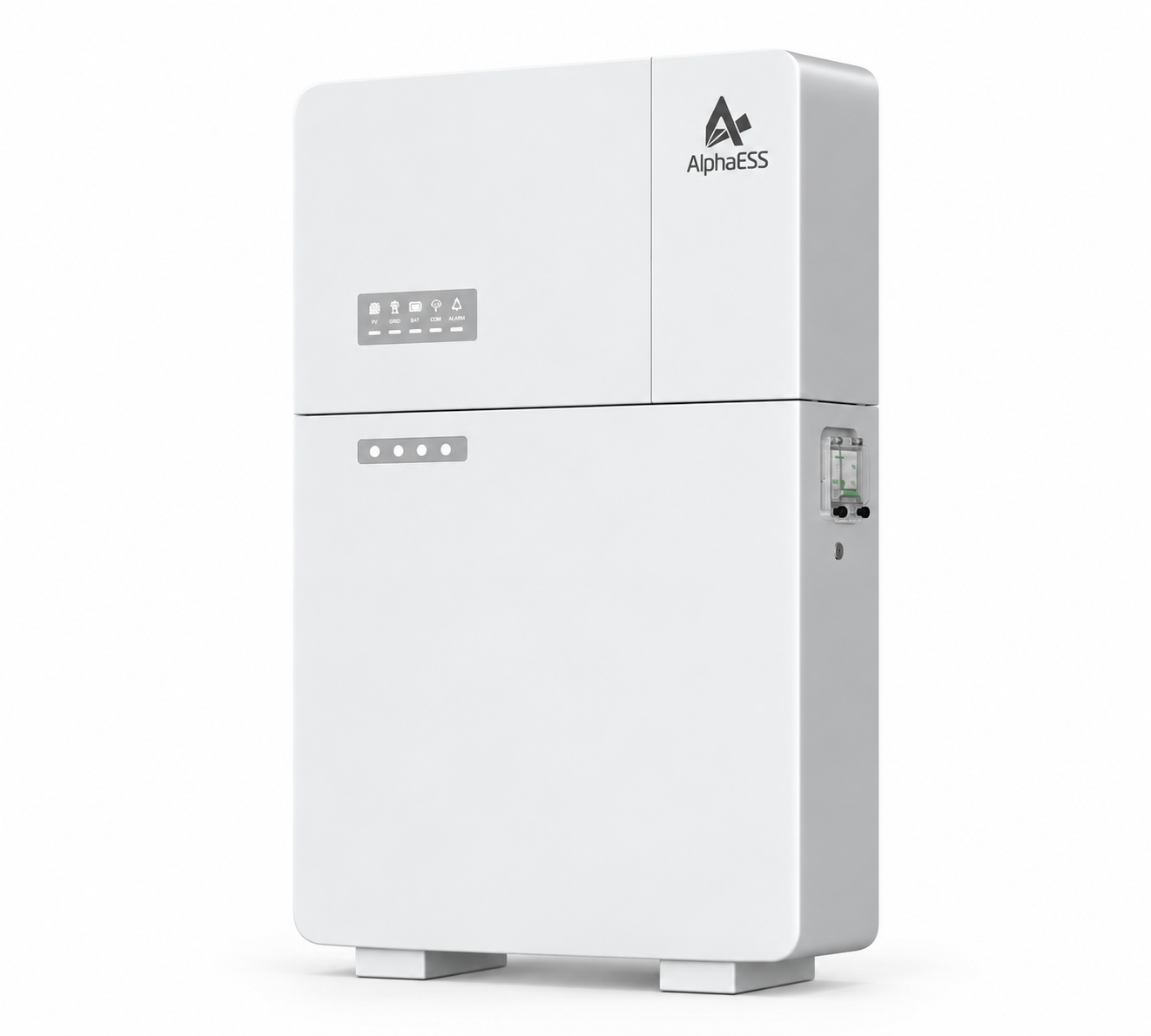

The AlphaESS SMILE-M5 is a premium all-in-one residential solar and battery storage system combining a 5kW single-phase hybrid inverter with high-capacity AlphaESS LiFePO4 battery storage.
Available in 13.99kWh, 27.98kWh and 41.97kWh configurations, the SMILE-M5 gives homeowners the flexibility to choose a battery capacity suited to their electricity consumption, solar production and backup requirements.
The system uses the AlphaESS SMILE-M-BAT-13.9P battery, providing 13.99kWh usable capacity per module with 100% depth of discharge. Additional battery modules can be connected in parallel to increase total storage capacity as energy requirements grow.
13.99kWh System
5kW SMILE-M5 Hybrid Inverter + 1 Γ 13.99kWh battery
A strong starting point for typical solar households wanting to store excess daytime solar for use during the evening and overnight.
27.98kWh System
5kW SMILE-M5 Hybrid Inverter + 2 Γ 13.99kWh batteries + extension configuration
Designed for larger households, higher overnight consumption, EV owners and homes with substantial excess solar generation.
41.97kWh System
5kW SMILE-M5 Hybrid Inverter + 3 Γ 13.99kWh batteries + extension configuration
A very high-capacity residential storage solution suited to large homes and households wanting significantly greater stored-energy availability.
5kW Hybrid Inverter
The integrated 5kW single-phase hybrid inverter manages solar generation, battery charging, household consumption and grid interaction from one energy platform.
High-Capacity 13.99kWh LFP Battery
Each SMILE-M-BAT-13.9P provides 13.99kWh of usable storage using lithium iron phosphate (LiFePO4) battery chemistry.
100% Depth of Discharge
The battery is specified with 100% depth of discharge, allowing homeowners to maximise the available storage capacity of the system.
Expandable Battery Architecture
Start with 13.99kWh and increase the system capacity as your household's energy requirements grow.
Available configurations:
13.99kWh β 1 battery
27.98kWh β 2 batteries
41.97kWh β 3 batteries
The BAT-13.9P architecture supports up to four batteries in parallel for a maximum specified capacity of 55.96kWh.
Backup Power Capability
When correctly configured and installed, the hybrid system can provide backup power to selected household circuits during a grid outage.
IP65 Protection
The BAT-13.9P carries an IP65 ingress-protection rating, making the system suitable for appropriately selected installation locations.
Intelligent Battery Management
The integrated BMS monitors system voltage, current, individual cell voltage, cell temperature and PCBA temperature, with CAN communication between system components.
Inverter
Model: AlphaESS SMILE-M5
Rated Output: 5kW
Phase: Single Phase
Type: Hybrid Solar & Battery Inverter
Battery
Model: SMILE-M-BAT-13.9P
Battery Chemistry: LiFePO4 (LFP)
Capacity Per Battery: 13.99kWh
Usable Capacity: 13.99kWh
Depth of Discharge: 100%
Nominal Voltage: 48V
Operating Voltage: 45β54V
Maximum Charging Current: 105A
Maximum Discharging Current: 105A
Rated DC Power: 5.04kW
Communication: CAN
IP Rating: IP65
Dimensions: 620 Γ 240 Γ 710mm per battery
Weight: 115kg per battery
Battery Performance Warranty: 10 Years
Charging Temperature: 0Β°C to 50Β°C
Discharging Temperature: -10Β°C to 50Β°C
Relative Humidity: 0β95%, non-condensing
The SMILE-M5 is a strong option for homeowners who want more than a small entry-level home battery. Its large 13.99kWh modules make it possible to build substantial residential storage capacity without using numerous small battery modules.
With a 5kW hybrid inverter, LFP battery chemistry, 100% depth of discharge, modular expansion and integrated battery management, the system is designed to maximise solar self-consumption while providing flexibility for future household energy requirements.
It's particularly suited to homes with large solar systems, high evening consumption, EV charging, pool equipment, electric hot water or other substantial electrical loads.
AlphaESS specifies a 10-year battery performance warranty for the SMILE-M-BAT-13.9P.
