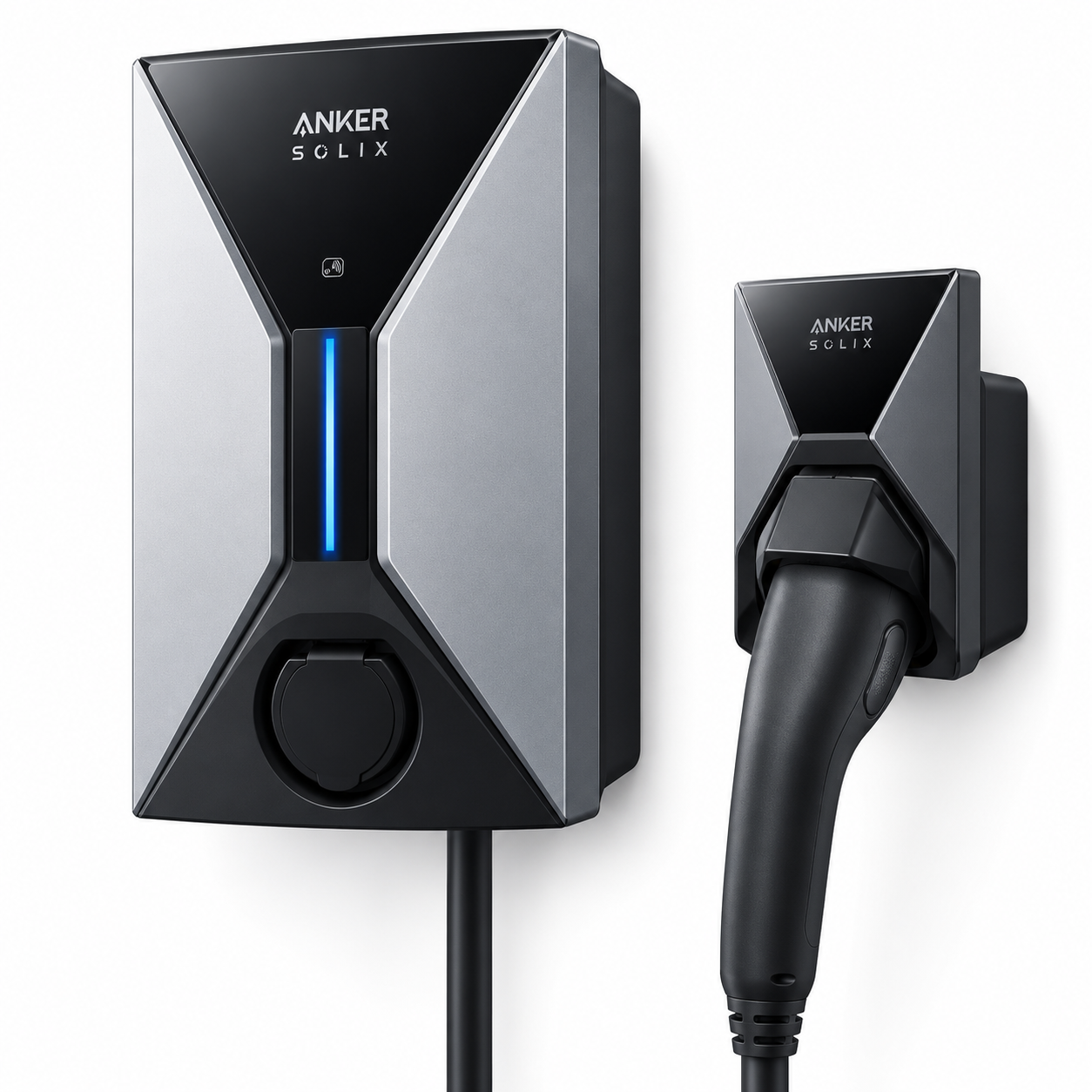

The Anker SOLIX V1 Smart EV Charger is a powerful, intelligent home EV charging solution available in 7.4kW single-phase and 22kW three-phase configurations.
Designed for homes with solar as well as standard grid-connected charging, the SOLIX V1 combines smart charging, solar optimisation, scheduling and dynamic load balancing with convenient control through the Anker app.
A permanently attached 7-metre Type 2 charging cable provides plenty of reach for driveway and garage installations, while IP65 and IK10 protection make the charger suitable for indoor and outdoor use.
The Anker SOLIX V1 is available in two power configurations:
| Version | 7.4kW | 22kW |
|---|---|---|
| Phase | Single Phase | Three Phase |
| Rated Power | 7.4kW | 22kW |
| Nominal Voltage | 230V ±20% | 400V ±20% |
| Nominal Current | 32A | 32A |
| Vehicle Connection | Type 2 | Type 2 |
| Cable Length | 7m | 7m |
| Network | TN, TT | TN, TT |
| Weight | 5.45kg | 5.88kg |
This makes the SOLIX V1 suitable for everything from a standard single-phase Australian home installation through to properties with three-phase power wanting substantially faster AC charging.
For homes equipped with solar, the SOLIX V1 provides dedicated charging modes designed to make better use of available solar generation.
Charging modes include:
Solar Only Mode
Solar & Grid Mode
Smart Charging
Scheduled Charging
Auto Start
Anker also promotes AI-powered charging designed to maximise savings. The datasheet notes that an Anker SOLIX Smart Meter or Shelly Meter is required for this functionality.
The SOLIX V1 supports load balancing when combined with an Anker SOLIX Smart Meter or compatible Shelly meter.
Load balancing helps coordinate EV charging with the property's electrical consumption, allowing the charging system to respond to household demand.
This is particularly useful with higher-powered EV charging installations where other large household loads may operate at the same time.
Control and monitor the charger through the Anker app.
The charger provides:
App control
Charging status information
Scheduled charging
Smart charging
RFID authentication
App authentication
Bluetooth authentication
Charging status can be viewed through the charger's RGB LED indicators and the app.
The SOLIX V1 provides multiple communication options for integration and smart management:
Wi-Fi
Ethernet
Bluetooth
RS485
OCPP 1.6J
OCPP 1.6J support also makes the charger suitable for installations where an OCPP-compatible charging management platform is required.
The SOLIX V1 supports RFID authentication, allowing charging access to be controlled using an RFID card.
The supplied package shown in the datasheet includes one RFID card.
Authentication options include:
RFID
Anker app
Bluetooth
Both the 7.4kW and 22kW versions feature a permanently connected 7-metre Type 2 charging cable.
The longer cable provides flexibility when positioning the charger in a garage, carport or driveway and makes it easier to reach vehicles with charge ports located at different positions.
The SOLIX V1 is designed for indoor and outdoor installations with an operating temperature range of -30°C to +50°C.
Protection and environmental specifications include:
IP65 ingress protection
IK10 impact protection
Indoor and outdoor installation
-30°C to +50°C operating temperature
5%–95% non-condensing relative humidity
Up to 2,000m operating altitude
30dB operating noise
The Anker SOLIX V1 incorporates a range of electrical protection functions.
These include:
DC 6mA residual current detection
Overcurrent protection
Over-temperature protection
UL94 fire classification
The datasheet specifies that an external Type A 30mA RCD is required in accordance with local regulations.
Despite delivering up to 22kW of three-phase charging power, the SOLIX V1 has a compact enclosure measuring:
211 × 360 × 120mm
The datasheet specifies mounting options for cement and wooden walls.
Available in 7.4kW single-phase and 22kW three-phase
32A maximum nominal charging current
7-metre Type 2 charging cable
Solar Only charging mode
Solar & Grid charging mode
Smart charging
Scheduled charging
Auto Start
Dynamic load balancing support
Anker app control
RFID authentication
Bluetooth authentication
Wi-Fi connectivity
Ethernet connectivity
Bluetooth
RS485
OCPP 1.6J
RGB LED charging status
IP65 protection
IK10 impact protection
Indoor and outdoor installation
DC 6mA residual current detection
Overcurrent protection
Over-temperature protection
3-year limited warranty
8-year stated product lifespan
| Specification | 7.4kW Version | 22kW Version |
|---|---|---|
| Rated Power | 7.4kW | 22kW |
| Phase | Single Phase | Three Phase |
| Nominal Voltage | 230V ±20% | 400V ±20% |
| Nominal Current | 32A | 32A |
| Frequency | 50Hz | 50Hz |
| Vehicle Connection | Type 2 | Type 2 |
| Cable Length | 7m | 7m |
| Network Types | TN, TT | TN, TT |
| Protocol | OCPP 1.6J | OCPP 1.6J |
| Communication | Wi-Fi, Ethernet, Bluetooth, RS485 | Wi-Fi, Ethernet, Bluetooth, RS485 |
| Authentication | RFID, App, Bluetooth | RFID, App, Bluetooth |
| Protection Rating | IP65 | IP65 |
| Impact Protection | IK10 | IK10 |
| Operating Temperature | -30°C to +50°C | -30°C to +50°C |
| Dimensions | 211 × 360 × 120mm | 211 × 360 × 120mm |
| Weight | 5.45kg | 5.88kg |
| Warranty | 3 Years Limited | 3 Years Limited |
| Product Lifespan | 8 Years | 8 Years |
According to the supplied Anker datasheet, the package includes:
Anker SOLIX V1 EV Charger body
7m Type 2 charging cable
Wire box
EV charger holster
Documentation
1 × RFID card
The Anker SOLIX Smart Meter is shown as optional and should not be assumed to be included with the standard charger.
With a choice of 7.4kW single-phase or 22kW three-phase charging, the Anker SOLIX V1 provides a strong combination of charging performance, solar integration and smart control.
Its 7m Type 2 cable, solar charging modes, load balancing capability, app and RFID control, OCPP support and IP65/IK10 construction make it particularly well suited to modern Australian homes looking to integrate EV charging with their energy system.
