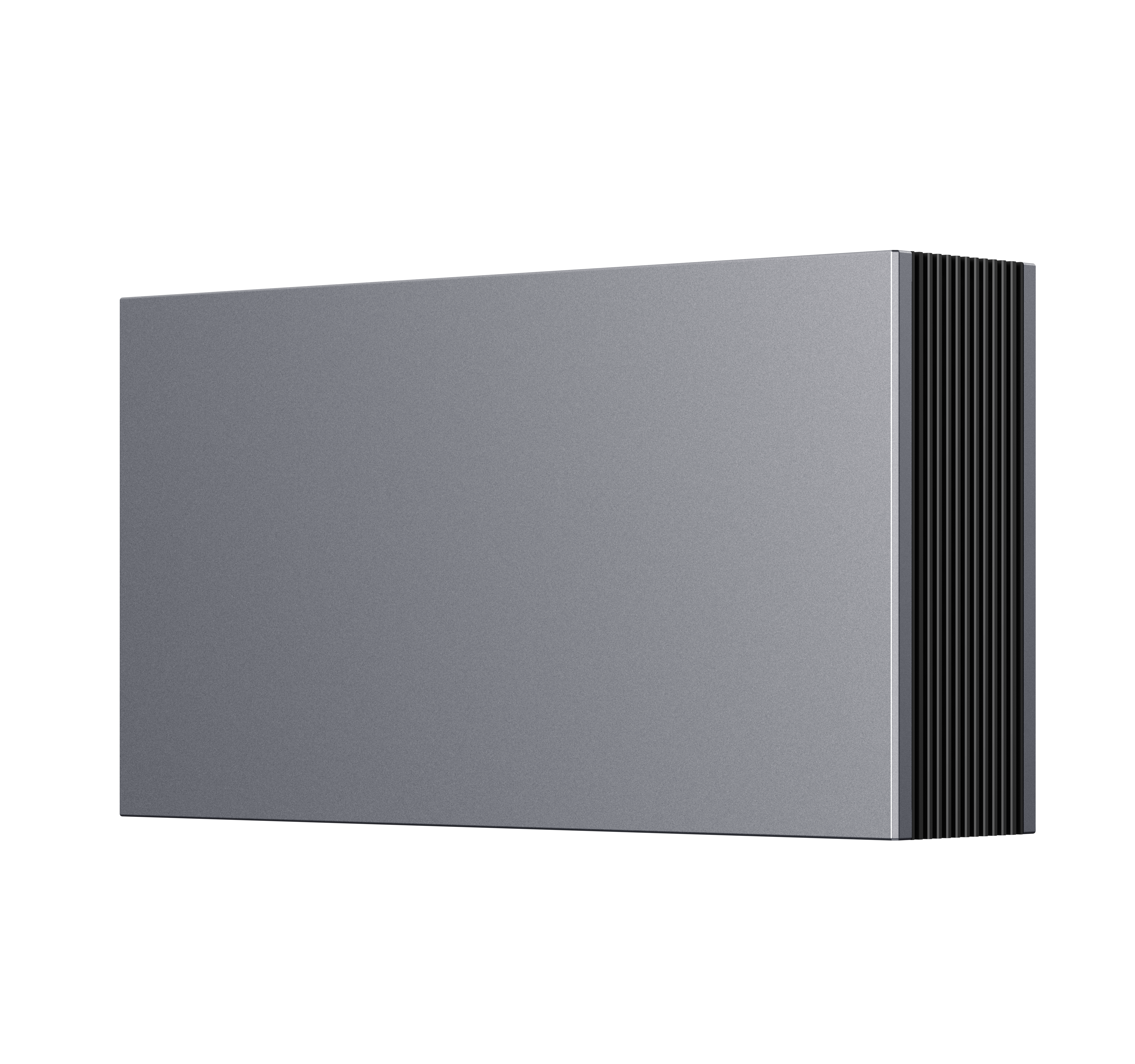

Battery Module Only – 5kWh LFP High Voltage Expansion Battery
Expand your Anker SOLIX X1 energy storage system with the Anker SOLIX X1-B5-H 5kWh Battery Module. Designed as part of the modular Anker SOLIX X1 platform, each battery module provides 5kWh of LFP battery capacity, allowing compatible X1 systems to be configured from 5kWh up to 30kWh of total battery capacity.
The X1-B5-H uses Lithium Iron Phosphate (LFP) battery technology and operates across a 350–550V DC high-voltage range. Its slim 150mm-deep design, IP66 protection rating and wide operating temperature range make it suitable for flexible residential energy storage installations.
5kWh battery capacity per module
High-voltage 350–550V DC battery architecture
Lithium Iron Phosphate (LFP) battery technology
Modular X1 system supports 5kWh–30kWh battery configurations
Maximum charge/discharge power: 3kW per module
Maximum charge/discharge current: 7.6A
IP66 ingress protection
Operating temperature from -20°C to 55°C
Maximum operating altitude up to 4,000m, with power derating above 2,000m
Compact 670 × 360 × 150mm module dimensions
51kg module weight
10-year warranty*
Designed specifically for the Anker SOLIX X1 Energy Storage System
| Specification | Anker SOLIX X1-B5-H |
|---|---|
| Model | X1-B5-H |
| Battery Capacity | 5kWh |
| Battery Chemistry | Li-ion (LFP) |
| Battery Voltage Range | 350–550V DC |
| Maximum Charge / Discharge Power | 3kW |
| Maximum Charge / Discharge Current | 7.6A |
| Dimensions (W × H × D) | 670 × 360 × 150mm |
| Weight | 51kg |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C to 55°C |
| Maximum Operating Altitude | 4,000m |
| Warranty | 10 Years* |
| Certifications | IEC 62619, IEC 62040-1, VDE-AR-E 2510-50, UN38.3 |
Specifications are taken from the Anker SOLIX X1 Hybrid Single-Phase datasheet.
The Anker SOLIX X1 platform allows battery capacity to be increased by adding X1-B5-H modules:
1 Module – 5kWh
2 Modules – 10kWh
3 Modules – 15kWh
4 Modules – 20kWh
5 Modules – 25kWh
6 Modules – 30kWh
For floor-mounted installations, Anker specifies a maximum of five battery modules plus one power module per column. Wall-mounted installations support up to four battery modules plus one power module per column. Higher-capacity configurations can therefore use a two-column installation arrangement.
1 × Anker SOLIX X1-B5-H 5kWh Battery Module
This listing is for the 5kWh X1-B5-H battery module only.
The Anker SOLIX X1 power/inverter module and other components required to create a complete energy storage system are not included unless specifically stated elsewhere in the listing.
This product is intended for use as part of a compatible Anker SOLIX X1 high-voltage energy storage system and should be selected and installed by a suitably qualified installer.
*Warranty is subject to the terms and conditions of the Anker SOLIX X1 Home Energy Storage System Warranty Policy. Actual battery capacity can vary depending on environmental, transportation and storage conditions.
