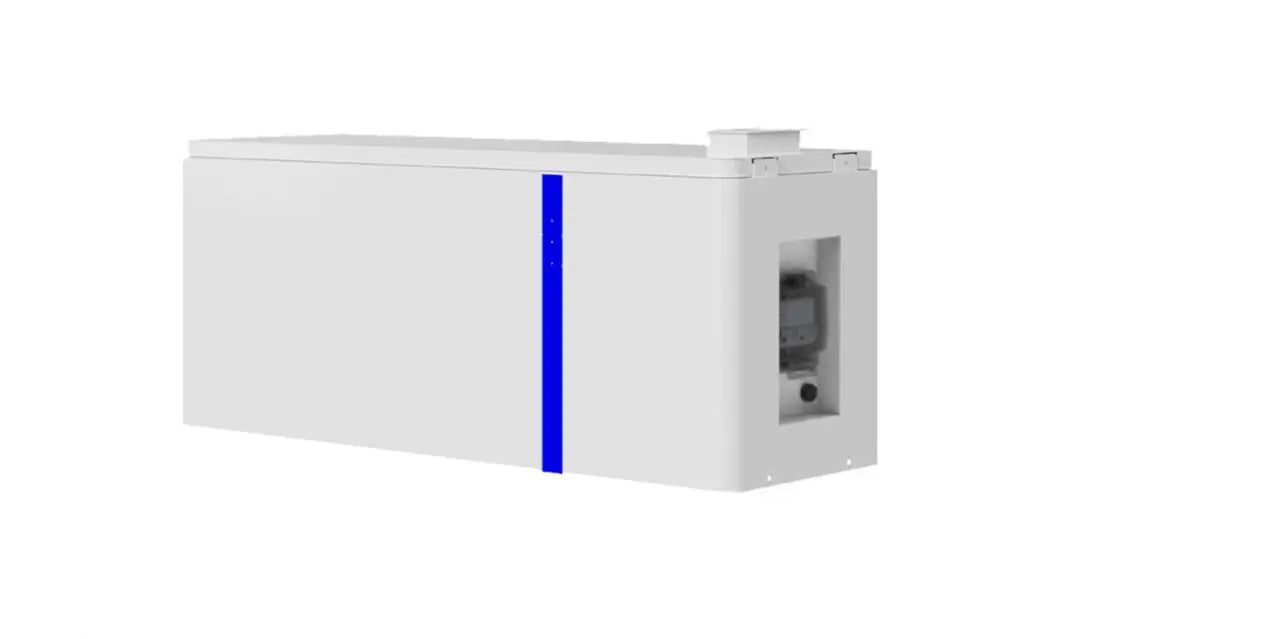

Increase the capacity of your DEYE Energy Storage System with the DEYE AI-W5.1-B 5.12kWh Battery Module. Designed for modular expansion, each battery module adds 5.12kWh of nominal energy, allowing you to grow your storage system as your energy needs increase.
Built using Lithium Iron Phosphate (LiFePO₄) technology, the AI-W5.1-B offers exceptional safety, long service life, and reliable performance for residential and commercial solar energy storage systems. The intelligent battery architecture supports automatic networking, remote monitoring, firmware upgrades, and seamless integration with compatible DEYE hybrid inverters.
This listing is for one (1) DEYE AI-W5.1-B Battery Module only.
Not Included:
Power Distribution Unit (PDU)
Battery Base
Battery-to-Inverter Cable Kit
Hybrid Inverter
Mounting Hardware
This battery module cannot operate as a standalone battery and must be installed as part of a compatible DEYE AI-W5.1-B battery system. The PDU, base and connection cables are sold separately or included with complete battery systems.
5.12kWh Nominal Battery Capacity
Premium LiFePO₄ (Lithium Iron Phosphate) cells
Safe cobalt-free battery chemistry
Expandable modular battery system
Stack 1–6 battery modules per system
Supports up to 6 battery clusters (36 modules) for a maximum 184kWh capacity
Built-in intelligent Battery Management System (BMS)
Automatic battery networking
Remote monitoring and firmware upgrades
High discharge capability
IP65 rated when installed in the complete battery system
Wall-mounted or floor-mounted installation
10-Year Manufacturer's Warranty
The AI-W5.1-B is designed to grow with your energy requirements.
| Battery Modules | Nominal Capacity | Usable Capacity* |
|---|---|---|
| 1 | 5.12kWh | 4.6kWh |
| 2 | 10.24kWh | 9.2kWh |
| 3 | 15.36kWh | 13.8kWh |
| 4 | 20.48kWh | 18.4kWh |
| 5 | 25.60kWh | 23.0kWh |
| 6 | 30.72kWh | 27.6kWh |
*Usable energy based on 90% depth of discharge.
The AI-W5.1-B uses advanced Lithium Iron Phosphate battery cells, providing:
Superior thermal stability
Longer battery lifespan
High energy density
Excellent cycle life
Maintenance-free operation
Environmentally friendly cobalt-free chemistry
Intelligent battery protection via integrated BMS
Designed for reliable performance in demanding environments.
IP65 weather resistance (when installed as a complete system)
Natural cooling
Charge temperature: 0°C to 55°C
Discharge temperature: -20°C to 55°C
Wall or floor mounting
Remote monitoring support
Automatic battery module networking
| Feature | Specification |
|---|---|
| Model | AI-W5.1-B |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Energy | 5.12kWh |
| Usable Energy | 4.6kWh |
| Nominal Voltage | 51.2V |
| Operating Voltage | 43.2V – 57.6V |
| Capacity | 100Ah |
| Recommended Charge/Discharge Current | 50A |
| Maximum Charge/Discharge Current | 100A |
| Peak Current (10 Seconds) | 150A |
| Recommended Depth of Discharge | 90% |
| Battery Module Dimensions | 720 × 255 × 300mm |
| Battery Module Weight | 53kg |
| Communication | CAN 2.0, RS485 |
| Cycle Life | ≥6,000 Cycles |
| Energy Throughput | 16MWh |
| Installation | Wall or Floor Mounted |
| Warranty | 10 Years |
1 × DEYE AI-W5.1-B 5.12kWh Battery Module
Not Included
AI-W5.1-PDU1-B Power Distribution Unit
AI-W5.1 Battery Base
AI-W5.1-PCable1500 Battery Cable Kit
Hybrid Inverter
Designed for use with:
DEYE AI-W5.1-B Battery System
DEYE AI-W5.1-PDU1-B Power Distribution Unit
DEYE AI-W5.1 Battery Base
Compatible DEYE Hybrid Inverters
Genuine DEYE Products
Australian Warranty Support
Expert Technical Advice
Australia-Wide Delivery
Competitive Pricing
Professional After-Sales Support
Important: This is an expansion battery module only. A compatible DEYE AI-W5.1-B system with the required PDU and battery base is needed for operation. Installation must be carried out by a qualified installer in accordance with Australian standards.
