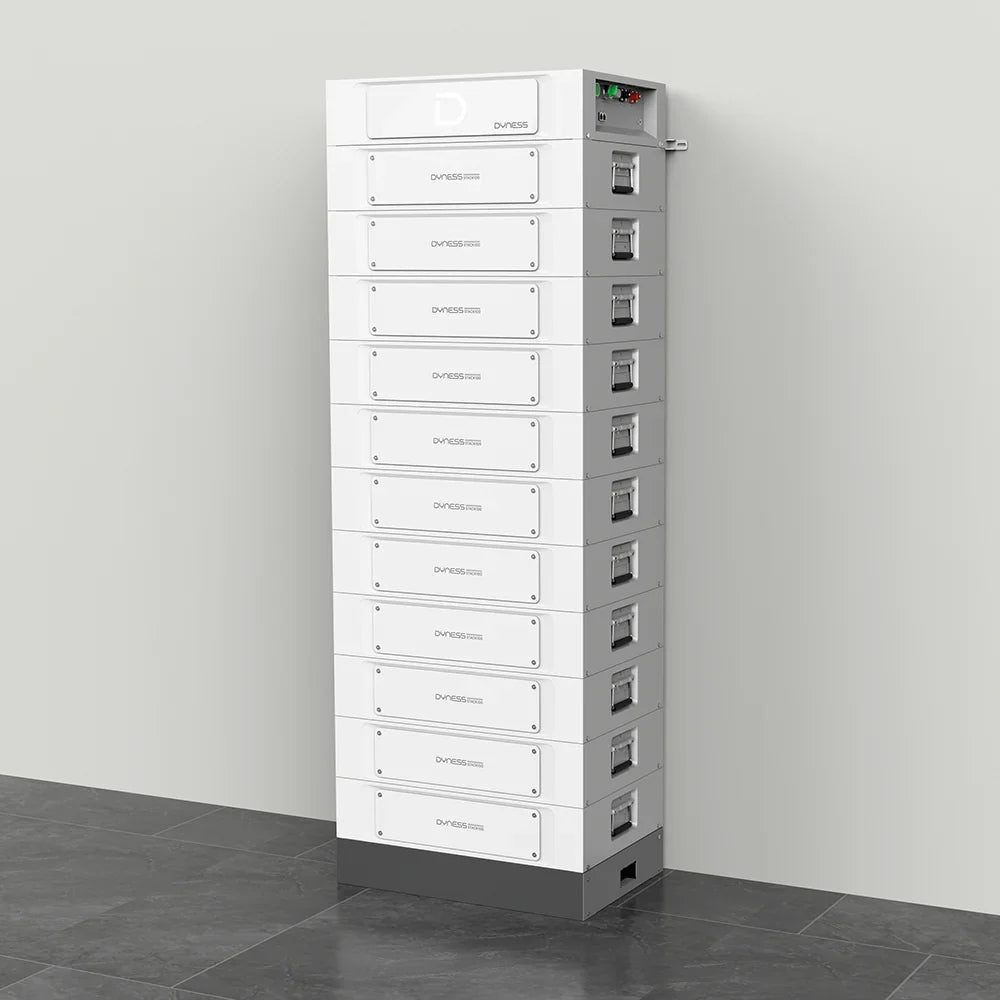

The Dyness STACK100 Pro is a premium high-voltage lithium iron phosphate (LiFePO₄) battery system engineered for residential, commercial and light industrial energy storage applications. Featuring a rackless, cable-free stackable design, the STACK100 Pro delivers exceptional scalability, fast installation and outstanding performance.
Each battery module provides 5.12kWh of nominal energy, with systems expandable from 15.36kWh to 76.8kWh per stack (3–15 modules). Up to 12 battery clusters can be connected in parallel, delivering a maximum system capacity of 921.6kWh for larger energy storage projects.
✔ Modular rackless stackable design
✔ Expandable from 15.36kWh to 76.8kWh per battery stack
✔ Up to 12 battery clusters in parallel (921.6kWh total capacity)
✔ Premium LiFePO₄ (Lithium Iron Phosphate) battery technology
✔ 1C charge & discharge capability
✔ Cable-free plug-and-play installation
✔ IP66 weather protection
✔ WiFi App monitoring
✔ CAN & RS485 communication
✔ Natural convection cooling (no noisy fans)
✔ Compatible with leading hybrid inverter brands
✔ 10-Year Manufacturer's Warranty
Whether you're installing a new solar battery system or expanding an existing installation, the Dyness STACK100 Pro offers unmatched flexibility.
Each battery module stores 5.12kWh, allowing you to build systems from:
For larger commercial applications, up to 12 complete battery stacks can operate in parallel, providing a total storage capacity of 921.6kWh.
Built with premium Lithium Iron Phosphate (LiFePO₄) cells, the STACK100 Pro provides excellent thermal stability, long service life and high operational safety.
Advanced safety features include:
Designed for demanding residential and commercial applications.
The STACK100 Pro eliminates complex wiring between battery modules.
Benefits include:
Monitor and manage your battery system through the Dyness App.
Features include:
The STACK100 Pro is designed to operate in harsh environments.
Compatible with many leading hybrid inverter brands, including:
(Please confirm compatibility for your specific inverter model before ordering.)
| Feature | Specification |
|---|---|
| Battery Chemistry | LiFePO₄ (LFP) |
| Battery Module Energy | 5.12kWh |
| Usable Energy | 4.864kWh |
| Module Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Modules per Stack | 3–15 |
| System Capacity | 15.36–76.8kWh |
| Maximum Parallel Clusters | 12 |
| Maximum System Capacity | 921.6kWh |
| Recommended Charge Rate | 0.5C (50A) |
| Maximum Charge/Discharge Rate | 1C (100A) |
| Peak Discharge Current | 125A (2 minutes) |
| Depth of Discharge | 95% |
| Cycle Life | ≥8,000 Cycles |
| Communication | CAN / RS485 |
| Monitoring | WiFi App |
| Protection Rating | IP66 |
| Cooling | Natural Convection |
| Warranty | 10 Years |
