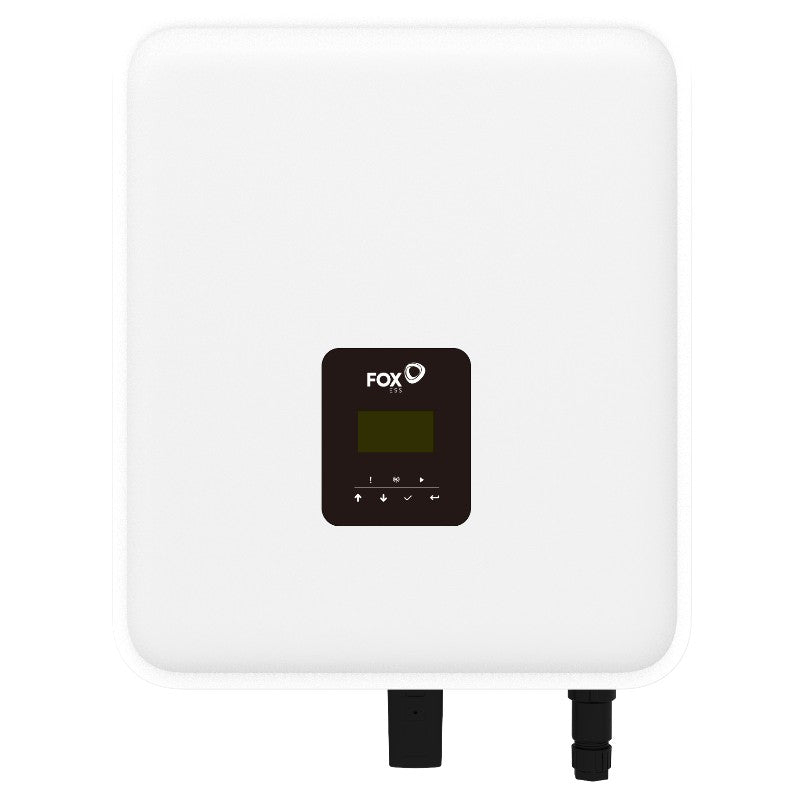

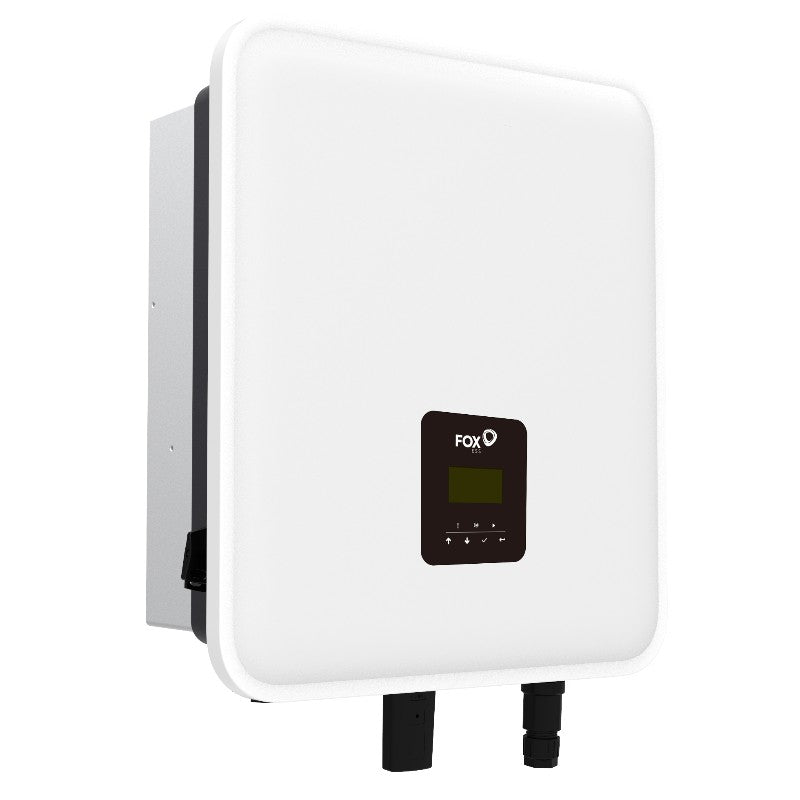

The Fox ESS KH9.9 is a high-performance 9.9kW single-phase hybrid inverter designed for larger residential solar and battery storage systems. Part of the Fox ESS KH Series, it combines high solar input capacity, high-voltage battery compatibility and intelligent energy management with backup power capability.
The KH Series supports remote system monitoring and management, with FoxCloud V2.0 providing access through a smartphone or web portal. The inverter is IP65 rated, making it suitable for appropriately installed indoor or outdoor applications.
The KH9.9 specifications in the Australian datasheet identify it as a distinct 9,900VA model within the KH range.
The KH9.9 is designed to operate with compatible high-voltage lithium-ion battery systems. The specified battery voltage range is 85β480V, with up to 50A charge and discharge current and CAN/RS485 communications.
When installed with a compatible battery system, the KH Series provides EPS functionality for backup applications. The platform supports a switching time of less than 10ms and parallel operation of up to 10 compatible units.
System performance can be remotely monitored through FoxCloud V2.0 using a smartphone or web portal. The inverter provides communication options including Wi-Fi, RS485, CT, DRM and USB, with optional 4G connectivity.
| Specification | KH9.9 |
|---|---|
| Rated Output | 9.9kW |
| Max. PV Array Power | 20,000Wp |
| Max. PV Input Power | 15,000W |
| MPPT Trackers | 4 |
| Battery Type | Li-Ion |
| Battery Voltage | 85β480V |
| Max. Battery Charge Current | 50A |
| Max. Battery Discharge Current | 50A |
| Maximum Efficiency | 97.8% |
| MPPT Efficiency | 99.9% |
| Dimensions | 450 Γ 527 Γ 208mm |
| Weight | 29kg |
| Cooling | Natural |
| Ingress Protection | IP65 |
| Operating Temperature | -25Β°C to +60Β°C |
| Typical Noise | <30dB |
