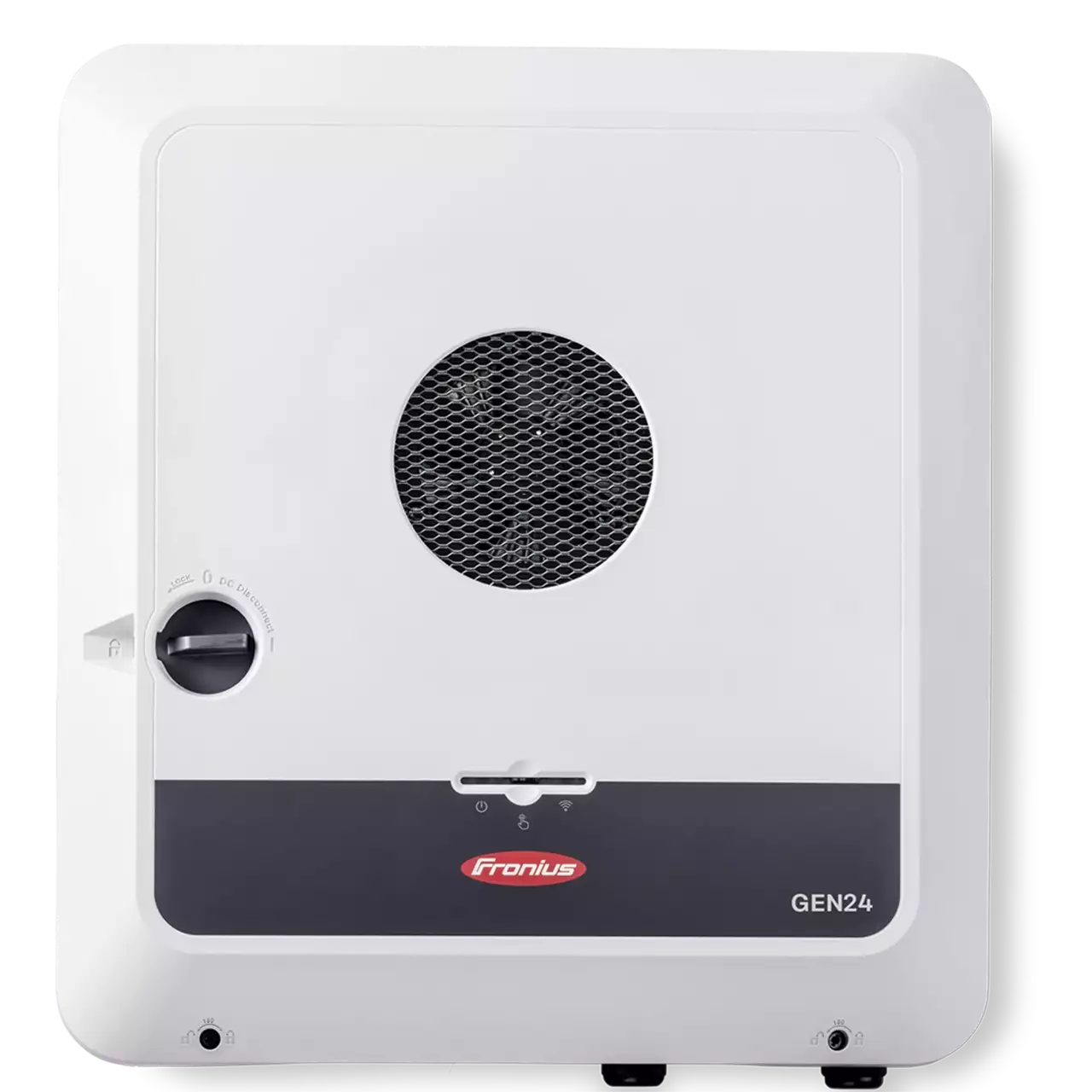

The Fronius Primo GEN24 is a premium single-phase inverter range designed for residential solar systems, available in 5kW, 6kW, 8kW and 10kW power classes. Combining flexible PV design, integrated basic backup power, intelligent energy management and extensive connectivity, the GEN24 provides a strong foundation for modern home energy systems.
Two independent MPPTs allow flexible array design across different roof orientations, while Fronius Dynamic Peak Manager helps optimise solar yield under partial shading. Integrated Active Cooling protects internal components from excessive heat and supports consistent performance and long service life. The IP66 enclosure enables indoor or outdoor installation, and open communication interfaces make integration with Fronius and compatible third-party components straightforward.
The Fronius Primo GEN24 range is well suited to:
Residential single-phase solar systems
Homes with multiple roof orientations
Rooftops affected by partial shading
New and upgraded residential PV installations
Homes requiring basic backup power
High solar self-consumption applications
Smart-home and energy management systems
EV charging and solar-powered hot water applications
Homes planning for future battery storage upgrades
Single-phase 220/230V grid connection
2 independent MPPTs
Up to 15kWp PV generator capacity
Dynamic Peak Manager for shaded conditions
Integrated PV Point basic backup up to 3kW
65β600V DC input voltage range
Fronius Active Cooling technology
IP66 indoor/outdoor protection
WLAN, Ethernet and RS485 connectivity
Open interfaces for flexible system integration
Integrated datalogger and web server
| Specification | Primo GEN24 5.0 | Primo GEN24 6.0 | Primo GEN24 8.0 | Primo GEN24 10.0 |
|---|---|---|---|---|
| Rated AC Output Power | 5,000W | 6,000W | 8,000W | 10,000W |
| Max. PV Generator Output | 7,500Wp | 9,000Wp | 12,000Wp | 15,000Wp |
| Independent MPPTs | 2 | 2 | 2 | 2 |
| DC Input Voltage Range | 65β600V | 65β600V | 65β600V | 65β600V |
| Feed-in Start-Up Voltage | 80V | 80V | 80V | 80V |
| Usable MPPT Range | 65β530V | 65β480V | 65β480V | 65β480V |
| Max. MPPT Input Current | 22A / 12A | 22A / 12A | 22A / 22A | 22A / 22A |
| PV Point Output | 3,000VA | 3,000VA | 3,000VA | 3,000VA |
| Maximum Efficiency | 97.6% | 97.6% | 97.3% | 97.3% |
| Protection Rating | IP66 | IP66 | IP66 | IP66 |
| Dimensions | 530 Γ 474 Γ 165mm | 530 Γ 474 Γ 165mm | 595 Γ 529 Γ 180mm | 595 Γ 529 Γ 180mm |
| Inverter Weight | 15.4kg | 15.4kg | 21kg | 21kg |
Two independent MPPTs provide greater flexibility when solar panels are installed across separate roof orientations or array sections.
Maximum supported PV generator capacity scales with inverter size:
Primo GEN24 5.0 β up to 7.5kWp
Primo GEN24 6.0 β up to 9kWp
Primo GEN24 8.0 β up to 12kWp
Primo GEN24 10.0 β up to 15kWp
All four models operate across a 65β600V DC input range and begin feeding power from an 80V input voltage.
Fronius Dynamic Peak Manager is designed to improve energy yield where PV modules experience partial shading. Rather than relying solely on a conventional maximum power point, the system searches for the optimum operating point of the array, helping the inverter make better use of available solar generation under changing conditions.Β
PV Point provides an integrated basic backup power option without requiring a battery as part of the standard GEN24 installation.
During a grid outage, PV Point can supply a dedicated backup circuit with up to 3,000VA when sufficient solar power is available. This provides a practical way to maintain selected essential loads during daylight hours without installing a complete household backup system.
The standard Primo GEN24 is primarily a PV inverter and does not include battery connectivity as standard.
For homeowners who want to add energy storage later, Fronius UP.storage provides an upgrade path that can enable battery connection and Full Backup functionality on eligible GEN24 systems. This allows the solar system to be installed first while retaining greater flexibility for future energy-storage requirements.
Alternatively, the Fronius Primo GEN24 Plus is supplied as the hybrid version with battery connectivity already enabled. Availability of UP.storage and compatible configurations can vary by market.

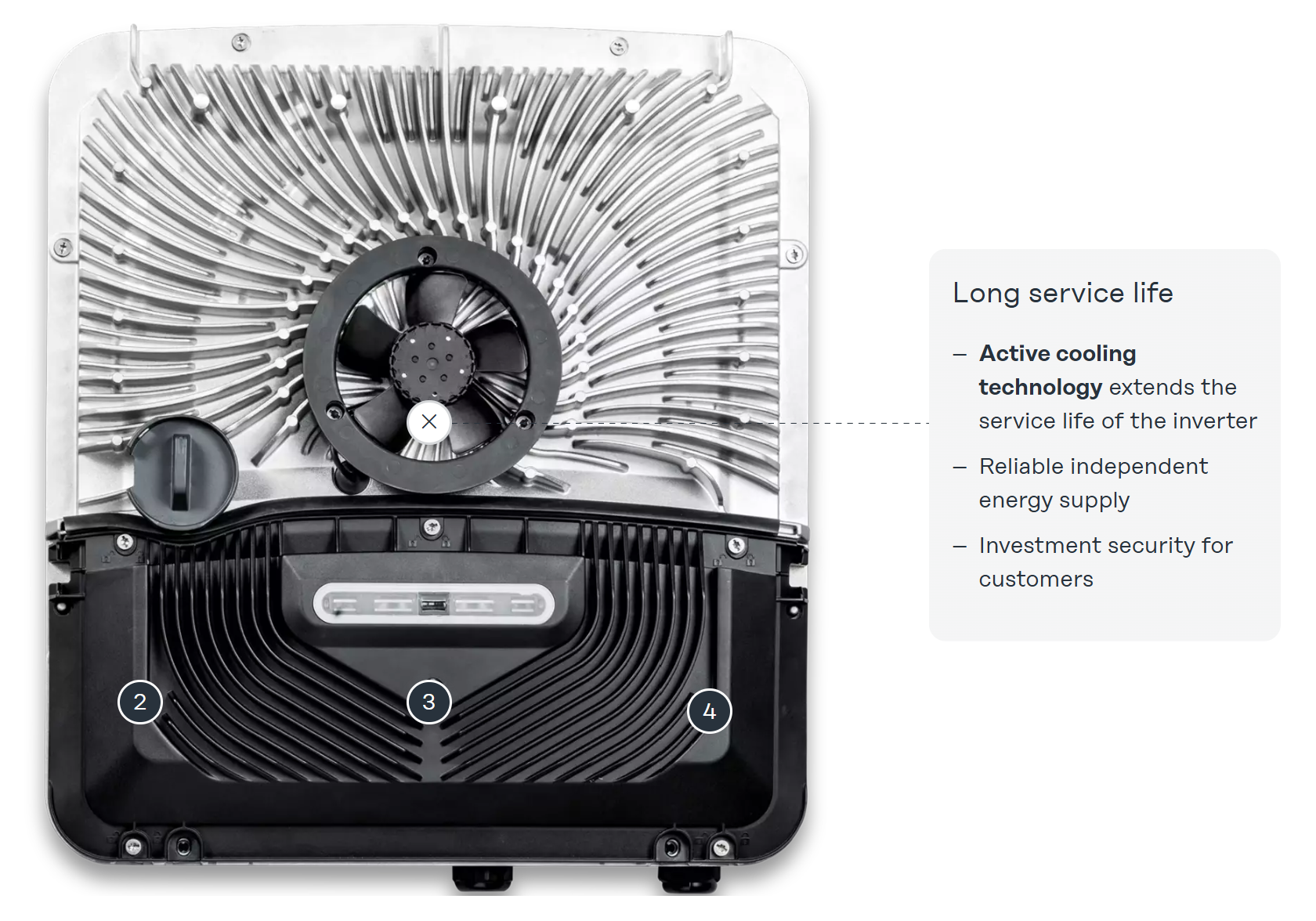

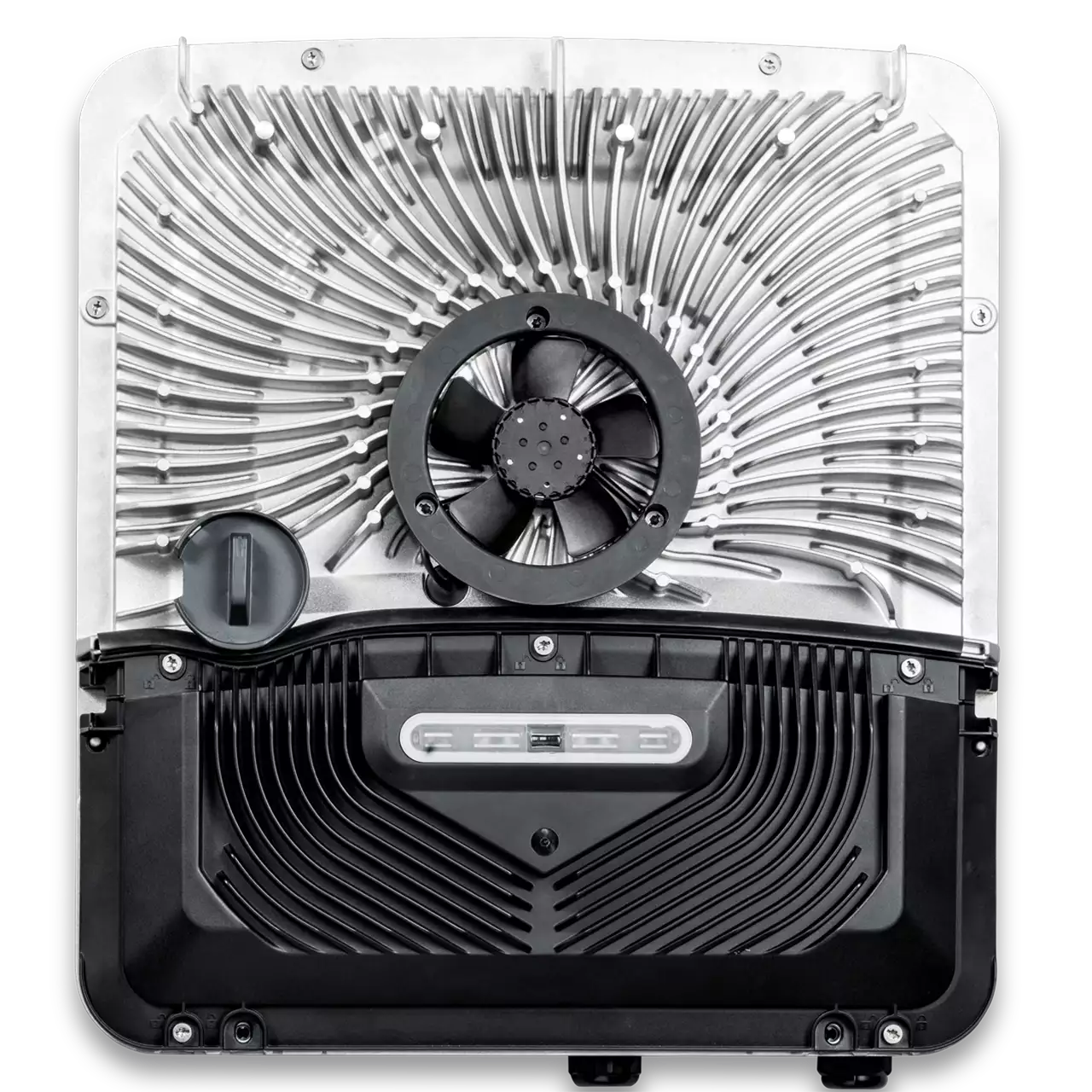

Fronius Active Cooling uses controlled air circulation to help protect electronic components against excessive temperatures.
By actively managing internal temperature, the cooling system supports performance under demanding conditions while reducing thermal stress on components, contributing to inverter durability and service life.
The Primo GEN24 operates across an ambient temperature range of -40Β°C to +60Β°C.
Open interfaces give installers and homeowners greater flexibility when building or expanding a solar energy system.
The GEN24 can integrate with compatible Fronius products as well as supported third-party components, helping accommodate applications such as energy management, metering, heating control and other smart-energy functions.

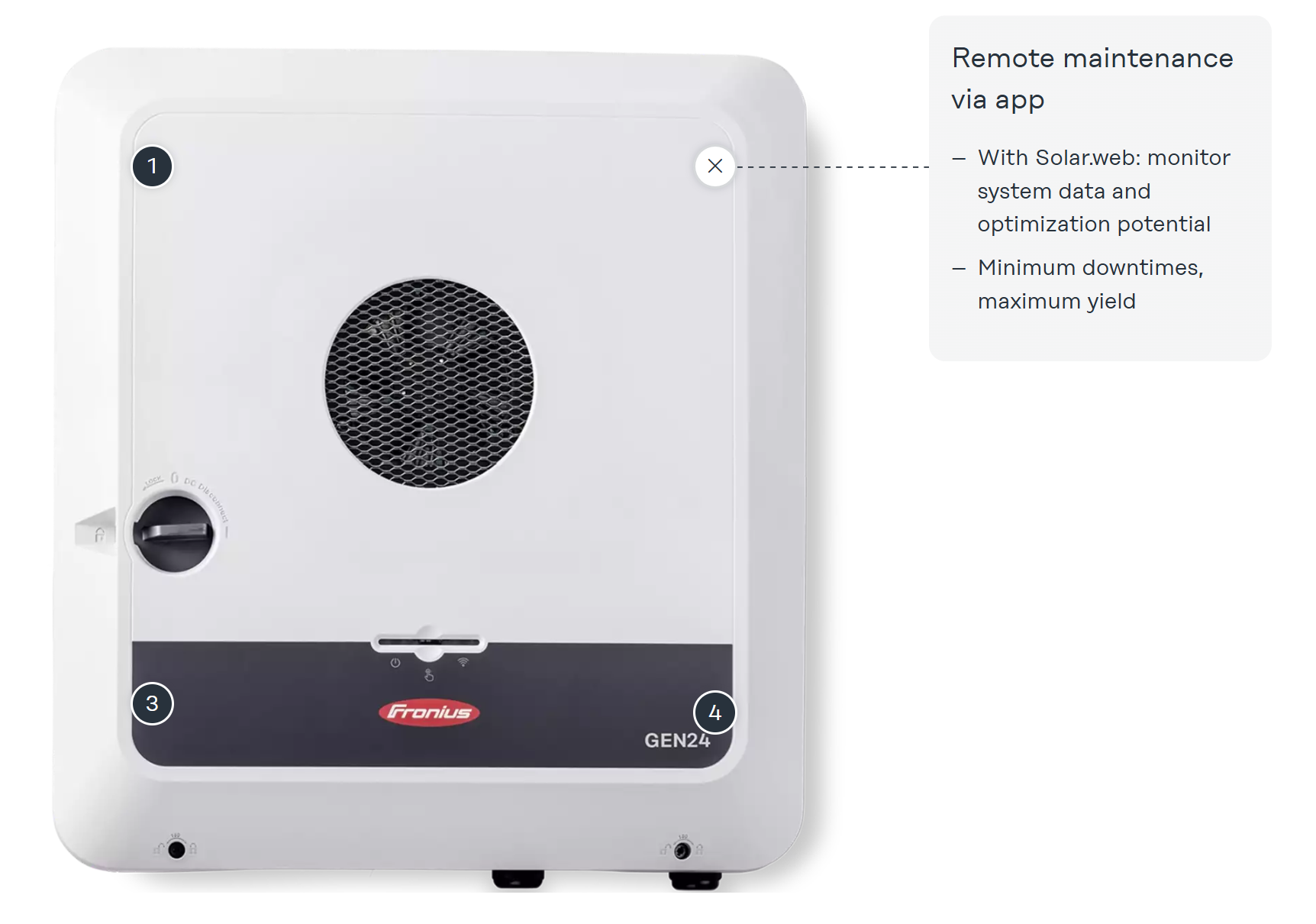

Integrated communication and monitoring capabilities include:
WLAN
2 Γ Ethernet LAN
2 Γ RS485
Fronius Solar.web
Modbus TCP SunSpec
Modbus RTU SunSpec
Fronius Solar API (JSON)
Integrated datalogger
Integrated web server
6 digital inputs
6 digital inputs/outputs
Integrated emergency shut-off (WSD)
These interfaces support detailed system monitoring while providing flexibility for energy management and compatible third-party integration.
The Primo GEN24 features an IP66 enclosure suitable for indoor and outdoor installation.
Integrated protection features include:
DC isolation measurement
Integrated DC disconnector
Reverse polarity protection
Overload management
Integrated emergency shut-off
Transformerless inverter architecture
The operating range extends from -40Β°C to +60Β°C, with permissible relative humidity from 0β100% and installation altitude up to 4,000 metres.
| Specification | 5kW | 6kW | 8kW | 10kW |
|---|---|---|---|---|
| Grid Connection | 1~ NPE 220/230V | 1~ NPE 220/230V | 1~ NPE 220/230V | 1~ NPE 220/230V |
| Grid Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| MPP Trackers | 2 | 2 | 2 | 2 |
| Protection Rating | IP66 | IP66 | IP66 | IP66 |
| Cooling | Active Cooling | Active Cooling | Active Cooling | Active Cooling |
| Installation | Indoor / Outdoor | Indoor / Outdoor | Indoor / Outdoor | Indoor / Outdoor |
| Operating Temperature | -40Β°C to +60Β°C | -40Β°C to +60Β°C | -40Β°C to +60Β°C | -40Β°C to +60Β°C |
| Permissible Humidity | 0β100% | 0β100% | 0β100% | 0β100% |
| Maximum Altitude | 4,000m | 4,000m | 4,000m | 4,000m |
| Night Consumption | <10W | <10W | <10W | <10W |
| Country of Manufacture | Austria | Austria | Austria | Austria |
Complies with applicable standards including IEC 62109, IEC 62909, AS/NZS 4777.2, IEC 62116 and IEC 61727, together with applicable regional grid requirements.
