Step into a more advanced home energy system with the Fronius Symo GEN24 10.0 Plus SC, an Austrian-made three-phase hybrid inverter designed for high-performance solar, battery storage and backup applications.
The SC generation brings higher PV input-current capability to the GEN24 platform, making the inverter better suited to modern high-current solar modules. Combined with direct high-voltage battery integration, dual MPP tracking, Full Backup capability and intelligent energy management, the 10.0 Plus SC is designed for homes seeking greater solar self-consumption, energy independence and long-term system flexibility.
The Fronius Symo GEN24 10.0 Plus SC is well suited to:
Larger three-phase residential solar systems
Solar and battery storage installations
Homes using modern high-current PV modules
Properties with multiple roof orientations
Households with high daytime electricity demand
Full-home backup configurations
EV charging and smart energy applications
Homes seeking greater solar self-consumption
Indoor or outdoor installations
Higher-current PV input for modern solar modules
2 independent MPP trackers
Up to 15kWp PV generator capacity
160β700V high-voltage battery support
Up to 22A battery input current
Integrated 3kVA PV Point backup
Up to 9.999kVA Full Backup output
Approx. 10-second Full Backup switching
Up to 98.3% maximum efficiency
Fronius Active Cooling technology
Remote monitoring via Fronius Solar.web
IP66 protection
Open interfaces for flexible energy-system integration
Made in Austria
The Fronius GEN24 Plus and GEN24 Plus SC share the same core hybrid platform, including battery integration, PV Point backup, Full Backup capability, Active Cooling and smart monitoring. The main difference is the higher PV input-current capability of the GEN24 Plus SC, making it better suited to modern high-power solar modules and giving installers greater flexibility as module currents continue to increase.
For the Symo 10.0 model, the GEN24 Plus supports up to 25A / 12.5A across its two MPPTs, while the GEN24 Plus SC increases this to 28A / 14A. The SC version also supports maximum short-circuit currents of 40A / 20A. This higher current capacity helps accommodate evolving PV module technologies while retaining the flexible system design of the GEN24 platform. The SC generation also adds Fronius Arc Guard (AFCI) as a standard safety feature, providing continuous arc-fault monitoring for enhanced PV system protection.Β
If you would like to know more about our Symo GEN24 Plus products, please click here.
The Symo GEN24 10.0 Plus SC supports up to 15kWp of PV generator capacity alongside 9.999kW rated AC output.
Two independent MPP trackers make it easier to optimise arrays installed across different roof orientations or separate PV sections, while a wide 80β1000V DC input range provides considerable flexibility when designing solar strings.
The usable MPP voltage range extends from 80V to 800V, with a rated-power MPP range of 246β800V.
As a GEN24 Plus model, the inverter includes direct battery connectivity for compatible high-voltage storage systems.
Battery operation is supported across a 160β700V DC range, with up to 22A battery input current and maximum DC input/output power of 10.3kW.
Compatible battery options include Fronius Reserva and selected BYD Battery-Box Premium HVS/HVM systems, subject to battery configuration and compatibility.
Battery integration allows excess daytime solar generation to be stored rather than immediately exported to the grid.
Stored energy can then be used when solar production falls or household demand increases, helping homeowners make greater use of their own renewable electricity and reduce dependence on grid supply.
Maximum AC-coupled charging power reaches 9.999kW, with actual battery performance depending on the connected battery system.
PV Point provides a dedicated basic backup power supply during grid outages.
The Symo GEN24 10.0 Plus SC offers up to 3,000VA through its PV Point connection, allowing selected essential loads to remain powered when sufficient energy is available.
PV Point switching time is approximately 15 seconds.
For more comprehensive backup requirements, the 10.0 Plus SC supports Full Backup operation.
Rated Full Backup output reaches 9,999VA through a three-phase connection, with nominal Full Backup phase power of 4,133VA. Switching time is approximately 10 seconds.
Full Backup enables a much larger portion of household loads to remain supplied during a grid outage when paired with a compatible battery and the required external grid-switchover components.
The Symo GEN24 10.0 Plus SC reaches a maximum efficiency of 98.3%, with European efficiency of 98.1%.
MPP adaptation efficiency exceeds 99.9%, helping the inverter continuously track the optimum operating point of the PV array and convert available solar energy efficiently across changing conditions.

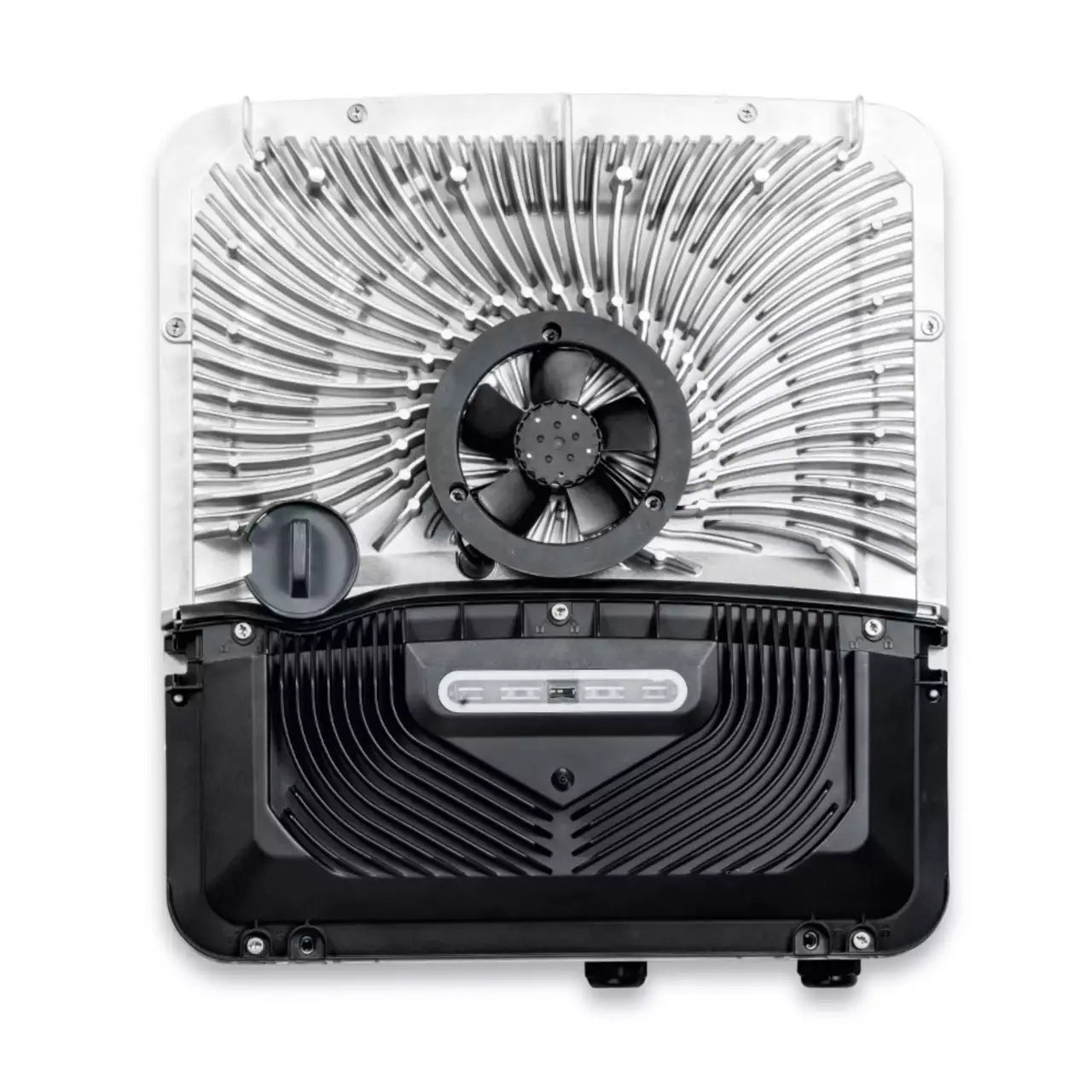

Fronius Active Cooling technology helps regulate internal inverter temperature during operation.
By actively managing heat around electronic components, the system supports stable performance under demanding conditions and helps reduce long-term thermal stress.
The inverter operates across an ambient temperature range of -25Β°C to +60Β°C.
Stay connected to your solar and battery system through Fronius Solar.web.
Integrated monitoring provides access to system performance and operating data, helping homeowners and installers identify optimisation opportunities and respond efficiently to potential system issues.
Connectivity includes WLAN, 2 Γ Ethernet LAN, 2 Γ RS485, Modbus TCP SunSpec, Modbus RTU SunSpec and the Fronius Solar API. An integrated datalogger and web server further support detailed system monitoring and energy management.
Open communication interfaces allow the GEN24 Plus SC to integrate with compatible Fronius products and supported third-party components.
This gives homeowners greater flexibility to connect battery storage, smart meters, energy management equipment, heating systems and EV charging solutions as part of a broader home energy ecosystem.
The IP66-rated enclosure supports installation in suitable indoor and outdoor locations.
Integrated protection features include DC isolation measurement, an integrated DC disconnector, reverse-polarity protection and emergency shut-off functionality.
The inverter also supports 0β100% permissible humidity and installation up to 3,000m altitude without restricted voltage operation.
| Specification | Fronius Symo GEN24 10.0 Plus SC |
|---|---|
| Rated AC Power | 9,999W |
| Apparent Power | 9,999VA |
| Max. PV Generator Output | 15,000Wp |
| Number of MPP Trackers | 2 |
| DC Input Voltage Range | 80β1000V |
| Rated DC Voltage | 610V |
| Feed-in Start-Up Voltage | 80V |
| Usable MPP Voltage Range | 80β800V |
| MPP Range at Rated Power | 246β800V |
| Max. PV Input Current | 28A / 14A |
| Max. Short-Circuit Current | 40A / 20A |
| Number of DC Connections | 2 / 1 |
| Battery Voltage Range | 160β700V |
| Max. Battery Input Current | 22A |
| Max. Battery DC Input / Output Power | 10,300W |
| Max. AC-Coupled Charging Power | 9,999W |
| PV Point Output | 3,000VA |
| Full Backup Output | 9,999VA |
| Nominal Full Backup Phase Power | 4,133VA |
| Full Backup Switching Time | ~10 sec |
| Max. Efficiency | 98.3% |
| European Efficiency | 98.1% |
| MPP Adaptation Efficiency | >99.9% |
| Grid Connection | 3~ NPE 400/230V or 380/220V |
| Protection Rating | IP66 |
| Cooling | Active Cooling |
| Operating Temperature | -25Β°C to +60Β°C |
| Noise Emissions | <47dB(A) |
| Dimensions | 595 Γ 529 Γ 180mm |
| Weight | 22.8kg |
| Country of Manufacture | Austria |
Β
Complies with applicable standards including IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE-AR-N 4105, AS/NZS 4777.2, EN 50549, CEI 0-21, G98 and R25.
The Symo GEN24 10.0 Plus SC combines the battery and backup capabilities of the GEN24 Plus platform with the higher-current PV capability of the SC generation.
Its ability to support up to 15kWp of PV, 28A input current on the primary MPPT and direct high-voltage battery integration makes it particularly suitable for larger modern residential solar systems. Full Backup adds another layer of energy security, while Fronius Solar.web, Active Cooling and open interfaces help create a flexible home energy system that can evolve as household requirements change.
