Get the SOLIS S6-EH3P(10β29.9)K-H-AU hybrid inverter and HGNESS HV battery storage together as a complete package. Multiple inverter and battery capacity combinations are available. Contact us for system configuration, compatibility, availability and special bundle pricing.
The SOLIS + HGNESS energy storage solution combines the SOLIS S6-EH3P(10β29.9)K-H-AU three-phase hybrid inverter series with HGNESS high-voltage LiFePOβ battery storage. Designed for commercial and larger energy-storage applications, the system integrates solar generation, battery storage and intelligent energy management in one scalable solution.
With SOLIS hybrid inverter options from 10kW to 29.9kW and modular HGNESS battery storage from 15.36kWh to 61.44kWh, the system can be configured around different power and energy requirements.

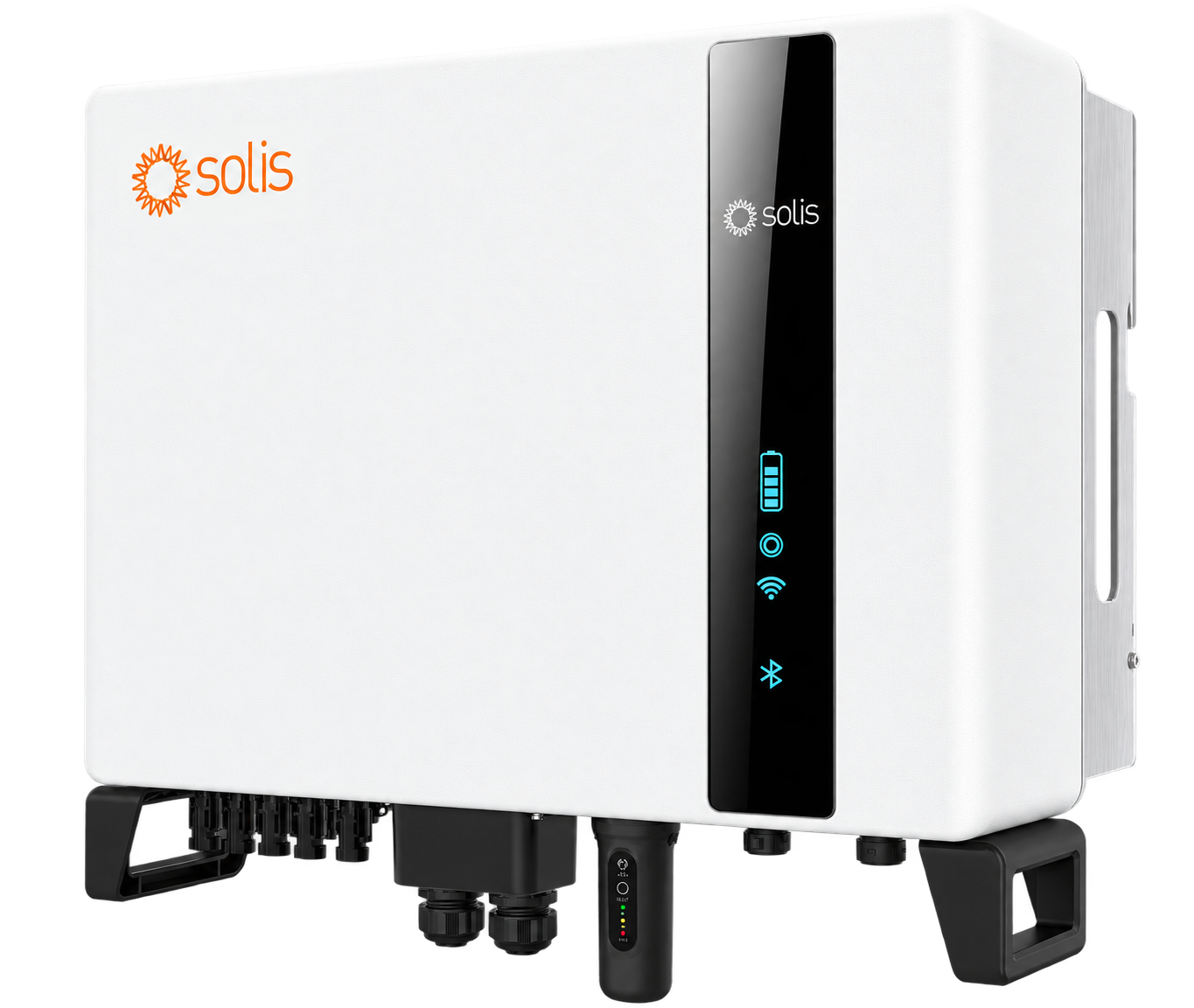

The SOLIS S6-EH3P(10β29.9)K-H-AU series provides the power-conversion and energy-management platform for the system, coordinating PV generation, battery storage, grid supply and connected loads.
Available inverter capacities include:
10kW / 15kW / 20kW / 29.9kW (To see more details for each inverter, click here.)
This range allows the inverter capacity to be selected according to the property's solar array, load profile, battery configuration and backup requirements.

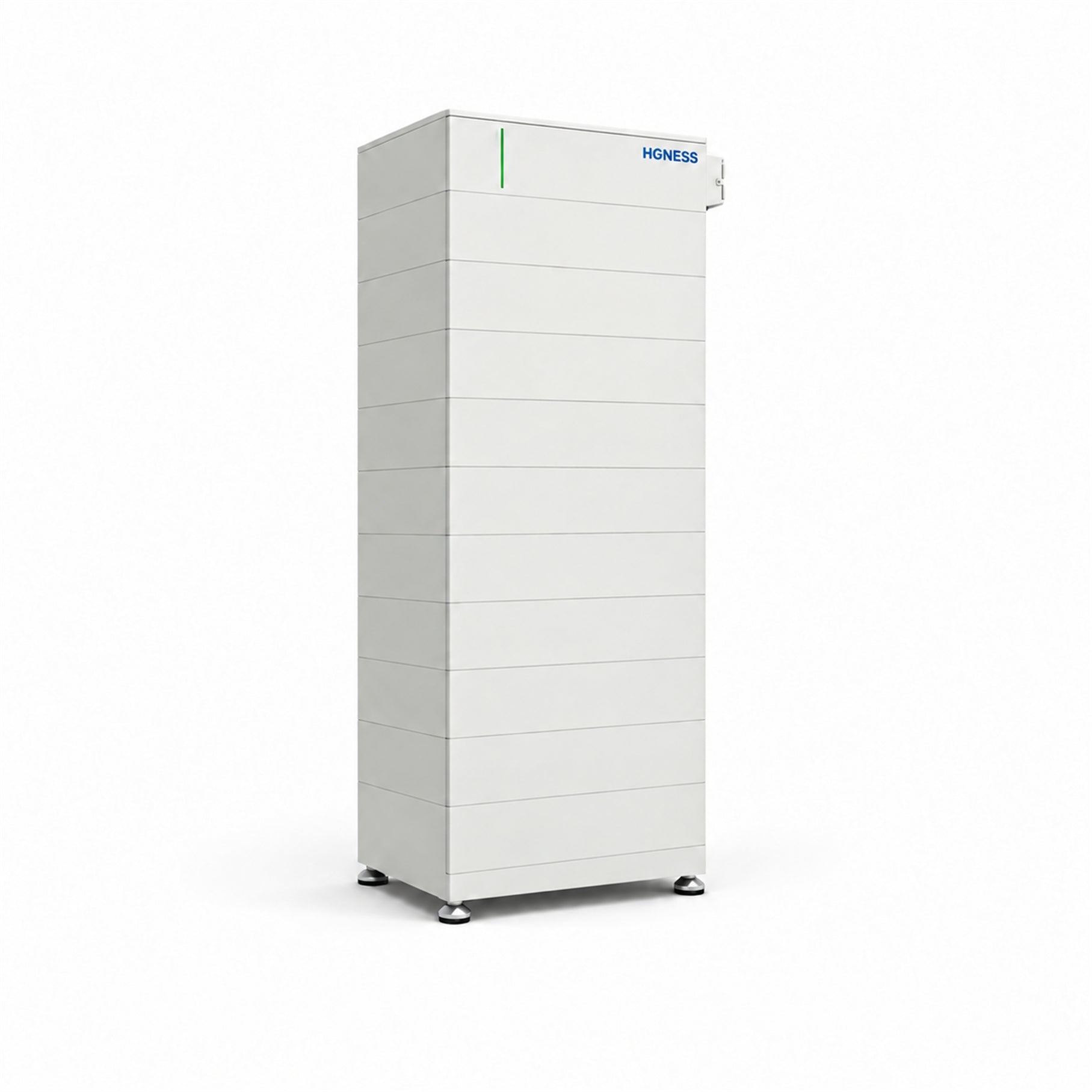

HGNESS uses a modular high-voltage architecture built around 51.2V / 5.12kWh LiFePOβ battery modules. Starting with three modules, the system can be expanded up to 12 modules for a total usable storage capacity of 61.44kWh.Β
| Battery Modules | Usable Capacity |
|---|---|
| 3 | 15.36 kWh |
| 4 | 20.48 kWh |
| 5 | 25.60 kWh |
| 6 | 30.72 kWh |
| 7 | 35.84 kWh |
| 8 | 40.96 kWh |
| 9 | 46.08 kWh |
| 10 | 51.20 kWh |
| 11 | 56.32 kWh |
| 12 | 61.44 kWh |
This modular approach allows storage capacity to be selected for current energy requirements while providing flexibility for future system expansion.
The SOLIS + HGNESS combination is designed to make better use of solar generation throughout the day. Excess solar energy can be directed to battery storage for later use, helping increase solar self-consumption and reduce reliance on grid electricity.
For sites with time-of-use electricity tariffs, stored energy can also support strategies such as charging and discharging around different tariff periods and reducing peak grid demand.
As a hybrid solar and storage solution, the system can be configured to provide backup power for selected loads during grid outages. Actual backup capacity and operating time will depend on the inverter configuration, battery capacity, connected loads and system design.
Larger HGNESS configurations provide more stored energy, allowing the system designer to balance backup duration against the site's normal energy requirements.
The HGNESS battery system uses LiFePOβ cells with all-round BMS protection and PACK-level fire protection. Its IP66-rated enclosure supports indoor and outdoor installation, while the floor-mounted, anti-dumping structure provides a stable installation platform.
Battery communication supports CAN, RS485 and Wi-Fi, with natural cooling used across the series.
UN38.3 / IEC 62619 / IEC 62040 / IEC 62477 / IEC 61000 / RoHS
HGNESS Battery Warranty: 10 Years
Cycle Life: β₯6,000 Cycles
The cycle-life figure is based on specified test conditions of 25Β°C, 95% DoD, 0.2C charge and discharge, and 70% end-of-life capacity. Warranty conditions apply.
The SOLIS + HGNESS combination provides a flexible path from a 10kW hybrid system through to larger 29.9kW installations, with battery storage scalable from 15.36kWh to 61.44kWh.
Rather than fixing the system to a single inverter and battery size, different configurations can be selected around the site's solar generation, energy consumption and storage requirementsβmaking it particularly suitable for commercial projects where both power demand and required storage capacity can vary significantly.
