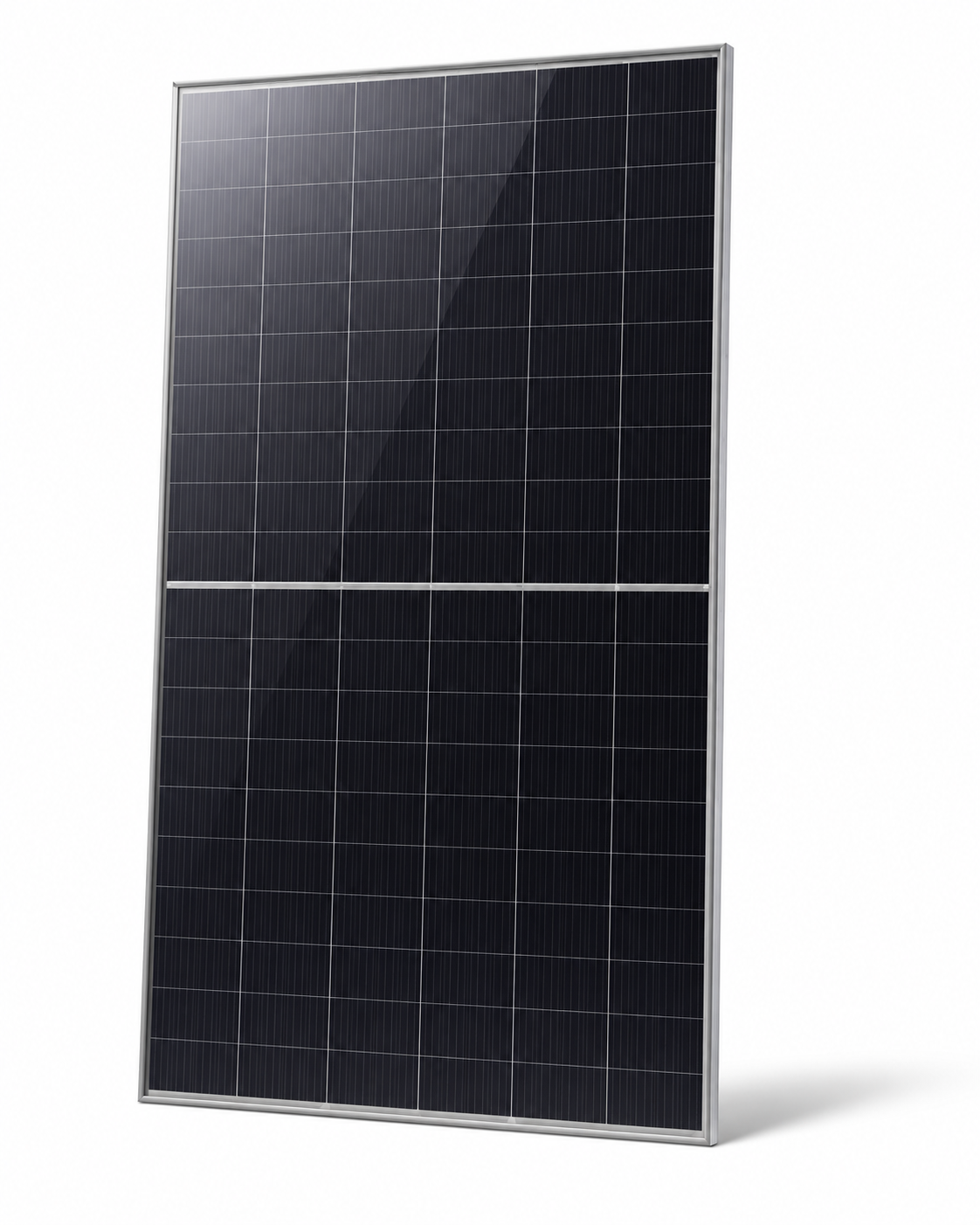

The Jinko Solar Tiger Neo JKM510N-60HL4-V is a 510W N-type monocrystalline solar panel using TOPCon and JinkoSolar HOT 3.0 technology. It delivers 23.59% module efficiency in a 1906 × 1134 × 30 mm format, combining high power density with a manageable 22.5 kg module weight.
Its 3.2 mm tempered front glass, anodised aluminium frame and strong mechanical load capability make it a practical option for residential and commercial rooftop systems where efficiency, durability and long-term energy output are important.
510W rated power
23.59% module efficiency
N-type TOPCon monocrystalline technology
JinkoSolar HOT 3.0 technology
120-cell configuration
3.2 mm anti-reflective tempered front glass
IP68 junction box
Mechanical load: 5400 Pa front / 2400 Pa rear
Low Pmax temperature coefficient: -0.29%/°C
MC4-EVO2 connector option available
The JKM510N-60HL4-V combines N-type TOPCon cell technology with JinkoSolar’s HOT 3.0 platform to support high efficiency, reliability and low-light performance.
The 510W model reaches 23.59% module efficiency under STC conditions, helping generate more power from each square metre of usable roof area.
With dimensions of 1906 × 1134 mm and a weight of 22.5 kg, the panel sits between compact residential modules and larger commercial-format panels.
In practical rooftop installations, it can suit:
Colorbond and other metal roofs with compatible rail mounting
Concrete or terracotta tiled roofs with sufficient clear roof area
Larger residential roof sections where higher output per panel is preferred
Commercial and light-industrial rooftops where reducing total panel count can simplify system layouts
These roof-type examples are practical installation inferences based on the panel’s size, weight and standard framed module construction.
The panel uses 3.2 mm anti-reflection coated, high-transmission, low-iron tempered front glass with an anodised aluminium alloy frame.
Maximum static load is: 5400 Pa front / 2400 Pa rear.
This construction provides a robust option for rooftop systems exposed to wind, weather and long-term outdoor operation.
The Pmax temperature coefficient is: -0.29%/°C.
The operating temperature range is: -40°C to +70°C.
| Parameter | Rating |
|---|---|
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Specification | JKM510N-60HL4-V |
|---|---|
| Cell Type | N-type monocrystalline |
| No. of Cells | 120 (60 × 2) |

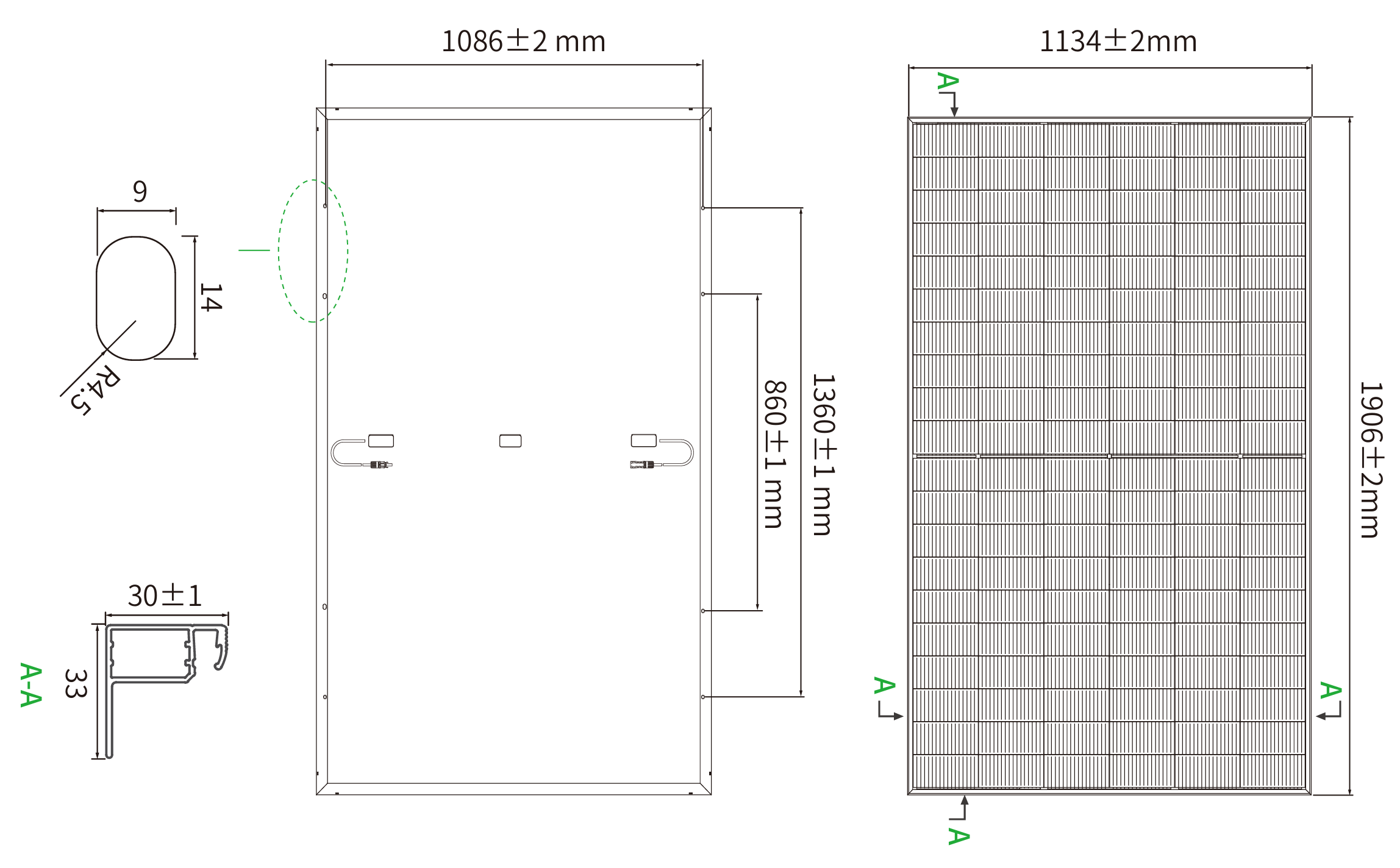

| Module Dimensions | 1906 × 1134 × 30 mm |
| Weight | 22.5 kg |
| Front Glass | 3.2 mm anti-reflective, high-transmission, low-iron tempered glass |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68 |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Output Cable | 4.0 mm² |
| Connector | JK03M / JK03M2 / MC4-EVO2 |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 25A |
| Specification | JKM510N-60HL4-V |
|---|---|
| Maximum Power – Pmax | 510W |
| Maximum Power Voltage – Vmp | 37.15V |
| Maximum Power Current – Imp | 13.73A |
| Open Circuit Voltage – Voc | 44.51V |
| Short Circuit Current – Isc | 14.33A |
| Module Efficiency | 23.59% |
| Power Sorting | -5W to +15W |
Values are specified under STC conditions of 1000 W/m² irradiance, 25°C cell temperature and AM1.5.
First-year degradation is: 1%.
Annual degradation over 30 years is: 0.40%.
Guaranteed power after 30 years is: 87.4%.
25-year product warranty
30-year linear power warranty
IEC 61215:2021
IEC 61730:2023
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
The JKM510N-60HL4-V combines 510W output, 23.59% efficiency and N-type TOPCon technology in a practical 1.91 m module length. It is well suited to larger residential and commercial rooftops where high output per panel, reliable mechanical performance and long-term energy yield are priorities.
