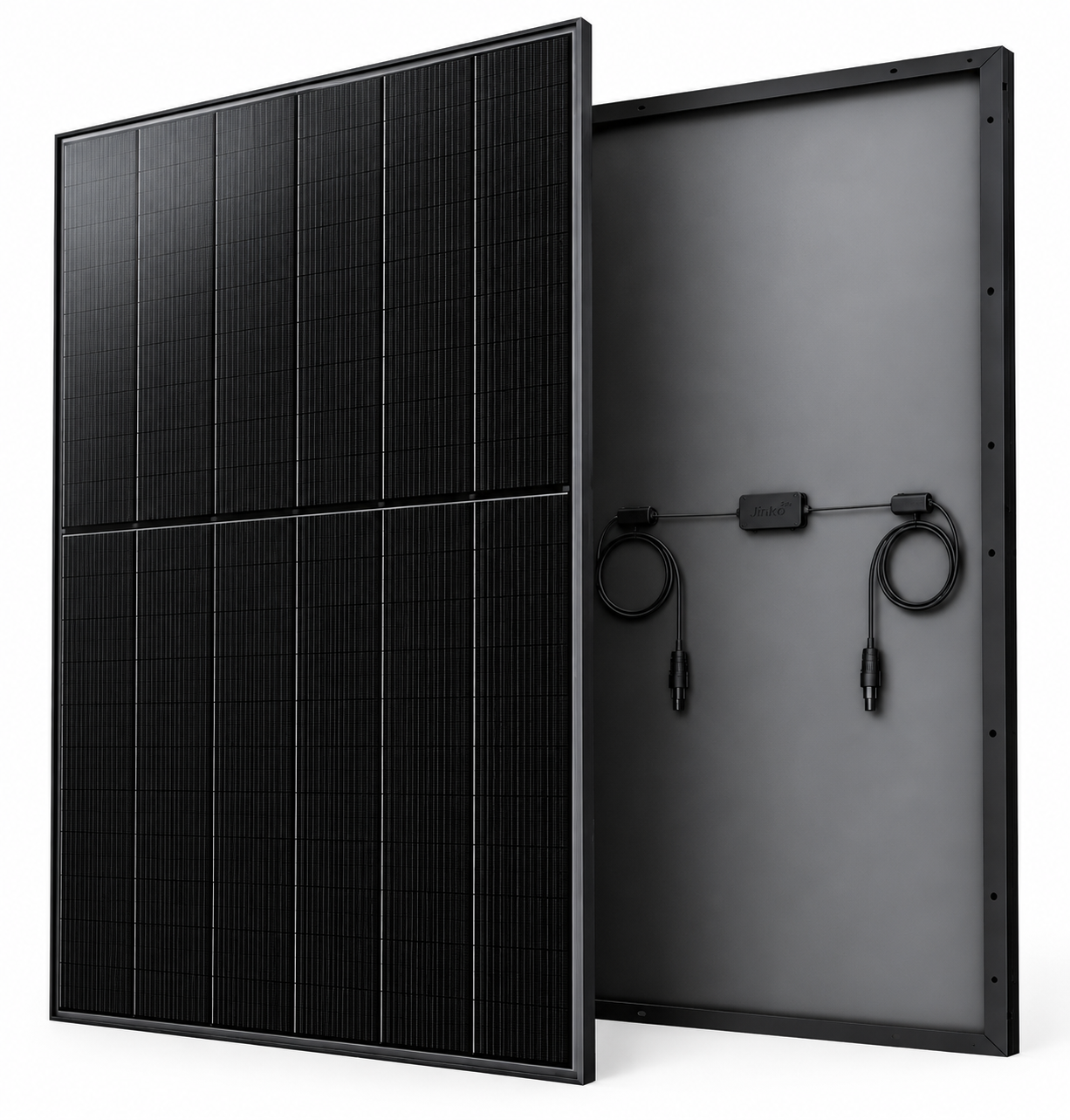

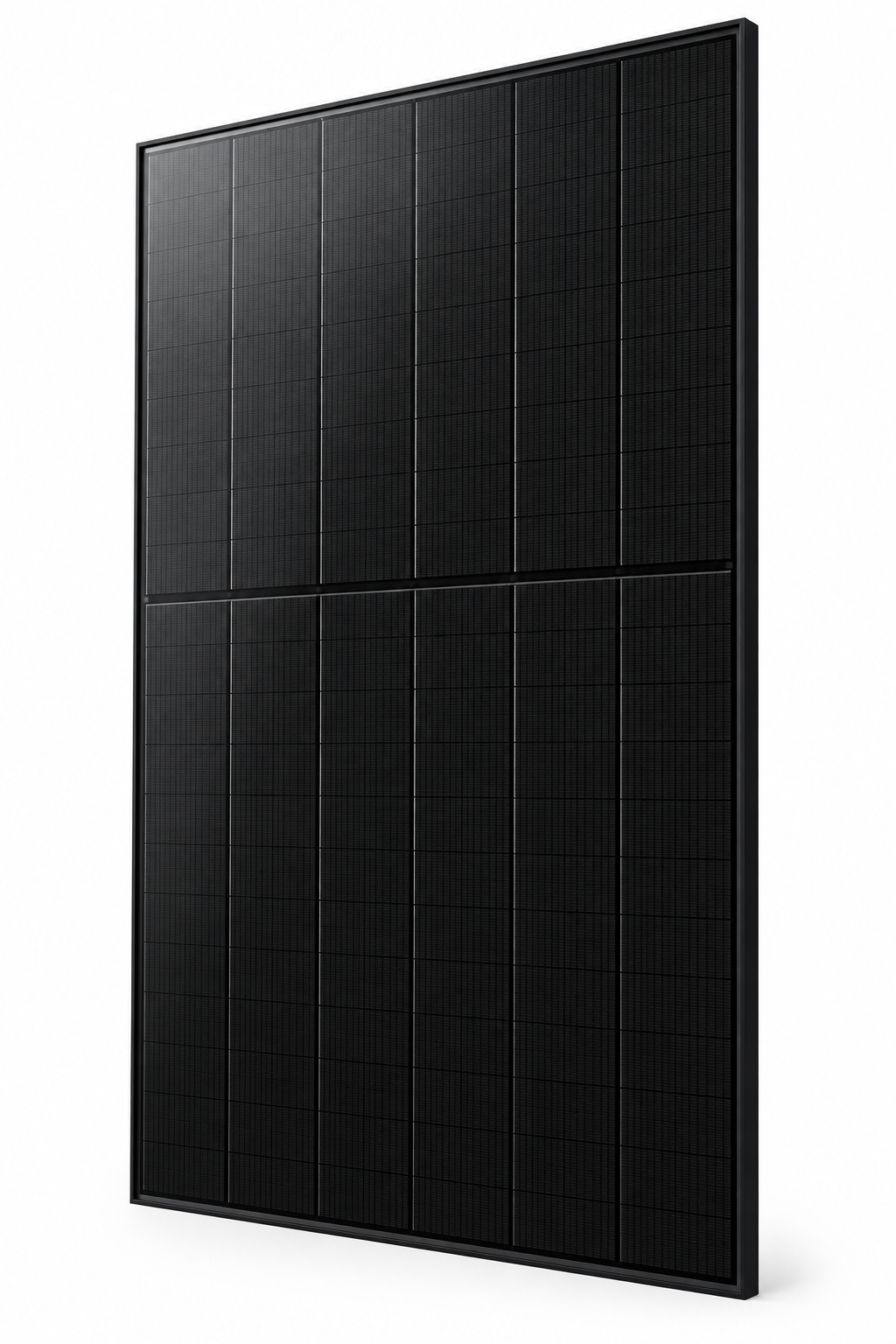

The Jinko Tiger Neo III 475W JKM475N-48QL6-DB is a premium all-black, mono-facial dual-glass solar panel designed for high-performance residential and commercial solar installations.
Built on JinkoSolar's enhanced N-Type TOPCon platform, the Tiger Neo III combines 475W output with an impressive 23.77% module efficiency. Its compact dimensions and all-black appearance make it particularly well suited to premium residential rooftops where both energy production and aesthetics are important.
475W maximum power output
23.77% module efficiency
N-Type TOPCon solar cell technology
Premium all-black appearance
Mono-facial dual-glass construction
Proven low-light performance
Optimised heat resistance
-0.26%/Β°C Pmax temperature coefficient
0 to +3% power measurement tolerance
IP68-rated junction box
1500V DC maximum system voltage
5400Pa front-side maximum static test load
2400Pa rear-side maximum static test load
25-year product warranty
30-year linear power warranty
88.85% warranted output after 30 years
The Tiger Neo III is built around JinkoSolar's enhanced N-Type TOPCon platform.
According to JinkoSolar, the combination of advanced cell technology and an optimised module layout allows the panel to capture more sunlight and achieve a higher front-side power class.
With 475W of rated output and 23.77% module efficiency, the JKM475N-48QL6-DB provides substantial power from a relatively compact module footprint.
The 48QL6-DB is specifically designed as an all-black mono-facial module with dual-glass construction.
Its dark, uniform appearance creates a clean and modern finish across the solar array, making it an excellent option for residential properties where the appearance of the panels is an important consideration.
The all-black design is particularly attractive on dark tile, Colorbond and contemporary roof finishes.
The Tiger Neo III has been engineered to perform effectively under varying sunlight conditions.
JinkoSolar states that its enhanced cell structure provides superior module performance under low-light conditions.
This makes the panel well suited to real-world conditions where solar irradiance changes throughout the day due to cloud cover, morning and afternoon light or seasonal conditions.
High module temperatures can reduce solar panel output, making temperature performance particularly important in Australian conditions.
The Tiger Neo III has a Pmax temperature coefficient of -0.26%/Β°C, helping minimise the reduction in output as cell temperatures increase.
Temperature coefficients:
Pmax: -0.26%/Β°C
Voc: -0.24%/Β°C
Isc: +0.046%/Β°C
The specified operating temperature range is -40Β°C to +70Β°C. The datasheet also notes short-term operation up to 85Β°C, subject to the specified testing requirements.
The Tiger Neo III uses a durable glass-glass module construction rather than a conventional glass and backsheet design.
The module features 2.0mm anti-reflection coated front glass combined with 2.0mm heat-strengthened rear glass.
Its mechanical construction includes:
N-Type mono-crystalline cells
192 cells (48 Γ 4)
2.0mm anti-reflection coated front glass
2.0mm heat-strengthened rear glass
Anodised aluminium alloy frame
IP68-rated junction box
Class II protection
IEC Fire Type Class C
Jinko or StΓ€ubli connector options
At only 1762 Γ 1134 Γ 30mm, the Tiger Neo III provides 475W of output in a compact residential-sized module.
The combination of 475W output and 23.77% efficiency makes it particularly useful for properties where available roof area is limited and the objective is to maximise installed solar capacity.
Module dimensions: 1762 Γ 1134 Γ 30mm
Module weight: 24.4kg
| Specification | JKM475N-48QL6-DB |
|---|---|
| Maximum Power (Pmax) | 475W |
| Module Efficiency | 23.77% |
| Maximum Power Voltage (Vmp) | 31.13V |
| Maximum Power Current (Imp) | 15.26A |
| Open Circuit Voltage (Voc) | 36.44V |
| Short Circuit Current (Isc) | 15.85A |
| Cell Type | N-Type Mono-crystalline |
| Number of Cells | 192 (48 Γ 4) |
| Dimensions | 1762 Γ 1134 Γ 30mm |
| Weight | 24.4kg |
| Front Glass | 2.0mm Anti-Reflection Coated |
| Rear Glass | 2.0mm Heat-Strengthened |
| Junction Box | IP68 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Protection Class | Class II |
| IEC Fire Type | Class C |
Β
The Tiger Neo III is designed to withstand demanding environmental and rooftop conditions.
JinkoSolar specifies maximum static test loads of:
Front side: 5400Pa
Rear side: 2400Pa
Combined with its dual-glass construction and anodised aluminium frame, this provides a robust module structure designed for long-term rooftop installation.
The Tiger Neo III is backed by strong long-term warranty coverage and low degradation.
25-year product warranty
30-year linear power warranty
1% first-year degradation
0.35% annual degradation over 30 years
88.85% warranted output at year 30
This long-term performance profile provides greater confidence in the panel's energy production over the life of the solar system.
The Tiger Neo III is manufactured and tested to recognised international standards, including:
IEC 61215:2021
IEC 61730:2023
ISO 9001:2015 Quality Management System
ISO 14001:2015 Environmental Management System
ISO 45001:2018 Occupational Health and Safety Management System
The Jinko Tiger Neo III JKM475N-48QL6-DB combines premium aesthetics with high-performance N-Type TOPCon technology.
Its 475W output, 23.77% efficiency, compact dimensions, dual-glass construction, excellent temperature coefficient and proven low-light performance make it an excellent option for Australian residential solar installations.
For homeowners who want a powerful solar panel without compromising the appearance of their roof, the Tiger Neo III All Black provides an excellent combination of performance, durability and modern design.
Ideal for residential rooftops, premium homes, dark tile roofs, Colorbond roofs, limited roof space and high-efficiency solar installations.
