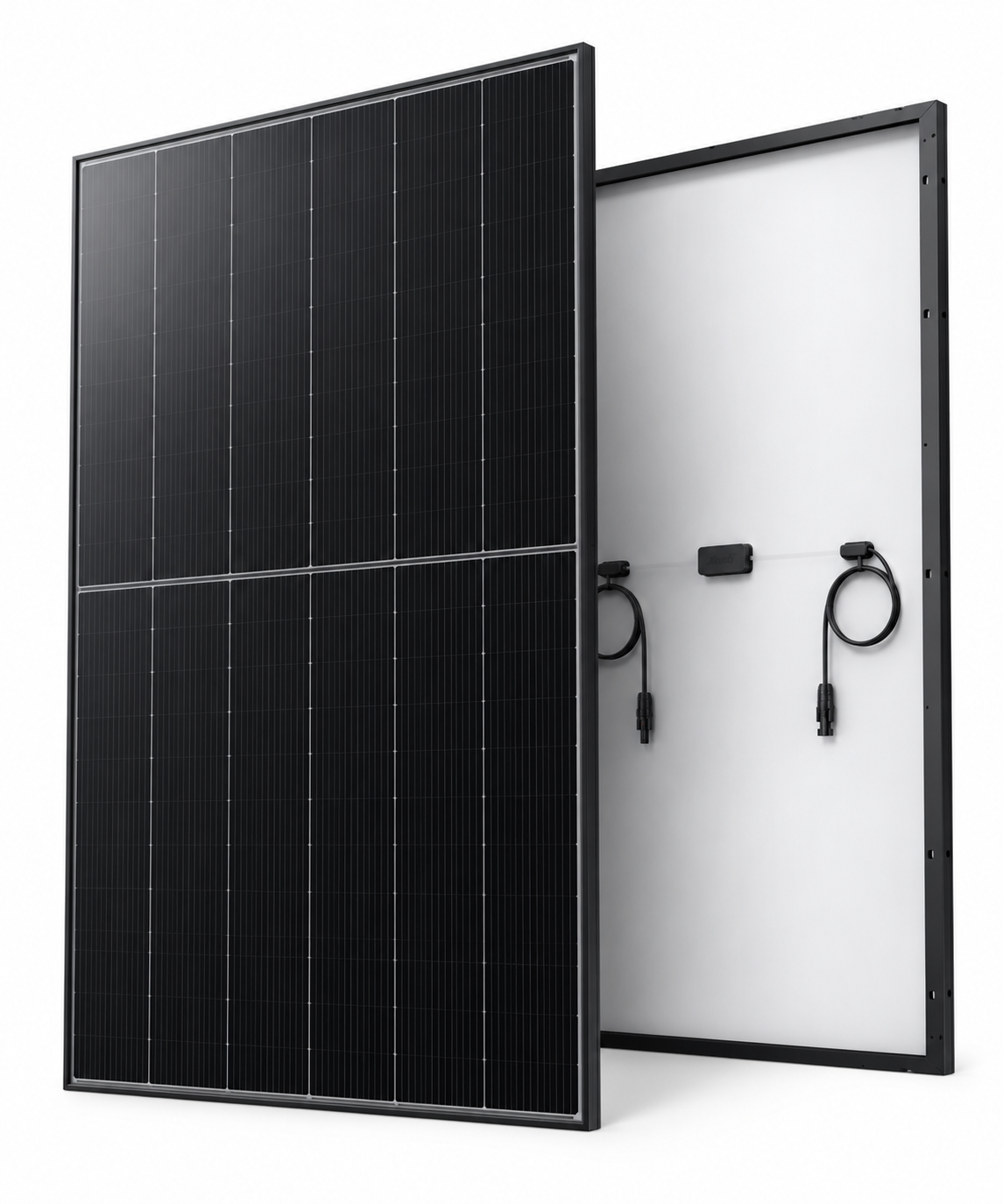

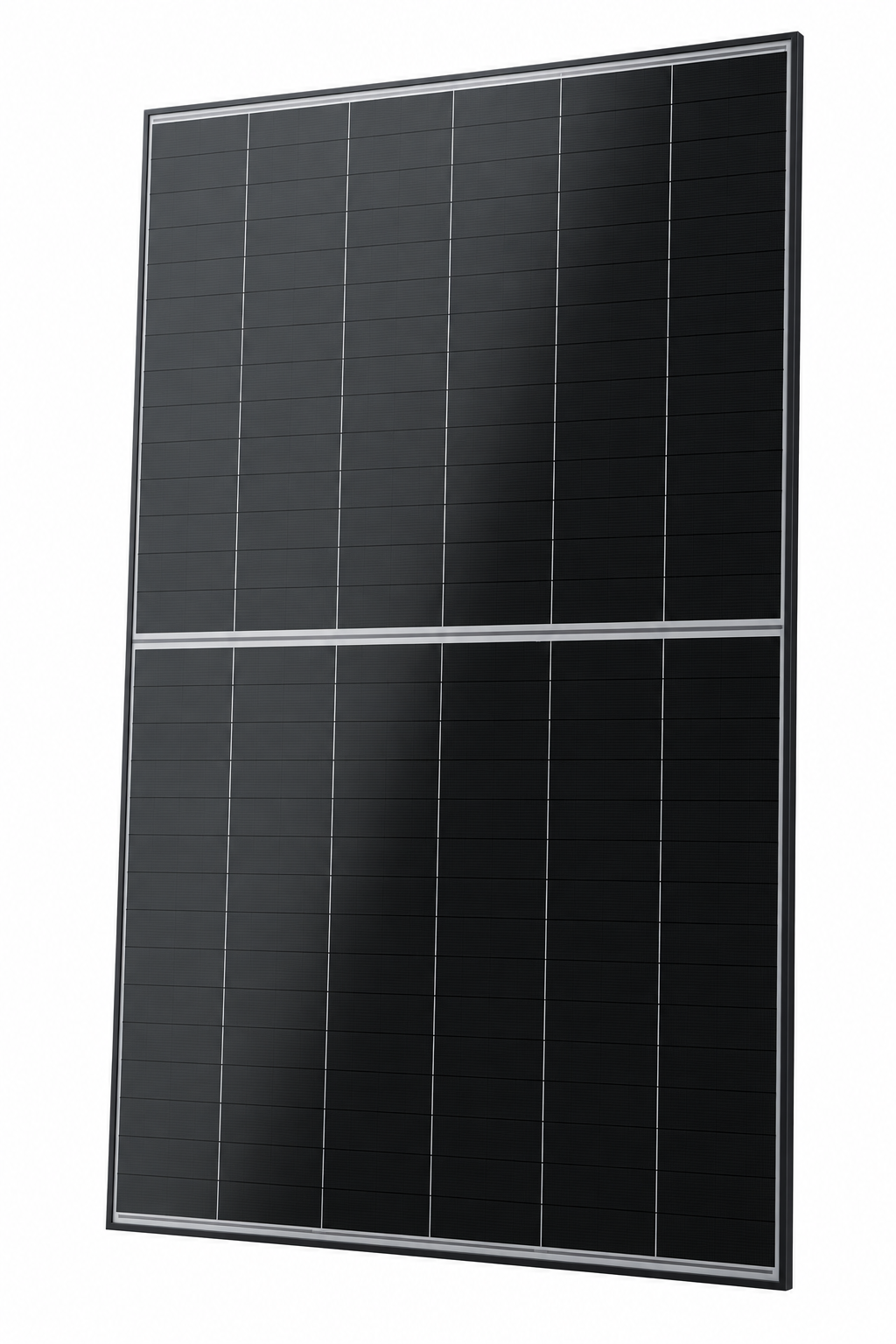

The Jinko Tiger Neo III 475W JKM475N-48QL6-DV is a premium high-efficiency residential solar panel built on JinkoSolar's latest N-Type TOPCon platform.
Delivering 475W output and 23.77% module efficiency, the Tiger Neo III combines excellent low-light generation, improved high-temperature performance and durable dual-glass construction in a compact residential format.
JinkoSolar specifically launched its 48-cell Tiger Neo 3.0 platform for Australian distributed rooftop applications, highlighting efficiency and improved low-light generation.
The datasheet specifically highlights higher front-side power, optimised heat resistance and improved performance under low-light conditions.
The 475W Tiger Neo III achieves an impressive 23.77% module efficiency, allowing more solar generation from a relatively compact roof area.
At STC, the 475W model provides:
| Specification | JKM475N-48QL6-DV |
|---|---|
| Maximum Power | 475W |
| Module Efficiency | 23.77% |
| Maximum Power Voltage (Vmp) | 31.11V |
| Maximum Power Current (Imp) | 15.27A |
| Open Circuit Voltage (Voc) | 36.42V |
| Short Circuit Current (Isc) | 15.86A |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
Β
One of the major advantages of the Tiger Neo III is its performance outside ideal midday conditions.
Jinko states that its enhanced cell structure provides superior module performance under low-light conditions, helping maintain generation during cloudy weather and lower irradiance periods.
JinkoSolar also describes Tiger Neo 3.0 TOPCon technology as providing improved generation under low irradiance, including cloudy conditions and dawn/dusk.
Solar panels naturally lose some output as cell temperatures increase. The Tiger Neo III's excellent -0.26%/Β°C Pmax temperature coefficient helps minimise these losses during hot conditions.
Temperature coefficients:
The module's normal operating range is -40Β°C to +70Β°C, with the datasheet noting short-term operation up to 85Β°C subject to specified requirements.
Unlike conventional glass/backsheet modules, the Tiger Neo III uses a durable dual-glass structure.
Construction:
The module measures just 1762 Γ 1134 Γ 30mm and weighs 24.4kg.
The Tiger Neo III is designed to withstand demanding environmental conditions with certified maximum static test loads of:
Front: 5400Pa
Rear: 2400Pa
The Tiger Neo III is designed around very low long-term degradation:
Year 1: 1% degradation
Years 2β30: 0.35% annual degradation
Year 30: 88.85% warranted power output
The supplied datasheet specifies a 25-year product warranty and 30-year linear power warranty.
At 1762mm Γ 1134mm, this panel is shorter than many high-wattage residential modules while still producing 475W.
That combination of compact dimensions and 23.77% efficiency makes it particularly attractive where usable roof space is limited.
The Jinko Tiger Neo III 475W is an excellent premium residential panel for customers looking for high output, excellent efficiency and strong performance across varying Australian conditions.
Its combination of 475W output, 23.77% efficiency, N-Type TOPCon cells, dual-glass construction, excellent low-light performance and -0.26%/Β°C temperature coefficient makes it a very competitive residential module.
Ideal for: Residential rooftops β’ Limited roof space β’ Hot climates β’ Low-light conditions β’ Premium solar installations
