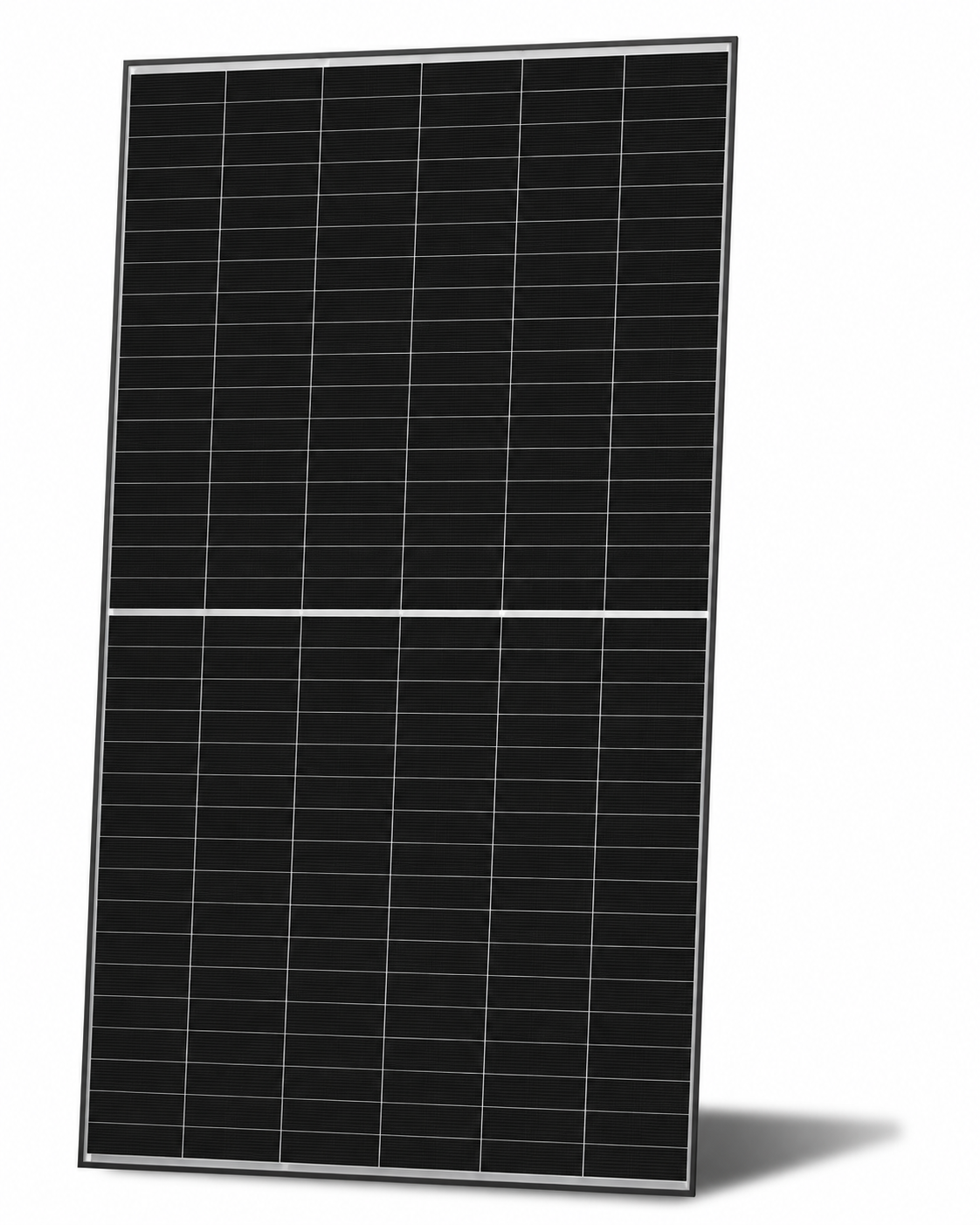

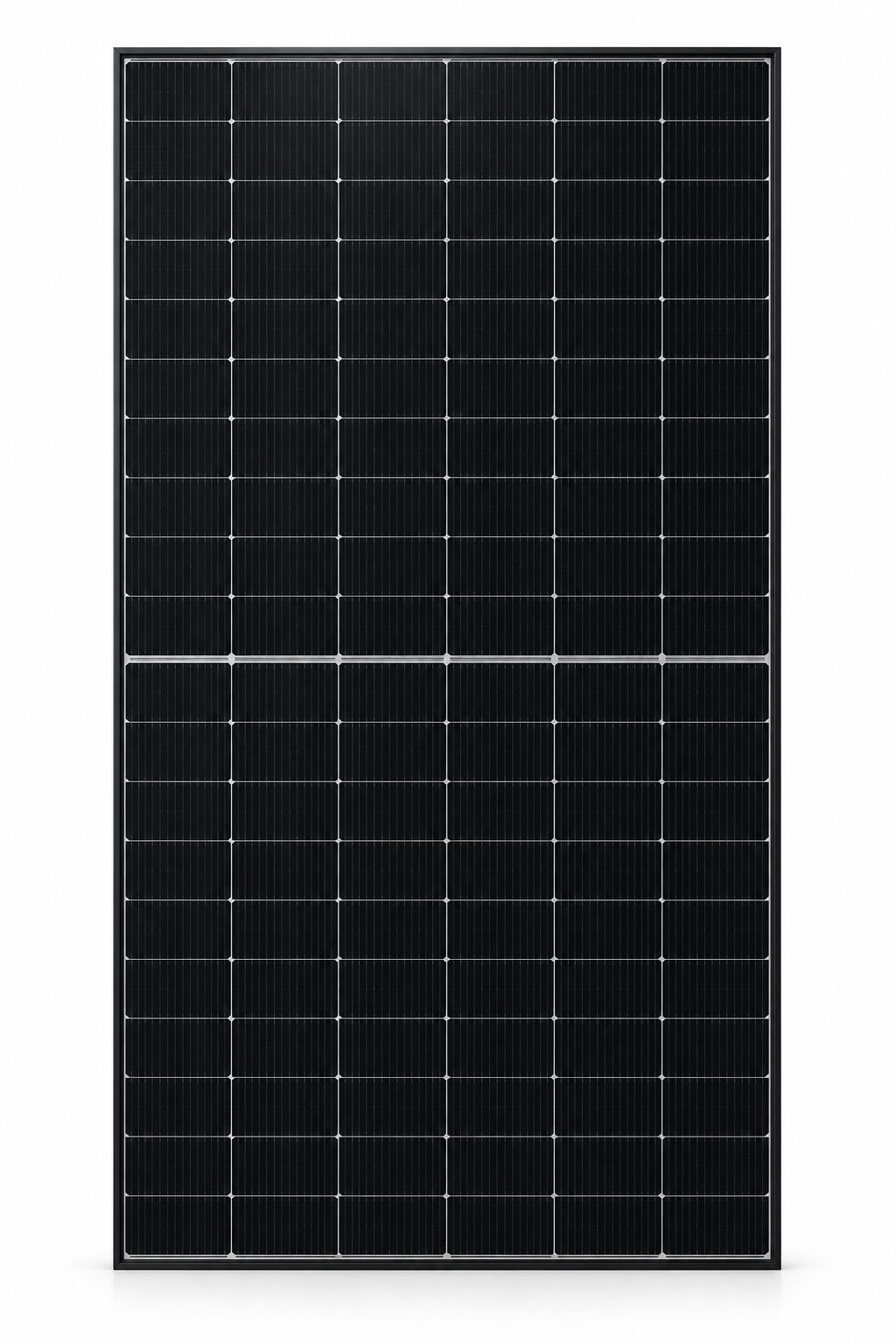

The Jinko Tiger Neo III 510W is a high-performance N-Type TOPCon solar panel designed to deliver exceptional power density, efficiency and long-term reliability.
Part of JinkoSolar’s latest Tiger Neo III 51QL6-DV series, the JKM510N-51QL6-DV produces 510W from a relatively compact 1906 × 1134mm module while achieving an impressive 23.60% module efficiency. The module uses a mono-facial dual-glass construction for enhanced durability and long service life.
510W maximum power output
23.60% module efficiency
Advanced N-Type TOPCon technology
Tiger Neo III generation
Mono-facial dual-glass construction
204 N-Type mono-crystalline cells
Excellent low-light performance
-0.26%/°C Pmax temperature coefficient
1500V DC maximum system voltage
IP68-rated junction box
5400Pa front / 2400Pa rear maximum static test load
25-year product warranty
30-year linear power warranty
Only 1% first-year degradation
Maximum 0.35% annual degradation thereafter
88.85% warranted output at year 30
The Tiger Neo III platform uses JinkoSolar's enhanced N-Type TOPCon technology together with an optimised module layout to achieve a higher power class and capture more available sunlight.
Advanced metallisation and module encapsulation are designed to provide improved resistance against PID, LID/LeTID and UV degradation, supporting reliable performance throughout the module's operating life.
With 510W of rated output and 23.60% efficiency, the JKM510N-51QL6-DV delivers substantial solar capacity without requiring an oversized commercial-format panel.
At only 1906mm long and 1134mm wide, it is an attractive option where roof space needs to be used efficiently.
The Tiger Neo III features a low -0.26%/°C maximum-power temperature coefficient, helping reduce the impact of increasing cell temperatures on solar output.
JinkoSolar also specifies enhanced low-light performance, allowing the module to continue producing effectively during lower irradiance conditions.
Rather than a conventional glass-and-backsheet construction, the 51QL6-DV uses glass on both sides of the module.
The panel incorporates 1.6mm anti-reflection coated front glass and 1.6mm heat-strengthened rear glass, together with an anodised aluminium alloy frame and IP68-rated junction box.
| Specification | JKM510N-51QL6-DV |
|---|---|
| Maximum Power (Pmax) | 510W |
| Module Efficiency | 23.60% |
| Maximum Power Voltage (Vmp) | 33.21V |
| Maximum Power Current (Imp) | 15.36A |
| Open Circuit Voltage (Voc) | 38.94V |
| Short Circuit Current (Isc) | 15.90A |
| Cell Type | N-Type Mono-crystalline |
| Number of Cells | 204 (51 × 4) |

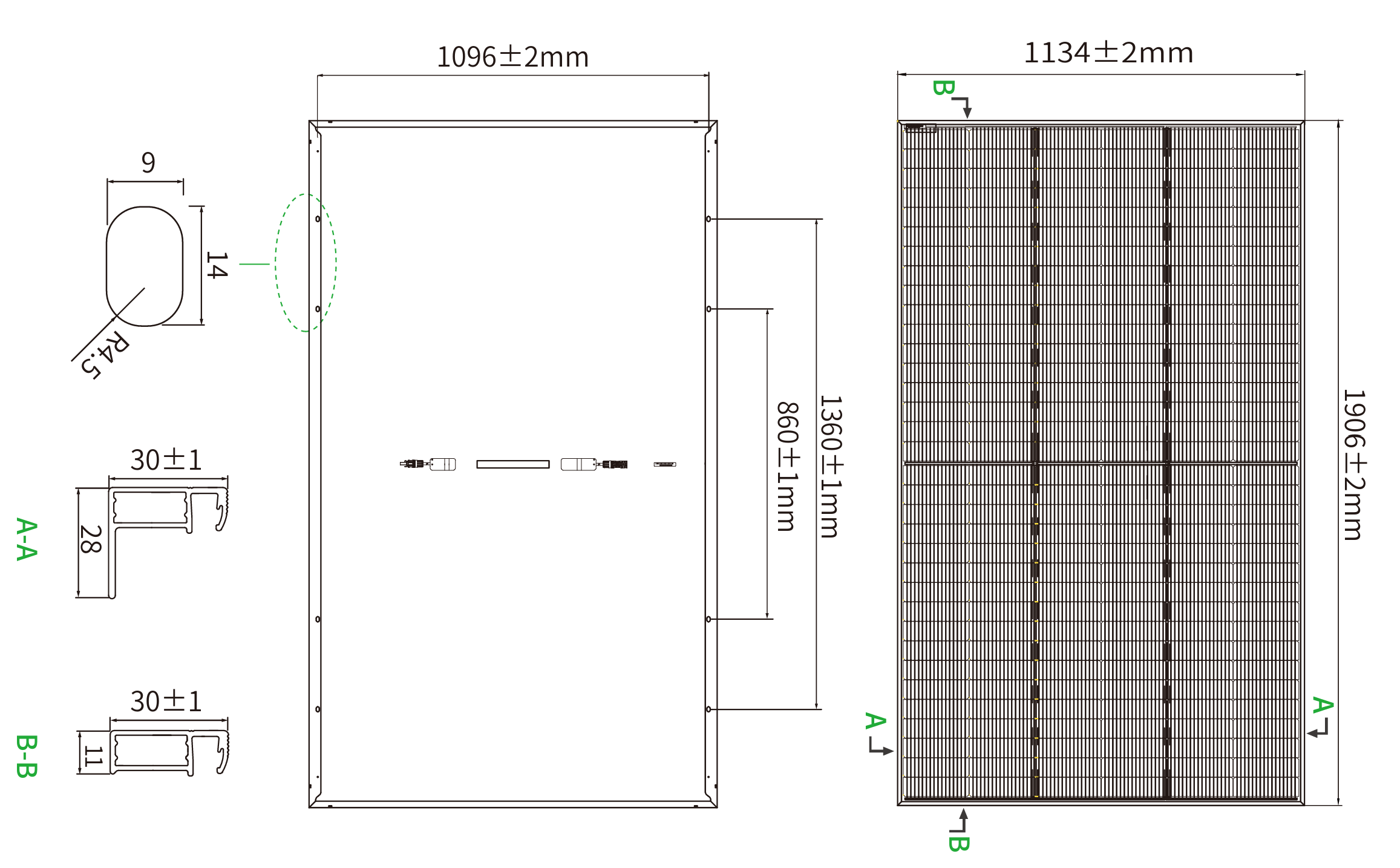

| Dimensions | 1906 × 1134 × 30mm |
| Weight | 23.0kg |
| Front Glass | 1.6mm Anti-Reflection Coated |
| Rear Glass | 1.6mm Heat-Strengthened |
| Frame | Anodised Aluminium Alloy |
| Junction Box | IP68 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Pmax Temperature Coefficient | -0.26%/°C |
| Voc Temperature Coefficient | -0.24%/°C |
| Isc Temperature Coefficient | +0.046%/°C |
The 510W electrical ratings are specified under standard test conditions (STC).
The Tiger Neo III is certified to withstand maximum static test loads of:
5400Pa on the front
2400Pa on the rear
This robust construction makes the module suitable for demanding rooftop solar installations.
JinkoSolar backs the Tiger Neo III with a 25-year product warranty and 30-year linear power warranty.
The warranted degradation profile allows only 1% degradation in the first year, followed by a maximum 0.35% annual degradation over 30 years, leaving 88.85% of original rated output at year 30.
The series datasheet lists:
IEC 61215:2021
IEC 61730:2023
IEC 61701
IEC 62716
IEC 60068
IEC 62804
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
The Jinko Tiger Neo III 510W combines very high 23.60% efficiency, advanced N-Type TOPCon technology and durable dual-glass construction in a manageable 1906mm residential-format module.
For customers wanting a premium, high-output Jinko panel without moving to a much larger commercial-size module, the JKM510N-51QL6-DV is a particularly strong option.
