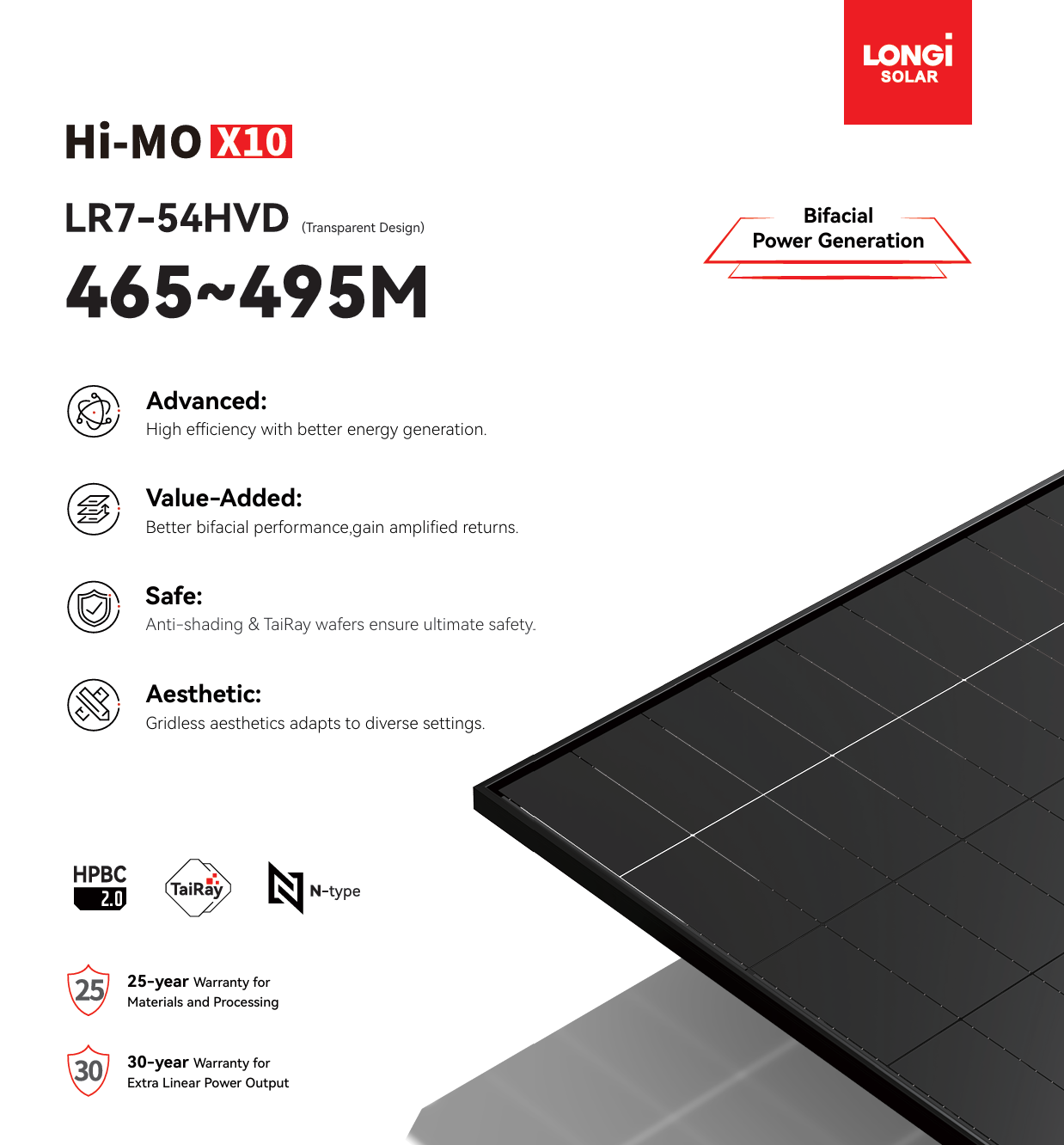

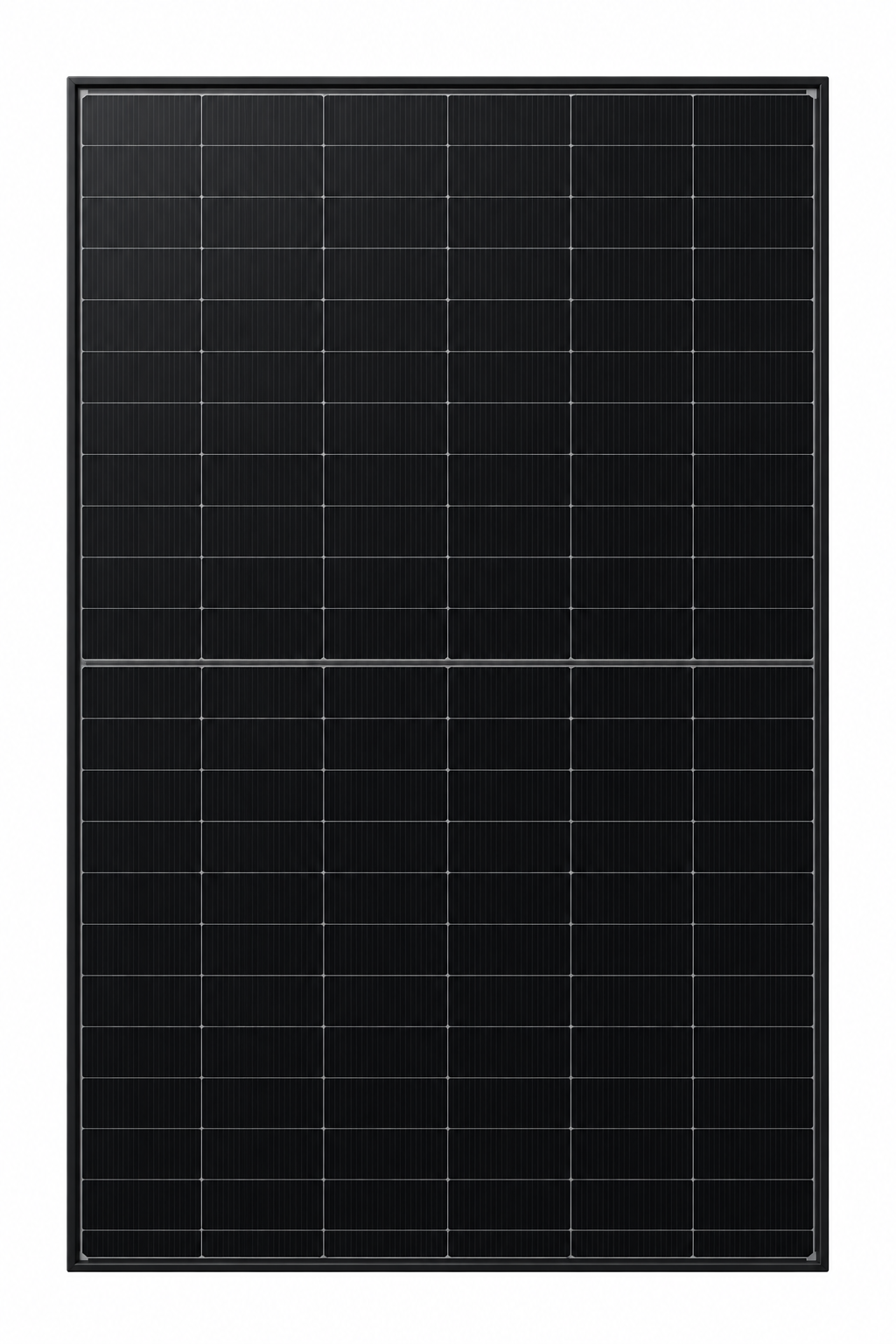

The LONGi Hi-MO X10 475W LR7-54HVD-475M is a high-performance bifacial dual-glass solar panel designed to deliver excellent energy generation, long-term reliability and premium aesthetics.
Featuring LONGi's advanced BC-cell technology, the Hi-MO X10 combines a powerful 475W output with 23.27% module efficiency and the ability to generate additional energy from light reaching the rear of the panel.
Its gridless appearance, anti-shading design and durable dual-glass construction make it an excellent option for premium residential and commercial solar installations.
475W rated power output
23.27% module efficiency
Bifacial power generation
70 Β± 5% bifaciality
Advanced LONGi BC-cell technology
N-Type solar cell technology
Dual-glass construction
Gridless premium aesthetics
Anti-shading design
TaiRay wafer technology
Low operating temperature
Excellent temperature coefficient of -0.260%/Β°C
0β3% positive power tolerance
25-year materials and processing warranty
30-year linear power output warranty
88.85% warranted power output at year 30
LONGi highlights the X10's combination of bifacial generation, high efficiency, gridless aesthetics and anti-shading technology as key advantages of this module.
Unlike conventional single-sided solar panels, the Hi-MO X10 HVD can generate electricity from both sides of the module.
The front surface captures direct sunlight, while the rear can utilise reflected and indirect light. LONGi specifies a bifaciality rating of 70 Β± 5%, providing the potential for additional energy generation when installed in conditions that allow sufficient light to reach the rear of the module.
This makes the panel particularly attractive for installations such as:
Residential and commercial rooftops
Carports and pergolas
Ground-mounted solar systems
Light or reflective roofing surfaces
Installations with greater rear-side exposure
The Hi-MO X10 has been engineered with anti-shading technology and TaiRay wafers, which LONGi identifies as part of the module's safety design.
This makes the X10 an attractive choice for real-world installations where occasional partial shading may occur.
The LR7-54HVD uses a robust dual-glass structure consisting of:
Front/rear glass: 2.0mm semi-tempered glass + 1.6mm semi-tempered glass
Frame: Black anodised aluminium alloy
Junction box: IP68
Connector: EVO2A (StΓ€ubli) or PV-LR5 (LONGi)
The module measures 1800 Γ 1134 Γ 30mm and weighs 23.5kg.
| Specification | LR7-54HVD-475M |
|---|---|
| Maximum Power (Pmax) | 475W |
| Module Efficiency | 23.27% |
| Open Circuit Voltage (Voc) | 40.42V |
| Short Circuit Current (Isc) | 14.88A |
| Maximum Power Voltage (Vmp) | 33.40V |
| Maximum Power Current (Imp) | 14.23A |
| Cell Configuration | 108 (6 Γ 18) |
| Dimensions | 1800 Γ 1134 Γ 30mm |
| Weight | 23.5kg |
| Bifaciality | 70 Β± 5% |
| Maximum System Voltage | DC 1500V |
| Maximum Series Fuse | 30A |
| Power Tolerance | 0β3% |
| Junction Box | IP68 |
The electrical specifications above are based on Standard Test Conditions (STC).
The Hi-MO X10 features a low -0.260%/Β°C Pmax temperature coefficient, helping the module maintain strong output as cell temperatures rise.
Operating specifications include:
Pmax temperature coefficient: -0.260%/Β°C
Voc temperature coefficient: -0.200%/Β°C
Isc temperature coefficient: +0.050%/Β°C
Operating temperature: -40Β°C to +85Β°C
Maximum system voltage: 1500V DC
Protection class: Class II
Fire rating: IEC Class C
LONGi rates the Hi-MO X10 for substantial mechanical loads:
Front-side maximum static loading: 5400Pa
Rear-side maximum static loading: 2400Pa
Hail test: 25mm hailstone at 23m/s
LONGi provides a 30-year linear power output warranty with low long-term degradation:
Year 1 degradation: 1%
Years 2β30: 0.35% per year
Guaranteed output after 30 years: 88.85%
The module also includes a 25-year materials and processing warranty.
The Hi-MO X10 carries major international product and manufacturing certifications, including:
IEC 61215
IEC 61730
IEC 62941
ISO 9001 Quality Management
ISO 14001 Environmental Management
ISO 45001 Occupational Health & Safety
The LONGi Hi-MO X10 LR7-54HVD-475M combines high 475W output, 23.27% efficiency, bifacial energy generation, dual-glass construction and advanced anti-shading technology in a compact 1800mm residential-format module.
For customers wanting a premium LONGi panel with the added benefit of rear-side solar generation and durable dual-glass construction, the Hi-MO X10 475W is an excellent choice for modern residential and commercial solar systems.
