The Ocular IQ Home Solar EV Charger is a smart residential EV charging solution designed to make better use of your home's solar generation while providing fast, convenient everyday charging.
Available in 7.2kW single-phase and 22kW three-phase configurations, the IQ Home Solar combines solar charging, automatic household load balancing, smart app control and OCPP connectivity in a compact wall-mounted charger.
7.2kW Single-Phase or 22kW Three-Phase
Solar charging capability
CT clamps included for monitoring excess solar production and household load balancing
Ocular Smart Home App
Wi-Fi, Ethernet & 4G connectivity
OCPP 1.6J & 2.0.1 compatible
Integrated energy meter
RFID compatible
IP55 & IK10 rated
Built-in AC & DC leakage protection

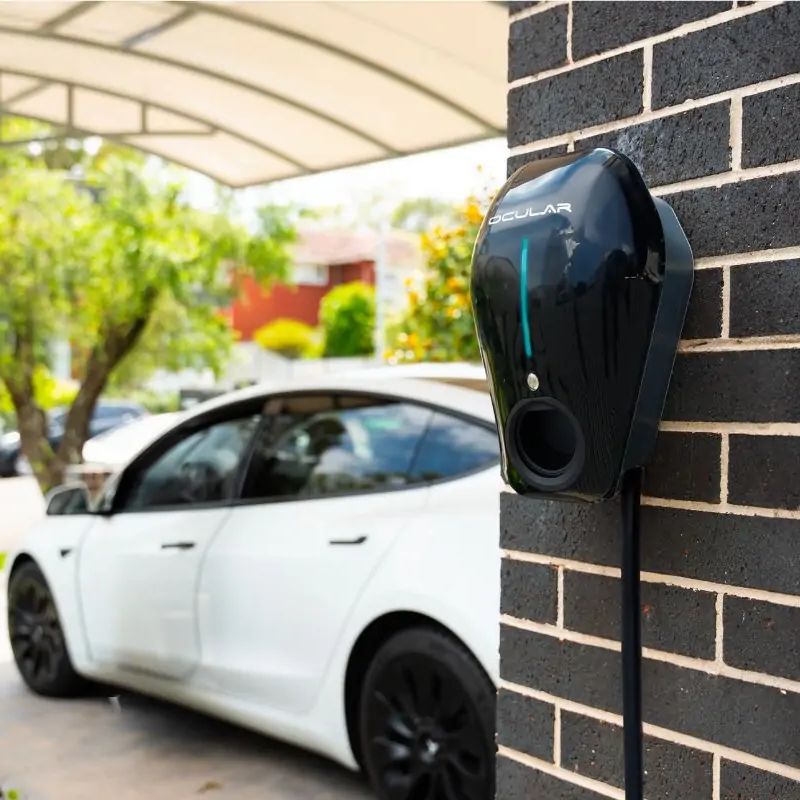

Wall-mounted compact design
Available in 5m Type 2 tethered cable or Type 2 socket configurations
3-year warranty, with extended warranties available
The IQ Home Solar includes Current Transformers (CTs) that monitor excess solar energy production and household electricity demand. This allows the charger to intelligently manage EV charging while helping prevent the home's electrical supply from being overloaded.
The charger provides three useful charging strategies:
Solar Only Mode
Charges the vehicle when excess solar power is available.
Solar Assist Mode
Provides a minimum of 6A charging plus available excess solar production.
Fast Mode
Uses available renewable energy and/or grid power to provide maximum charging power.
This gives homeowners the flexibility to prioritise solar self-consumption and lower energy costs, or switch to faster charging when getting the vehicle charged quickly is more important.

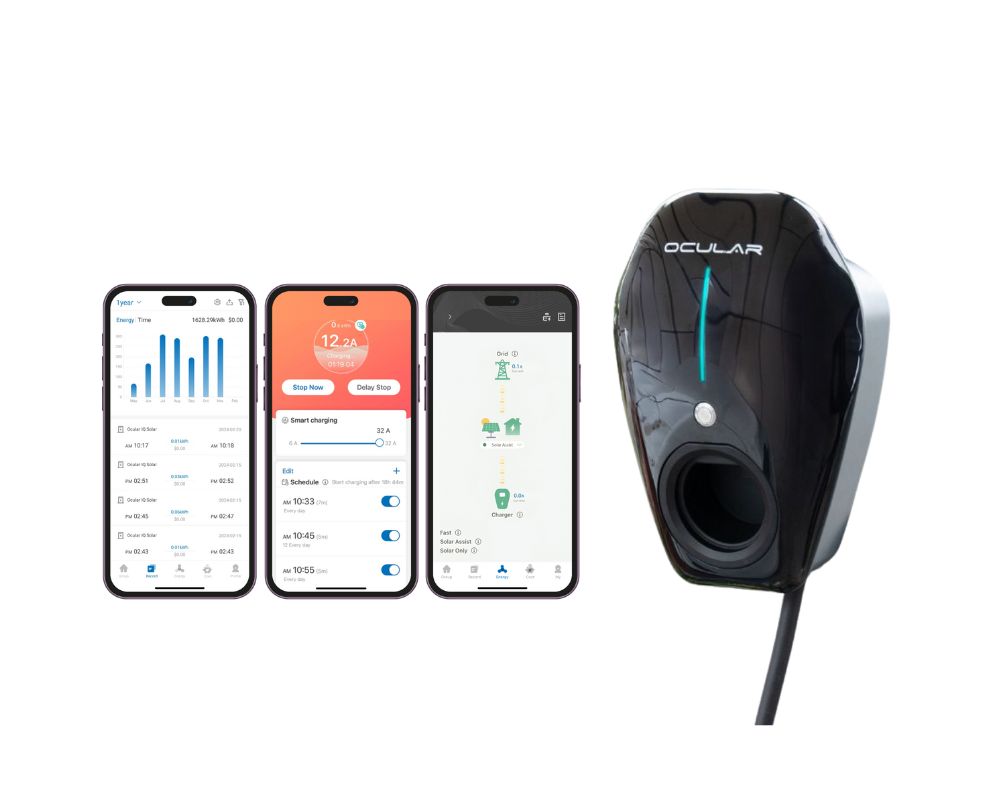

Control and monitor your EV charger from your smartphone using the Ocular Smart Home App.
The app allows you to:
Start and schedule charging sessions
Monitor solar power consumption
View charging session history
Manage intelligent charging
Monitor, track and analyse charging activity
The IQ Home Solar doesn't just monitor solar production. Its CT-based load control can also monitor household electricity consumption, allowing charging power to be managed according to the available electrical capacity.
This makes it particularly useful for homes with other high-demand appliances such as air conditioning, electric hot water, induction cooking, pool equipment or home battery systems.
Designed for homes with a standard 230V single-phase electrical supply.
Maximum output: 7.2kW
Maximum current: 32A
1 CT included
Tethered Type 2 or socket versions available
Designed for properties with a 400V three-phase electrical supply.
Maximum output: 22kW
Maximum current: 32A per phase
3 CTs included
Tethered Type 2 or socket versions available
Actual vehicle charging speed will depend on the vehicle's onboard AC charger, available electrical supply and installation configuration.
The IQ Home Solar incorporates multiple electrical protection functions, including:
30mA AC leakage protection
6mA DC leakage protection
Over-current protection
Short-circuit protection
Over-voltage protection
Under-voltage protection
Ground-fault protection
Lightning surge protection
Over-temperature protection
| Specification | 7.2kW Model | 22kW Model |
|---|---|---|
| Power Output | 7.2kW | 22kW |
| Phase | Single Phase | Three Phase |
| Voltage | 230V ±20% | 400V ±20% |
| Maximum Current | 32A | 32A per phase |
| Connector | 5m Type 2 Cable or Type 2 Socket | 5m Type 2 Cable or Type 2 Socket |
| CTs Included | 1 | 3 |
| CT Signal Cable | 20m, extendable up to 100m | 20m, extendable up to 100m |
| Internet | Ethernet / Wi-Fi / 4G | Ethernet / Wi-Fi / 4G |
| OCPP | 1.6J / 2.0.1* | 1.6J / 2.0.1* |
| Protection Rating | IP55 / IK10 | IP55 / IK10 |
| Installation | Wall Mount | Wall Mount |
| Dimensions | 398 × 285 × 226mm | 398 × 285 × 226mm |
| Warranty | 3 Years | 3 Years |
*OCPP 2.0.1 requires a firmware upgrade according to the manufacturer datasheet.
The Ocular IQ Home Solar is a strong choice for Australian homeowners who want more than a basic EV charger. It combines fast home charging, intelligent solar utilisation, automatic load balancing and app-based energy management in one compact system.
For homes already equipped with rooftop solar, the ability to direct excess generation into the vehicle can help increase solar self-consumption and reduce reliance on grid electricity.
Smart EV charging. Solar ready. Built for Australian homes.
