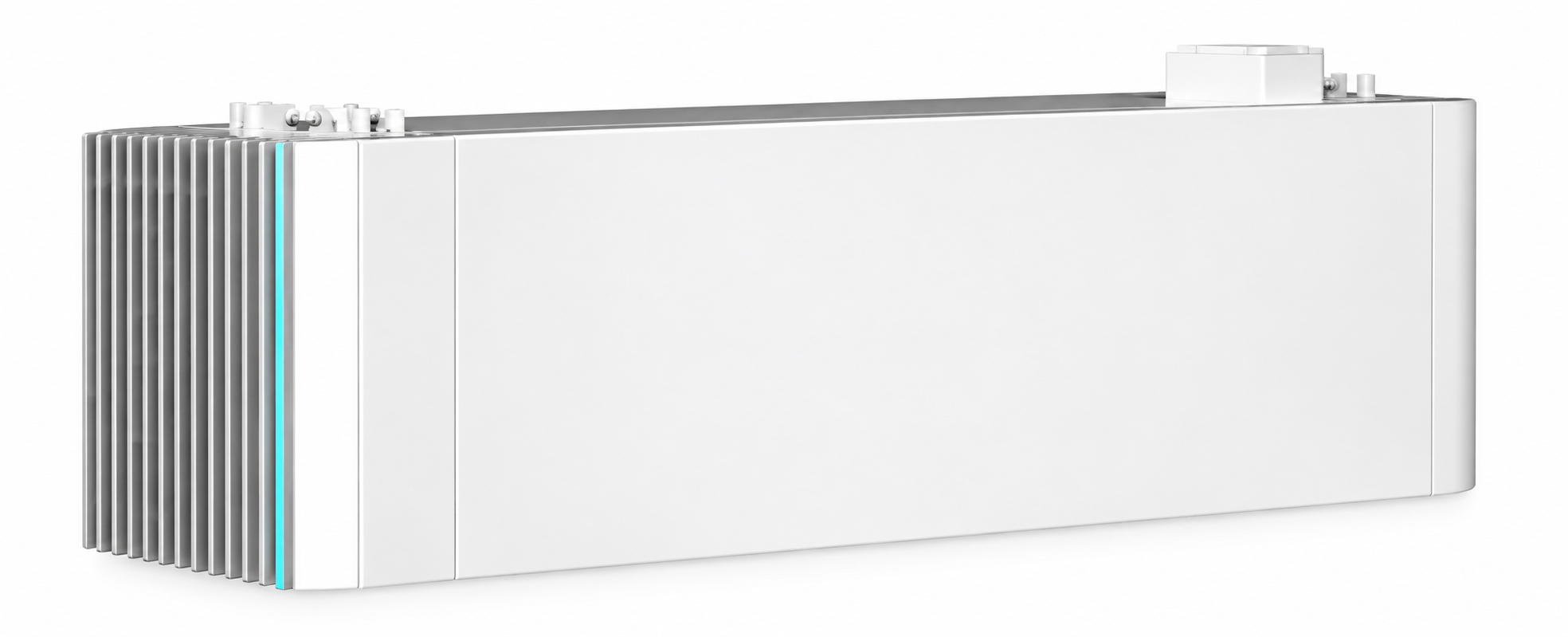

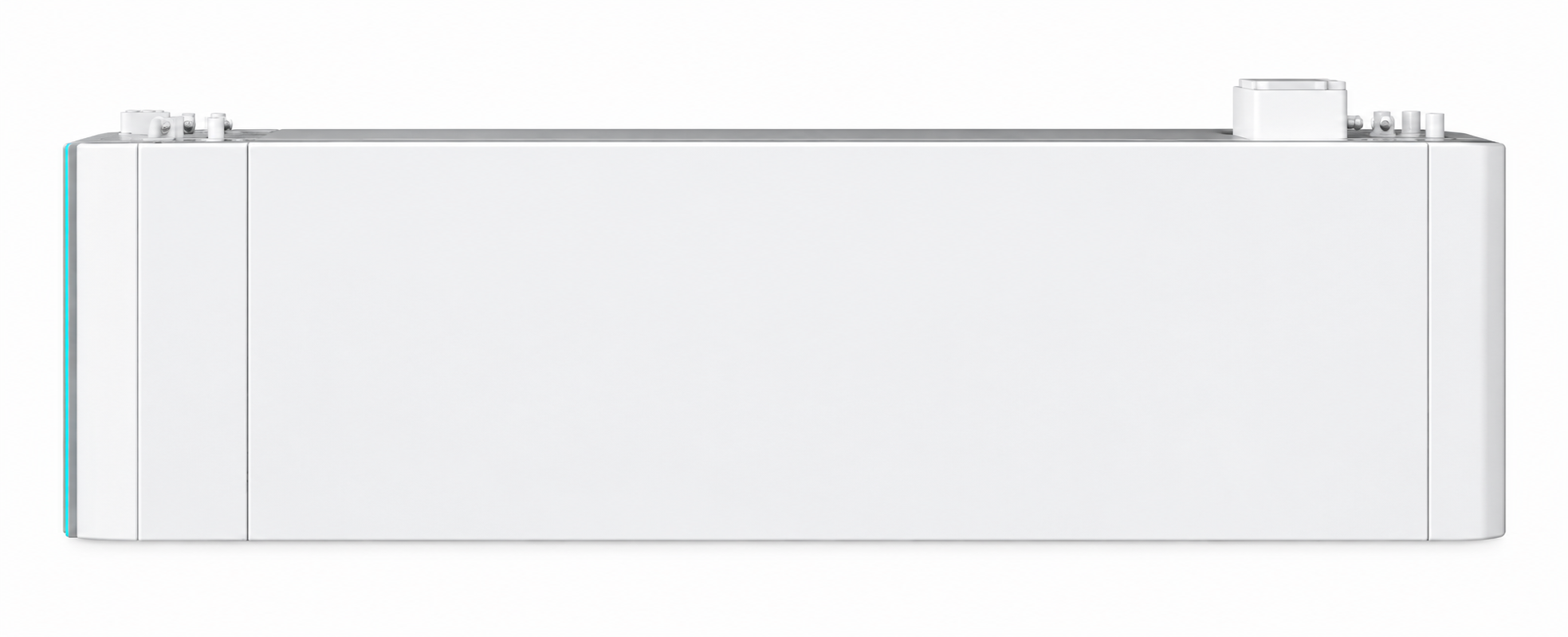

The Sigenergy SigenStor BAT 10.0 is a high-performance modular battery designed for the SigenStor energy storage platform. With 9.04kWh total energy capacity and 8.76kWh usable capacity, it provides a compact and scalable way to increase the storage capacity of a compatible Sigenergy system.
Using premium 314Ah LiFePO4 battery cells, the Sigen Battery is designed for long service life, high energy utilisation and reliable daily cycling. Sigenergy specifies a cell cycle life of 10,000 cycles under its stated test conditions.
A major advantage of the SigenStor battery architecture is its built-in battery optimisation. This allows greater flexibility when expanding a system, including the ability to mix older and newer battery modules as storage requirements grow. The battery also provides 100% depth of discharge, helping maximise the usable energy available from the system.
9.04kWh total battery capacity
8.76kWh usable energy capacity
Premium 314Ah LiFePO4 cells
Up to 10,000 cell cycles under specified test conditions
100% depth of discharge
Built-in battery optimisation
Designed to support easy future capacity expansion
Up to 4.6kW continuous charge/discharge power
Up to 6.9kW peak charge/discharge power for 10 seconds
IP66 ingress protection
Natural convection cooling
Floor-standing or wall-mounted installation
Compact modular design
Compatible with supported SigenStor and Sigen Hybrid systems
The SigenStor platform is designed around modular battery storage. A compatible controller can support 1 to 6 SigenStor BAT modules, allowing the system to be sized for current energy requirements and expanded as household or business energy consumption increases.
The integrated battery optimiser is particularly useful when expanding an existing installation because Sigenergy states that the system can mix old and new battery modules, reducing the need to replace an existing battery bank simply to increase storage capacity.
The SigenStor BAT 10.0 uses LiFePO4 battery chemistry with 314Ah cells. It provides:
Total Energy Capacity: 9.04kWh
Usable Energy Capacity: 8.76kWh
Depth of Discharge: 100%
Maximum Charge/Discharge Power: 4.6kW
Peak Charge/Discharge Power: 6.9kW for 10 seconds
This makes the module suitable for storing excess solar generation, increasing household solar self-consumption and providing energy for use outside solar-production periods when configured as part of a compatible Sigenergy system.
The SigenStor BAT features an IP66 ingress protection rating and operates across a specified temperature range of -20°C to 55°C. Cooling is achieved through natural convection, eliminating the need for active battery cooling fans.
| Specification | SigenStor BAT 10.0 |
|---|---|
| Battery Chemistry | LiFePO4 |
| Cell Capacity | 314Ah |
| Total Energy | 9.04kWh |
| Usable Energy | 8.76kWh |
| Depth of Discharge | 100% |
| Max. Charge/Discharge Power | 4,600W |
| Peak Charge/Discharge Power | 6,900W / 10 sec |
| Weight | 78kg |
| Dimensions | 767 × 270 × 265mm |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -25°C to 60°C |
| Relative Humidity | 5%–95% |
| Maximum Operating Altitude | 4,000m |
| Cooling | Natural convection |
| Ingress Protection | IP66 |
| Installation | Floor standing / Wall-mounted |
| Modules per Controller | 1–6 |
These specifications are taken directly from the Sigen Battery 6.0/10.0 technical table on page 2 of the supplied datasheet.
The SigenStor BAT series is compatible with the SigenStor EC series and Sigen Hybrid SP2/TP2 series. When connecting the battery to a Sigen Hybrid SP2/TP2 inverter, the datasheet specifies that the SigenStor BC must be used.
1 × Sigenergy SigenStor BAT 10.0 Battery Module
This listing is for the battery module only. Other SigenStor components, controllers, inverters, covers, bases and additional battery modules should only be considered included where specifically stated in the product bundle.
The SigenStor BAT 10.0 is an excellent expansion option for customers who already have a compatible Sigenergy system and want to increase their available battery storage without replacing their existing system.
Its modular architecture also makes it suitable for new installations where additional battery capacity may be required in the future.
