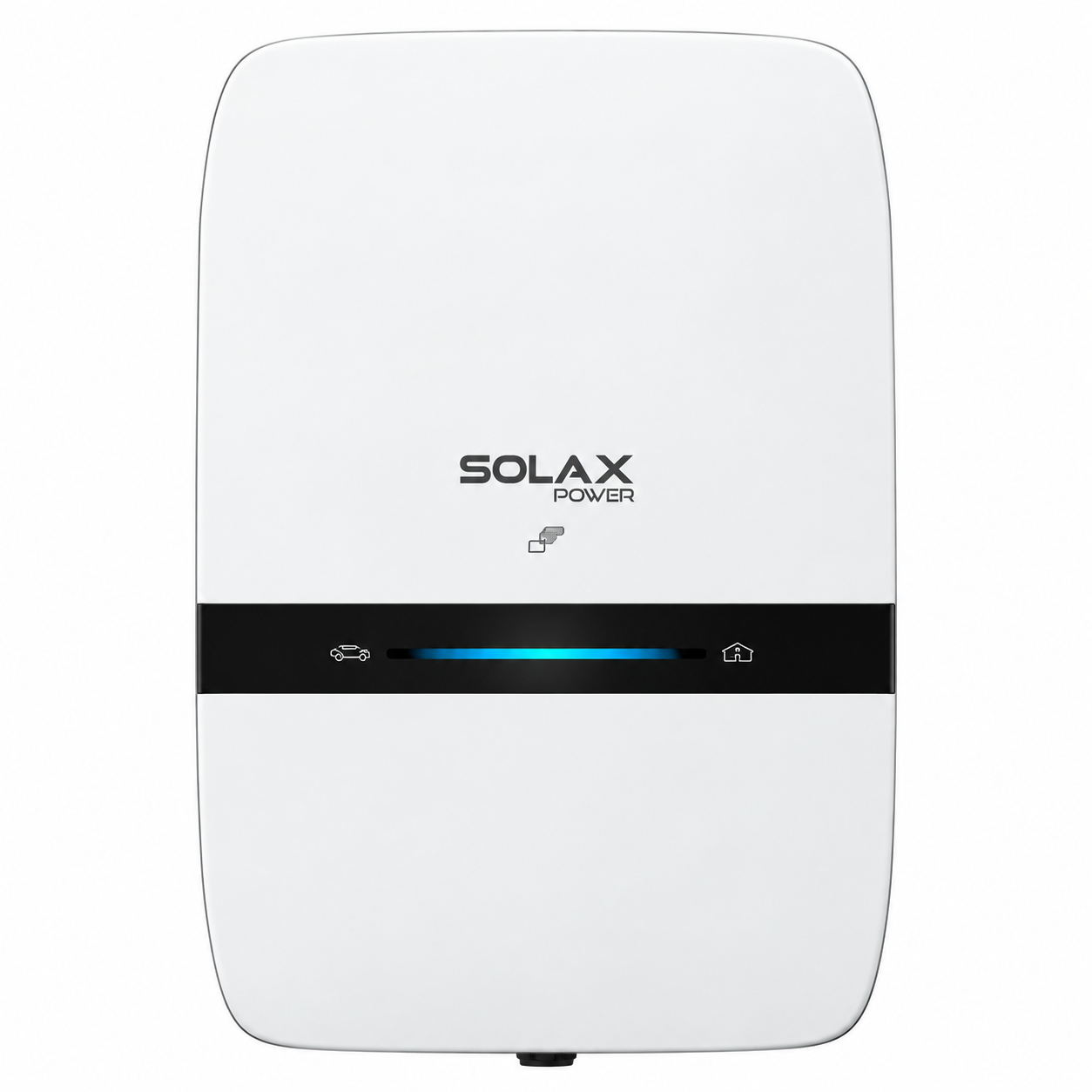

The SolaX Binary BRY-A22D7 is an advanced smart EV charging and discharging solution designed for both single-phase and three-phase homes.
With up to approximately 7.4kW charging on 230V single phase and up to 22kW charging on 400V three phase, the Binary Series provides a flexible solution for Australian residential EV charging installations.
Unlike a conventional EV charger, the BRY-A22D7 also incorporates DC discharge functionality for compatible V2L electric vehicles. When integrated with compatible SolaX equipment, energy stored within the EV battery can become part of the home's wider solar, battery and backup energy system.
The BRY-A22D7 supports both 230V single-phase and 400V three-phase electrical supplies.
This makes the same charger suitable for a wide range of residential installations.
Single phase: up to approximately 7.4kW at 230V / 32A
Three phase: up to 22kW at 400V
Adjustable charging current: 6Aβ32A
Automatic switching between single and three phases
50Hz / 60Hz operation
The approximately 7.4kW single-phase figure is calculated from the datasheet's 230V and 32A ratings; the datasheet specifies an overall AC charging range of 1.4β22kW. Actual charging power depends on the connected EV and installation.
For properties equipped with three-phase power, the BRY-A22D7 can provide up to 22kW AC charging when supported by the vehicle and electrical installation.
For single-phase properties, the charger can operate from a standard 230V single-phase supply at up to 32A.
This means customers do not necessarily require three-phase power to install and use the Binary Series charger.
The Binary Series supports automatic switching between single-phase and three-phase operation.
This capability is particularly useful when integrating EV charging with solar generation, helping the system make better use of available renewable energy across different operating conditions.
The Binary Series goes beyond conventional one-way EV charging by supporting energy discharge from compatible V2L electric vehicles.
When correctly integrated with a compatible SolaX inverter and energy system, energy stored inside the EV battery can be discharged for use within the home.
DC discharge specifications include:
Up to 7kW DC discharge power
400V nominal DC output
Up to 17.5A DC output current
7kW output specified above 350Vdc
Compatible V2L vehicle support
Actual charging and discharging power depends on the connected vehicle. The charger's DC output must also be connected to a compatible inverter.
When used with compatible equipment, the Binary Series allows energy stored in a supported EV battery to become part of the home's wider energy ecosystem.
Rather than using the vehicle only as an electrical load, the system is designed to allow compatible EVs to participate in charging and discharging alongside solar PV, home loads, battery storage and the grid. The system architecture is illustrated on page 1 of the SolaX datasheet.
The Binary Series supports black-start functionality, allowing the EV battery to be used as a backup energy source for the home when used with compatible equipment and a supported vehicle.
This provides another potential source of stored energy alongside a conventional home battery system.
The BRY-A22D7 is designed to integrate with the SolaX PV and energy storage ecosystem.
SolaX highlights the ability to maximise surplus green-energy utilisation in zero-export systems and describes the solution as capable of 100% green-energy operation when sufficient renewable energy is available.
Dynamic load balancing helps coordinate EV charging with the electrical demand from other household appliances.
This allows the charger to operate as part of the home's broader energy management system rather than functioning as an isolated high-power electrical load.
The SolaX Binary Series provides intelligent control over when the vehicle charges and, where supported, when energy is discharged.
Smart functionality includes:
Multiple charging time slots
Multiple discharging time slots
Charging history
Discharging history
Smart vehicle management
RFID card management
Remote operation
App control
Web control
Β
The BRY-A22D7 provides several methods for controlling charger access:
Plug & Charge
RFID card
Mobile app
Physical button
An RGB LED interface provides charger status information, with additional control available through the app.
The Binary Series supports multiple communication interfaces and protocols for integration with smart home energy systems.
Communication interfaces include:
WiFi
Ethernet
CAN
RS485
Digital Input
Supported protocols listed by SolaX include:
OCPP 1.6J
Modbus TCP
Modbus RTU
Cloud API
Β
The BRY-A22D7 features a Type 2 charging plug compliant with IEC 62196 and a 6.5-metre charging cable, providing practical reach for residential garage and driveway installations.
The charger incorporates multiple protection functions, including:
Over-voltage protection
Under-voltage protection
Overload protection
Short-circuit protection
Current leakage protection
Grounding protection
Surge protection
Over-temperature protection
Integrated current failure monitoring
30mA AC and 6mA DC leakage monitoring
Relay weld detection
Padlock theft protection
Β

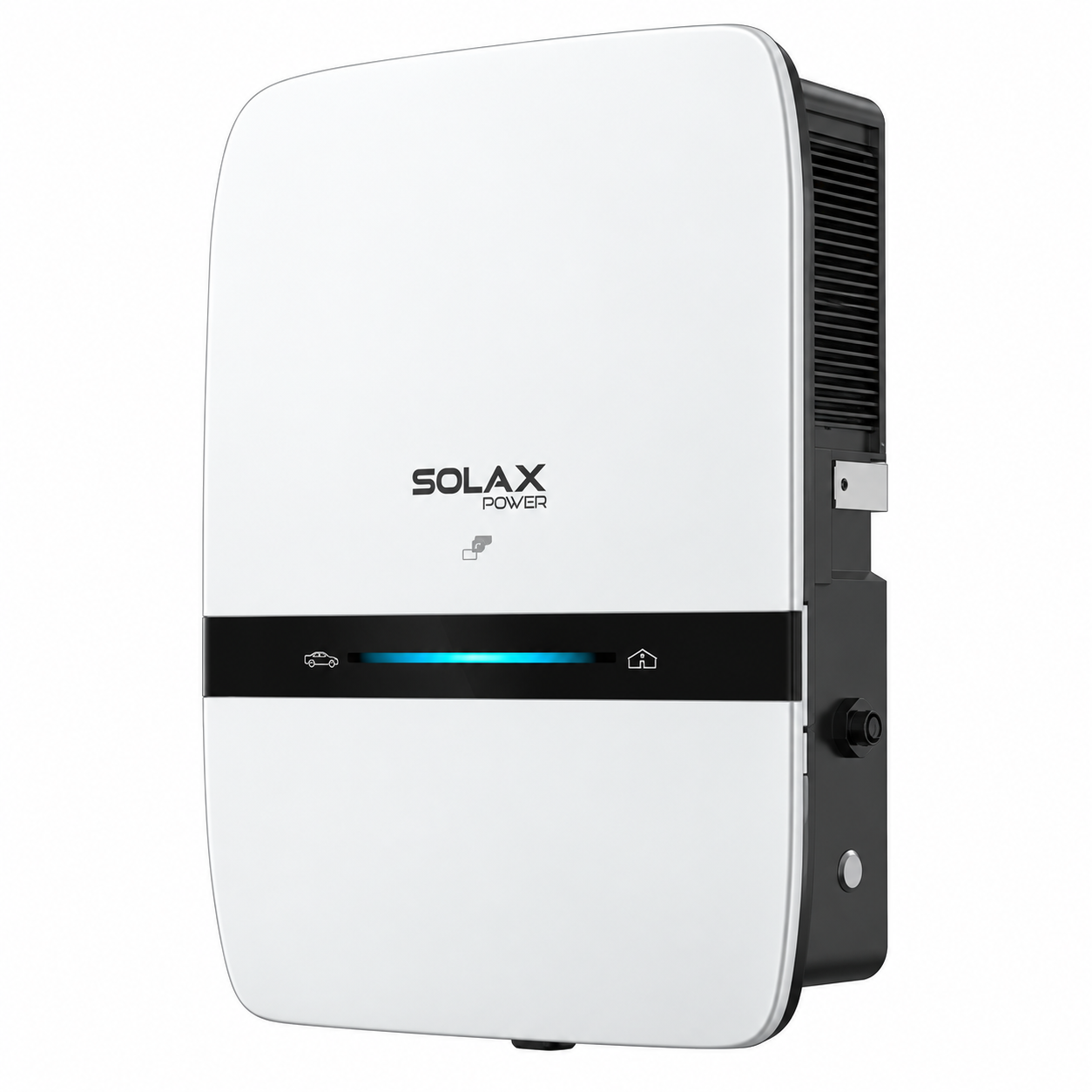

The BRY-A22D7 is designed for residential indoor or outdoor installation and can be wall mounted or installed on an optional pedestal.
General specifications include:
IP54 protection
IK10 impact resistance
Indoor or outdoor installation
Wall mounting
Optional pedestal mounting
-30Β°C to +50Β°C operating temperature
5β95% non-condensing humidity
Maximum operating altitude of 2,000m
Smart air cooling
16.5kg weight
376 Γ 562 Γ 128mm dimensions
Β
Single-phase and three-phase compatible
Up to approximately 7.4kW charging on 230V single phase
Up to 22kW charging on 400V three phase
6Aβ32A adjustable charging current
Automatic single / three-phase switching
Up to 7kW DC discharge capability
Compatible V2L vehicle support
Integration with compatible SolaX PV-ESS equipment
Black-start support
Home backup energy capability with compatible equipment
Smart dynamic load balancing
Surplus solar utilisation
Zero-export optimisation
Scheduled charging and discharging
Charging and discharging history
Plug & Charge
RFID authentication
App and web control
WiFi and Ethernet
CAN and RS485
OCPP 1.6J
Modbus TCP / RTU
Cloud API
Type 2 plug
6.5m charging cable
IP54 weather protection
IK10 impact resistance
Indoor and outdoor installation
Wall or optional pedestal mounting
| Specification | SolaX Binary BRY-A22D7 |
|---|---|
| Model | BRY-A22D7 |
| Charger Type | Smart AC EV Charger with DC Discharge |
| Phase | Single Phase / Three Phase |
| Single Phase Supply | 230V |
| Three Phase Supply | 400V |
| Charging Current | 6β32A |
| Single Phase Charging | Up to approx. 7.4kW |
| Three Phase Charging | Up to 22kW |
| AC Charging Range | 1.4β22kW |
| DC Discharge Voltage | 400V |
| DC Discharge Current | 17.5A |
| DC Discharge Power | Up to 7kW at >350Vdc |
| Connector | Type 2 |
| Cable Length | 6.5m |
| Authentication | Plug & Charge / RFID / App / Button |
| Communications | WiFi / Ethernet / CAN / DI / RS485 |
| Protocols | OCPP 1.6J / Modbus TCP / RTU / Cloud API |
| Remote Control | App & Web |
| Protection Rating | IP54 |
| Impact Rating | IK10 |
| Installation | Wall / Optional Pedestal |
| Operating Temperature | -30Β°C to +50Β°C |
| Cooling | Smart Air Cooling |
| Dimensions | 376 Γ 562 Γ 128mm |
| Weight | 16.5kg |
| Application | Residential |
| Standards | IEC 61851-1:2017 / IEC 62196-2:2016 |
Β
The SolaX Binary BRY-A22D7 provides a particularly flexible solution because customers do not need a three-phase property simply to use the charger.
It can operate on 230V single phase at up to approximately 7.4kW or take advantage of up to 22kW charging where 400V three-phase power is available.
Combined with compatible V2L vehicle discharge, SolaX PV-ESS integration, dynamic load balancing, solar optimisation and black-start capability, the Binary Series provides a pathway from conventional EV charging toward a more integrated home energy system.
Model: BRY-A22D7
Phase: Single Phase / Three Phase
Single Phase Charging: Up to approx. 7.4kW
Three Phase Charging: Up to 22kW
DC Discharge: Up to 7kW
Connector: Type 2
Cable Length: 6.5m
Application: Residential Smart EV Charging & Discharging
