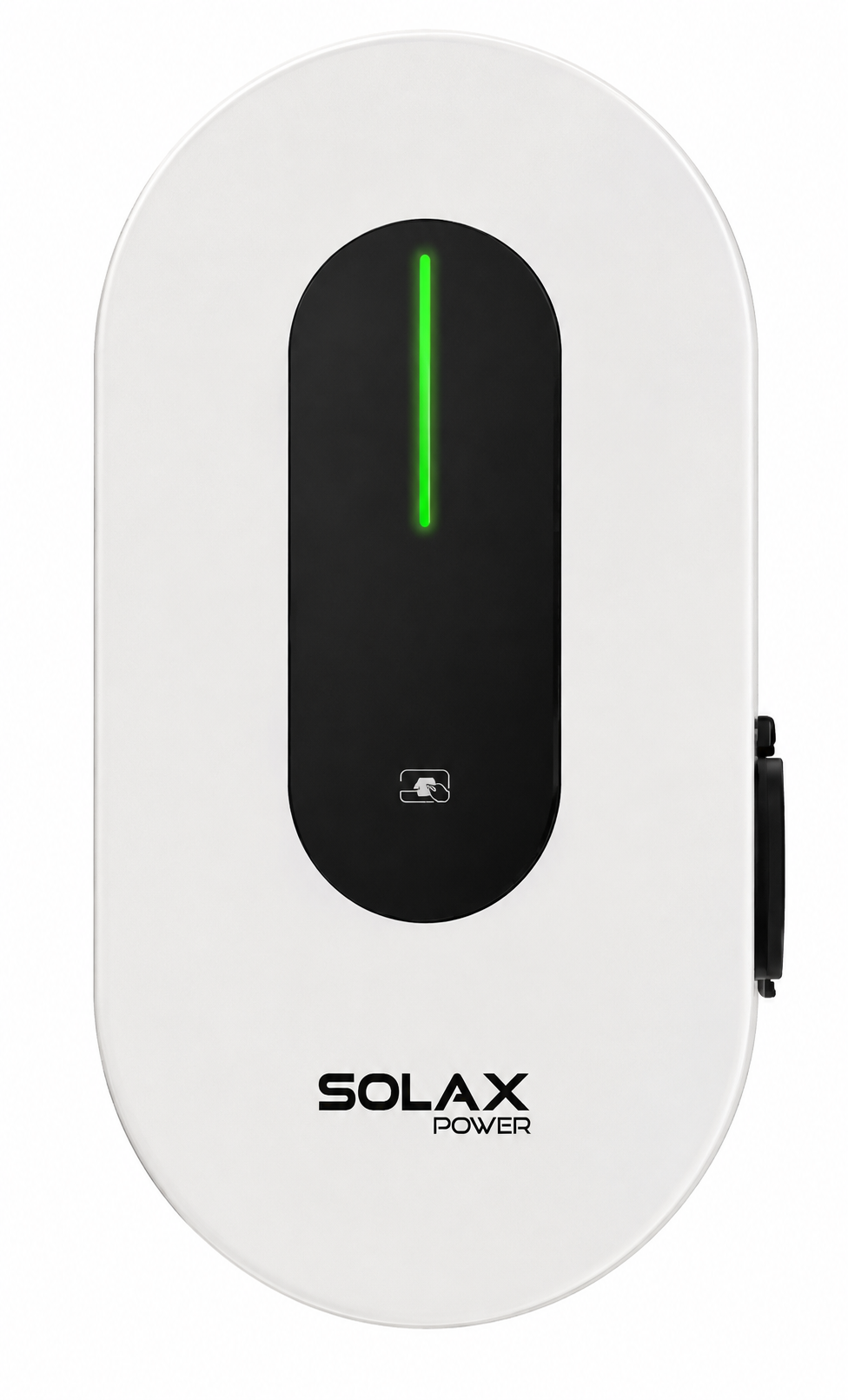

The SolaX Smart EV Charger G2 11kW (X3-HAC-11P) is a powerful three-phase smart EV charging solution designed for homes and businesses looking to maximise the use of solar energy while enjoying fast, intelligent EV charging.
Delivering up to 11kW of charging power, the SolaX G2 integrates with solar PV, battery storage, household loads and the electricity grid to intelligently manage how your EV is charged.
The SolaX Smart EV Charger G2 is designed to maximise the use of renewable energy generated by your solar system.
With dynamic load balancing, support for 100% green energy charging, and intelligent utilisation of surplus solar in zero-export systems, the charger can help direct available solar generation into your EV rather than drawing unnecessary electricity from the grid.
Up to 11kW EV charging
400V three-phase operation
Adjustable 6–16A charging current
Smart solar charging
Dynamic load balancing
Capable of 100% green energy charging
Maximises surplus solar utilisation
Smart App and web remote control
RFID authentication
Plug & Charge capability
Wi-Fi and Ethernet connectivity
Optional 4G
Dual RS485 communication
OCPP 1.6J support
Modbus TCP and Modbus RTU
Cloud API support
Type 2 charging connection
Indoor and outdoor installation
Wall mounting or optional pedestal
Natural cooling
Comprehensive integrated electrical protection
The X3-HAC-11 operates on a 400V three-phase supply and provides an adjustable charging current from 6A to 16A, with charging power ranging from approximately 1.4kW up to 11kW.
This makes the 11kW model an excellent middle ground between a 7kW single-phase charger and a full 22kW three-phase EV charger.
The Smart EV Charger G2 provides extensive communication options including:
Wi-Fi
Ethernet
Optional 4G
2 × RS485
OCPP 1.6J
Modbus TCP
Modbus RTU
Cloud API
Charging can be controlled and monitored remotely through the App and web platform, while authentication is available through Plug & Charge, RFID or the App.
The SolaX G2 is designed to operate as part of an integrated energy ecosystem consisting of solar PV, battery storage, household loads, EV charging and the grid.
This allows EV charging to become part of the property's overall energy-management strategy rather than operating as a completely separate electrical load.
For solar owners, this can help increase self-consumption of solar energy by directing available surplus generation toward EV charging.
The SolaX Smart EV Charger G2 incorporates comprehensive protection features including:
Over-voltage protection
Under-voltage protection
Overload protection
Short-circuit protection
Current leakage protection
Grounding protection
Surge protection
Over-temperature protection
Integrated 30mA AC + 6mA DC current failure monitoring
Relay weld detection
Theft protection

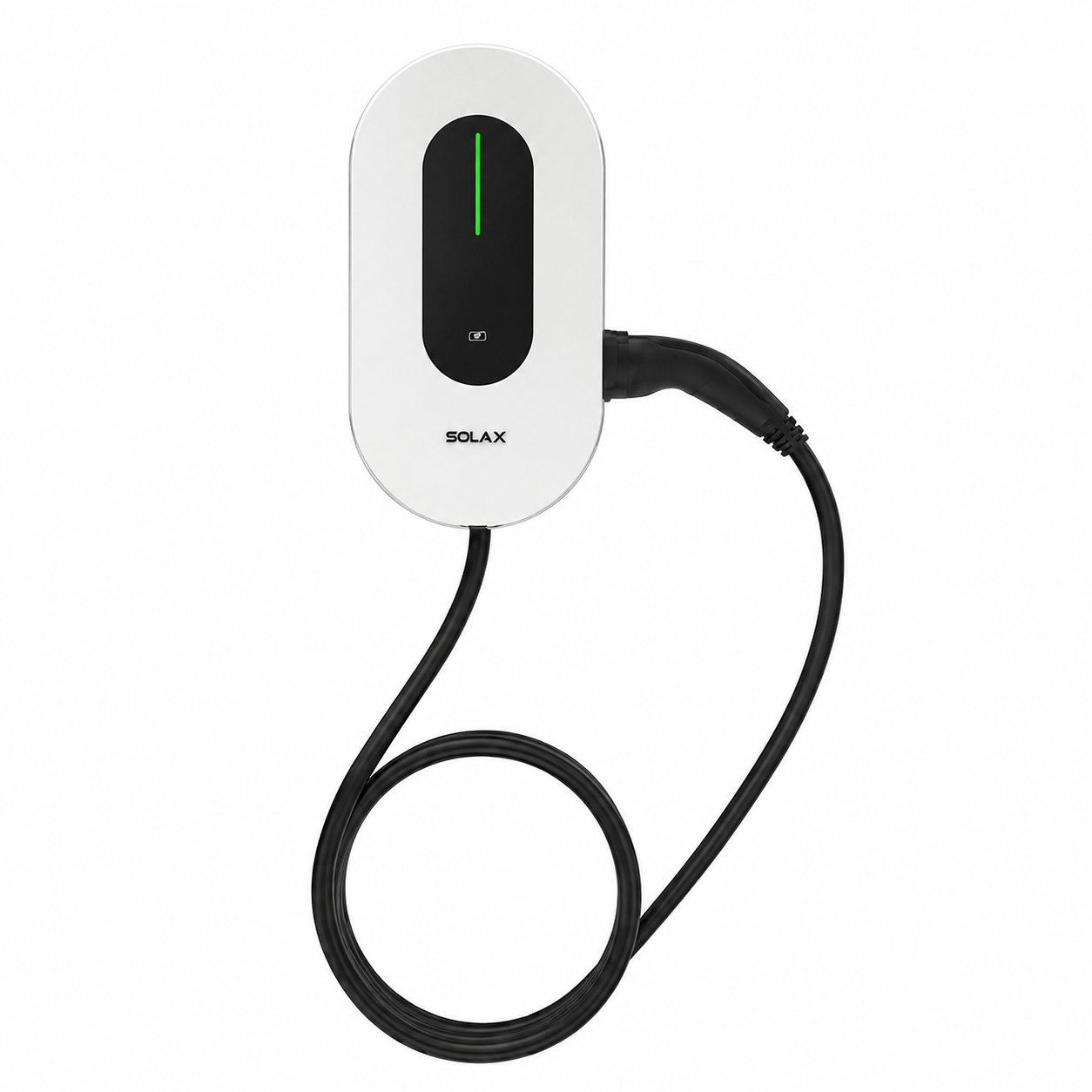

The compact charger measures 206 × 390 × 139mm and is suitable for both indoor and outdoor installations.
The plug version provides an IP65 protection rating, while the socket version is rated IP54. The housing provides an IK10 impact rating, making the charger suitable for demanding everyday environments.
| Specification | SolaX X3-HAC-11P |
|---|---|
| Maximum Charging Power | 11kW |
| Input Voltage | 400V |
| Supply | Three Phase |
| Charging Current | 6–16A |
| Output Power | 1.4–11kW |
| Charging Connection | Type 2 |
| Cable Length | 6.5m – Plug Version |
| Connectivity | Wi-Fi / Ethernet / Optional 4G / 2 × RS485 |
| Protocols | OCPP 1.6J / Modbus TCP / Modbus RTU / Cloud API |
| Authentication | Plug & Charge / RFID / App |
| Remote Control | App & Web |
| Installation | Wall / Optional Pedestal |
| Dimensions | 206 × 390 × 139mm |
| Cooling | Natural Cooling |
| Installation Location | Indoor / Outdoor |
| Protection Rating | IP65 Plug / IP54 Socket |
| Standards | IEC 61851-1:2017 / IEC 62196-2:2016 |
The SolaX Smart EV Charger G2 11kW combines fast three-phase EV charging with intelligent solar energy management.
For homes and businesses with three-phase power, it provides an excellent balance between charging speed and energy efficiency — allowing available solar generation to be used more effectively while providing convenient smart control over EV charging.
Ideal for: Three-phase homes • Solar & battery systems • Residential EV charging • Workplaces • Commercial properties • Smart energy management
