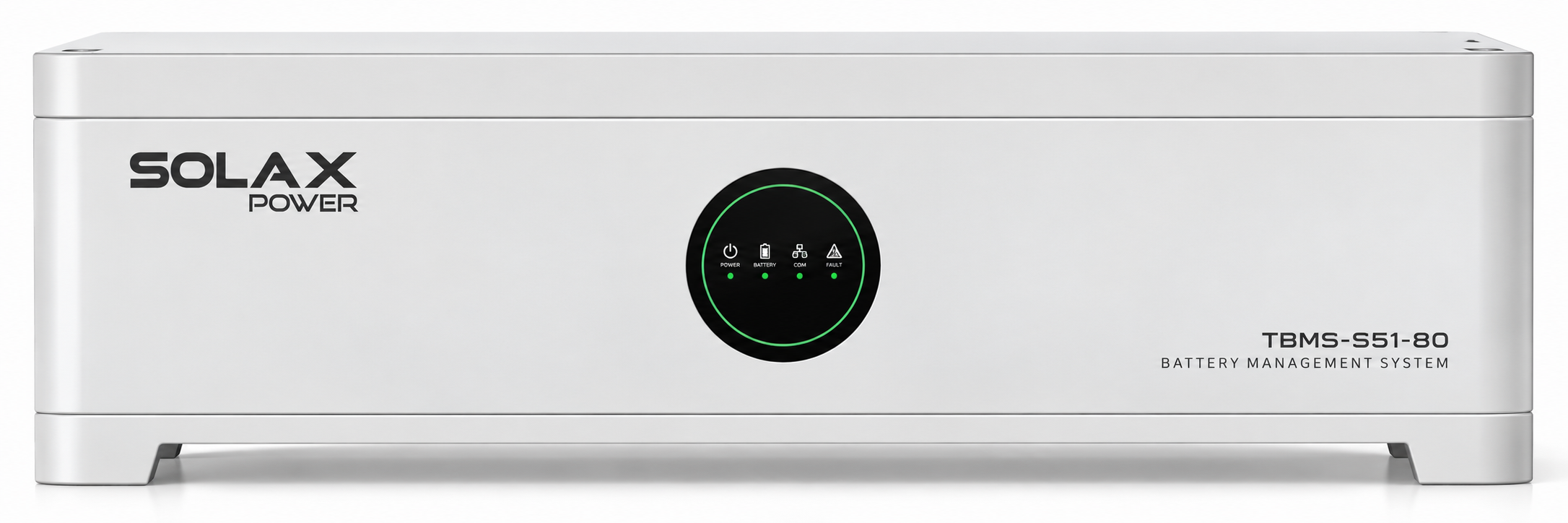

The SolaX TBMS-S51-8O is the system control and battery management unit designed for the SolaX Triple Power TSYS-HS51 high-voltage battery system using compatible 5.1kWh battery modules.
Installed as the control unit within the modular battery stack, the TBMS-S51-8O provides the interface required to manage and communicate with the TSYS-HS51 battery system. The SolaX datasheet identifies the BMS models as TBMS-S51-8 / TBMS-S51-8O.
The control unit is designed to operate as part of SolaX's modular TSYS-HS51 high-voltage battery platform.
The system uses 5.1kWh LFP battery modules and can be configured from 10.2kWh through to 66.5kWh depending on the number of battery modules installed.
Compatible battery models include:
TB-HS51
TB-HS51O optimiser version
5.1kWh capacity per battery module
Stackable battery architecture
Β
The TBMS-S51-8O forms the control layer of the TSYS-HS51 battery stack, allowing the battery system to communicate with the wider SolaX energy-storage system.
The TSYS-HS51 platform supports CAN and RS485 communications.
A single TSYS-HS51 system can be configured using multiple 5.1kWh battery modules.
The supported system configurations shown in the SolaX datasheet range from:
2 modules β 10.2kWh
3 modules β 15.3kWh
4 modules β 20.4kWh
5 modules β 25.6kWh
6 modules β 30.7kWh
7 modules β 35.8kWh
8 modules β 40.9kWh
9 modules β 46.0kWh
10 modules β 51.2kWh
11 modules β 56.3kWh
12 modules β 61.4kWh
13 modules β 66.5kWh
Β
SolaX's installation documentation also specifies one TBMS-S51 control unit in its standard TSYS-HS51 configurations. (SolaX Power)
The TSYS-HS51 battery platform supports:
60A rated operating current
Up to 70A maximum operating current
CAN + RS485 communication
Actual charging and discharging capability can vary according to the connected inverter, battery configuration, temperature and state of charge.
The wider TSYS-HS51 platform provides smart battery management functionality including remote fault diagnosis, upgrades and maintenance.
The TBMS control unit forms part of this integrated battery management architecture.
The TBMS-S51-8O is associated with the optimiser version of the TSYS-HS51 system. SolaX's datasheet separately identifies TBMS-S51-8 / TBMS-S51-8O BMS variants and TB-HS51 / TB-HS51O battery variants. (SolaX Power)
The optimiser-version system supports advanced functionality including:
Mixed use of new and existing batteries
Direct battery expansion
Rapid capacity expansion
Plug-and-play expansion
Rapid battery equalisation
Β
The TSYS-HS51 battery system is rated IP66 and designed for both indoor and outdoor installations.
This allows the control unit and compatible battery stack to form part of a robust floor-mounted energy-storage installation.
System control unit / BMS for SolaX TSYS-HS51
Optimiser-version control unit
Designed for 5.1kWh TB-HS51O battery modules
Supports modular high-voltage battery systems
System capacities from 10.2kWh to 66.5kWh
CAN communication
RS485 communication
Compatible with SolaX TSYS-HS51 architecture
Supports smart battery management
Supports battery expansion
Designed for indoor and outdoor battery installations
Part of an IP66-rated battery system
Compact stackable form factor
| Specification | TBMS-S51-8O |
|---|---|
| Product Type | Battery Management / System Control Unit |
| Battery System | SolaX TSYS-HS51 |
| Compatible Battery | TB-HS51O / applicable TSYS-HS51 configuration |
| Battery Module Capacity | 5.1kWh per module |
| Battery Chemistry | LFP |
| System Capacity | 10.2β66.5kWh |
| Communication | CAN + RS485 |
| Dimensions | 600 Γ 225 Γ 376mm |
| Net Weight | 18.5kg |
| System Installation | Floor Mounted |
| System Environment | Indoor / Outdoor |
| System Protection | IP66 |
The BMS dimensions and 18.5kg weight are specified directly in the supplied SolaX datasheet.
The TBMS-S51-8O is a battery system control/BMS component and does not provide 5.1kWh of battery storage by itself. Compatible TB-HS51/TB-HS51O battery modules are required to create a complete TSYS-HS51 battery system. The battery modules themselves provide 5.1kWh each.
Recommended Shopify title:
SolaX TBMS-S51-8O System Control Unit / BMS for TSYS-HS51 5.1kWh Battery System
SKU: SOLAX-TBMS-S51-80
