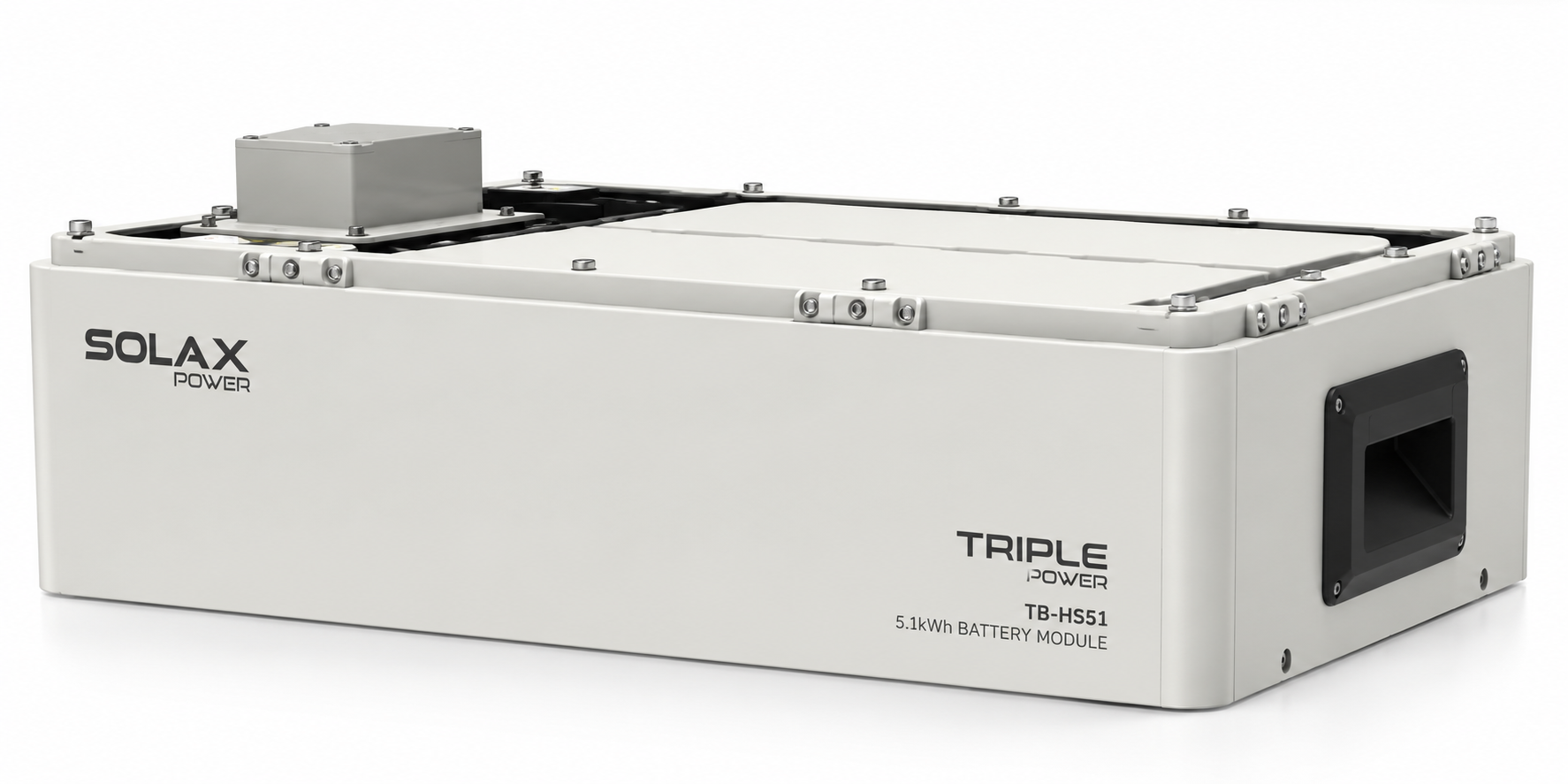

The SolaX Triple Power TB-HS51 is a 5.1kWh high-voltage lithium iron phosphate (LFP) battery module designed for the SolaX TSYS-HS51 modular battery storage system.
This listing is for the 5.1kWh battery module only. A compatible SolaX battery management/system control unit and other required system components are sold separately.
The modular stackable design allows multiple TB-HS51 battery modules to be combined to create larger energy-storage systems ranging from 10.2kWh through to 66.5kWh.
Each TB-HS51 module provides:
5.1kWh rated battery capacity
Lithium Iron Phosphate (LFP) chemistry
90% system depth of discharge
More than 6,000 cycles
Stackable modular construction
High-voltage battery architecture
The datasheet specifies cycle life of more than 6,000 cycles under its stated 90% DOD, 0.2C and 25Β°C test conditions.
The TB-HS51's modular design allows additional 5.1kWh battery modules to be added to create a battery system sized for the installation.
Available TSYS-HS51 system configurations include:
| Battery Modules | Rated Capacity | Usable Energy |
|---|---|---|
| 2 | 10.2kWh | 9.1kWh |
| 3 | 15.3kWh | 13.7kWh |
| 4 | 20.4kWh | 18.3kWh |
| 5 | 25.6kWh | 23.0kWh |
| 6 | 30.7kWh | 27.6kWh |
| 7 | 35.8kWh | 32.2kWh |
| 8 | 40.9kWh | 36.8kWh |
| 9 | 46.0kWh | 41.4kWh |
| 10 | 51.2kWh | 46.0kWh |
| 11 | 56.3kWh | 50.6kWh |
| 12 | 61.4kWh | 55.2kWh |
| 13 | 66.5kWh | 59.8kWh |
Β
The TSYS-HS51 platform uses LFP battery cells together with high-performance processors and integrated battery protection technologies.
LFP chemistry provides a strong platform for stationary solar energy storage where cycle life, thermal stability and daily charge/discharge operation are important.
Each TB-HS51 battery module measures just 600 Γ 168 Γ 376mm and is designed to stack as part of the TSYS-HS51 battery tower.
This makes it possible to increase storage capacity vertically without requiring separate battery cabinets for every additional 5.1kWh module.
The TSYS-HS51 platform incorporates battery heating technology for operation across a wide temperature range.
The system is specified for charging and discharging from -30Β°C to +53Β°C when heating is active, or -20Β°C to +53Β°C without heating.
The TSYS-HS51 system carries an IP66 ingress protection rating and is designed for indoor or outdoor installation.
The complete system is floor mounted and rated for operation at altitudes up to 3,000m.
5.1kWh battery module
Lithium Iron Phosphate (LFP) chemistry
High-voltage battery architecture
Modular and stackable design
More than 6,000 cycles
90% system depth of discharge
Designed for TSYS-HS51 battery systems
Expandable battery architecture
Compact 600 Γ 168 Γ 376mm module
46kg module weight
Suitable for scalable residential and commercial energy storage
Part of an IP66-rated battery system
Compatible with SolaX battery management architecture
| Specification | TB-HS51 |
|---|---|
| Product Type | Battery Module Only |
| Battery Chemistry | LFP |
| Rated Capacity | 5.1kWh |
| Cycle Life | >6,000 cycles |
| System Depth of Discharge | 90% |
| Dimensions | 600 Γ 168 Γ 376mm |
| Weight | 46kg |
| Installation | Stackable |
| Battery System | TSYS-HS51 |
| System Communication | CAN + RS485 |
| System Protection Rating | IP66 |
| System Capacity Range | 10.2β66.5kWh |
Β
1 Γ SolaX Triple Power TB-HS51 5.1kWh battery module
This product is a battery module only. The BMS/system control unit, inverter, additional battery modules, cabling, bases, series boxes and other system components are not included unless specifically stated in the package.
