SolaX TSYS-HS51 High Voltage LFP Battery System – 10.2kWh to 66.5kWh
SolaX TSYS-HS51 High Voltage LFP Battery System – 10.2kWh to 66.5kWh

SolaX TSYS-HS51 High Voltage LFP Battery System – 10.2kWh to 66.5kWh

The SolaX TSYS-HS51 is a modular high-voltage lithium iron phosphate (LFP) battery system designed for scalable residential and commercial energy storage. Starting from 10.2kWh and expandable up to 66.5kWh per system configuration, the TSYS-HS51 allows battery capacity to be tailored to the energy requirements of...
Vendor: Solax
Product Type: Solar Batteries
$4,895.00
$4,895.00
Please hurry! Only 3 left in stock
10 customers are viewing this product

Warranty and Returns

Description
Description
x

The SolaX TSYS-HS51 is a modular high-voltage lithium iron phosphate (LFP) battery system designed for scalable residential and commercial energy storage.

Starting from 10.2kWh and expandable up to 66.5kWh per system configuration, the TSYS-HS51 allows battery capacity to be tailored to the energy requirements of the installation.

The system combines 5.1kWh stackable LFP battery modules with up to 70A maximum operating current, more than 6,000 cycles, IP66 protection, integrated battery heating technology and aerosol fire suppression for enhanced battery protection.

Battery BMS included.

SolaX TBMS-S51-8O System Control Unit / BMS for TSYS-HS51 5.1kWh Battery System

Available Battery Capacities

Choose the required storage capacity:

Model Modules Rated Capacity Usable Energy*
T-HS10.2 2 10.2kWh 9.1kWh
T-HS15.3 3 15.3kWh 13.7kWh
T-HS20.4 4 20.4kWh 18.3kWh
T-HS25.6 5 25.6kWh 23.0kWh
T-HS30.7 6 30.7kWh 27.6kWh
T-HS35.8 7 35.8kWh 32.2kWh
T-HS40.9 8 40.9kWh 36.8kWh
T-HS46.0 9 46.0kWh 41.4kWh
T-HS51.2 10 51.2kWh 46.0kWh
T-HS56.3 11 56.3kWh 50.6kWh
T-HS61.4 12 61.4kWh 55.2kWh
T-HS66.5 13 66.5kWh 59.8kWh

*Usable energy based on 90% depth of discharge (DOD).

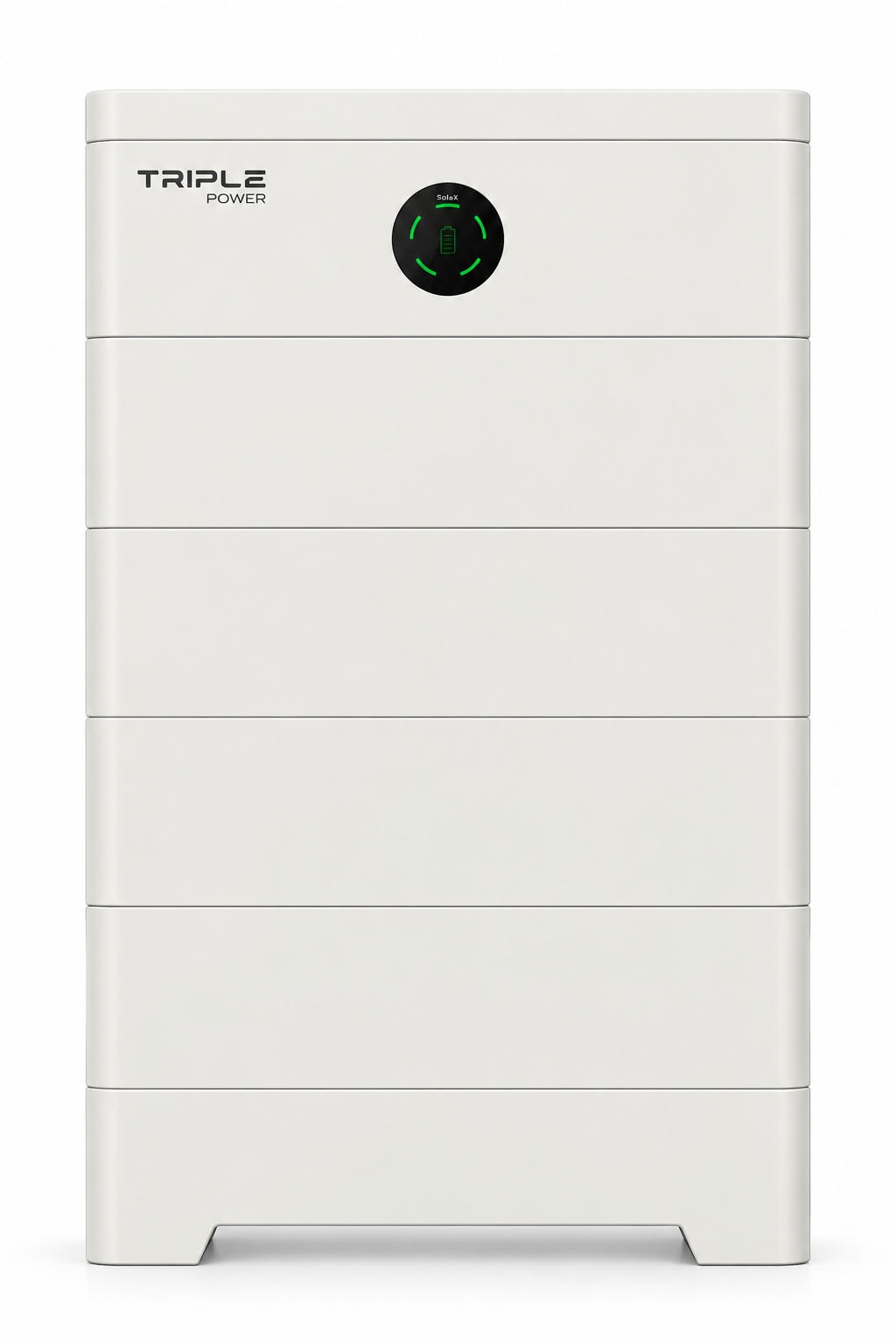

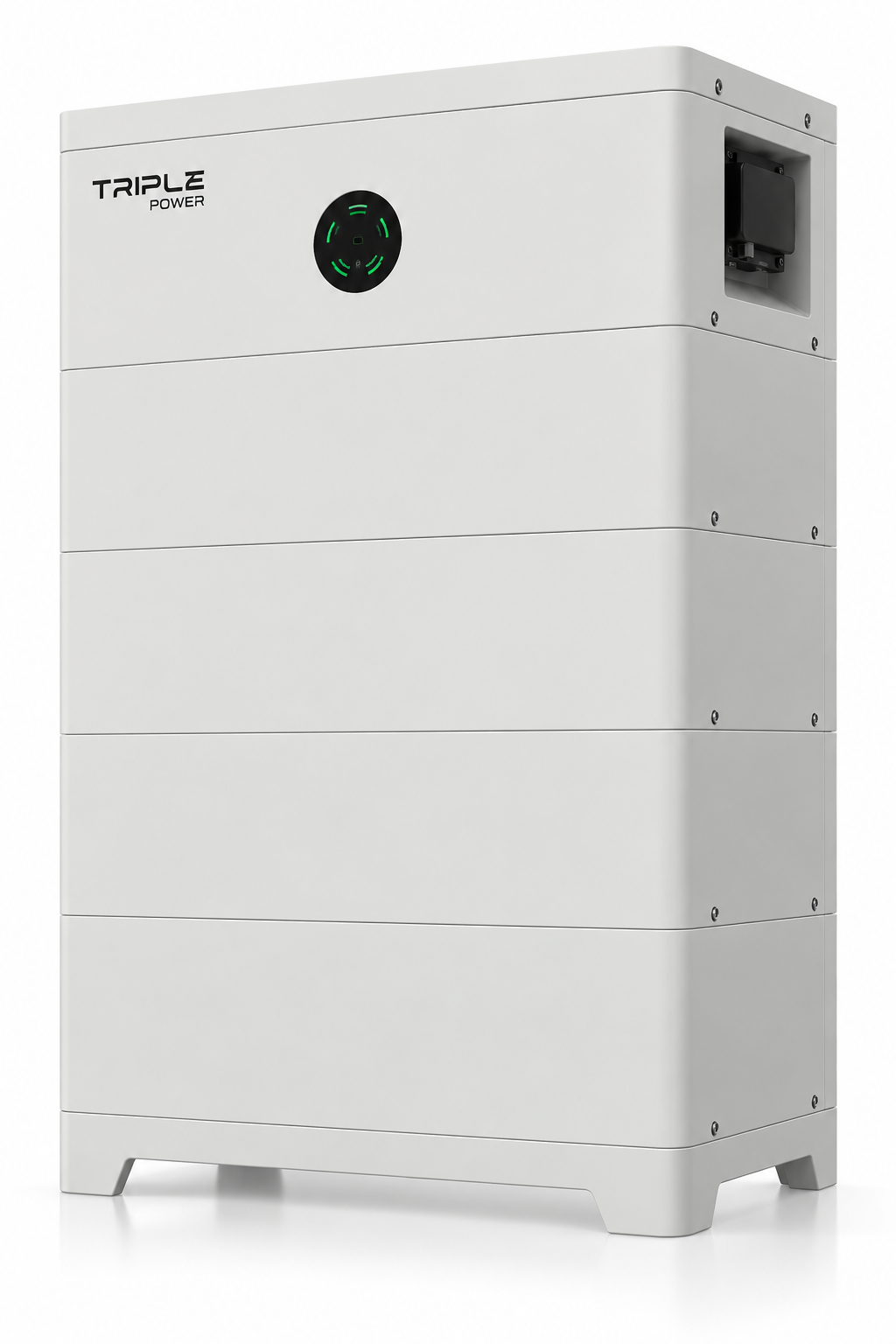

Modular 5.1kWh Battery Design

The TSYS-HS51 uses individual 5.1kWh battery modules, allowing the system to be expanded according to the required storage capacity.

The stackable architecture provides a clean installation while allowing systems to range from two battery modules at 10.2kWh through to thirteen modules providing 66.5kWh of rated energy.

Each TB-HS51 battery module features:

  • 5.1kWh capacity

  • LFP battery chemistry

  • 6,000 cycle life

  • Stackable design

  • 600 × 168 × 376mm dimensions

  • 46kg standard module weight

  • 47.1kg with optimiser



Lithium Iron Phosphate – LFP

The TSYS-HS51 uses lithium iron phosphate battery cells combined with high-performance processors.

LFP chemistry is used within the system alongside additional protection features including aerosol fire suppression and intelligent battery management.

More Than 6,000 Cycles

SolaX specifies a battery cycle life of more than 6,000 cycles at 90% DOD under the stated test conditions.

The datasheet test conditions are 90% DOD with 0.2C charge and discharge at 25°C.

Up to 70A Charge & Discharge Current

The TSYS-HS51 provides:

  • 60A rated operating current

  • 70A maximum operating current

  • 90% depth of discharge

  • CAN + RS485 communication

Actual charge/discharge capability can vary depending on the connected inverter, temperature and battery state of charge.

High-Power Battery Storage

As additional modules are added, the system's rated and maximum power capability increases.

For example:

System Rated Power Maximum Power
10.2kWh 6.1kW 7.2kW
20.4kWh 12.3kW 14.3kW
30.7kWh 18.4kW 21.5kW
40.9kWh 24.6kW 28.7kW
51.2kWh 30.7kW 35.8kW
61.4kWh 36.9kW 43.0kW
66.5kWh 39.9kW 46.6kW



Aerosol Fire Suppression

The TSYS-HS51 incorporates an aerosol fire extinguishing module for additional battery protection.

SolaX describes this as aerosol fire suppression for precise protection, adding another protection layer to the LFP battery architecture.

Integrated Battery Heating Technology

The TSYS-HS51 features SolaX battery heating technology to extend its operating temperature capability.

With the heating function:

  • Charging: -30°C to +53°C

  • Discharging: -30°C to +53°C

Without heating:

  • Charging: -20°C to +53°C

  • Discharging: -20°C to +53°C



IP66 Indoor & Outdoor Protection

The TSYS-HS51 carries an IP66 ingress protection rating and is specified for both indoor and outdoor installation.

Environmental specifications include:

  • IP66 protection

  • Indoor or outdoor installation

  • Up to 3,000m operating altitude

  • 4–100% relative humidity

  • Floor-mounted installation



Direct Battery Expansion

The modular architecture supports direct battery expansion, making it easier to increase storage capacity as energy requirements grow.

SolaX also specifies support for mixed use of new and old batteries on the optimiser version, allowing rapid capacity expansion with plug-and-play operation and no stated energy loss.

Optimiser Version

The optimiser version introduces additional battery-management functionality including:

  • Mixed use of new and existing batteries

  • Rapid capacity expansion

  • Plug-and-play expansion

  • Maximum 10% expansion of effective power over the battery life cycle under laboratory conditions

  • Rapid equalisation

  • Equalisation of a 20% power difference within approximately 3 hours under laboratory conditions



Future Multi-Tower Expansion

The TSYS-HS51 is specified as compatible with the TCBox-70 for configurations of up to three battery towers.

The datasheet marks this feature as coming soon, so availability and compatible configurations should be confirmed before ordering.

Remote Battery Management

Smart management functionality includes:

  • Remote fault diagnosis

  • Remote upgrades

  • Remote maintenance

  • CAN communication

  • RS485 communication



Key Features

  • High-voltage LFP battery system

  • 10.2kWh to 66.5kWh capacity options

  • 5.1kWh modular battery architecture

  • 90% depth of discharge

  • 6,000 battery cycles

  • 60A rated operating current

  • Up to 70A maximum operating current

  • Aerosol fire suppression

  • Battery heating technology

  • IP66 protection

  • Indoor and outdoor installation

  • Stackable modular design

  • Direct battery expansion

  • Optimiser version available

  • New and old battery mixing supported on optimiser version

  • Remote fault diagnosis and maintenance

  • CAN + RS485 communications

  • Up to three towers with TCBox-70 planned

  • Up to 3,000m operating altitude

  • IEC62619 certification

  • IEC62040 certification

  • EN62477 certification

  • VDE 2510 certification

  • UN38.3 transport testing



Battery System Specifications

Specification TSYS-HS51
Battery Chemistry LFP
Module Capacity 5.1kWh
System Capacity 10.2–66.5kWh
Usable Capacity Up to 59.8kWh
Depth of Discharge 90%
Cycle Life >6,000 cycles
Rated Current 60A
Maximum Current 70A
Communications CAN + RS485
Installation Floor Mounted
Environment Indoor / Outdoor
Protection IP66
Maximum Altitude 3,000m
Module Dimensions 600 × 168 × 376mm
Module Weight 46kg / 47.1kg optimiser
BMS TBMS-S51-8 / TBMS-S51-8O
BMS Weight 18.5kg
Series Box Weight 15kg
Certifications IEC62619, IEC62040, EN62477, VDE 2510
Transport Testing UN38.3



Scalable Battery Storage from 10.2kWh to 66.5kWh

The SolaX TSYS-HS51 provides a highly scalable high-voltage battery platform for customers who need more than a small residential battery.

Its modular 5.1kWh design allows storage capacity to grow from 10.2kWh through to 66.5kWh, while LFP chemistry, more than 6,000 cycles, IP66 protection, integrated heating and aerosol fire suppression provide a strong combination of performance, flexibility and protection.
