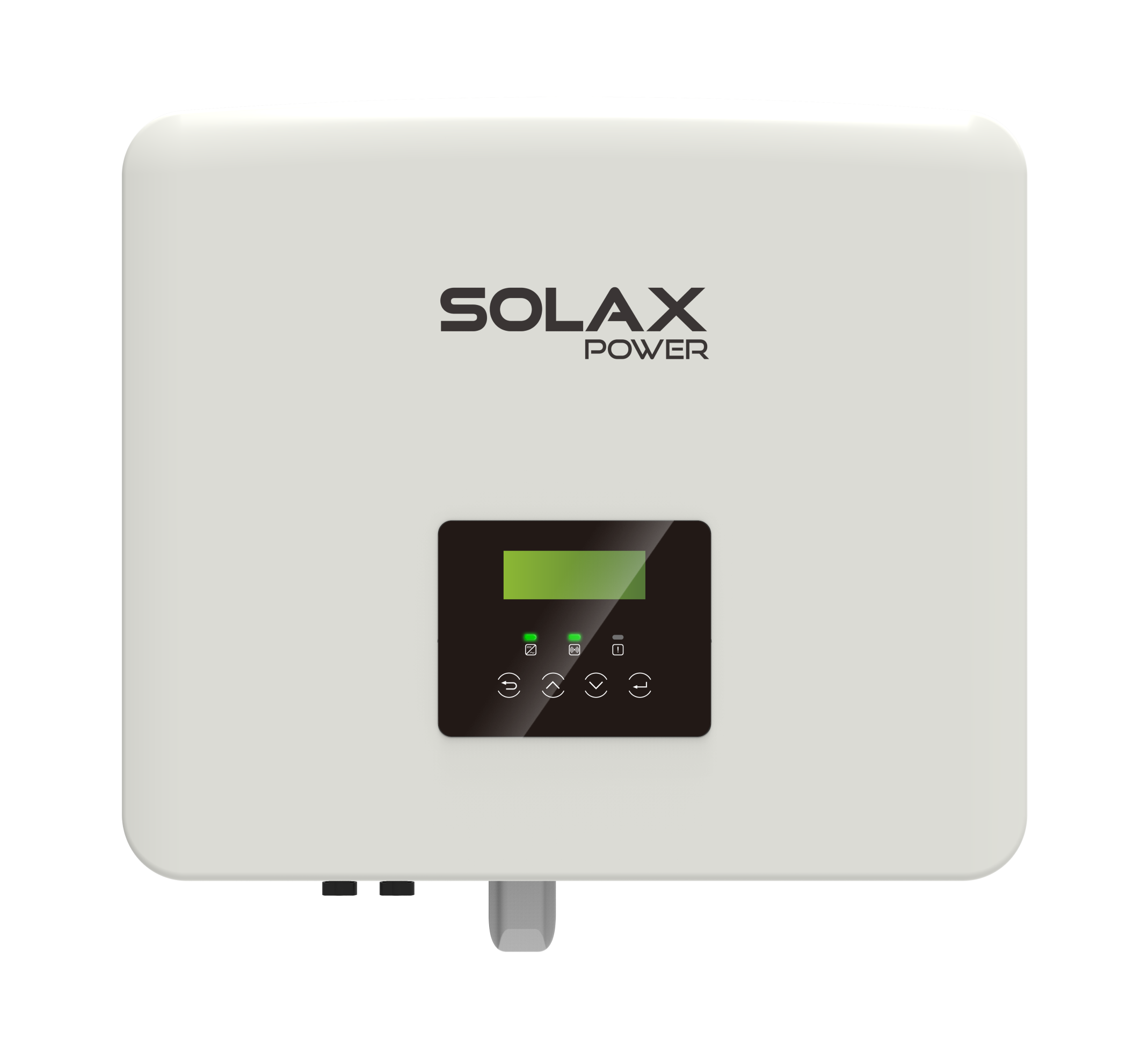

The SolaX X1-HYBRID-7.5-D G4 is the high-capacity 7.5kW model in the SolaX X1-HYBRID G4 single-phase hybrid inverter range.
Designed for larger residential solar and battery systems, it provides substantially greater solar input and backup capacity while retaining the intelligent battery and energy-management capabilities of the X1-HYBRID G4 platform.
For homes with larger electricity requirements, EV charging, substantial daytime consumption or larger rooftop solar arrays, the 7.5kW model provides an impressive recommended PV array capacity of up to 15kWp.
One of the standout features of the X1-HYBRID-7.5-D is its ability to support significant PV oversizing.
SolaX specifies a recommended PV array capacity of up to 15kWp — approximately twice the inverter's 7.5kW rated output.
PV specifications include:
The 16A MPPT input capability is designed to accommodate modern higher-power solar panels.
The X1-HYBRID-7.5-D provides 7,500W rated AC output power with a maximum continuous output current of 32.6A.
This makes it particularly attractive for larger single-phase homes where greater inverter output is required.
The inverter integrates directly with compatible lithium battery storage systems and supports:
This allows solar energy generated during the day to be stored and used when household demand increases or solar generation falls.
The 7.5kW model provides considerably greater backup capability than the smaller models in the range.
Its EPS output delivers:
The 150% short-duration peak output provides additional capacity for starting loads with higher initial power requirements.
The X1-HYBRID-7.5-D can intelligently manage solar generation, battery storage, household consumption and grid interaction.
Smart features include:
For homes combining solar, batteries and EV charging, these capabilities provide a foundation for an integrated home energy system.
Maximum conversion efficiency reaches 97.6%, with European efficiency rated at 97.0%.
The X1-HYBRID G4 platform also offers charging and discharging efficiency of up to 97%, helping retain more of the solar energy being transferred into and out of battery storage.
The inverter carries an IP65 ingress-protection rating and has a specified operating temperature range from -35°C to 60°C, with output derating above 45°C.
The 7.5kW model uses smart air cooling to help manage its higher power output.
Integrated protection features include:
The inverter range includes AS/NZS 4777 certification for the Australian market.
Model: X1-HYBRID-7.5-D
Rated Output Power: 7,500W
Maximum Output Apparent Power: 7,500VA
Maximum Continuous Output Current: 32.6A
Recommended PV Array: 15kWp
Maximum PV Input Voltage: 600V
Rated PV Voltage: 360V
MPPT Range: 70–550V
MPPTs: 2
Maximum PV Current: 16A per MPPT
Battery Type: Lithium
Battery Voltage Range: 80–480V
Maximum Charge/Discharge Current: 30A
Rated EPS Output: 7,500VA
Peak EPS Output: 11,250VA for 10 seconds
EPS Switchover: <10ms
Maximum Efficiency: 97.6%
Ingress Protection: IP65
Dimensions: 482 × 417 × 181mm
Weight: 25kg
Cooling: Smart air cooling
Communication: CT / Meter, RS485, dongle interface, DRM and optional NTC
Both the 5kW and 7.5kW X1-HYBRID G4 models are designed as more than conventional solar inverters. They provide a platform for combining high-capacity rooftop solar, lithium battery storage, EPS backup power, smart loads and intelligent Time-of-Use energy management in one residential energy system.
For customers planning to add battery storage, EV charging or increase their future household electricity consumption, the X1-HYBRID G4 provides a flexible foundation that can grow with their energy requirements.
