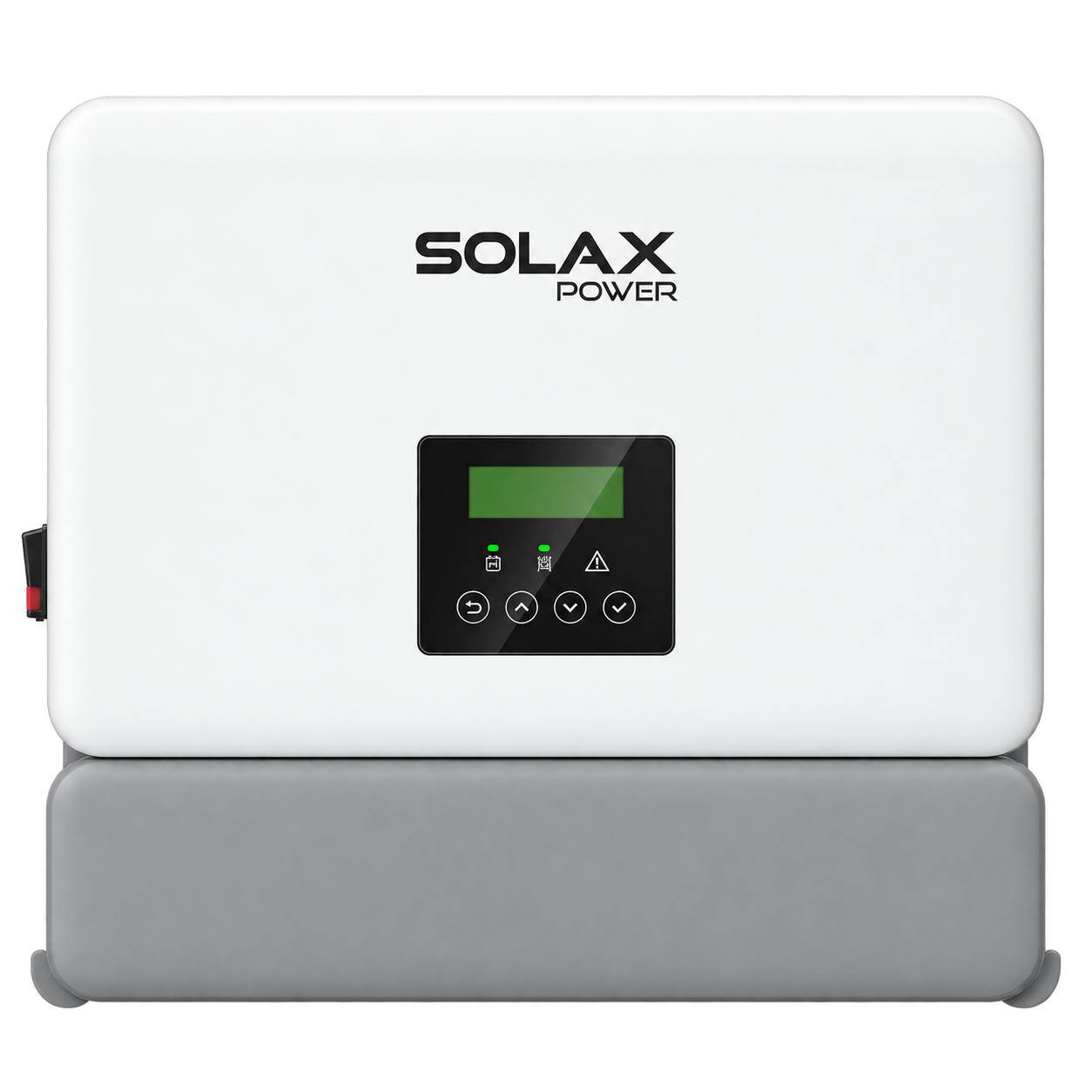

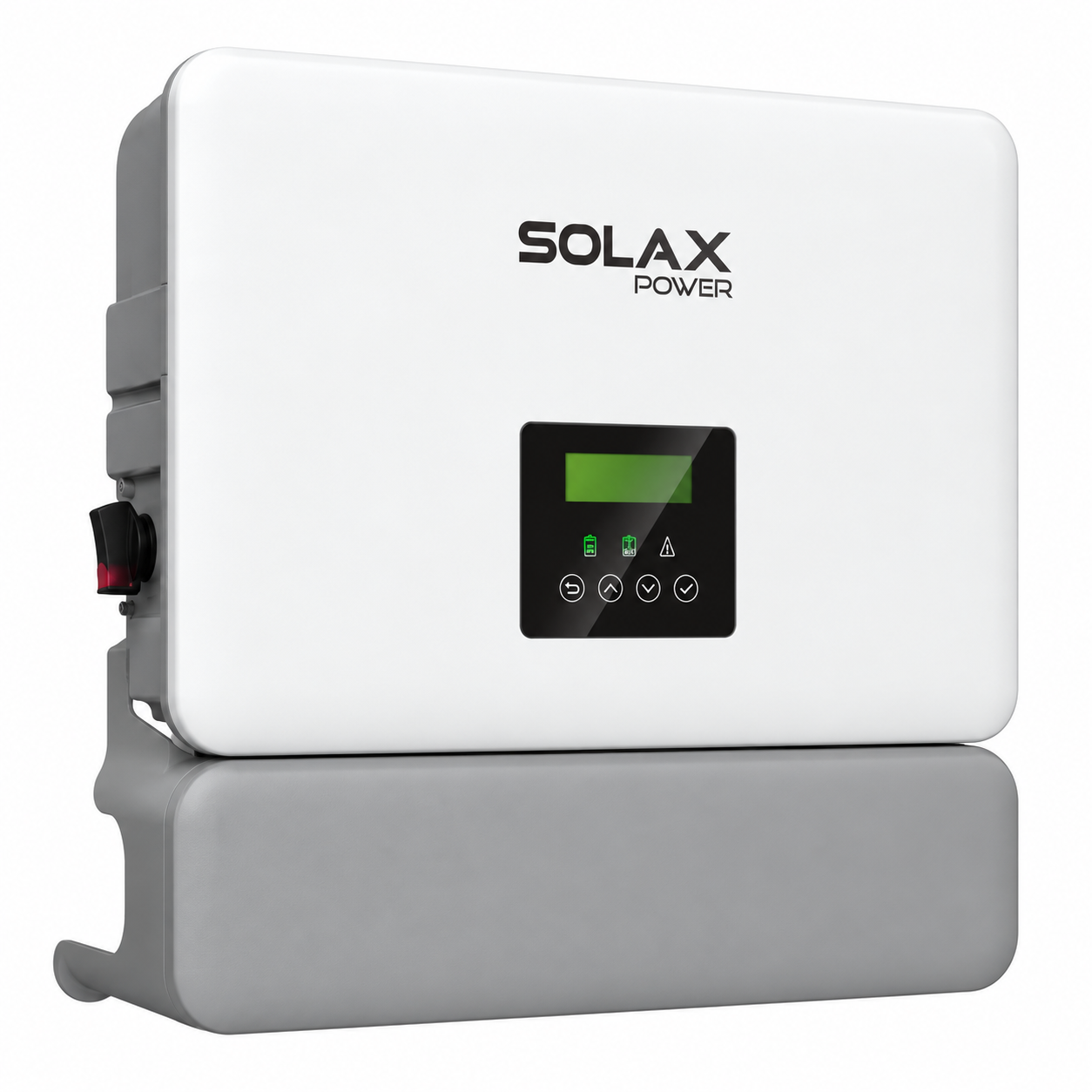

The SolaX X1-VAST-10K is the largest model in the X1-VAST single-phase hybrid inverter range, designed for high-demand residential solar and battery systems requiring substantial solar input, powerful battery charging and whole-home backup capability.
With 9.999kVA rated output for Australia, support for up to 20kWp of solar panels, four independent MPPT trackers, dual high-voltage battery ports and <10ms EPS switchover, the X1-VAST-10K provides a powerful platform for large residential energy systems.
SolaX also positions the X1-VAST platform for generator and microgrid integration, with V2G/V2H-ready architecture for future smart home and EV energy integration.
For the Australian market, the X1-VAST-10K has a rated AC output of 9.999kVA with a rated output current of 43.5A.
This makes it particularly suitable for larger single-phase homes with substantial solar generation, battery storage, EV charging and higher household electricity requirements.
The X1-VAST-10K supports a recommended maximum PV array capacity of 20kWp β equivalent to 200% PV oversizing relative to its nominal 10kW capacity.
This allows significantly more solar panel capacity to be connected, helping increase solar production during mornings, afternoons and lower-irradiance conditions. (Solax Power)
The X1-VAST-10K incorporates four independent MPPT trackers with one PV string per MPPT.
This provides excellent design flexibility for large or complex rooftops where solar panels may be installed across different orientations.
PV specifications include:
20kWp recommended maximum PV array
4 independent MPPT trackers
1 string per MPPT
20A maximum input current per MPPT
25A maximum short-circuit current per MPPT
600V maximum PV input voltage
360V rated PV input voltage
40β560V operating range
Low 50V startup voltage
Β
The X1-VAST features dual battery connections designed to provide greater flexibility when building or expanding a home battery system.
Battery specifications include:
Lithium battery compatible
80β480V DC battery voltage range
Dual battery ports
25A per port when two separate batteries are connected
30A maximum when using one battery port
Up to 50A when both ports are connected to one battery through the optional 2-in-1 splitter cable
Β
This dual-port architecture makes the X1-VAST-10K particularly attractive for larger battery storage installations.
When paired with compatible battery storage, the X1-VAST-10K provides powerful EPS backup capability.
For Australia, rated EPS output is 9.999kVA, with the ability to provide up to twice the rated EPS power for 10 seconds. (Solax Power)
Backup features include:
9.999kVA rated EPS output for Australia
Up to 200% peak EPS output for 10 seconds
<10ms switchover
UPS-level backup transition
Whole-home load support
Generator and microgrid compatibility
Β
The X1-VAST is designed to integrate with microgrids and generators for more resilient energy systems.
This makes the 10kW model particularly suitable for larger homes seeking increased energy independence and more advanced backup configurations.
The X1-VAST platform is designed with future Vehicle-to-Home and Vehicle-to-Grid applications in mind.
SolaX identifies the inverter as V2G/V2H ready for smart home energy integration.
This creates the potential for an integrated energy ecosystem combining:
Solar PV β Home Battery β Home Loads β Compatible Bidirectional EV
V2H/V2G functionality is identified in the datasheet as a future-upgrade feature. Actual operation will depend on compatible EVs, bidirectional charging equipment, firmware and applicable Australian requirements.
The X1-VAST includes advanced smart energy functionality for managing solar production, battery storage and household loads.
Features include:
Smart Schedule
Smart Scene
24/7 Time-of-Use management
Wireless meter compatibility
Whole-home load support
VPP-ready architecture
OpenADR compatibility
IEEE 2030.5 compatibility
FCAS capability
API integration
Some advanced functions are identified as future upgrades and may depend on system configuration and market availability.
The X1-VAST range delivers maximum efficiency of up to 97.6%, helping maximise the conversion of available solar and stored battery energy.
The X1-VAST has an IP66 ingress protection rating for demanding installation environments.
Environmental specifications include:
IP66 protection
-35Β°C to +60Β°C operating temperature
Output derating above 45Β°C
Maximum operating altitude of 3,000m
4β100% relative humidity
Natural cooling
Β
Built-in protection features include:
DC isolation protection
DC reverse-polarity protection
Residual current detection
Over-temperature protection
Type II DC surge protection
Type II AC surge protection
Optional AFCI
Β
10kW-class single-phase hybrid inverter
9.999kVA rated output for Australia
Up to 20kWp recommended solar array
200% PV oversizing
4 independent MPPT trackers
20A PV input per MPPT
50V low PV startup voltage
Dual high-voltage battery ports
80β480V lithium battery support
Up to 50A battery charge/discharge with supported dual-port configuration
9.999kVA EPS output for Australia
Up to 200% EPS output for 10 seconds
<10ms EPS switchover
Whole-home load support
Generator compatible
Microgrid compatible
V2H / V2G ready architecture
Smart Schedule and Smart Scene
24/7 Time-of-Use management
VPP ready
Wireless meter compatibility
IP66 protection
Type II AC and DC surge protection
Optional AFCI
Natural cooling
AS/NZS 4777 listed in the Australian datasheet
Β
| Specification | X1-VAST-10K |
|---|---|
| Model | X1-VAST-10K |
| Phase | Single Phase |
| Rated AC Output β Australia | 9.999kVA |
| Rated Output Current | 43.5A |
| Recommended Max. PV Array | 20kWp |
| Maximum PV Voltage | 600V DC |
| Rated PV Voltage | 360V DC |
| PV Operating Range | 40β560V DC |
| PV Startup Voltage | 50V DC |
| MPPT Trackers | 4 |
| Strings | 1 per MPPT |
| Max. PV Current | 20A per MPPT |
| Max. Short-Circuit Current | 25A per MPPT |
| Battery Type | Lithium |
| Battery Voltage | 80β480V DC |
| Battery Ports | 2 |
| Max. Battery Current | Up to 50A with supported dual-port configuration |
| Rated EPS Output β Australia | 9.999kVA |
| Peak EPS Output | 2Γ rated power for 10 sec |
| EPS Switchover | <10ms |
| Maximum Efficiency | 97.6% |
| Protection Rating | IP66 |
| Operating Temperature | -35Β°C to +60Β°C |
| Maximum Altitude | 3,000m |
| Cooling | Natural Cooling |
| Dimensions | 590 Γ 400 Γ 180mm |
| Weight | 28 Β± 2kg |
| Communications | CT/Meter, RS485, Dongle Interface, DRM |
| Topology | Non-isolated |
| Surge Protection | Type II DC / Type II AC |
| AFCI | Optional |
Β
The SolaX X1-VAST-10K sits at the top of the X1-VAST range and is designed for large single-phase residential energy systems.
With up to 20kWp of solar capacity, four independent MPPTs, dual battery ports, powerful EPS backup, generator and microgrid integration and future-ready V2H/V2G architecture, it provides a strong foundation for a high-capacity whole-home energy system. SolaX's current Australian product information confirms the 10K as the largest X1-VAST model. (Solax Power)
Model: X1-VAST-10K
SKU: SOLAX-X1-VAST-10K
Rated Output: 9.999kVA Australia
Phase: Single Phase
Maximum Recommended PV: 20kWp
Battery: High Voltage Lithium 80β480V
MPPTs: 4
EPS Backup: 9.999kVA Australia
Protection: IP66
Backup Switchover: <10ms
