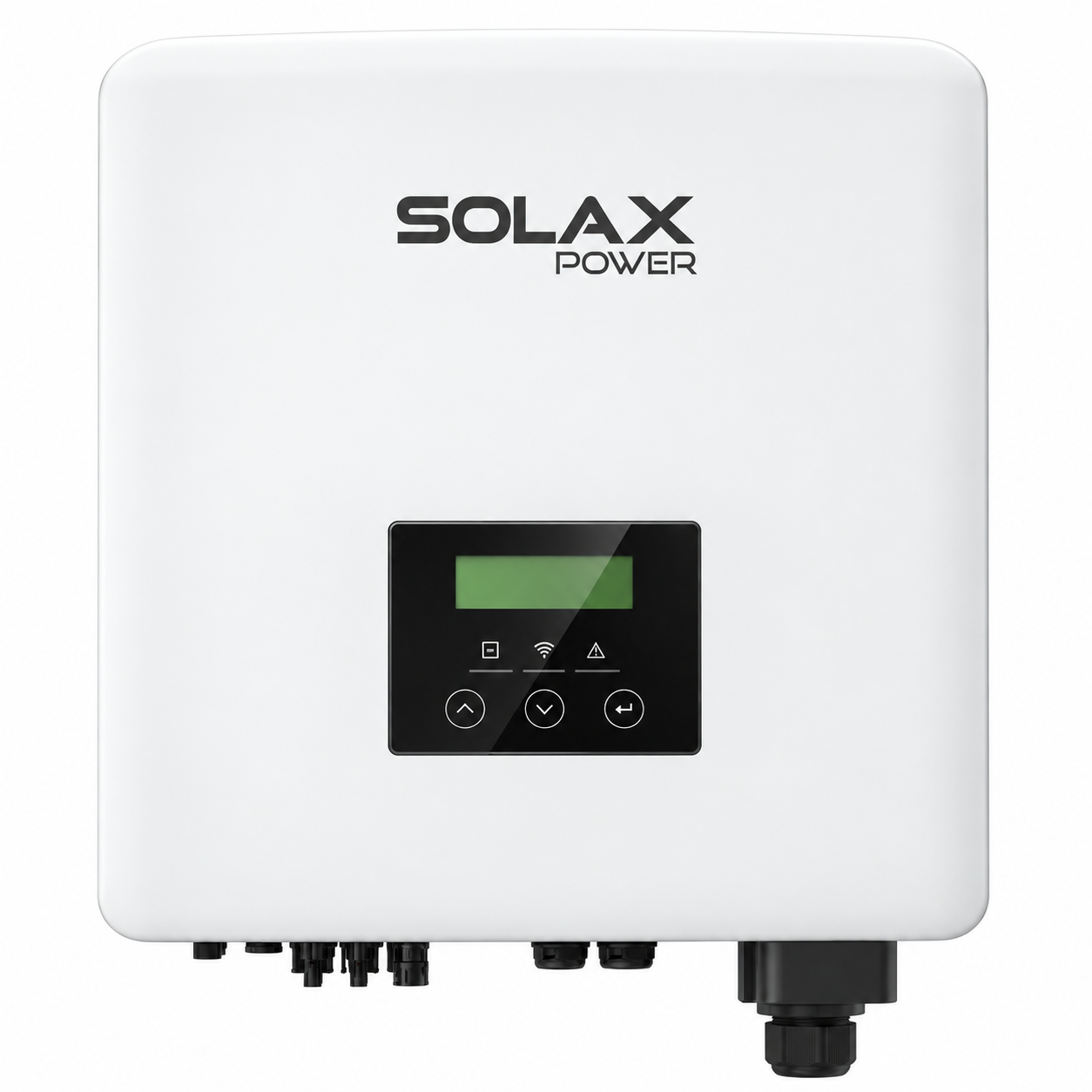

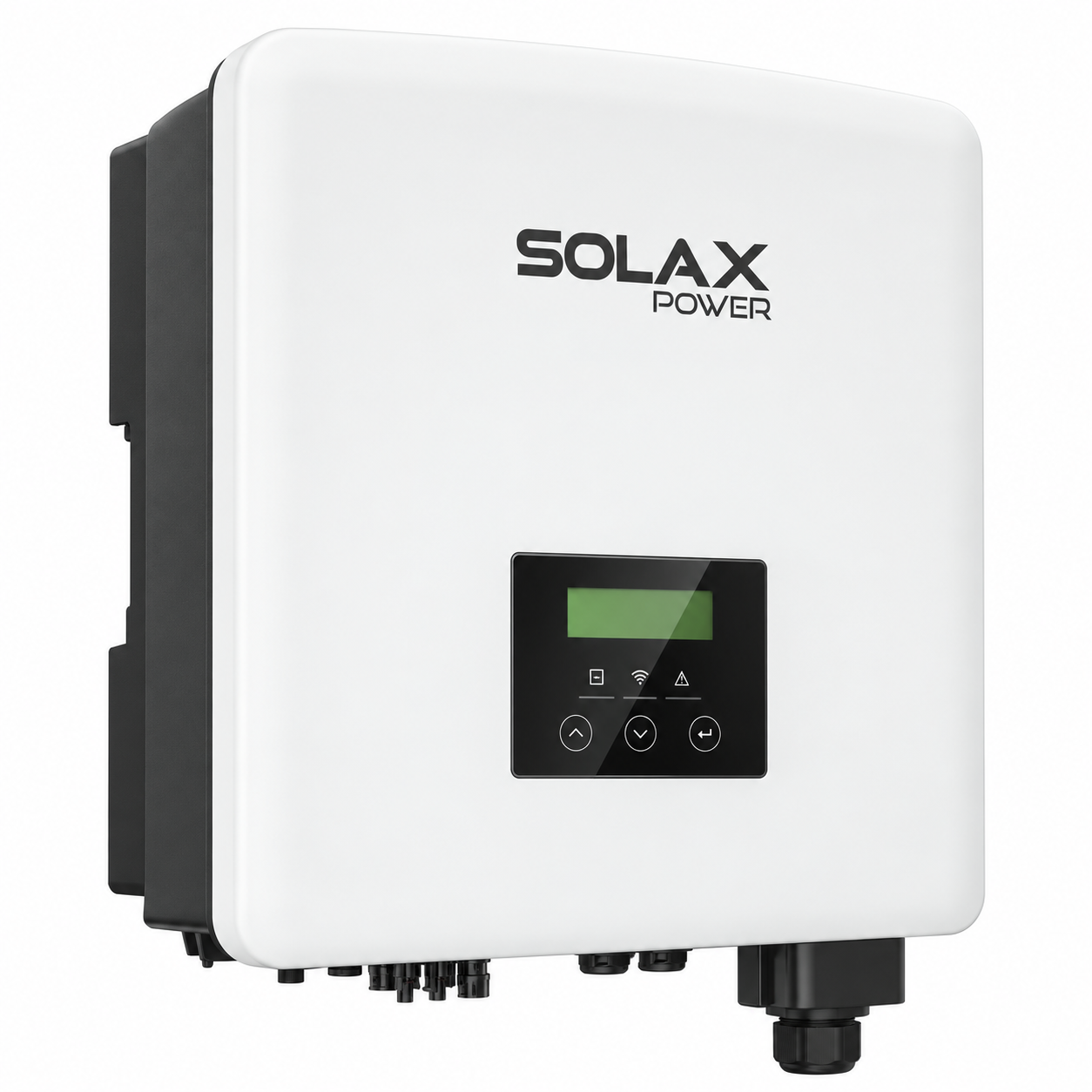

The SolaX X3-HYBRID G4 is a powerful three-phase residential hybrid inverter designed to combine solar generation, battery storage, grid power and backup functionality within one intelligent energy management platform.
Available in 5kW, 6kW, 8kW, 10kW, 12kW and 15kW models, the X3-HYBRID G4 offers up to 200% PV oversizing, high-voltage battery compatibility, three-phase unbalanced output and fast EPS backup switching.
With IP65 protection, smart load management and support for lithium and lead-acid batteries, the X3-HYBRID G4 is designed for modern residential solar and battery installations requiring greater flexibility and energy independence.
Choose your required inverter size:
5kW โ X3-HYBRID-5.0-D
6kW โ X3-HYBRID-6.0-D
8kW โ X3-HYBRID-8.0-D
10kW โ X3-HYBRID-10.0-D
12kW โ X3-HYBRID-12.0-D
15kW โ X3-HYBRID-15.0-D
All models are three-phase hybrid inverters.
The X3-HYBRID G4 provides an integrated platform for managing solar PV, battery storage and grid electricity.
Its hybrid architecture allows solar energy to be used within the home, directed to compatible battery storage or exported according to the configured energy management strategy.
The inverter also provides dedicated EPS off-grid output when used with a battery, with a switchover time of less than 10ms.
One of the major advantages of the X3-HYBRID G4 is its ability to accommodate significantly larger solar arrays relative to the inverter's rated AC output.
SolaX specifies up to 200% PV oversizing across the range.
Recommended maximum PV array sizes are:
| Inverter | Rated Output | Recommended Max. PV Array |
|---|---|---|
| X3-HYBRID-5.0-D | 5kW | 10kWp |
| X3-HYBRID-6.0-D | 6kW | 12kWp |
| X3-HYBRID-8.0-D | 8kW | 16kWp |
| X3-HYBRID-10.0-D | 10kW | 20kWp |
| X3-HYBRID-12.0-D | 12kW | 24kWp |
| X3-HYBRID-15.0-D | 15kW | 30kWp |
ย
This makes the X3-HYBRID G4 particularly attractive for homes with large rooftop solar arrays or higher daytime energy requirements.
The X3-HYBRID G4 supports high-voltage battery storage with a wide 120โ800V operating range.
Battery specifications include:
Lithium battery compatible
Lead-acid battery compatible
120โ800V battery voltage range
Up to 30A charge/discharge current
Up to 97.5% charging and discharging efficiency
ย
Battery compatibility should be confirmed against the applicable SolaX compatibility requirements before installation.
The X3-HYBRID G4 supports three-phase unbalanced output with up to 5kW available per phase.
This allows the inverter to better accommodate homes where electrical loads are not evenly distributed across all three phases.
When paired with compatible battery storage, the X3-HYBRID G4 provides EPS backup functionality for maintaining power to appropriately configured backup circuits.
Key EPS features include:
Less than 10ms switchover time
Up to 200% EPS overload capability for 10 seconds on applicable models
Three-phase EPS output
Battery-supported off-grid operation
ย
The exact EPS output and overload capability varies by inverter size.
The X3-HYBRID G4 provides substantial short-duration peak EPS capacity.
| Model | Rated EPS Output | Peak EPS Output |
|---|---|---|
| 5kW | 5kVA | 12kVA / 10 sec |
| 6kW | 6kVA | 12kVA / 10 sec |
| 8kW | 8kVA | 18kVA / 10 sec |
| 10kW | 10kVA | 18kVA / 10 sec |
| 12kW | 12kVA | 22.5kVA / 10 sec |
| 15kW | 15kVA | 22.5kVA / 10 sec |
ย
This additional short-duration capacity can assist with loads that require higher startup power.
The X3-HYBRID G4 operates with:
Maximum PV input voltage: 1000V
Rated PV input voltage: 640V
MPPT voltage range: 180โ950V
Startup voltage: 200V
The 5kW and 6kW models provide two MPPT trackers with one string per tracker, while the 8kW through 15kW models support a 2/1 string configuration across the two MPPTs.
The larger X3-HYBRID G4 models support up to 28A input on the higher-capacity MPPT configuration, helping accommodate modern high-power PV modules.
The X3-HYBRID G4 incorporates intelligent energy management functionality designed to optimise how solar, batteries and household loads operate together.
Features include:
Intelligent Time-of-Use energy management
Global MPP scanning
Smart load management
Smart EV charger integration
Heat pump management
VPP-ready capability
Ancillary service capability
Quick configuration via U-disk
ย
The X3-HYBRID G4 is specifically designed to support smart load management including compatible smart EV chargers.
This allows EV charging to become part of the wider SolaX home energy ecosystem rather than operating as a completely independent electrical load.
The X3-HYBRID G4 achieves:
Maximum efficiency: 98.0%
European efficiency: 97.7%
Charging/discharging efficiency: up to 97.5%
ย
With an IP65 ingress protection rating, the X3-HYBRID G4 is designed to withstand demanding installation environments.
Operating specifications include:
IP65 protection
-35ยฐC to +60ยฐC operating range
Output derating above 45ยฐC
Maximum operating altitude: 3,000m
4โ100% relative humidity
Type II surge protection on both AC and DC sides
ย
Built-in protection functions include:
DC reverse-polarity protection
DC isolation protection
Residual current detection
AC overcurrent protection
AC short-circuit protection
Over-voltage protection
Under-voltage protection
Grid monitoring
DC injection monitoring
Back-feed current monitoring
Over-temperature protection
Type II DC surge protection
Type II AC surge protection
Optional AFCI
ย
Three-phase residential hybrid inverter
5kW, 6kW, 8kW, 10kW, 12kW and 15kW options
Up to 200% PV oversizing
Up to 110% AC output
Up to 98.0% maximum efficiency
Up to 97.5% charging/discharging efficiency
1000V maximum PV input
180โ950V MPPT operating range
High-voltage 120โ800V battery support
Lithium and lead-acid battery compatible
30A maximum battery charge/discharge current
Three-phase unbalanced output
Up to 5kW per phase unbalanced output
EPS backup output
Less than 10ms EPS switchover
High short-duration EPS overload capability
Smart EV charger management
Smart load management
Time-of-Use energy management
VPP ready
Global MPP scanning
IP65 protection
Type II AC and DC surge protection
Australian AS4777 certification listed in the datasheet
ย
| Specification | 5kW | 6kW | 8kW | 10kW | 12kW | 15kW |
|---|---|---|---|---|---|---|
| Model | 5.0-D | 6.0-D | 8.0-D | 10.0-D | 12.0-D | 15.0-D |
| Rated AC Output | 5kW | 6kW | 8kW | 10kW | 12kW | 15kW |
| Max PV Array | 10kWp | 12kWp | 16kWp | 20kWp | 24kWp | 30kWp |
| Max AC Apparent Output | 5.5kVA | 6.6kVA | 8.8kVA | 11kVA | 13.2kVA | 15kVA |
| Rated EPS | 5kVA | 6kVA | 8kVA | 10kVA | 12kVA | 15kVA |
| Peak EPS / 10 sec | 12kVA | 12kVA | 18kVA | 18kVA | 22.5kVA | 22.5kVA |
ย
| Specification | X3-HYBRID G4 |
|---|---|
| Phase | Three Phase |
| Battery Type | Lithium / Lead-acid |
| Battery Voltage | 120โ800V |
| Max Charge / Discharge Current | 30A |
| Max PV Voltage | 1000V |
| Rated PV Voltage | 640V |
| MPPT Range | 180โ950V |
| Startup Voltage | 200V |
| Rated AC Voltage | 220/380V or 230/400V |
| Frequency | 50Hz / 60Hz |
| Maximum Efficiency | 98.0% |
| European Efficiency | 97.7% |
| EPS Switchover | <10ms |
| Protection Rating | IP65 |
| Operating Temperature | -35ยฐC to +60ยฐC |
| Maximum Altitude | 3,000m |
| Dimensions | 503 ร 503 ร 199mm |
| Weight | 30 ยฑ 1kg |
| Topology | Non-isolated |
| Surge Protection | Type II AC / Type II DC |
ย
The SolaX X3-HYBRID G4 combines high-capacity solar input, battery storage, intelligent energy management and fast backup functionality in a single three-phase hybrid inverter platform.
With six power options from 5kW through to 15kW and support for solar arrays of up to 30kWp on the largest model, the range provides flexibility for both standard residential systems and larger homes with substantial solar and energy-storage requirements.
5kW โ X3-HYBRID-5.0-D
6kW โ X3-HYBRID-6.0-D
8kW โ X3-HYBRID-8.0-D
10kW โ X3-HYBRID-10.0-D
12kW โ X3-HYBRID-12.0-D
15kW โ X3-HYBRID-15.0-D
