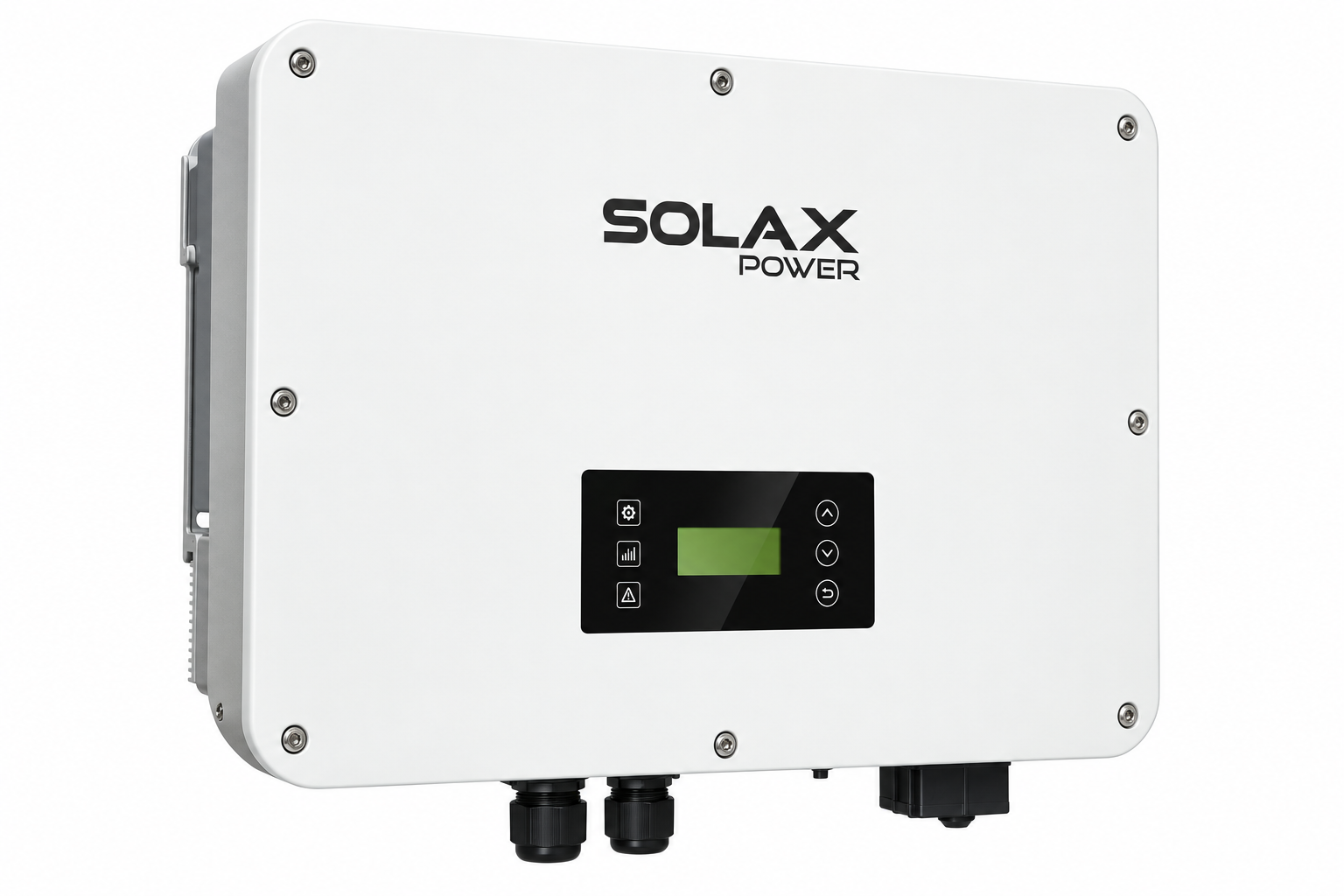

The SolaX X3-ULTRA is a high-performance three-phase commercial and industrial hybrid inverter designed for larger solar, battery storage and backup power systems.
Available in 15kW, 19.9kW, 20kW, 25kW and 30kW capacities, the X3-ULTRA combines high PV input capability, dual battery connections, powerful 60A battery charging and discharging, EPS backup, generator and microgrid compatibility and advanced smart energy management.
With up to 200% PV oversizing, up to 110% AC output, 200% EPS overload for 10 seconds and the ability to parallel up to 10 units, the X3-ULTRA provides a highly scalable platform for demanding commercial and larger residential energy-storage applications.
Choose your required inverter capacity:
15kW โ X3-ULT-15K
19.9kW โ X3-ULT-19.9K
20kW โ X3-ULT-20K
25kW โ X3-ULT-25K

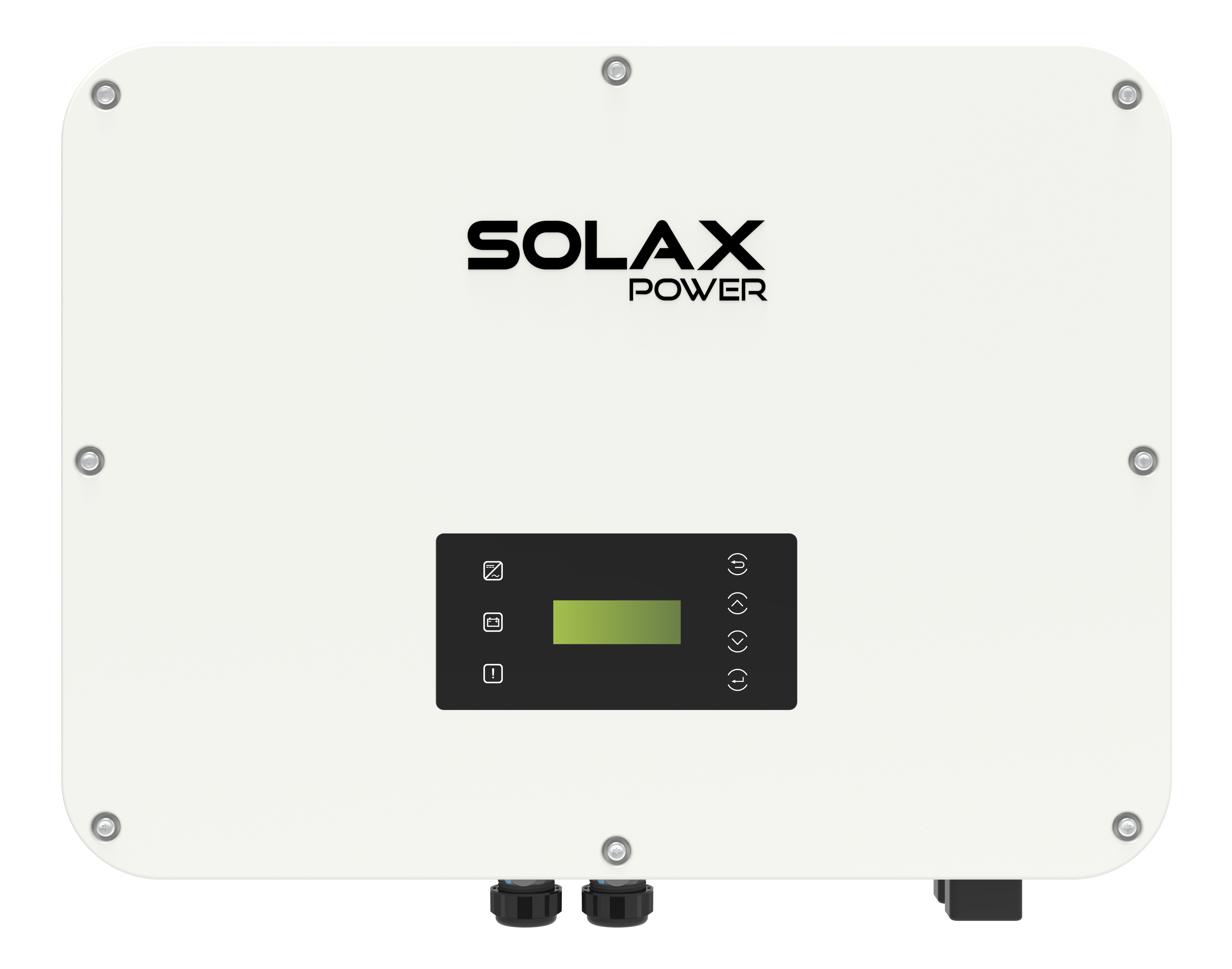

30kW โ X3-ULT-30K
The Australian datasheet also lists X3-ULT-15KP and X3-ULT-20KP variants.
The X3-ULTRA is specifically classified by SolaX as a three-phase C&I hybrid inverter.
It combines solar PV, high-voltage lithium battery storage, grid power and EPS backup capability within one integrated platform, making it suitable for applications requiring substantially greater power and storage capacity than a standard residential hybrid inverter.
The X3-ULTRA supports up to 200% PV oversizing, allowing a significantly larger solar array to be connected relative to the inverter's rated AC output.
| Model | Rated Output | Recommended Max. PV Array |
|---|---|---|
| X3-ULT-15K | 15kW* | 30kWp |
| X3-ULT-19.9K | 19.999kW | 40kWp |
| X3-ULT-20K | 20kW | 40kWp |
| X3-ULT-25K | 25kW | 50kWp |
| X3-ULT-30K | 30kW* | 60kWp |
*AS4777 limits shown in the Australian datasheet apply to certain models, including 14.999kVA for the 15K and 29.999kVA for the 30K.
This high PV capacity makes the X3-ULTRA particularly well suited to installations where substantial daytime solar generation and battery charging are required.
The X3-ULTRA is designed for modern high-power solar modules, supporting up to 36A PV input current per MPPT.
PV specifications across the range include:
Maximum PV input voltage: 1000V DC
Rated PV input voltage: 600V DC
MPPT operating range: 120โ950V DC
Startup voltage: 200V DC
Up to 36A input current per MPPT
Up to 45A short-circuit current per MPPT
Up to 3 independent MPPT trackers depending on model
Up to 2 PV strings per MPPT
ย
Depending on the selected model, the X3-ULTRA provides either two or three independent MPPT trackers.
The 15K and 19.9K models use two MPPTs with two strings per MPPT, while certain other models provide three MPPTs with two strings per tracker. The exact configuration should be checked against the selected model in the datasheet.
This provides greater flexibility when designing larger solar arrays across different roof orientations or PV sections.
The X3-ULTRA supports high-voltage lithium battery storage across a wide 120โ800V DC battery operating range.
Battery specifications include:
Lithium battery compatible
120โ800V DC battery voltage range
Dual battery architecture
Maximum 60A charge/discharge current
30A ร 2 battery configuration
ย
The datasheet notes compatibility with a minimum of three HS Series battery units, subject to system voltage and startup conditions. Battery compatibility should always be confirmed for the intended system configuration.
The X3-ULTRA provides dedicated three-phase EPS backup output when paired with compatible battery storage.
Key backup capabilities include:
Three-phase EPS backup
<10ms switchover for a single inverter
Up to 200% EPS output for 10 seconds
230/400V EPS output
50Hz / 60Hz operation
ย
The high short-duration overload capability can help support loads with significant startup power requirements.
| Model | Rated EPS Output | Peak EPS Capability |
|---|---|---|
| X3-ULT-15K | 15kVA | 2ร rated / 10 sec |
| X3-ULT-19.9K | 19.999kVA | 2ร rated / 10 sec |
| X3-ULT-20K | 20kVA | 2ร rated / 10 sec |
| X3-ULT-25K | 25kVA | 2ร rated / 10 sec |
| X3-ULT-30K | 30kVA | 2ร rated / 10 sec |
ย
One of the major advantages of the X3-ULTRA is its scalability.
SolaX specifies support for up to 10 units operating in parallel for both on-grid and off-grid applications.
This allows the X3-ULTRA platform to be used as the foundation for substantially larger energy systems where additional inverter capacity may be required.
The X3-ULTRA supports generator and microgrid functionality for more versatile energy-system configurations.
This makes the platform particularly attractive for commercial sites requiring more sophisticated energy resilience than a conventional grid-connected solar system.
The X3-ULTRA incorporates smart load management for controllable electrical loads, including:
Heat pumps
Smart EV chargers
Other managed loads
Load response time within 0.3 seconds
ย
This allows the inverter to form part of a wider intelligent energy-management system rather than simply operating as a conventional solar inverter.
The X3-ULTRA is designed with VPP integration in mind and lists compatibility with:
OpenADR
IEEE 2030.5
FCAS
API integration
These functions are marked by SolaX as having some features coming soon, so availability should be confirmed for the specific market, firmware and installation.
Built-in shadow tracking helps the inverter optimise solar production when parts of the PV array are affected by changing or partial shading conditions.
The X3-ULTRA delivers:
Maximum efficiency: 98.0%
European efficiency: 97.7%
ย
The X3-ULTRA features an IP66 ingress protection rating for demanding installation environments.
Environmental specifications include:
IP66 protection
-35ยฐC to +60ยฐC operating temperature
Output derating above 45ยฐC
Maximum operating altitude: 3,000m
4โ100% relative humidity
Smart air cooling
ย
The X3-ULTRA incorporates a broad range of electrical protection functions, including:
Over-voltage protection
Under-voltage protection
DC isolation protection
DC reverse-polarity protection
Grid monitoring
DC injection monitoring
Back-feed current monitoring
Residual current detection
Over-temperature protection
AC overcurrent protection
AC short-circuit protection
Active anti-islanding
Type II DC surge protection
Type II AC surge protection
Optional AFCI
ย
Three-phase C&I hybrid inverter
15kW to 30kW power options
Up to 200% PV oversizing
Up to 110% AC output
Up to 60kWp recommended PV capacity
Up to 1000V PV input
Wide 120โ950V MPPT range
Up to 36A PV input per MPPT
Up to 3 independent MPPTs
High-voltage lithium battery support
120โ800V battery range
Up to 60A battery charge/discharge
Dual battery architecture
Up to 200% EPS overload for 10 seconds
<10ms single-unit backup switchover
Up to 10 inverters in parallel
On-grid and off-grid parallel operation
Generator compatible
Microgrid functionality
Smart EV charger management
Heat pump management
Built-in shadow tracking
VPP ready
IP66 protection
Type II AC & DC surge protection
Optional AFCI
Smart air cooling
AS4777 listed certification
ย
| Specification | 15kW | 19.9kW | 20kW | 25kW | 30kW |
|---|---|---|---|---|---|
| Model | X3-ULT-15K | X3-ULT-19.9K | X3-ULT-20K | X3-ULT-25K | X3-ULT-30K |
| Rated Output | 15kW* | 19.999kW | 20kW | 25kW | 30kW* |
| Max Recommended PV | 30kWp | 40kWp | 40kWp | 50kWp | 60kWp |
| Rated EPS | 15kVA | 19.999kVA | 20kVA | 25kVA | 30kVA |
| Battery Range | 120โ800V | 120โ800V | 120โ800V | 120โ800V | 120โ800V |
| Max Battery Current | 60A | 60A | 60A | 60A | 60A |
| Max PV Voltage | 1000V | 1000V | 1000V | 1000V | 1000V |
| Protection | IP66 | IP66 | IP66 | IP66 | IP66 |
*Australian AS4777 ratings shown in the datasheet apply where relevant: 14.999kVA for the 15K and 29.999kVA for the 30K.
| Specification | SolaX X3-ULTRA |
|---|---|
| Application | Commercial & Industrial Hybrid |
| Phase | Three Phase |
| Battery Type | Lithium |
| Battery Voltage | 120โ800V DC |
| Max Battery Current | 60A (30A ร 2) |
| Max PV Voltage | 1000V DC |
| Rated PV Voltage | 600V DC |
| MPPT Range | 120โ950V DC |
| Startup Voltage | 200V DC |
| Rated AC Voltage | 220/380V or 230/400V |
| Grid Frequency | 50/60Hz |
| EPS Switchover | <10ms |
| Maximum Efficiency | 98.0% |
| European Efficiency | 97.7% |
| Protection Rating | IP66 |
| Operating Temperature | -35ยฐC to +60ยฐC |
| Maximum Altitude | 3,000m |
| Cooling | Smart Air Cooling |
| Dimensions | 696 ร 526 ร 240mm |
| Communications | RS485, CAN, DRM, DI/DO |
| Night Consumption | <5W |
| Topology | Non-isolated |
| Surge Protection | Type II DC / Type II AC |
| AFCI | Optional |
ย
The SolaX X3-ULTRA is designed for installations that need substantially more capacity and flexibility than a conventional residential hybrid inverter.
With models from 15kW through to 30kW, up to 60kWp of recommended solar capacity, 60A battery charging and discharging, powerful EPS backup, generator and microgrid functionality and the ability to parallel up to 10 units, the X3-ULTRA provides a scalable solution for larger solar and energy-storage installations.
15kW โ X3-ULT-15K
19.9kW โ X3-ULT-19.9K
20kW โ X3-ULT-20K
25kW โ X3-ULT-25K
30kW โ X3-ULT-30K
