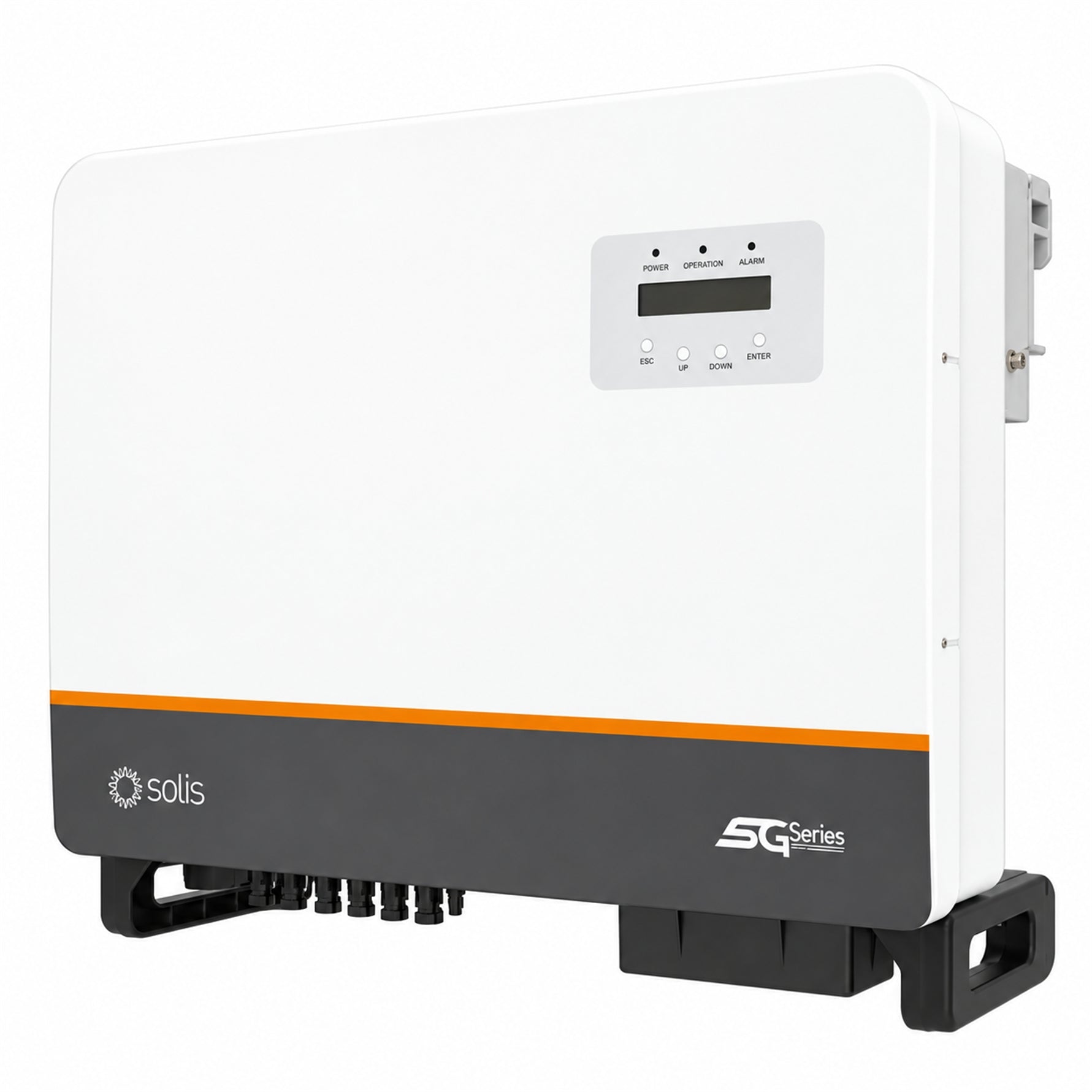

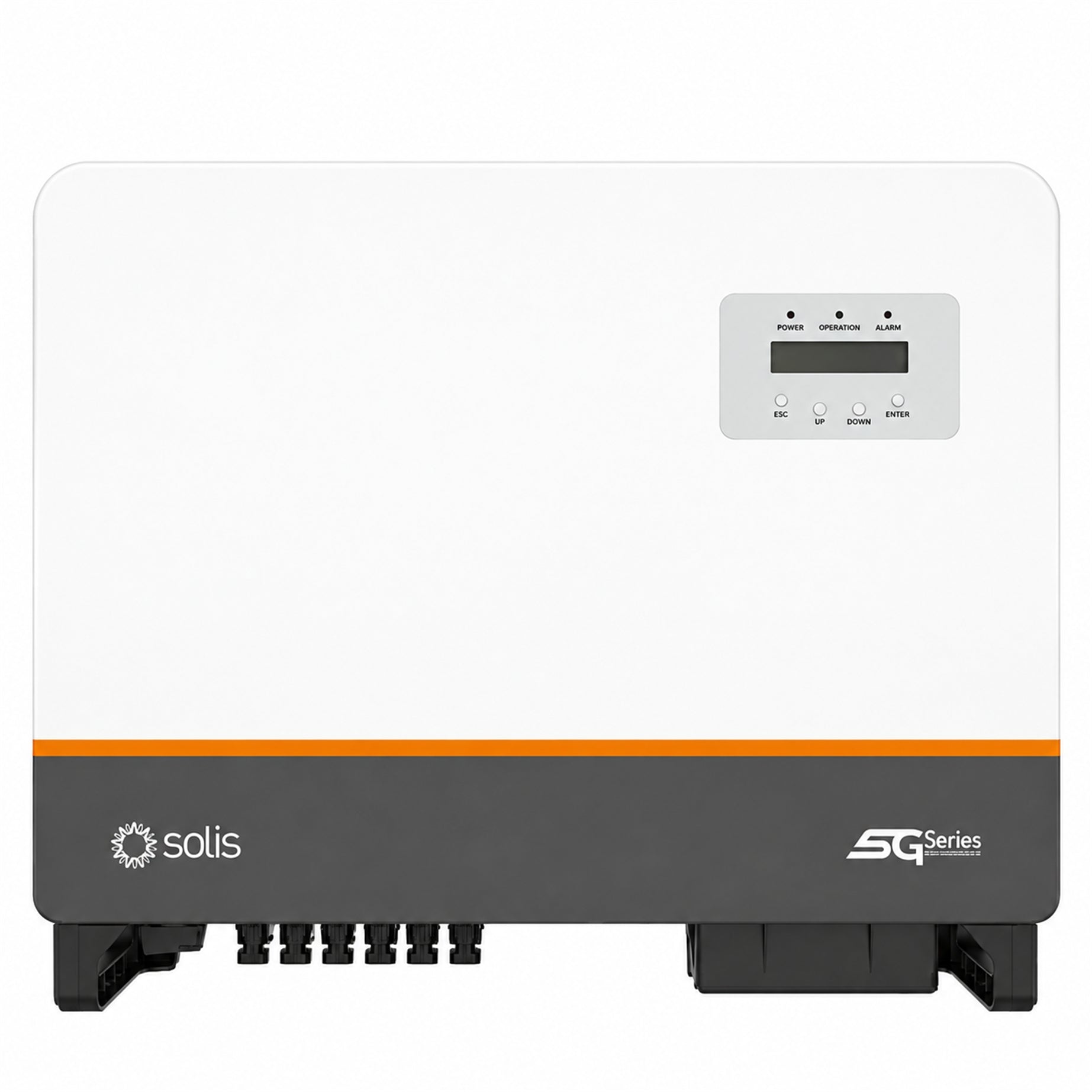

The Solis S5-GC30K-AU is a 30kW three-phase grid-tied inverter designed for larger commercial and high-capacity rooftop solar systems. With four independent MPPTs, up to 39.9kW recommended PV power, intelligent string monitoring and smart I-V curve scanning, it provides flexible system design and efficient solar conversion for more complex installations.
Commercial rooftop solar systems
Large three-phase properties
Warehouses and industrial buildings
Multi-orientation PV arrays
Systems requiring string-level monitoring
Export-controlled grid-connected installations
4 independent MPPTs
Up to 39.9kW recommended PV power
32A maximum input current per MPPT
200β1000V MPPT operating range
1100V maximum PV input voltage
Up to 98.6% maximum efficiency
Intelligent string monitoring
Smart I-V curve scanning
24-hour load consumption monitoring
Multi-peak scan for shaded conditions
Optional AFCI 2.0
Optional nighttime PID recovery
The S5-GC30K-AU supports up to 39.9kW of recommended PV power across four independent MPPTs and up to eight PV string inputs.
Each MPPT supports up to 32A input current and 40A short-circuit current, while the broad 200β1000V MPPT range provides flexibility for larger and more complex rooftop layouts.
Intelligent string monitoring and I-V curve scanning make it easier to identify underperforming strings or potential system issues.
The inverter also supports 24-hour load consumption monitoring, RS485 communication and optional Wi-Fi or GPRS connectivity for remote system management.
| Specification | S5-GC30K-AU |
|---|---|
| Rated AC Output | 30kW |
| Recommended Max. PV Power | 39.9kW |
| MPPTs / Max. Input Strings | 4 / 8 |
| Max. PV Input Current | 4 Γ 32A |
| Max. Short-Circuit Current | 4 Γ 40A |
| Max. PV Input Voltage | 1100V |
| MPPT Voltage Range | 200β1000V |
| Start-Up Voltage | 180V |
| Rated Grid Voltage | 230V / 400V |
| Rated Grid Frequency | 50Hz |
| Rated / Max. Output Current | 43.5A |
| Maximum Efficiency | 98.6% |
| EU Efficiency | 98.2% |
| Protection Rating | IP65 |
| Operating Temperature | -25Β°C to +60Β°C |
| Cooling | Intelligent fan cooling |
| Dimensions | 647 Γ 629 Γ 252mm |
| Weight | 38.2kg |
| Display | LCD |
| Communication | RS485; optional Wi-Fi, GPRS |
| Country of Manufacture | China |
Β
Integrated protection includes DC reverse-polarity protection, short-circuit protection, output over-current protection, DC Type II and AC Type II surge protection, grid monitoring, anti-islanding protection and temperature protection.
Optional AFCI 2.0 and PID recovery add further protection and long-term performance support for larger PV installations.
Complies with AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683 and EN 50530, together with applicable IEC 62109-1/-2 and IEC 61000-6-1/-2/-3/-4 requirements.
The S5-GC30K-AU is built for larger grid-connected solar systems that need more flexibility, stronger monitoring and higher PV capacity than a typical residential inverter.
Its four MPPTs, eight-string capability, 32A input current per MPPT and intelligent string diagnostics make it particularly suitable for commercial rooftops and multi-orientation arrays where system performance and fault visibility are important.
