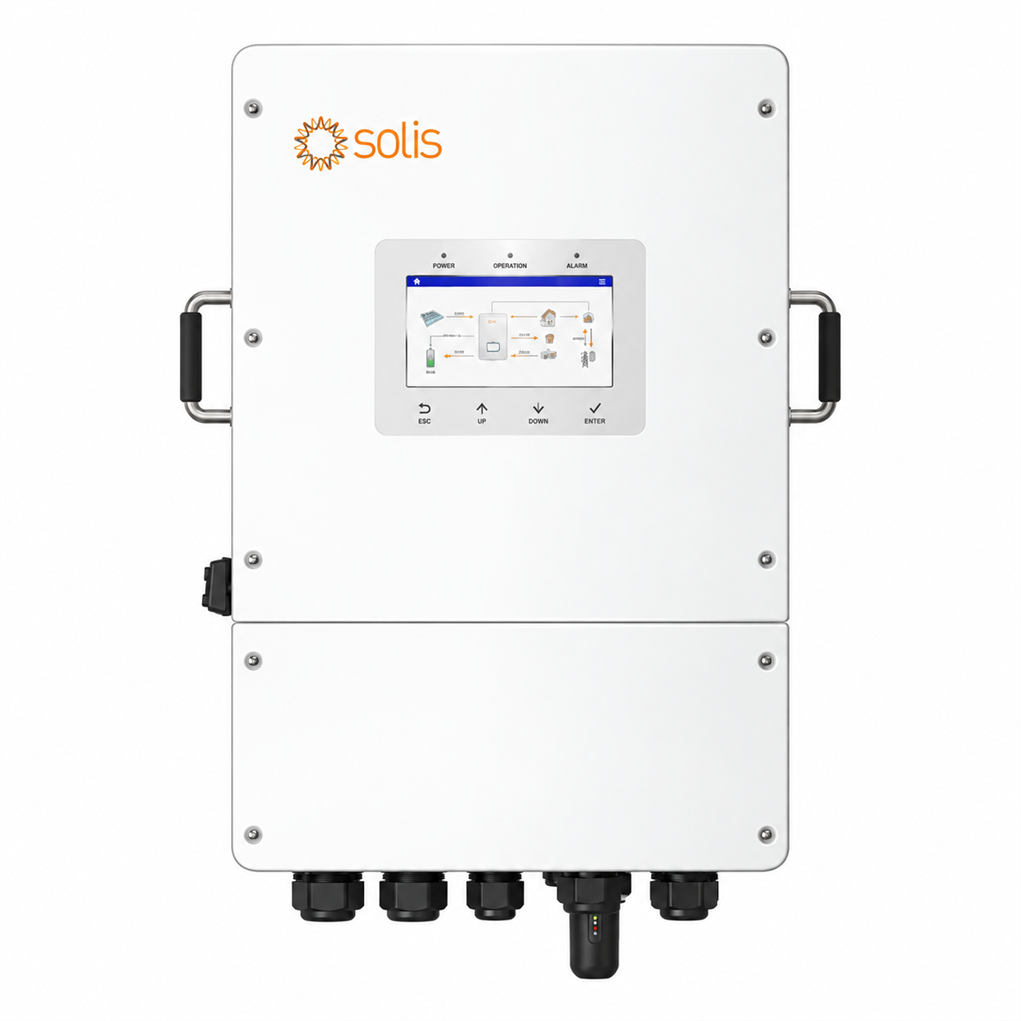

The Solis S6 10kW/12kW Three Phase Low Voltage Hybrid Inverter are three-phase low-voltage hybrid inverters designed for larger residential solar and battery systems. With up to 160% PV input capacity, high-current 40β60V battery support, generator integration and <10ms backup switching, the Solarator platform brings solar, storage and backup power together in one flexible energy system.
Large three-phase residential solar systems
Low-voltage battery storage installations
Homes with high electricity consumption
Generator-assisted backup systems
Properties requiring strong backup performance
EV charging and high-demand household loads
VPP and smart energy management
Systems requiring future expansion
The Solis S6 Three Phase Hybrid Inverter can be paired with the Sumray SR-LV14G low-voltage battery to create a scalable three-phase solar and storage solution. The inverter supports 40β60V batteries with CAN / RS485 communication, while the SR-LV14G operates at 48V nominal voltage with a 42β54V operating range and CAN communication, making the two products well aligned from a voltage and communication perspective.Β
The SR-LV14G is available in approximately 13.92kWh, 27.84kWh, 41.76kWh and 55.68kWh configurations, allowing storage capacity to scale with household demand. It also features IP66 protection, a stacked design, module-level MCB, battery heating and a 10,000+ cycle design life.
Bundle the Solis inverter with the Sumray SR-LV14G battery for a smarter, simpler solar + storage solution with scalable capacity and reliable backup power.
Up to 160% PV input capacity
2 independent MPPTs
Up to 40A PV input current per MPPT
40β60V low-voltage battery support
Up to 250A battery charge / discharge current

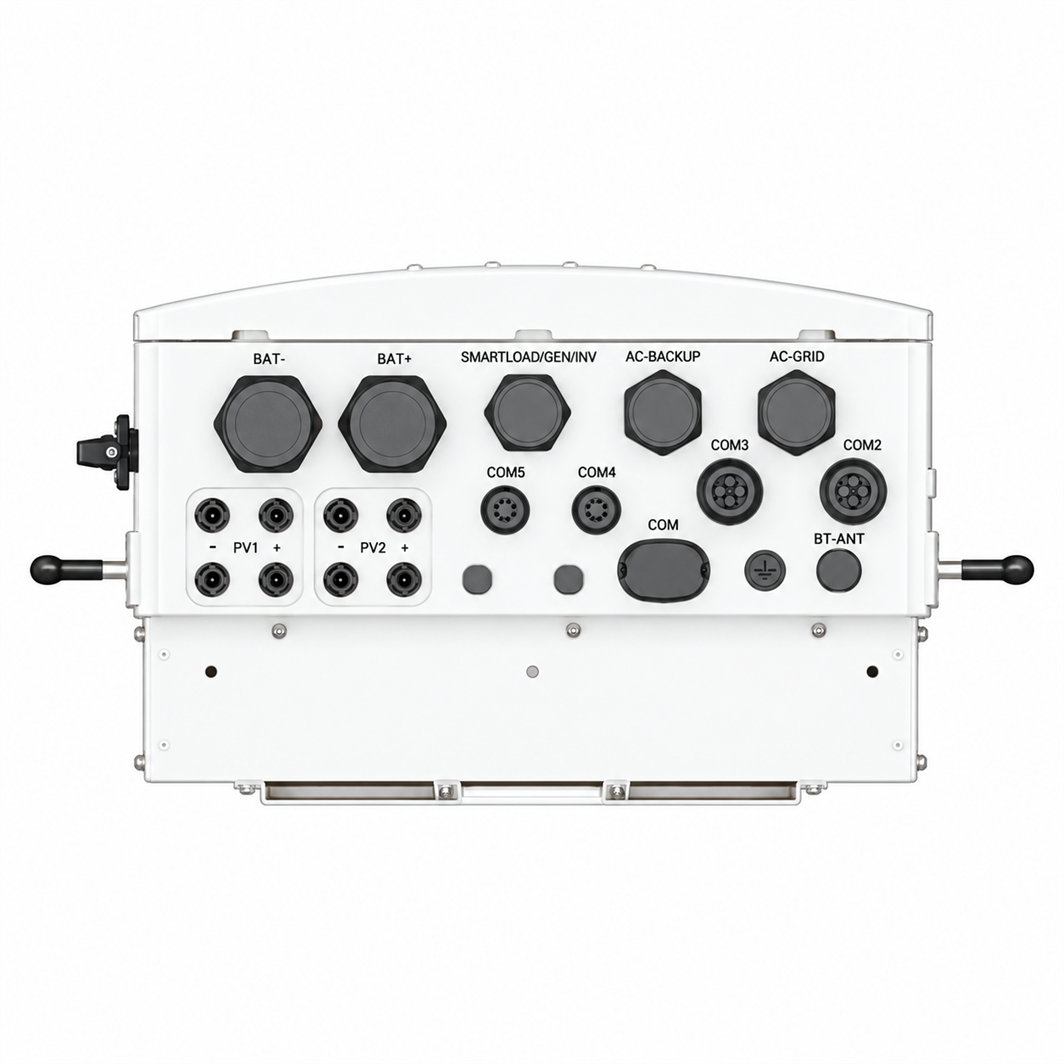

Dual battery ports
<10ms backup switching
200% backup overload for 10 seconds
Generator integration with automatic control
DC and AC coupling support
Up to 6 units in parallel
AI-powered and VPP-ready energy management
PV-only off-grid operation
7-inch LCD with Bluetooth app
IP66 protection
Both models support modern high-power PV modules and flexible rooftop layouts through dual MPPTs and high-current PV inputs.
Maximum recommended PV array size is:
S6-EH3P10K02-NV-YD-L-AU: 20kW
S6-EH3P12K02-NV-YD-L-AU: 24kW
The low-voltage battery platform supports lithium-ion and lead-acid batteries from 40β60V. Maximum charge/discharge current reaches 220A on the 10kW model and 250A on the 12kW model, with two battery ports available for flexible storage configuration.
Both models switch to backup operation in less than 10ms and can provide up to twice their rated apparent power for 10 seconds. This additional short-duration capacity helps support startup loads such as motors, pumps and air-conditioning equipment.
Generator input is also supported, with maximum generator power matching the inverter rating: 10kW for the 10kW model and 12kW for the 12kW model.
The Solarator platform supports DC and AC coupling, customisable battery backup levels, PV-only off-grid operation and parallel expansion of up to six units.
AI-powered and VPP-ready functionality provides additional flexibility for energy optimisation, while the 7-inch LCD, Wi-Fi, LAN and Bluetooth connectivity simplify local operation and system monitoring.
| Specification | S6-EH3P10K02-NV-YD-L-AU | S6-EH3P12K02-NV-YD-L-AU |
|---|---|---|
| Rated AC Output | 10kW | 12kW |
| Recommended Max. PV Array | 20kW | 24kW |
| MPPTs | 2 | 2 |
| Max. PV Input Current | 40A + 40A | 40A + 40A |
| Max. PV Input Voltage | 1000V | 1000V |
| MPPT Voltage Range | 200β850V | 200β850V |
| Battery Voltage Range | 40β60V | 40β60V |
| Max. Charge / Discharge Current | 220A | 250A |
| Battery Ports | 2 | 2 |
| Rated Backup Output | 10kW | 12kW |
| Backup Peak Output | 2 Γ rated power / 10s | 2 Γ rated power / 10s |
| Generator Input Power | 10kW | 12kW |
| Max. Efficiency | 97.5% | 97.5% |
| Protection Rating | IP66 | IP66 |
| Dimensions | 430 Γ 660 Γ 305mm | 430 Γ 660 Γ 305mm |
| Weight | 42kg | 42kg |
Β
Integrated protection includes output over-current protection, insulation resistance monitoring, residual current detection, an integrated PV switch and DC reverse-polarity protection. DC Type II / AC Type II surge protection and AFCI 2.0 are available as optional features.
The IP66 enclosure supports demanding installation environments, with an operating temperature range of -25Β°C to +60Β°C.
Complies with AS/NZS 4777.2:2020 + A1 + A2 and applicable IEC/EN 62109-1/-2 and IEC/EN 61000-6-1/-2/-3/-4 requirements.
The Solis S6 low-voltage Solarator series combines high battery-current capability, strong backup performance and generator integration in a scalable three-phase platform.
Its 40β60V battery architecture is particularly useful for systems built around low-voltage storage, while 200% backup overload, DC/AC coupling and parallel expansion provide the flexibility needed for larger homes with growing energy requirements.
