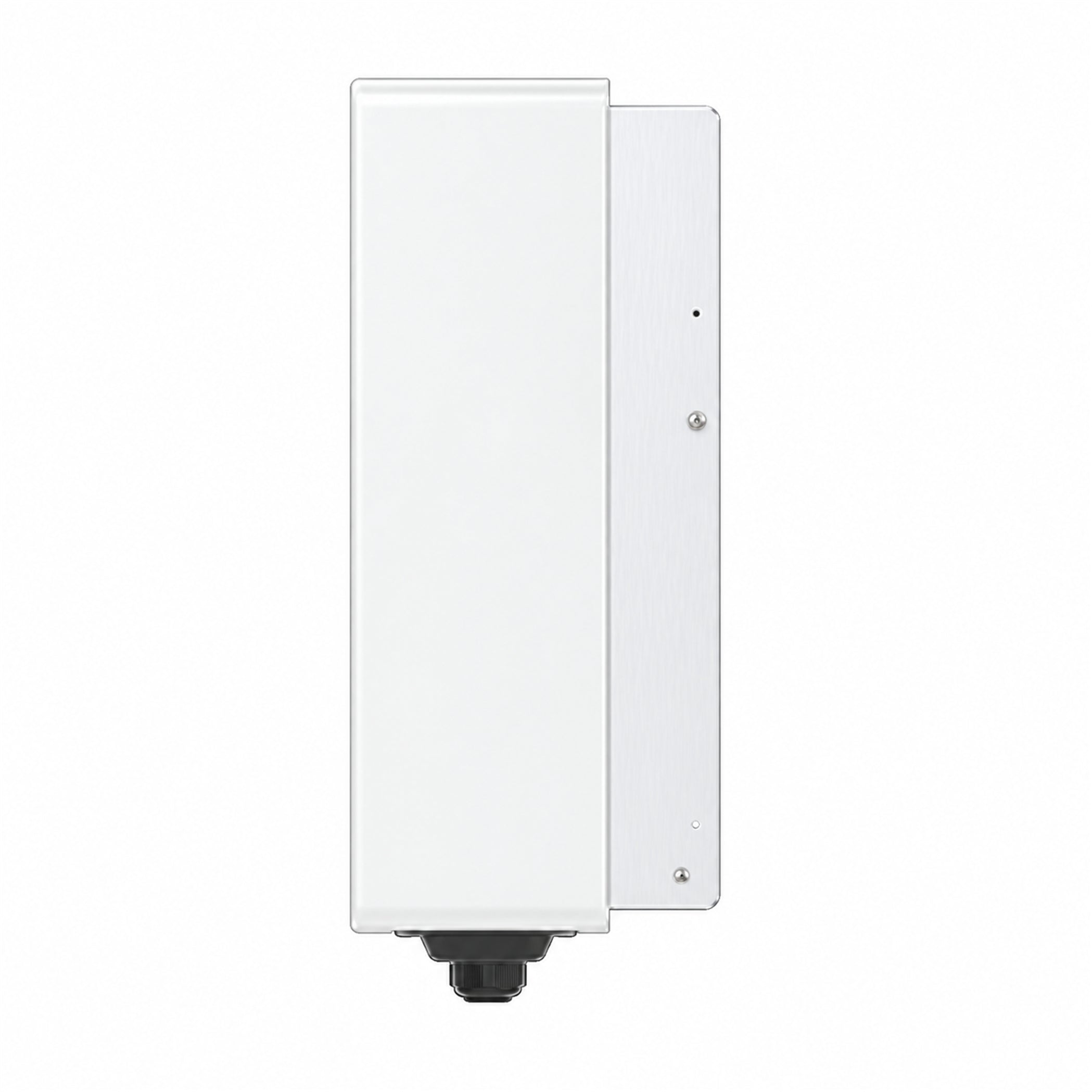

The Solis S6-GR1P10K03-NV-ND-AU is a 10kW single-phase grid-connected inverter designed for larger residential rooftop solar systems. With three independent MPPTs, 20A input current per MPPT, a wide operating voltage range and integrated consumption monitoring, it provides greater flexibility for complex roof layouts and modern high-power PV modules.
Large single-phase residential solar systems
Homes with multiple roof orientations
Rooftops with separate PV array sections
Systems using higher-current solar modules
Households requiring export power control
Installations requiring 24-hour consumption monitoring
3 independent MPPTs
20A PV input current per MPPT
Up to 13.3kW recommended PV power
Wide 50β500V MPPT operating range
Low 60V start-up voltage

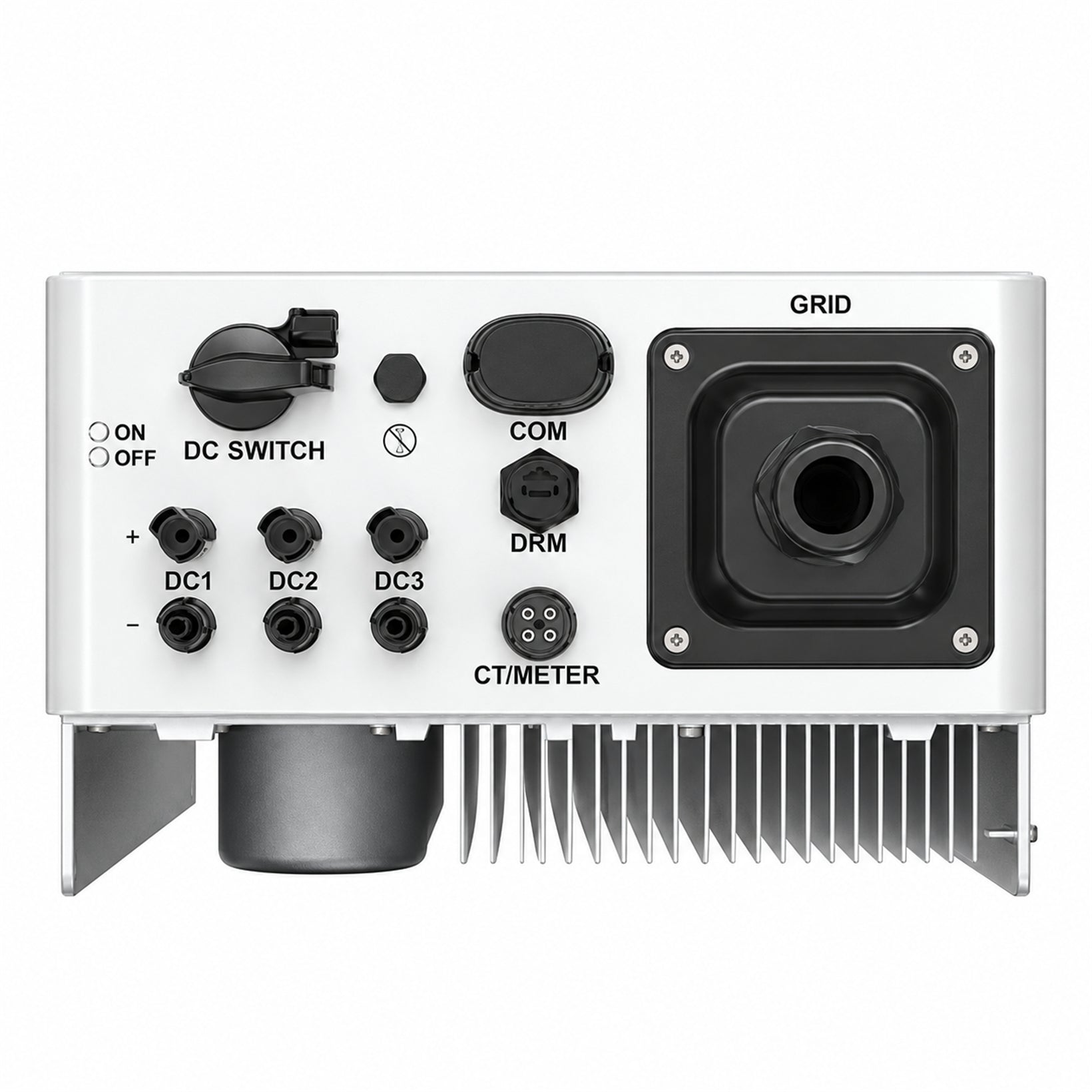

Integrated CT and Meter interface
24-hour load consumption monitoring
Export power control support
Multi-peak scan for shaded conditions
Optional AFCI 2.0
IP66 protection
Bluetooth app monitoring
Three independent MPPTs make the S6-GR1P10K03-NV-ND-AU particularly suitable for rooftops with multiple orientations or separate solar array sections.
The inverter supports up to 13.3kW recommended PV power, with 20A input current and 25A short-circuit current available on each MPPT. A 50β500V MPPT operating range and 60V start-up voltage provide additional flexibility for residential string design.
The integrated CT and Meter interface supports 24-hour household load monitoring and export power control, helping users better understand how solar generation and household consumption interact.
An LED digital display, Bluetooth and app support provide convenient local access to inverter status, while RS485 and optional Wi-Fi or GPRS support remote communication.
| Specification | S6-GR1P10K03-NV-ND-AU |
|---|---|
| Rated AC Output | 10kW |
| Recommended Max. PV Power | 13.3kW |
| MPPTs / Max. Input Strings | 3 / 3 |
| Max. PV Input Current | 20A / 20A / 20A |
| Max. Short-Circuit Current | 25A / 25A / 25A |
| Max. PV Input Voltage | 550V |
| MPPT Voltage Range | 50β500V |
| Start-Up Voltage | 60V |
| Rated Grid Voltage | 230V |
| Rated Grid Frequency | 50Hz |
| Rated / Max. Output Current | 43.5A |
| Maximum Efficiency | 98.0% |
| EU Efficiency | 97.1% |
| Protection Rating | IP66 |
| Operating Temperature | -25Β°C to +60Β°C |
| Noise Emission | <40dB(A) |
| Dimensions | 335 Γ 510 Γ 220mm |
| Weight | 16.1kg |
| Display | LED digital display + Bluetooth + App |
| Communication | RS485; optional Wi-Fi, GPRS |
| Country of Manufacture | China |
Β
Integrated protection includes DC reverse-polarity protection, short-circuit protection, output over-current protection, surge protection, grid monitoring, anti-islanding protection, temperature protection and an integrated DC switch.
Optional AFCI 2.0 adds arc-fault protection, while the IP66 enclosure supports use in demanding installation environments.
Complies with AS/NZS 4777.2:2020 and applicable IEC/EN 62109-1/-2 and IEC/EN 61000-6-1/-2/-3/-4 requirements.
The S6-GR1P10K03-NV-ND-AU is a strong choice for larger single-phase rooftop systems that need more design flexibility than a conventional dual-MPPT inverter.
Its three MPPTs, 20A input current per tracker, high 13.3kW recommended PV capacity and integrated consumption monitoring make it particularly well suited to complex residential roofs, higher-power solar modules and households that want better control over solar generation and grid export.
