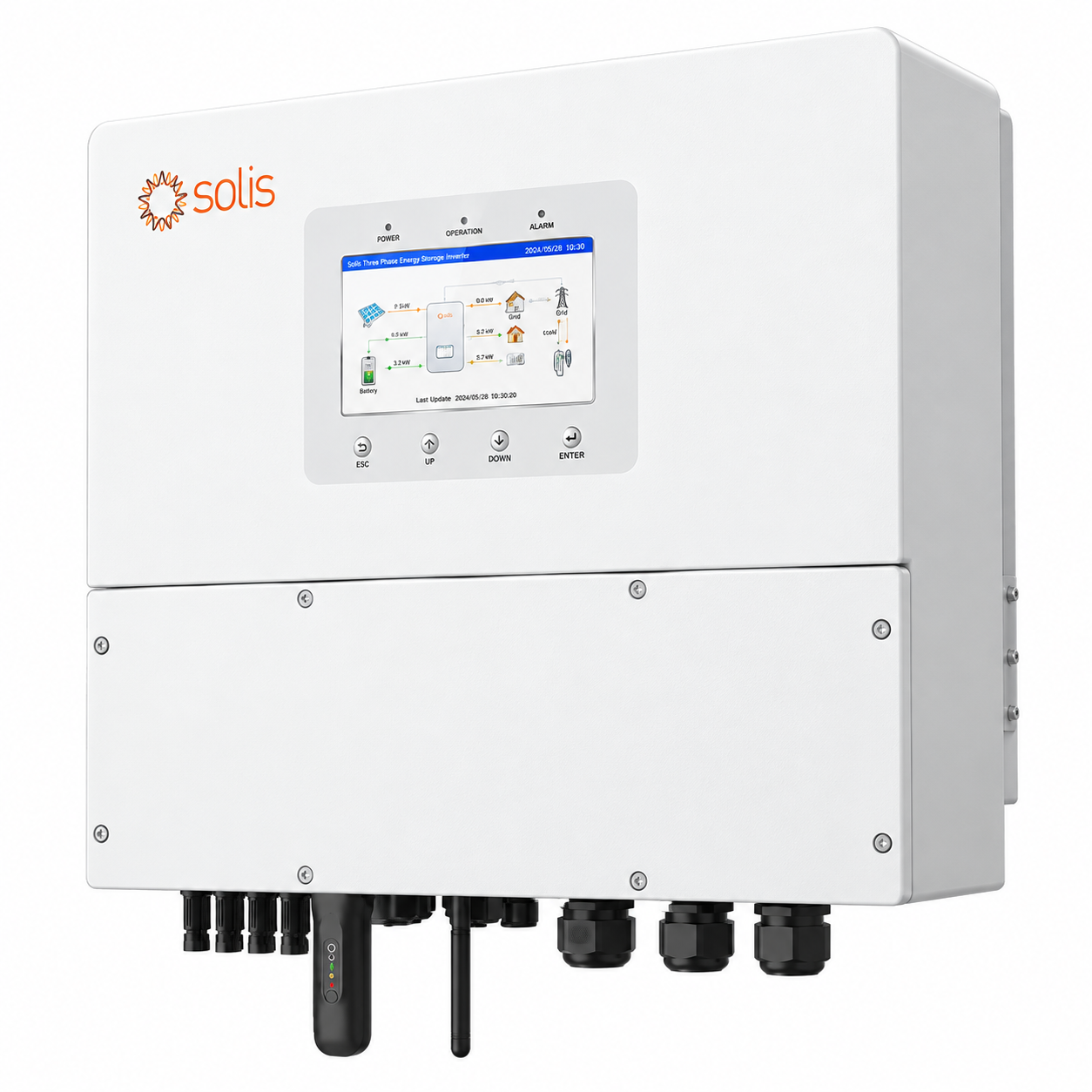

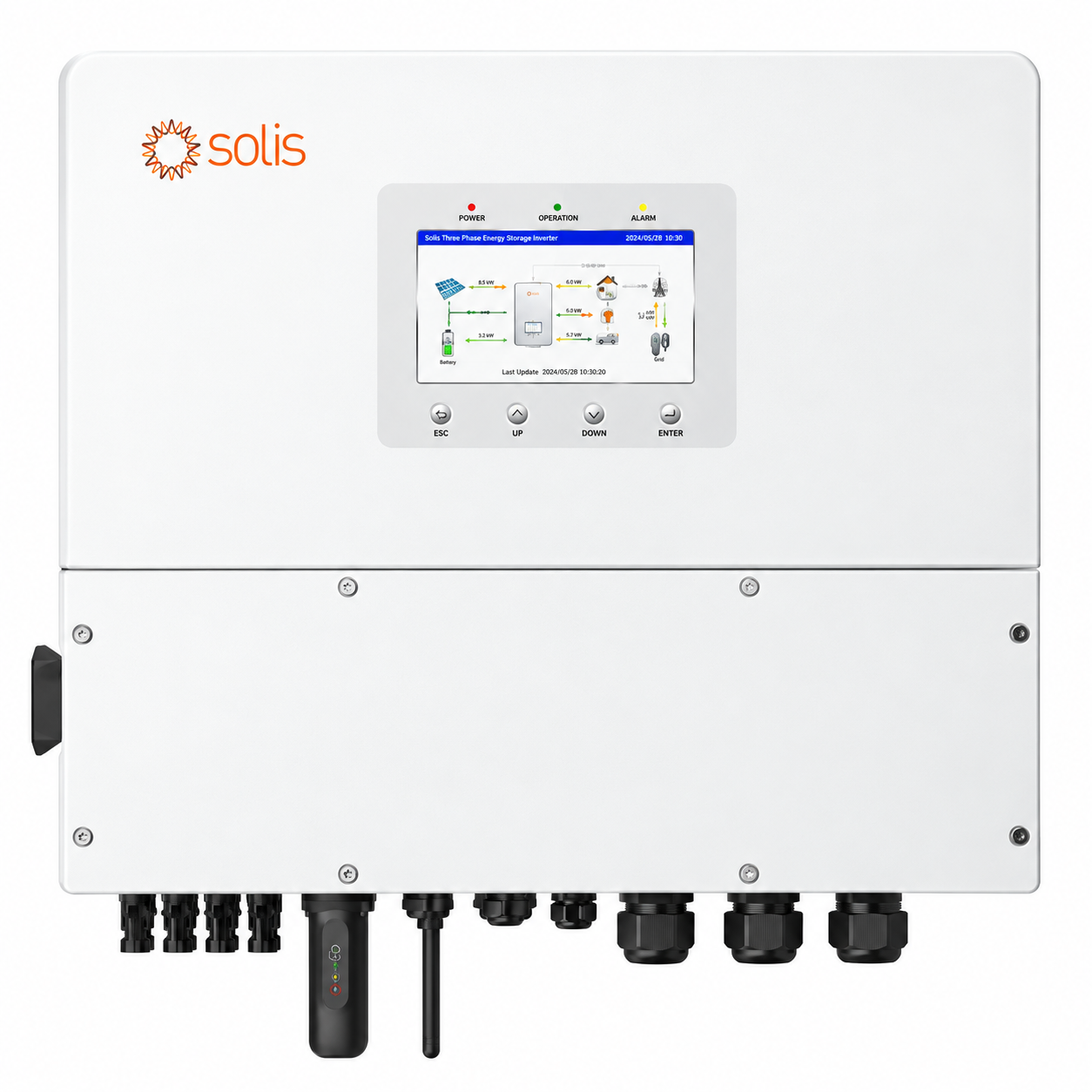

The Solis S6-EH3P15K-H-AU and S6-EH3P20K-H-AU are high-voltage three-phase hybrid inverters designed for larger residential and light commercial energy systems. With 4 MPPTs, up to 160% PV input capacity, high-voltage battery support, generator integration and <10ms backup switching, they provide a flexible platform for solar, storage and backup power.
Large three-phase residential systems
Light commercial solar and battery installations
Properties with multiple roof orientations
Generator-assisted backup systems
EV charging and heat-pump applications
VPP and smart energy management
Systems requiring future expansion
When paired with an HGNESS high-voltage modular battery, the Solis three-phase hybrid inverter becomes part of a scalable energy storage system designed for larger homes, businesses and backup-critical applications. The combination brings together Solis hybrid inverter control with HGNESS modular LiFePOβ storage, allowing more solar energy to be stored for later use, supporting backup power during outages and giving the system room to expand as energy demand grows. With smart solar utilisation, three-phase backup capability and modular storage architecture, the pairing is particularly well suited to high-consumption properties seeking greater energy independence and long-term flexibility.
4 independent MPPTs
Up to 160% PV input capacity
20A PV input current per MPPT
120β800V lithium battery support
Up to 50A charge / discharge current
<10ms backup switching
160% backup overload for 10 seconds
Generator integration with automatic control
DC and AC coupling support
Up to 6 units in parallel
AI-powered and VPP-ready energy management
PV-only off-grid mode
7-inch LCD with Bluetooth app
IP66 protection
Four MPPTs support complex PV layouts and different roof orientations, while 20A input current per MPPT improves compatibility with modern high-power solar modules.
Maximum recommended PV array size is 30kW for the 15kW model and 40kW for the 20kW model.
The inverter supports lithium batteries across a 120β800V range with up to 50A charge and discharge current.
Both models switch to backup operation in less than 10ms and can deliver up to 160% of rated apparent power for 10 seconds, helping support short-duration starting loads such as motors, pumps and air-conditioning equipment.
Generator input is also supported, with maximum generator power of 15kW on the 15kW model and 20kW on the 20kW model.
AI-powered energy management and VPP readiness help optimise solar generation, battery charging and connected loads.
The system also supports DC and AC coupling, SG-Ready heat pump connectivity, customisable battery backup levels and parallel expansion of up to six units.
| Specification | S6-EH3P15K-H-AU | S6-EH3P20K-H-AU |
|---|---|---|
| Rated AC Output | 15kW | 20kW |
| Recommended Max. PV Array | 30kW | 40kW |
| MPPTs | 4 | 4 |
| Max. PV Input Current | 4 Γ 20A | 4 Γ 20A |
| Battery Voltage Range | 120β800V | 120β800V |
| Max. Battery Current | 50A | 50A |
| Rated Backup Output | 15kW | 20kW |
| Backup Peak Output | 1.6 Γ rated power / 10s | 1.6 Γ rated power / 10s |
| Generator Input Power | 15kW | 20kW |
| Max. Efficiency | 97.7% | 97.7% |
| Protection Rating | IP66 | IP66 |
| Dimensions | 563 Γ 546 Γ 250mm | 563 Γ 546 Γ 250mm |
| Weight | 35.2kg | 35.2kg |
The IP66 enclosure supports demanding installation environments, while integrated protection includes surge protection, output over-current protection, insulation monitoring, residual current detection, an integrated PV switch and DC reverse-polarity protection.

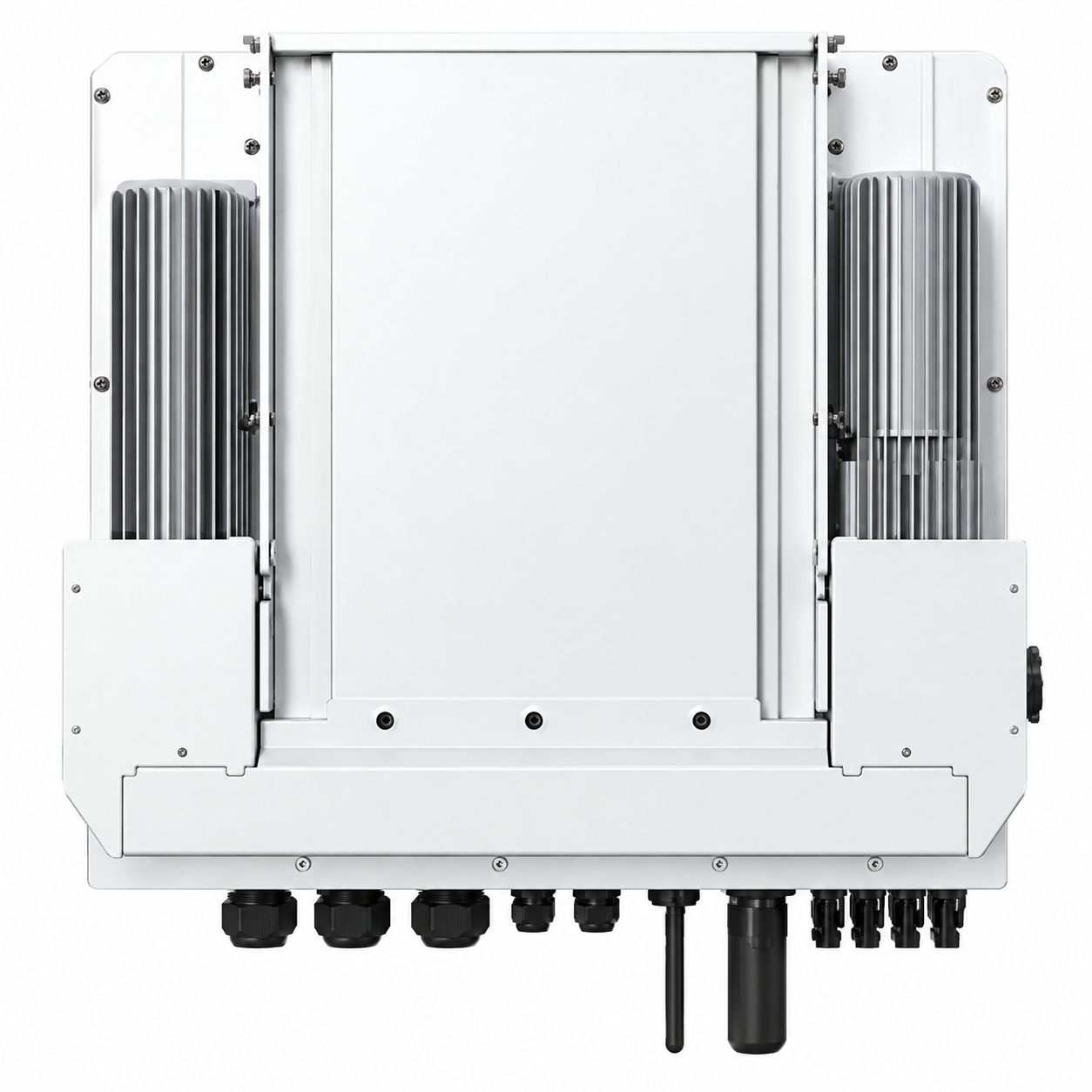

The inverter operates from -25Β°C to +60Β°C and uses intelligent redundant fan cooling.
This version is much cleaner because each section has a distinct job instead of repeating the same PV, battery and backup numbers several times.
Complies with AS 4777.2:2020 and applicable IEC/EN 62109-1/-2 and IEC/EN 61000-6-1/-2/-3/-4 requirements.
The Solis S6-EH3P15K-H-AU and S6-EH3P20K-H-AU combine high PV capacity, battery storage, fast backup switching and generator integration in one flexible three-phase platform.
Four MPPTs and 20A input current per MPPT make the range well suited to larger modern PV systems, while DC and AC coupling, PV-only off-grid operation and parallel expansion provide flexibility for future system growth.
For larger homes and light commercial properties that need strong solar input, scalable storage and reliable backup capability, the 15kW and 20kW models offer a practical and adaptable energy solution.
