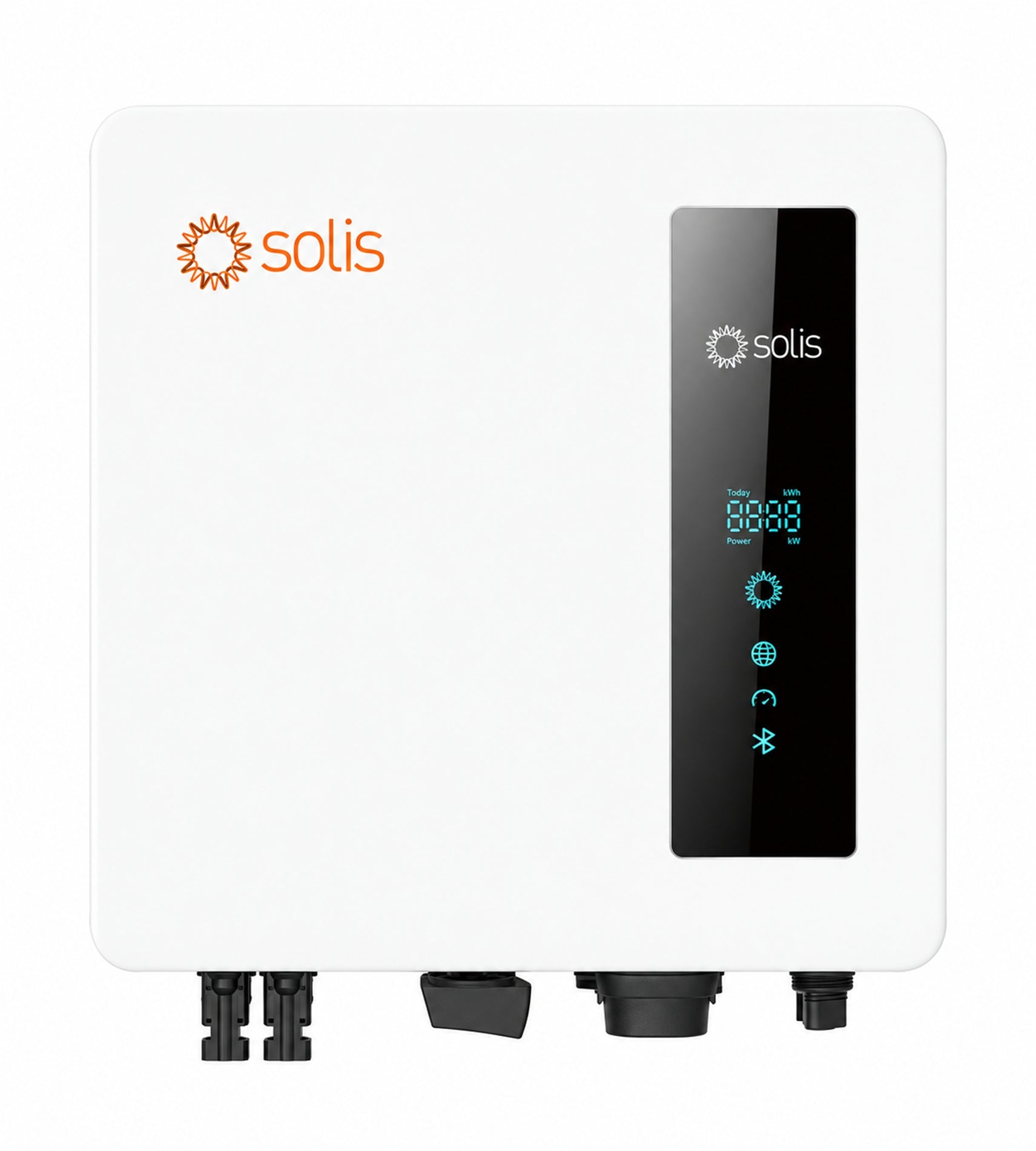

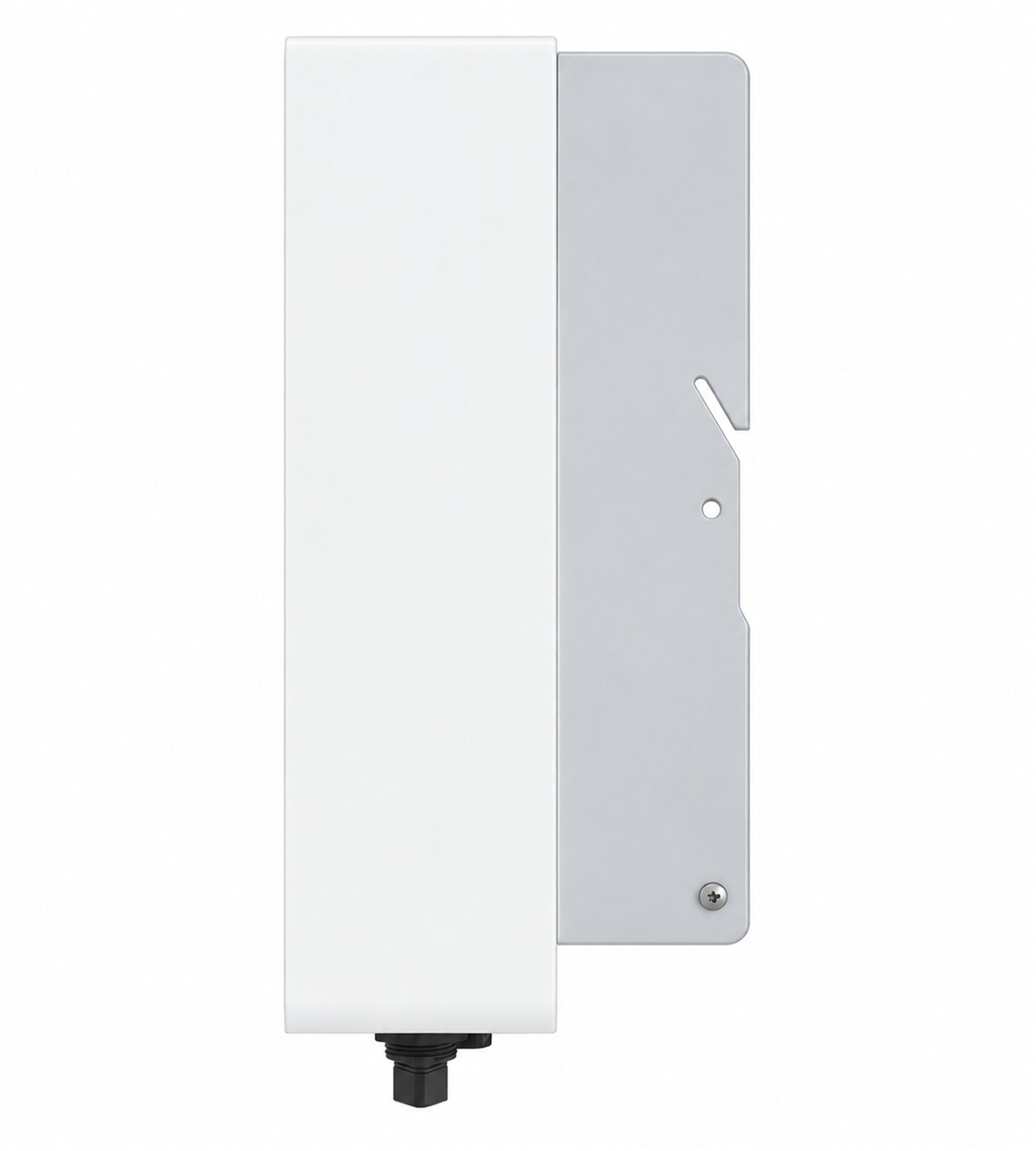

The Solis S6-GR1P5K-S is a compact 5kW single-phase grid-tied inverter designed for residential rooftop solar systems. With dual MPPTs, 21A input current per MPPT, smart-grid compatibility and IP66 protection, it provides flexible PV design and reliable day-to-day solar conversion for modern homes.
Residential single-phase rooftop solar
Homes with two roof orientations
New grid-connected PV installations
Systems using higher-current solar modules
Households requiring consumption monitoring
Installations with export control requirements
2 independent MPPTs
21A PV input current per MPPT
Up to 7.5kW recommended PV power
Wide 50β550V MPPT operating range

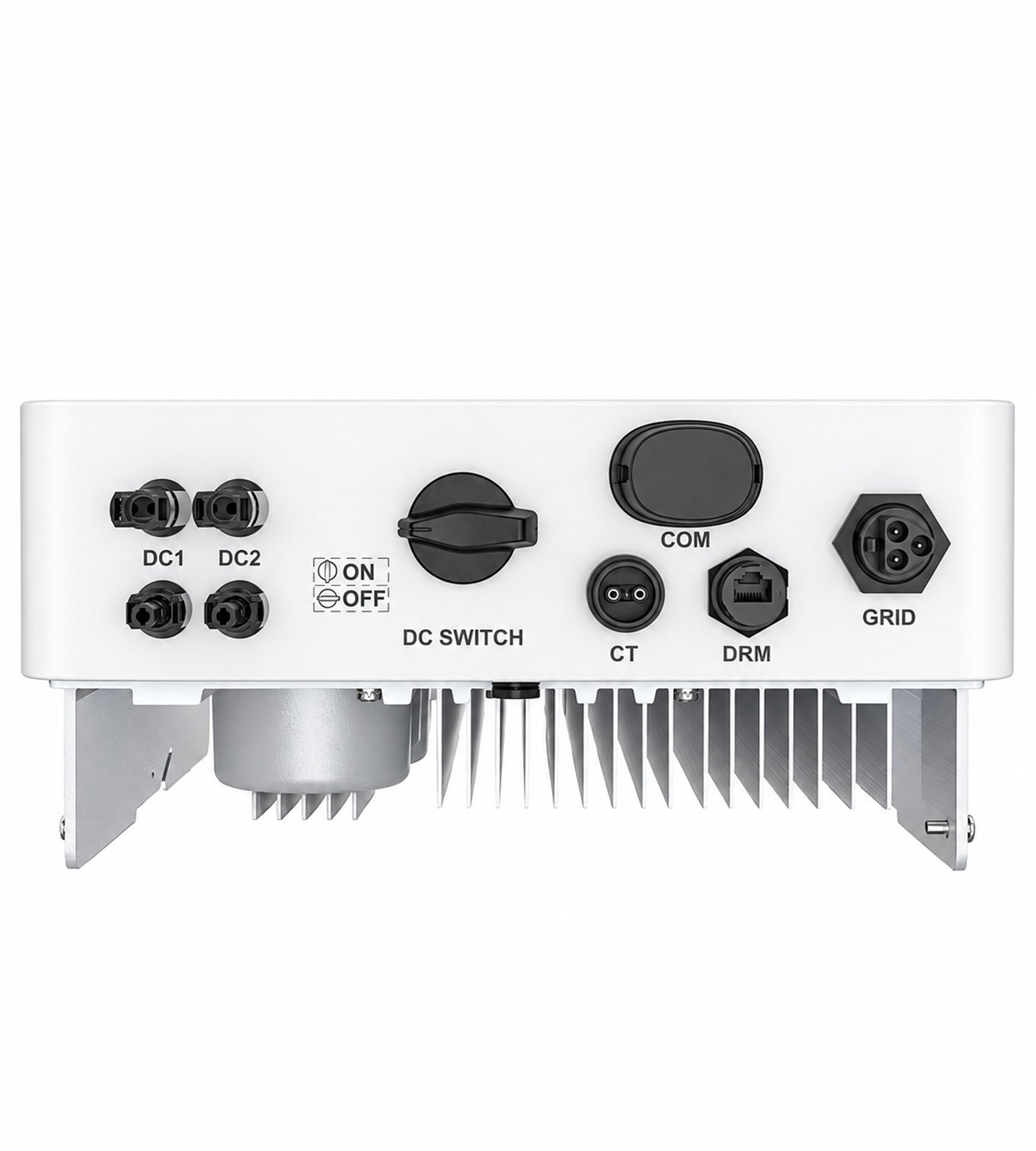

CT/Meter 2-in-1 interface
24-hour consumption monitoring
Smart-grid compatibility
Remote monitoring and control via app
IP66 protection
Optional AFCI 2.0
Quiet operation under 40dB(A)
The S6-GR1P5K-S supports up to 7.5kW recommended PV power with two independent MPPTs, allowing separate solar arrays to be managed across different roof orientations.
Each MPPT supports up to 21A input current and 30A short-circuit current, improving compatibility with newer higher-power PV modules. The inverter operates across a broad 50β550V MPPT range, with a 60V start-up voltage.
A CT/Meter 2-in-1 interface simplifies integration with export power management, while 24-hour consumption monitoring provides better visibility of household energy use.
Bluetooth and app support allow generation and inverter status to be checked remotely, with RS485 and optional Wi-Fi or GPRS available for communication.
| Specification | S6-GR1P5K-S |
|---|---|
| Rated AC Output | 5kW |
| Recommended Max. PV Power | 7.5kW |
| MPPTs / Max. Input Strings | 2 / 2 |
| Max. PV Input Current | 21A / 21A |
| Max. Short-Circuit Current | 30A / 30A |
| Max. PV Input Voltage | 550V |
| MPPT Voltage Range | 50β550V |
| Start-Up Voltage | 60V |
| Rated Grid Voltage | 220V / 230V |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Output Current | 22.7A / 21.7A |
| Max. Efficiency | 97.6% |
| EU Efficiency | 97.1% |
| Protection Rating | IP66 |
| Operating Temperature | -25Β°C to +60Β°C |
| Noise Emission | <40dB(A) |
| Dimensions | 330 Γ 371 Γ 161mm |
| Weight | 9.4kg |
| Display | LED digital display + Bluetooth + App |
| Communication | RS485, USB; optional Wi-Fi, GPRS |
Β
Protection functions include DC reverse-polarity protection, short-circuit protection, output over-current protection, grid monitoring, anti-islanding protection, temperature protection and an integrated DC switch. DC Type II / AC Type II surge protection and AFCI 2.0 are available as options.
Complies with applicable grid and safety standards including EN 50549-1/-10, IEC 62116, IEC 61727 and IEC/EN 62109-1/-2.
The S6-GR1P5K-S is a practical choice for residential grid-connected solar systems that need flexible dual-MPPT design, compatibility with higher-current modules and straightforward energy monitoring.
Its compact size, IP66 protection and smart monitoring features make it well suited to modern home PV installations where reliable solar conversion and simple system control are the main priorities.
