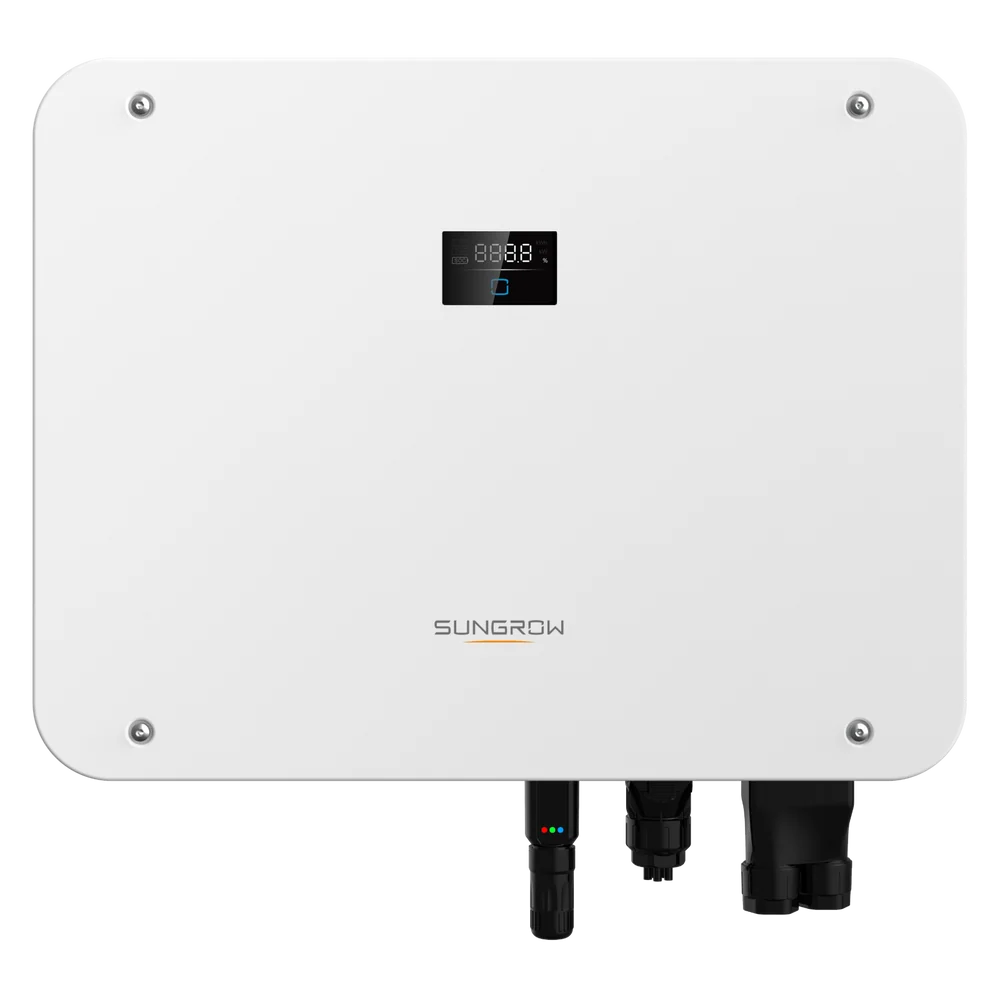

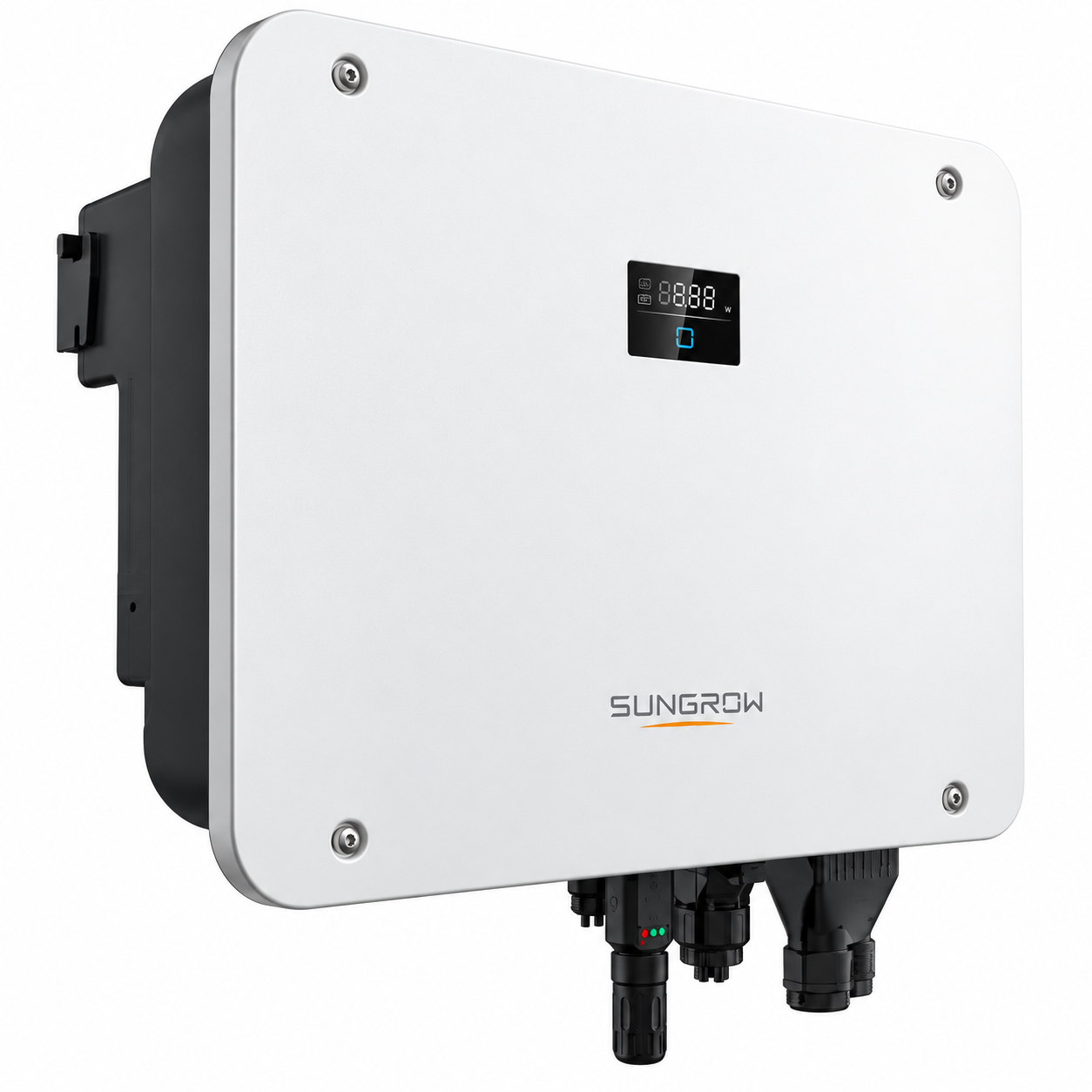

The Sungrow SH10T 10kW Three Phase Hybrid Inverter is a high-performance residential solar and battery inverter designed for larger three-phase homes requiring substantial solar generation, high-powered battery storage and whole-home backup.
With up to 20kW PV input, dual MPPTs, 50A battery charge and discharge current, 10kW battery discharge capability, 100% unbalanced output and a built-in 63A bypass for whole-home backup, the SH10T provides a powerful platform for advanced residential energy storage systems.
The SH10T integrates solar generation, battery storage and backup functionality within a single three-phase hybrid inverter.
Key AC specifications include:
9,999W rated AC output
9,999VA maximum AC apparent power
15.2A maximum AC output current
Three-phase grid connection
220/380V, 230/400V and 240/415V support
50Hz / 60Hz operation
ย
The SH10T supports up to 20,000Wp maximum PV input, allowing substantial solar panel oversizing relative to the inverter's rated AC output.
This makes the SH10T particularly suitable for larger homes looking to maximise daytime solar generation, battery charging and overall solar self-consumption.
PV specifications include:
20,000Wp maximum PV input
1,000V maximum PV voltage
150โ950V MPPT operating range
180V startup voltage
600V rated PV input voltage
ย
The SH10T features two independent MPPT trackers with a 2+1 string configuration, providing flexibility when designing larger rooftop solar arrays.
PV input configuration includes:
2 independent MPPTs
3 PV strings in total
2+1 string configuration
48A total maximum PV input current
32A maximum input current on MPPT 1
16A maximum input current on MPPT 2
60A total DC short-circuit current
30A maximum current per input connector
ย
The SH10T is designed for compatible high-voltage lithium-ion battery systems and provides substantial battery charging and discharging capability.
Battery specifications include:
Lithium-ion battery support
100โ700V battery voltage range
50A maximum charging current
50A maximum discharging current
Up to 15,000W battery charging power
Up to 10,000W battery discharging power
Actual maximum battery current depends on the connected battery.
The SH10T is designed with a built-in 63A bypass for whole-home backup applications, providing additional protection during grid outages.
Sungrow specifies a seamless transition to backup mode in less than 10 milliseconds.
Backup performance includes:
Built-in 63A bypass
Whole-home backup capability
Less than 10ms backup switch time
10,000W / 10,000VA rated off-grid output
Up to 15,000VA peak output for 10 seconds
Three-phase backup operation
100% unbalanced output support
ย
The SH10T can deliver up to 15,000VA peak output for 10 seconds in backup mode when sufficient PV and battery power is available.
This additional short-duration capacity can help the system handle appliances and equipment with higher startup power requirements.
Three-phase household loads are rarely distributed perfectly evenly across every phase.
The SH10T supports 100% unbalanced output in both grid-connected and backup modes, providing greater flexibility for real-world three-phase residential installations.
The SH10T is engineered for efficient solar energy conversion across a wide operating range.
Maximum efficiency: 98.0%
European efficiency: 97.5%
ย
The SH10T provides multiple communication interfaces for monitoring, battery communication and system integration.
Communication options include:
WLAN
Ethernet
RS485
CAN
4 digital inputs
2 digital outputs
DRM0
ย
The SH10T incorporates multiple integrated protection functions for solar, battery and grid operation.
These include:
Grid monitoring
DC reverse-polarity protection
AC short-circuit protection
Leakage-current protection
Integrated solar DC switch
DC Type II surge protection
AC Type II surge protection
PID Zero
Battery reverse-polarity protection
Precise AFCI support
ย
The SH10T uses natural convection cooling, providing quiet operation without relying on an active cooling fan under normal operating conditions.
General specifications include:
IP65 protection rating
C5 corrosion resistance classification
Natural convection cooling
Typical noise level of 35dB(A)
-25ยฐC to +60ยฐC operating temperature
0โ100% allowable relative humidity
Wall-mounted installation
Plug & Play installation
ย
10kW class three phase hybrid inverter
9,999W rated AC output
Solar, battery and backup functionality
Up to 20kWp PV input
1,000V maximum PV voltage
2 independent MPPTs
3 PV strings with 2+1 configuration
Up to 48A total PV input current
100โ700V high-voltage battery range
50A battery charging and discharging
Up to 15kW battery charging power
Up to 10kW battery discharge power
Built-in 63A whole-home backup bypass
Less than 10ms backup switching
10kW rated off-grid output
Up to 15kVA peak backup output for 10 seconds
100% unbalanced output support
98.0% maximum efficiency
Precise AFCI support
PID Zero
DC and AC Type II surge protection
WLAN and Ethernet connectivity
RS485 and CAN
IP65 / C5 protection
Natural convection cooling
Plug & Play installation
AS/NZS 4777.2:2020 listed compliance
| Specification | Sungrow SH10T |
|---|---|
| Model | SH10T |
| Inverter Type | Hybrid Solar & Battery Inverter |
| Phase | Three Phase |
| Rated AC Output | 9,999W |
| Maximum PV Input | 20,000Wp |
| Maximum PV Voltage | 1,000V |
| MPPT Operating Range | 150โ950V |
| Startup Voltage | 180V |
| Independent MPPTs | 2 |
| PV String Configuration | 2 + 1 |
| Max. PV Input Current | 48A total |
| Battery Type | Li-ion |
| Battery Voltage Range | 100โ700V |
| Max. Battery Current | 50A charge / 50A discharge |
| Max. Battery Charge Power | 15,000W |
| Max. Battery Discharge Power | 10,000W |
| Rated Off-Grid Output | 10,000W / 10,000VA |
| Peak Backup Output | 15,000VA for 10 seconds |
| Backup Switching | <10ms |
| Maximum Efficiency | 98.0% |
| European Efficiency | 97.5% |
| Protection Rating | IP65 / C5 |
| Cooling | Natural Convection |
| Communications | RS485 / WLAN / Ethernet / CAN |
| Dimensions | 620 ร 480 ร 195mm |
| Weight | 32kg |
| Operating Temperature | -25ยฐC to +60ยฐC |
| Typical Noise | 35dB(A) |
| Mounting | Wall Mount |
| Grid Compliance | AS/NZS 4777.2:2020 |
Specifications are based on the supplied Sungrow SH5/10T Version 3 datasheet.
The Sungrow SH10T is a strong choice for larger three-phase homes requiring a high-capacity solar and battery solution.
Its combination of up to 20kW PV input, 50A battery charging and discharging, 10kW battery discharge capability, 100% unbalanced output, built-in 63A whole-home backup bypass and 15kVA peak backup power provides substantial flexibility for high-energy residential applications.
