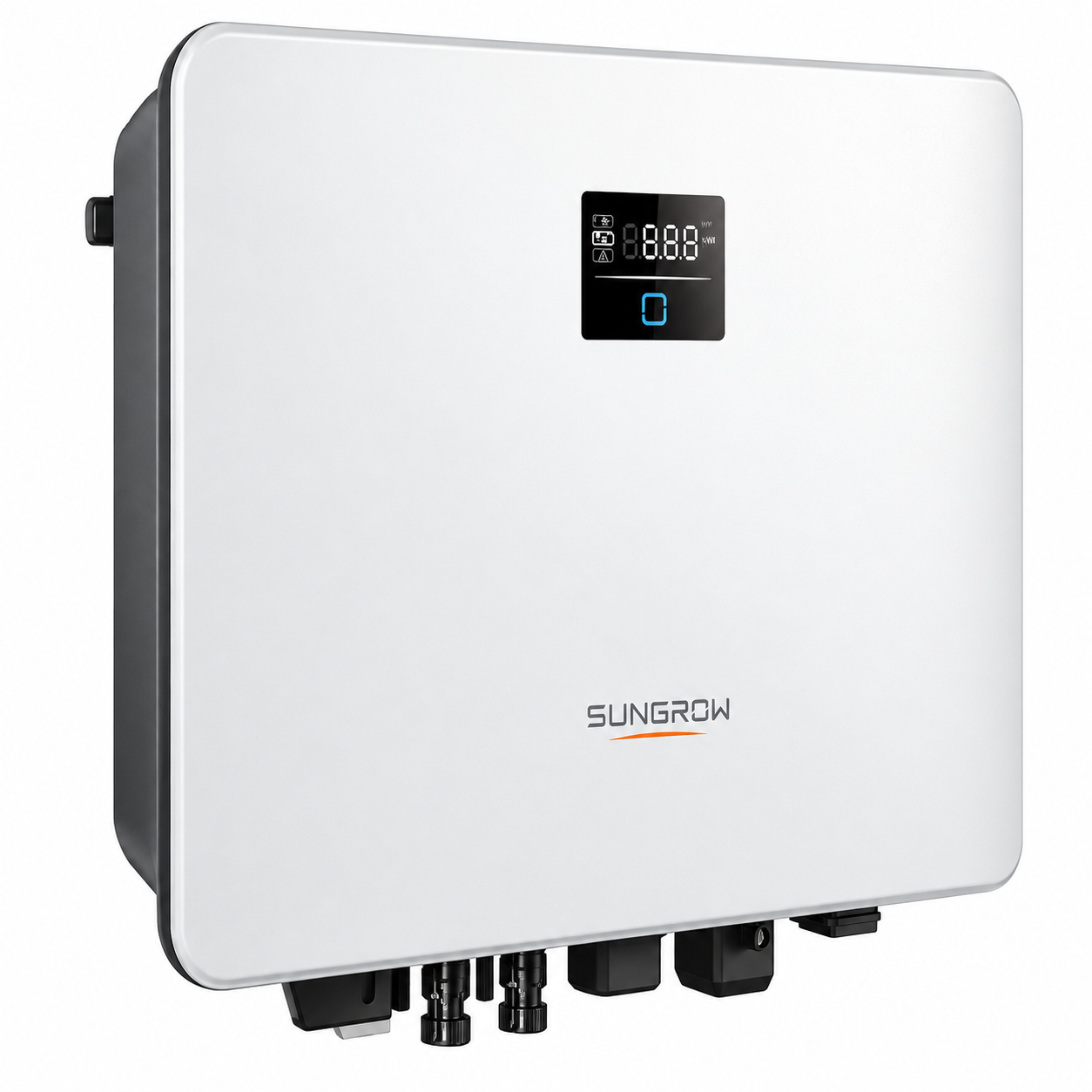

Power your home with solar, battery storage and intelligent backup using the Sungrow SH6.0RS 6kW Hybrid Inverter.
Designed for Australian residential solar and battery systems, the SH6.0RS combines a 6kW single-phase inverter, high-voltage battery interface, smart energy management and fast backup capability in one compact unit.
With support for up to 13kW of solar panels, a wide 80–460V battery range, dual MPPTs and less than 10ms backup switching, the SH6.0RS is an excellent choice for homeowners wanting to maximise solar self-consumption and increase energy independence.
The SH6.0RS combines solar generation and battery storage management in one intelligent hybrid inverter.
It is designed for both new solar installations and battery retrofit applications, giving homeowners flexibility to install a complete solar-and-storage system now or integrate battery storage into a suitable system.
Get more from your rooftop.
The 6kW SH6.0RS supports up to an impressive 13,000Wp recommended maximum PV input, allowing significant solar-panel oversizing.
With two independent MPPTs, the inverter can accommodate panels across different roof orientations while helping optimise solar generation throughout the day.
Pair your solar system with compatible high-voltage lithium-ion battery storage.
The SH6.0RS supports:
80–460V battery voltage
Up to 30A charging
Up to 30A discharging
Up to 6.6kW battery charge/discharge power
Fast battery charging and discharging helps capture more excess solar generation during the day and make that stored energy available when the home needs it.
Keep essential circuits powered when the grid goes down when the inverter is installed with an appropriate battery and backup configuration.
The SH6.0RS provides a backup switching time of less than 10 milliseconds, delivering an extremely fast transition from grid-connected operation to backup mode.
Backup capability includes:
6kW / 6kVA rated off-grid output
8.4kVA peak output for 10 seconds
<10ms backup switching
230V backup supply
The additional short-duration peak capacity is particularly useful for loads with higher startup requirements.
The SH6.0RS features Sungrow's built-in Energy Management System (EMS), allowing solar generation, battery storage, household consumption and grid electricity to be intelligently managed.
Sungrow specifically highlights fast charging and discharging for higher self-consumption and advanced EMS customisation as key features of the SH-RS platform.
See how your solar and battery system is performing from virtually anywhere using Sungrow iSolarCloud.
Monitoring features include:
iSolarCloud App
Web-based monitoring
Real-time data with 10-second refresh sampling
24/7 online monitoring
Integrated inverter display
Online IV curve scanning
System diagnostics
The SH6.0RS features two independent Maximum Power Point Trackers for flexible solar-array design.
PV specifications:
13,000Wp recommended maximum PV input
600V maximum PV voltage
40–560V MPPT operating range
50V startup voltage
2 independent MPPTs
1 string per MPPT
16A maximum input current per MPPT
20A short-circuit current per MPPT
Convert more available solar energy into usable electricity.
The SH6.0RS achieves up to:
97.7% Maximum Efficiency
97.3% European Efficiency
The SH6.0RS provides extensive communication options for monitoring and integration:
WLAN / WiFi
Ethernet
RS485
CAN
4 × Digital Inputs
1 × Digital Output
DRM
With an IP65-rated enclosure, wide operating-temperature range and natural convection cooling, the SH6.0RS is engineered for demanding residential installations.
IP65 protection
-25°C to +60°C operating range
0–100% allowable relative humidity
Up to 4,000m operating altitude
Natural convection cooling
Typical noise below 45dB(A)
The supplied Australian datasheet also lists compliance with AS/NZS 4777.2:2020.
The SH6.0RS incorporates multiple protection functions, including:
Grid monitoring
DC reverse-polarity protection
AC short-circuit protection
Leakage-current protection
Solar DC switch
DC Type II surge protection
AC Type II surge protection
PID Zero
Battery reverse-polarity protection
6kW single-phase hybrid inverter
Solar + battery + backup functionality
Up to 13kW recommended PV input
Dual independent MPPTs
16A PV input current per MPPT
600V maximum PV input
High-voltage lithium-ion battery support
Wide 80–460V battery range
Up to 6.6kW battery charge/discharge power
30A battery charge/discharge current
<10ms backup switching
6kW continuous off-grid backup output
8.4kVA peak backup output for 10 seconds
Built-in Energy Management System
iSolarCloud App & Web monitoring
WiFi/WLAN and Ethernet
RS485 and CAN communications
97.7% maximum efficiency
IP65 protection
Natural convection cooling
AC & DC Type II surge protection
PID Zero functionality
Compact and lightweight design
| Specification | SH6.0RS |
|---|---|
| Inverter Type | Hybrid Solar & Battery |
| Phase | Single Phase |
| Rated AC Output | 6,000W |
| Recommended Max. PV Input | 13,000Wp |
| Maximum PV Voltage | 600V |
| MPPT Range | 40–560V |
| Startup Voltage | 50V |
| Independent MPPTs | 2 |
| PV Strings | 1 + 1 |
| Max. PV Input Current | 16A + 16A |
| Battery Type | Li-ion |
| Battery Voltage | 80–460V |
| Max. Battery Current | 30A charge / 30A discharge |
| Max. Battery Power | 6,600W |
| Backup Rated Output | 6,000W / 6,000VA |
| Peak Backup Output | 8,400VA for 10 sec |
| Backup Switching | <10ms |
| Maximum Efficiency | 97.7% |
| European Efficiency | 97.3% |
| Protection Rating | IP65 |
| Cooling | Natural Convection |
| Communications | RS485 / Ethernet / WLAN / CAN |
| Dimensions | 490 × 340 × 170mm |
| Weight | 18.5kg |
| Mounting | Wall Mount |
| Operating Temperature | -25°C to +60°C |
Specifications are taken from the supplied Australian Version 14 SH5.0/6.0RS datasheet.
The Sungrow SH6.0RS is a strong choice for homeowners who want more than a standard solar inverter.
With 6kW single-phase output, up to 13kW of PV capacity, high-voltage battery compatibility, <10ms backup switching, 8.4kVA peak backup capability and iSolarCloud smart monitoring, it provides a complete foundation for a modern residential solar and battery system.
