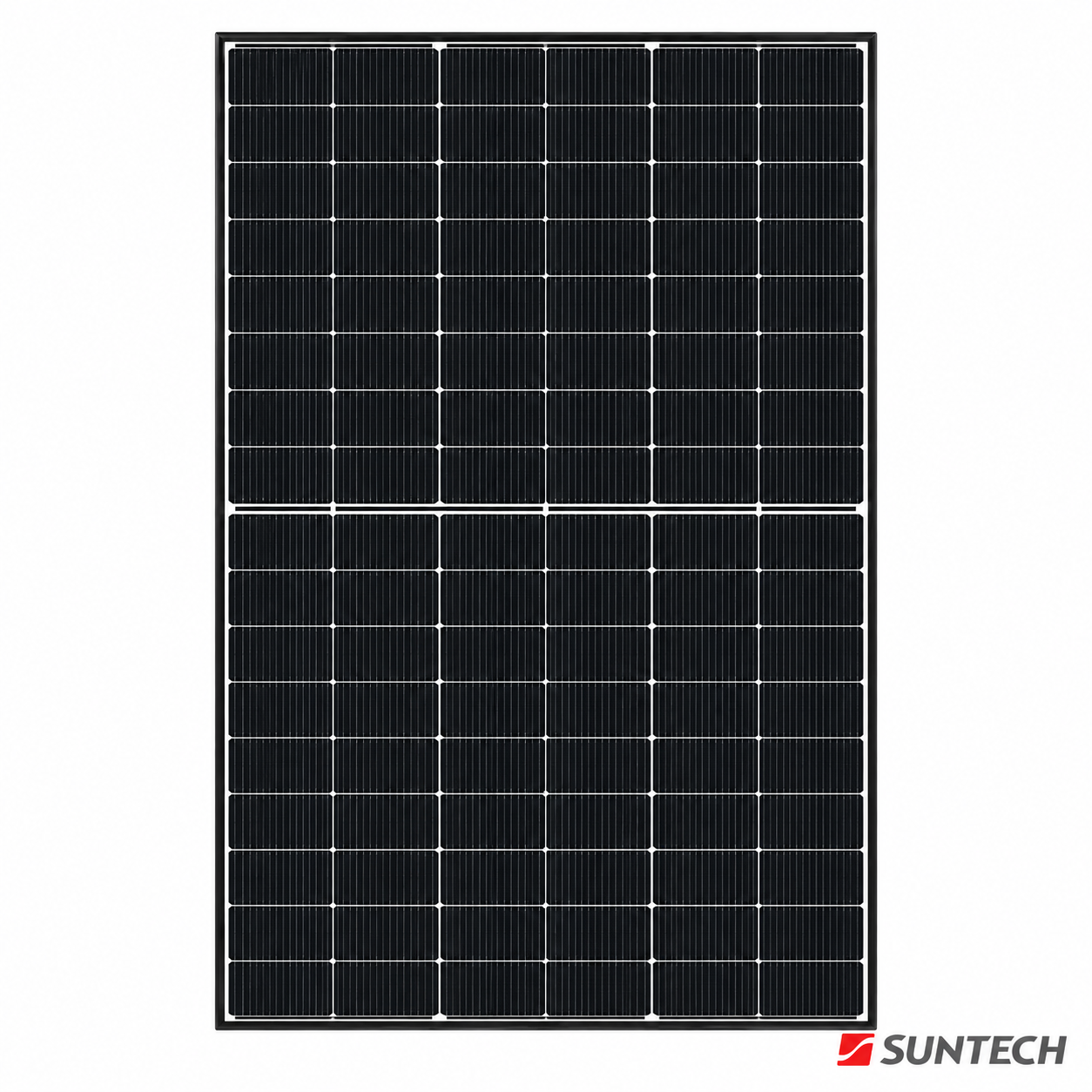

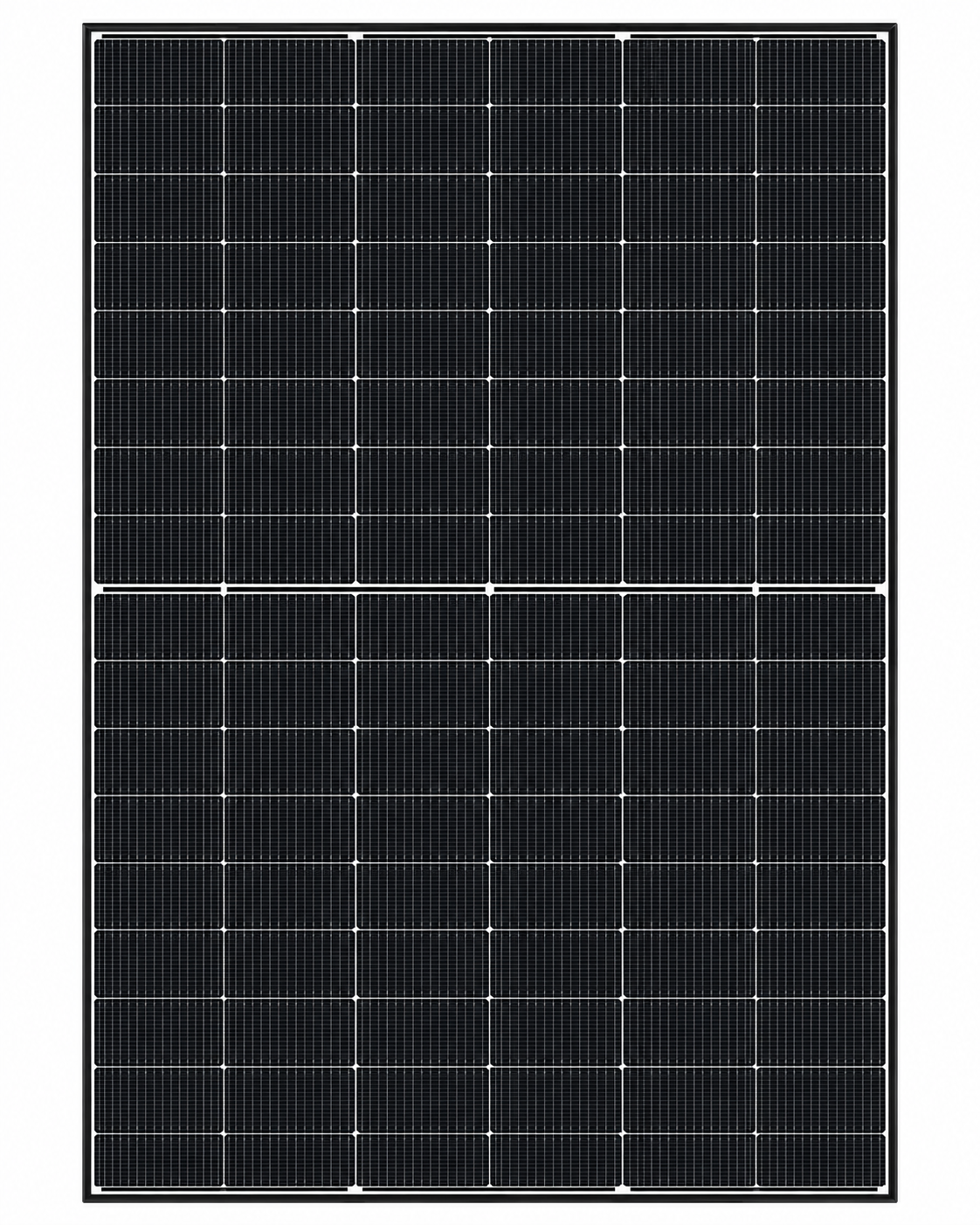

The Suntech Ultra V Pro STP440S-H48-Nth+ is a 440W N-type TOPCon bifacial dual-glass solar panel designed for residential and commercial rooftop systems. It delivers 22.0% front-side module efficiency in a compact 1762 × 1134 × 30 mm format, with a transparent black glass-glass design and 80 ±5% bifaciality.
Its 1.6 mm + 1.6 mm semi-tempered dual glass, multi-busbar technology and strong low-light performance make it a practical option where durability, rooftop appearance and additional rear-side energy generation are important.
440W rated front-side power
22.0% module efficiency
N-type TOPCon cell technology
Bifacial dual-glass construction
80 ±5% bifaciality
96-cell configuration: 6 × 16
Multi-busbar technology
Strong low-light performance
Mechanical load: 5400 Pa front / 2400 Pa rear
Low Pmax temperature coefficient: -0.29%/°C
The STP440S-H48-Nth+ combines N-type TOPCon cells with multi-busbar technology to improve current collection and optical utilisation.
This design supports efficient power generation while also helping maintain output under lower-light conditions such as cloudy weather, mornings and evenings.
With dimensions of 1762 × 1134 mm and a weight of 21.5 kg, this module remains relatively compact for a bifacial dual-glass panel.
In practical rooftop installations, it can suit:
Metal roofs with compatible rail mounting
Concrete and terracotta tiled roofs
Residential roofs with limited usable area
Small to medium commercial rooftops
Elevated or open mounting layouts where reflected light can reach the rear glass
Its compact footprint can make system layout easier than larger commercial-format modules.
The transparent dual-glass design allows reflected light reaching the rear surface to contribute additional power generation.
The bifaciality factor is: 80 ±5%.
For the 440W model, reference rear-side gains are:
| Rear-Side Gain | Maximum Power | Effective Module Efficiency |
|---|---|---|
| 5% | 462W | 23.1% |
| 15% | 506W | 25.3% |
| 25% | 550W | 27.5% |
Actual bifacial gain depends on mounting height, surface reflectivity and installation conditions.
The module uses 1.6 mm + 1.6 mm semi-tempered front and rear glass with an anodised aluminium alloy frame.
Maximum static load is: 5400 Pa front / 2400 Pa rear.
The junction box is IP68 rated and incorporates three bypass diodes.
| Specification | STP440S-H48-Nth+ |
|---|---|
| Cell Type | N-type monocrystalline silicon |
| No. of Cells | 96 (6 × 16) |

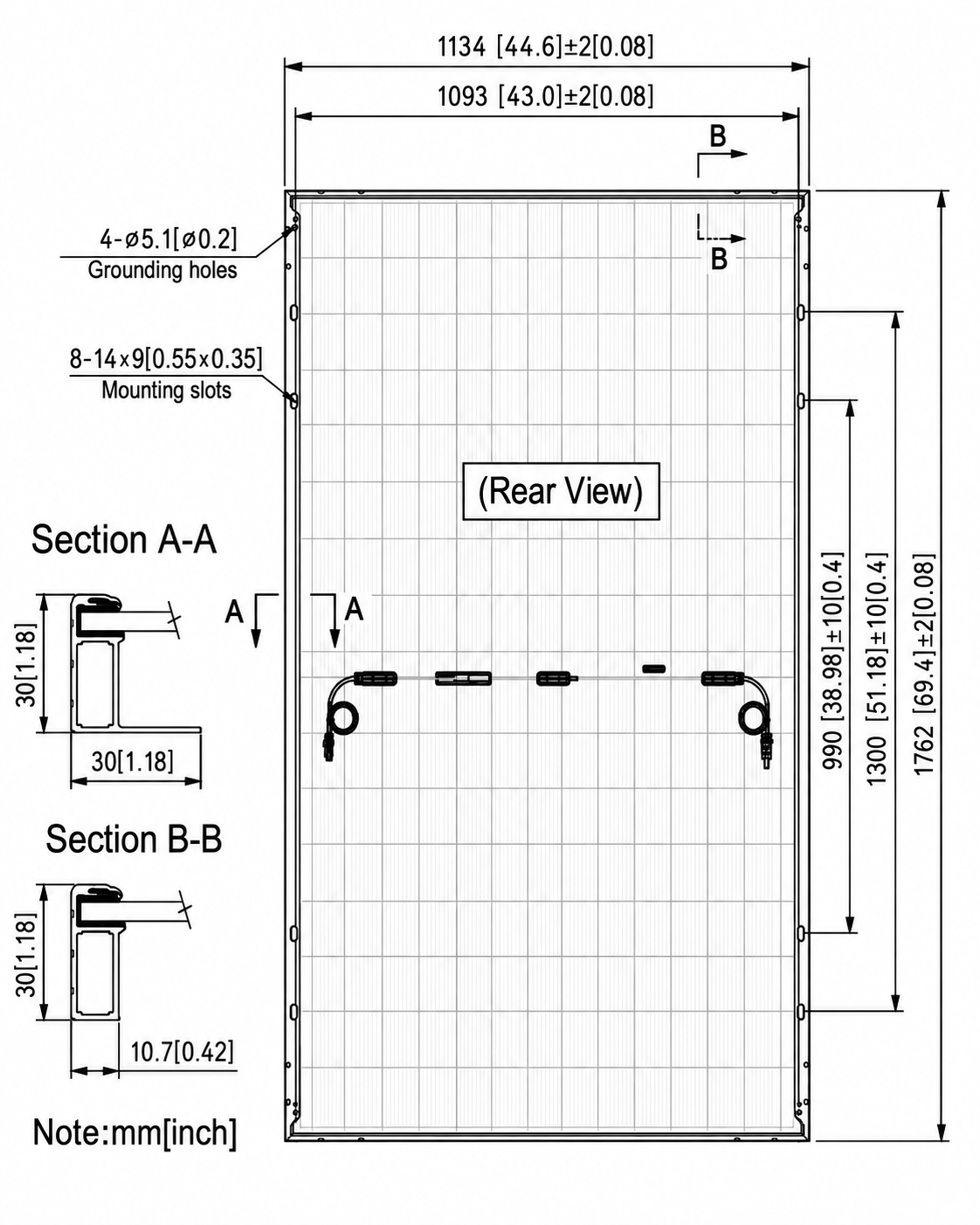

| Module Dimensions | 1762 × 1134 × 30 mm |
| Weight | 21.5 kg |
| Front / Back Glass | 1.6 + 1.6 mm semi-tempered glass |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Output Cable | 4.0 mm², 1400 / 1400 mm |
| Connector | STP-XC4 standard / MC4-EVO2 optional |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 35A |
| Operating Temperature | -40°C to +85°C |
| Specification | STP440S-H48-Nth+ |
|---|---|
| Maximum Power – Pmax | 440W |
| Maximum Power Voltage – Vmp | 28.97V |
| Maximum Power Current – Imp | 15.19A |
| Open Circuit Voltage – Voc | 35.29V |
| Short Circuit Current – Isc | 15.85A |
| Module Efficiency | 22.0% |
| Power Tolerance | 0 / +5W |
Values are specified under STC conditions of 1000 W/m² irradiance, 25°C module temperature and AM1.5.
The Pmax temperature coefficient is: -0.29%/°C.
| Parameter | Rating |
|---|---|
| NMOT | 42 ±2°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.046%/°C |
First-year degradation is: 1%.
Annual degradation is: 0.40%.
Guaranteed power after 30 years is: 87.4%.
25-year product warranty
30-year linear performance warranty
IEC 61701 – salt-mist certification
IEC 62716 – ammonia certification
IEC 60068-2-68 – dust and sand
IEC 61730-2 / UL790 – Fire Class C
IEC TS 62941
ISO 9001
ISO 14001
ISO 45001
SA 8000
The Suntech Ultra V Pro 440W combines N-type TOPCon technology, bifacial generation and dual-glass durability in a relatively compact residential-format module. It is particularly suitable for rooftops where strong low-light performance, additional rear-side generation and manageable panel dimensions are important.
