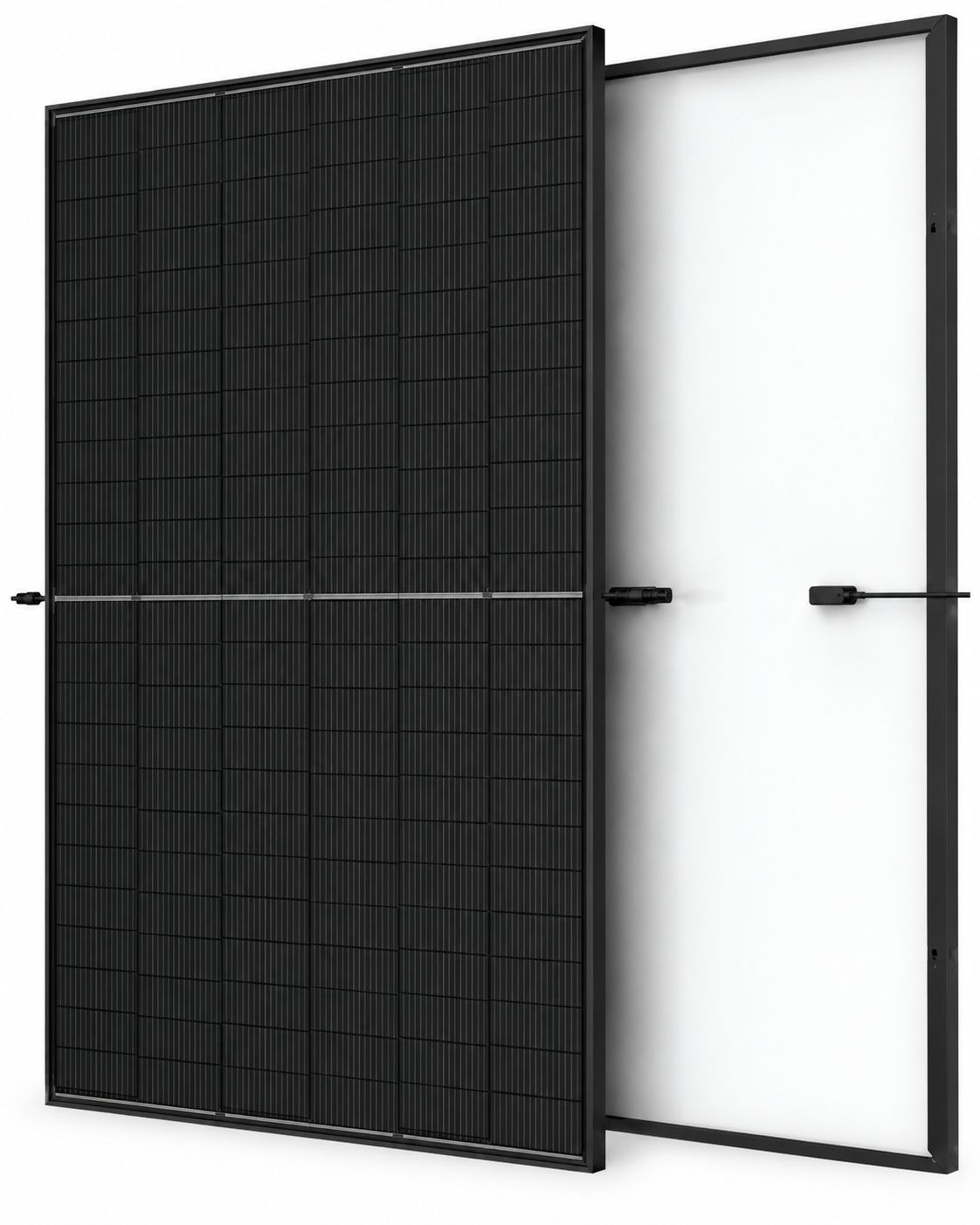

The Trina Solar Panel Vertex S+ TSM-450NEG9R.25 is a 450W N-type i-TOPCon dual-glass designed for residential and C&I rooftop systems. It delivers 22.5% module efficiency in a compact 1762 Γ 1134 mm format, with an all-black front appearance suited to modern Australian homes.
Its lightweight 21.0 kg construction, 30 mm black anodised aluminium frame and compatibility with mainstream inverters, optimisers and mounting systems make it a practical option for rooftop installations where aesthetics, handling and reliability matter.
450W rated power
22.5% module efficiency
N-type i-TOPCon technology
Dual-glass construction
Full-black front appearance
144-cell configuration
30 mm black anodised aluminium frame
0/+5W positive power tolerance
Low Pmax temperature coefficient: -0.29%/Β°C
Mechanical test load: 5400 Pa snow / 4000 Pa wind
The TSM-450NEG9R.25 delivers 450W output with 22.5% module efficiency under STC conditions.
Trina Solar combines N-type i-TOPCon cells with high-density interconnect technology to increase power output while maintaining a relatively compact module size. The datasheet also highlights improved warm-weather performance through a low temperature coefficient and lower operating temperature.

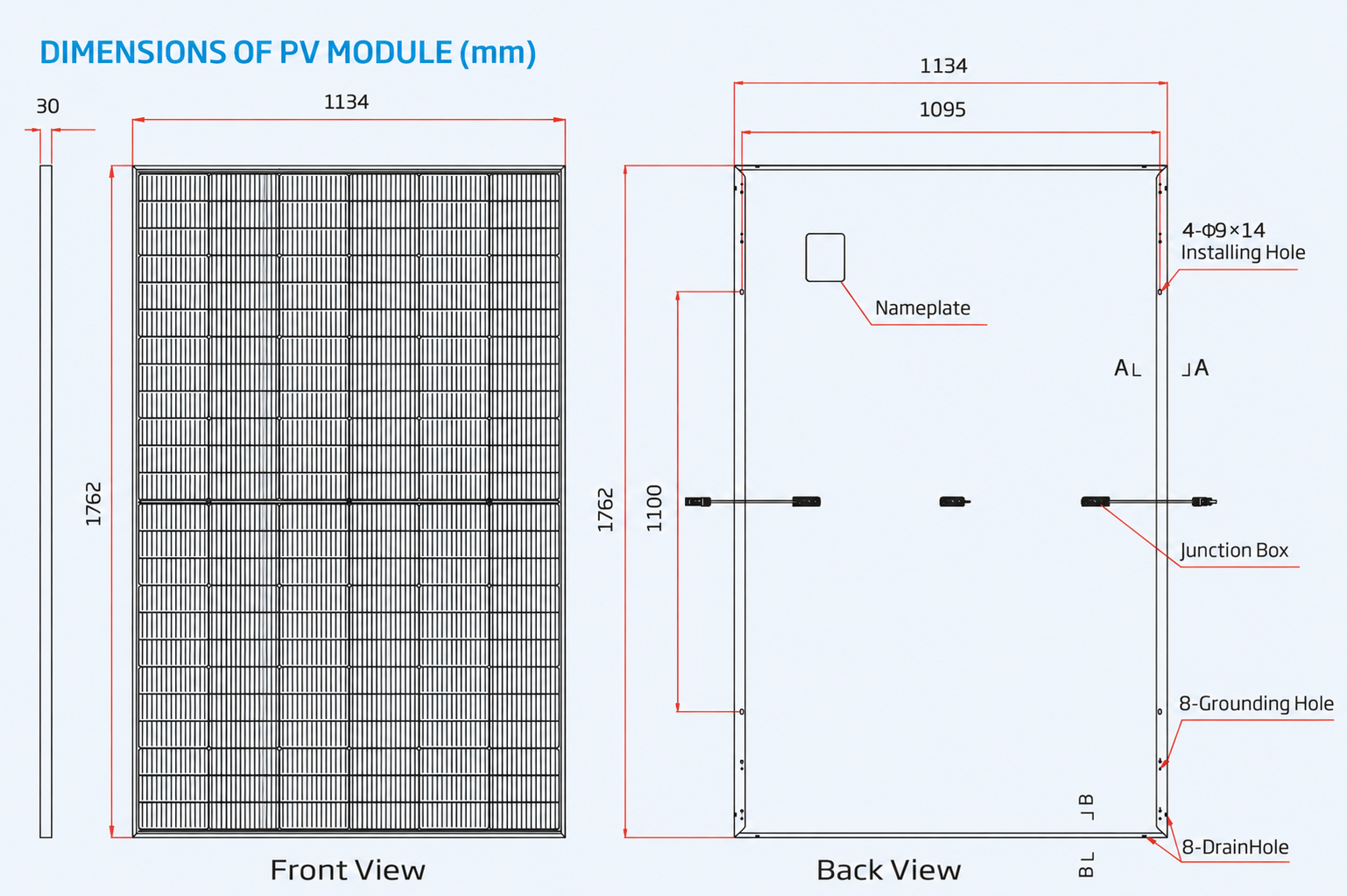

With dimensions of 1762 Γ 1134 mm and a weight of 21.0 kg, this panel is relatively compact and easy to handle compared with larger commercial-format modules.
In practical installations, it can be suitable for:
Colorbond and other metal roofs with compatible rail mounting
Concrete and terracotta tiled roofs with appropriate mounting hardware
Residential roofs with multiple roof sections where a shorter module can provide more layout flexibility
Homes where a full-black panel appearance is preferred
Small to medium C&I rooftops using mainstream mounting systems
These roof-type examples are practical inferences based on the module size, weight and stated mounting compatibility; the datasheet itself does not specify individual roofing materials.
The module uses:
Front glass: 1.6 mm high-transmission AR-coated heat-strengthened glass
Back glass: 1.6 mm heat-strengthened glass
The dual-glass construction is designed for improved durability and resistance to harsh environmental conditions, while the black frame and full-black front appearance provide a cleaner look for visible residential rooftops.
The Pmax temperature coefficient is: -0.29%/Β°C.
This helps reduce output losses as module temperature rises, making the panel relevant for hot Australian rooftop conditions.
The operating temperature range is: -40Β°C to +85Β°C.
| Specification | TSM-450NEG9R.25 |
|---|---|
| Solar Cells | N-type i-TOPCon monocrystalline |
| No. of Cells | 144 |
| Module Dimensions | 1762 Γ 1134 Γ 30 mm |
| Weight | 21.0 kg |
| Front Glass | 1.6 mm high-transmission AR-coated heat-strengthened glass |
| Back Glass | 1.6 mm heat-strengthened glass |
| Frame | 30 mm black anodised aluminium alloy |
| Junction Box | IP68 |
| Cable | 4.0 mmΒ² |
| Cable Length | Landscape: 1100 / 1100 mm |
| Connector | TS4 / MC4 EVO2 |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 25A |
Β
| Specification | TSM-450NEG9R.25 |
|---|---|
| Maximum Power β Pmax | 450W |
| Maximum Power Voltage β Vmp | 44.6V |
| Maximum Power Current β Imp | 10.09A |
| Open Circuit Voltage β Voc | 52.9V |
| Short Circuit Current β Isc | 10.74A |
| Module Efficiency | 22.5% |
| Power Tolerance | 0/+5W |
Values are specified under STC conditions of 1000 W/mΒ² irradiance, 25Β°C cell temperature and AM1.5.
| Parameter | Rating |
|---|---|
| NOCT | 43Β°C Β±2Β°C |
| Temperature Coefficient of Pmax | -0.29%/Β°C |
| Temperature Coefficient of Voc | -0.24%/Β°C |
| Temperature Coefficient of Isc | +0.04%/Β°C |
First-year degradation is: 1%.
Maximum annual degradation from years 2β30 is: 0.4%.
Guaranteed power after 30 years is: 87.4%.
25-year product workmanship warranty
30-year power warranty
IEC 61215
IEC 61730
IEC 61701
IEC 62716
ISO 9001
ISO 14001
ISO 14064
ISO 45001
The uploaded datasheet lists IEC 61215, but it does not explicitly state the βIEC 61215:2021β edition. I would therefore avoid adding βIEC 61215-2021β to the Shopify description unless that edition has been separately confirmed for this exact product.
The TSM-450NEG9R.25 is a strong option for Australian residential rooftops where a compact module size, all-black appearance and reliable dual-glass construction are important. Its 450W output, 22.5% efficiency and mainstream mounting compatibility make it particularly practical for homes with segmented roof layouts or limited usable roof area.
