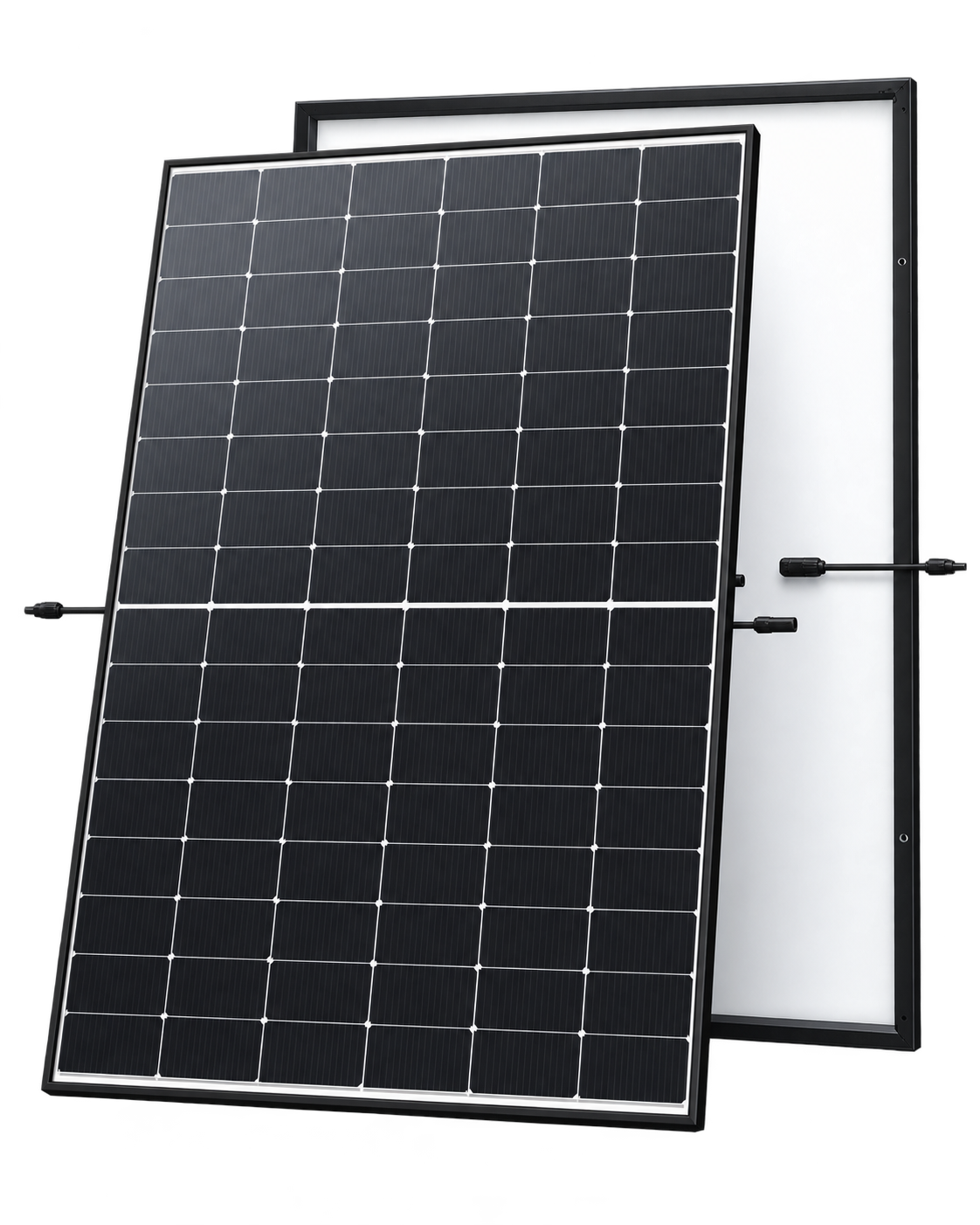

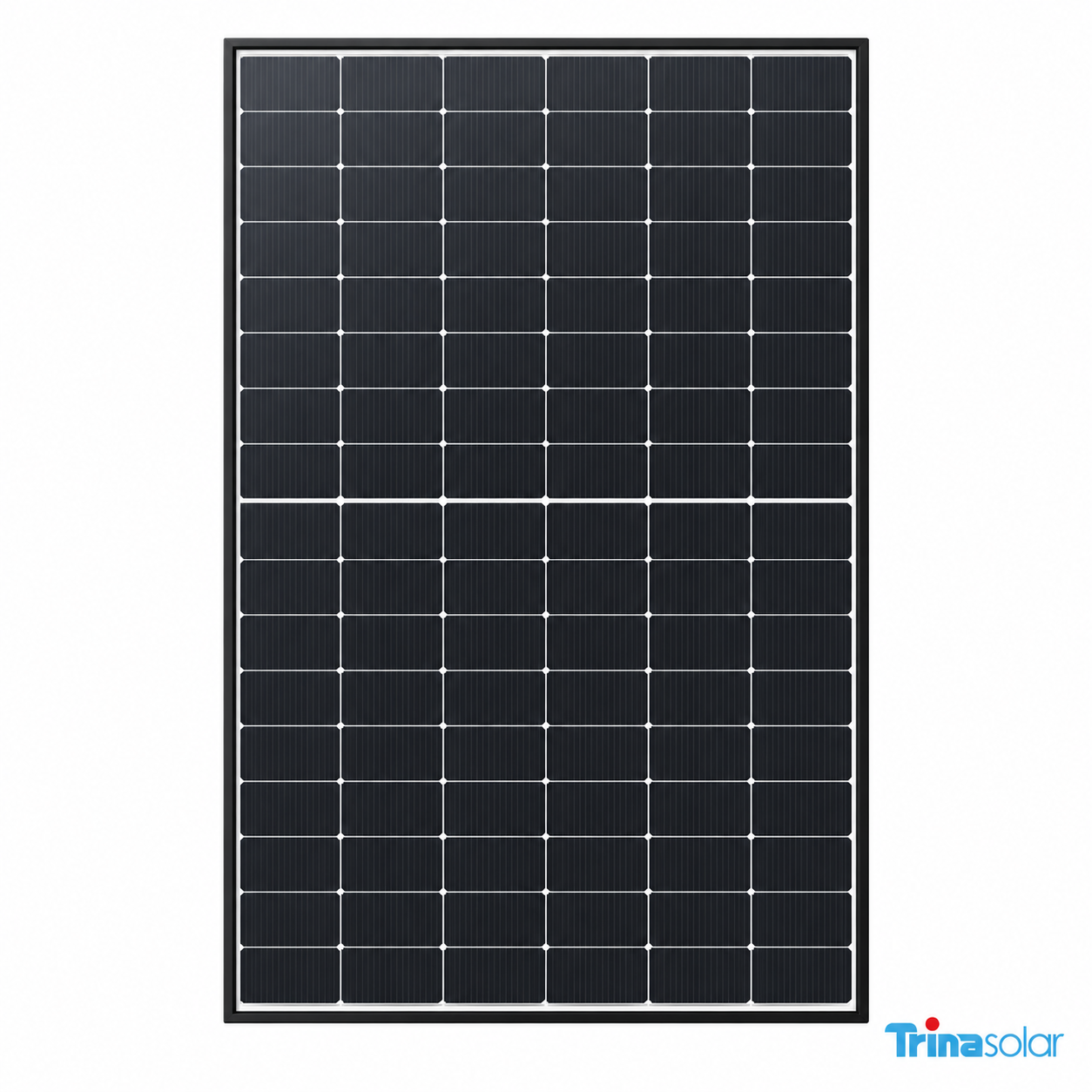

The Trina Solar Vertex S+ TSM-475NEG9RH.28 is a high-efficiency 475W N-type i-TOPCon dual-glass solar panel designed for residential and commercial rooftop systems. Built on Trina Solar’s 210 platform, the 475W model reaches 23.8% module efficiency while maintaining a compact 1762 × 1134 mm footprint.
Its lightweight dual-glass construction, black anodised aluminium frame and strong mechanical load capability make it well suited to Australian rooftop installations where efficiency, durability and ease of handling are important.
475W rated power
23.8% module efficiency
N-type i-TOPCon monocrystalline technology
Dual-glass construction
96-cell configuration
Black anodised aluminium alloy frame
Stäubli EVO2 / EVO2A connectors
Low Pmax temperature coefficient: -0.29%/°C
Mechanical load up to 5400 Pa front / 4000 Pa rear
Suitable for residential and C&I rooftops
The TSM-475NEG9RH.28 delivers 475W output with 23.8% module efficiency under STC conditions.
Trina Solar uses patented N-type i-TOPCon technology with improvements in contact resistance, rear reflection and cell-edge performance to support higher conversion efficiency and energy generation.
The module also offers strong low-irradiance performance, which can help maintain energy generation during mornings, evenings and lower-light conditions.
The Vertex S+ uses light dual-glass construction with:
Front glass: 1.6 mm AR-coated heat-strengthened glass
Back glass: 1.6 mm heat-strengthened glass
The dual-glass design helps reduce susceptibility to rear-side scratches and micro-cracks while maintaining a module weight of 21.0 kg.
The Pmax temperature coefficient is: -0.29%/°C.
A lower power temperature coefficient helps reduce output losses as module temperature increases, making it particularly relevant for rooftop solar systems exposed to warm Australian conditions.
Maximum mechanical load is: 5400 Pa front / 4000 Pa rear.
| Specification | TSM-475NEG9RH.28 |
|---|---|
| Solar Cells | N-type i-TOPCon monocrystalline |
| No. of Cells | 96 |

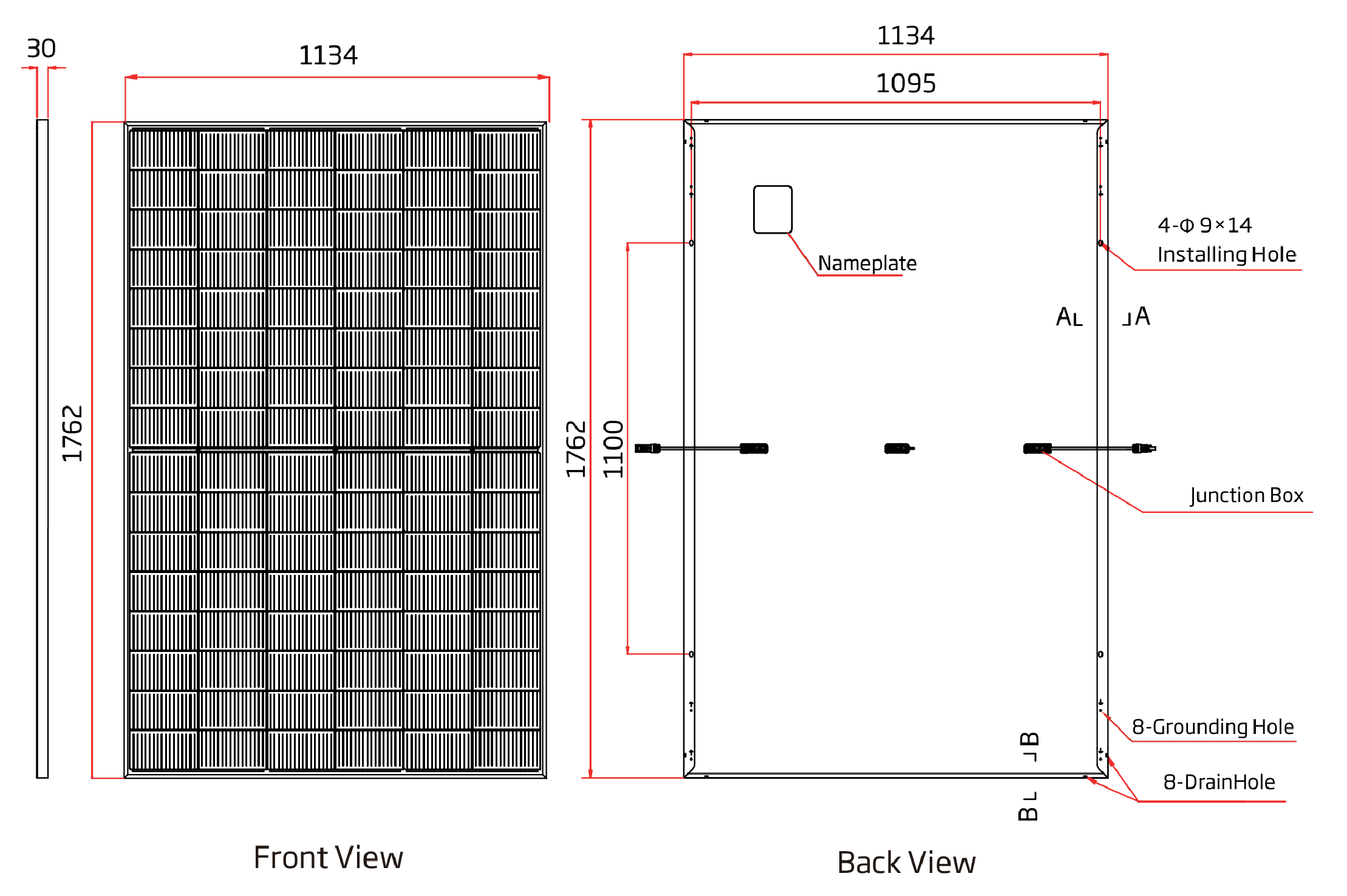

| Module Dimensions | 1762 × 1134 × 30 mm |
| Weight | 21.0 kg |
| Front Glass | 1.6 mm AR-coated heat-strengthened glass |
| Back Glass | 1.6 mm heat-strengthened glass |
| Frame | 30 mm black anodised aluminium alloy |
| Junction Box | IP68 |
| Cable | 4.0 mm², 1100 / 1100 mm |
| Connector | Stäubli EVO2 / EVO2A |
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Specification | TSM-475NEG9RH.28 |
|---|---|
| Maximum Power – Pmax | 475W |
| Maximum Power Voltage – Vmp | 31.65V |
| Maximum Power Current – Imp | 15.01A |
| Open Circuit Voltage – Voc | 37.00V |
| Short Circuit Current – Isc | 15.97A |
| Module Efficiency | 23.8% |
Values are specified under STC conditions of 1000 W/m² irradiance, 25°C cell temperature and AM1.5.
| Parameter | Rating |
|---|---|
| NOCT | 43°C ±2°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.24%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
Trina Solar specifies first-year degradation of 1%, followed by annual attenuation of 0.4%.
Guaranteed power at year 30 is: 87.4%.
Up to 25-year product warranty
30-year power warranty
IEC 61215
IEC 61730
ISO 9001
ISO 14001
ISO 14064
ISO 45001
The uploaded datasheet states IEC 61215 / IEC 61730. It does not specify the “IEC 61215:2021” edition in the datasheet text, so I would only add “IEC 61215:2021” to the Shopify listing if that edition has been separately confirmed for your exact stock.
With 475W output, 23.8% efficiency, N-type i-TOPCon technology and lightweight dual-glass construction, the TSM-475NEG9RH.28 is a strong choice for Australian residential and commercial rooftops where high efficiency, heat performance and long-term durability are priorities.
