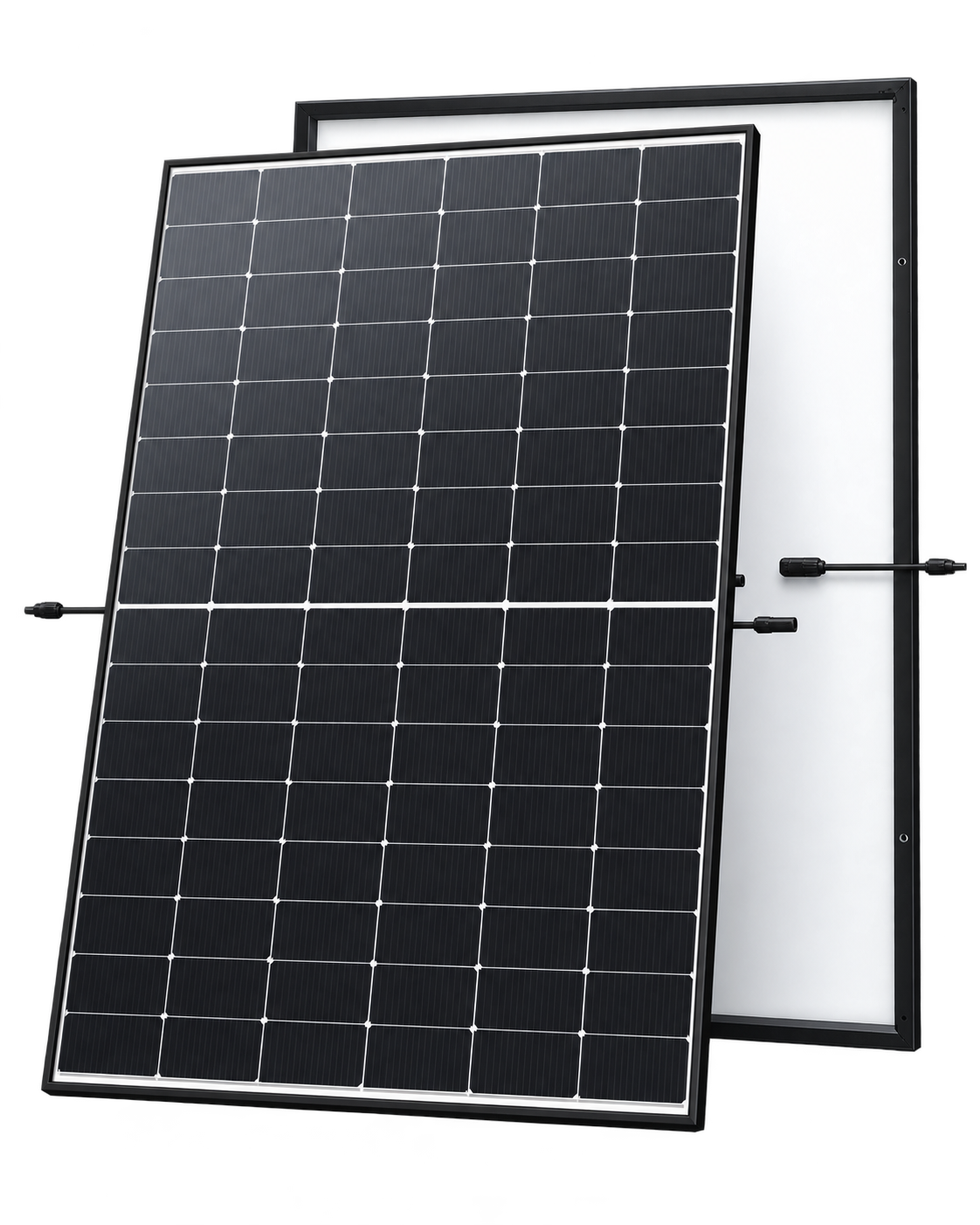

The Trina Solar Panel Vertex S+ TSM-515NEG18R.28 is a 515W N-type i-TOPCon monofacial dual-glass solar panel designed for high-output residential and commercial rooftop systems. It delivers up to 23.2% module efficiency in a 1961 × 1134 × 30 mm format, combining high power with a relatively manageable module size.
The panel uses a black 30 mm anodised aluminium frame, 1.6 mm dual-glass construction and Stäubli EVO2 / EVO2A connectors, making it a practical choice for Australian rooftop projects where power density, durability and system compatibility are important.
515W rated power
23.2% module efficiency
N-type i-TOPCon monocrystalline technology
Monofacial dual-glass design
108-cell configuration
30 mm black anodised aluminium frame
0 to +5W positive power selection
Stäubli EVO2 / EVO2A connectors
Mechanical load: 5400 Pa front / 2400 Pa rear
Low Pmax temperature coefficient: -0.29%/°C
The TSM-515NEG18R.28 delivers 515W output with 23.2% module efficiency under STC conditions.
Trina Solar’s patented i-TOPCon technology is designed to improve efficiency through reduced contact resistance, enhanced rear reflection and improved cell-edge performance. The module also uses a low-voltage, high-string-power design intended to support efficient system configuration.

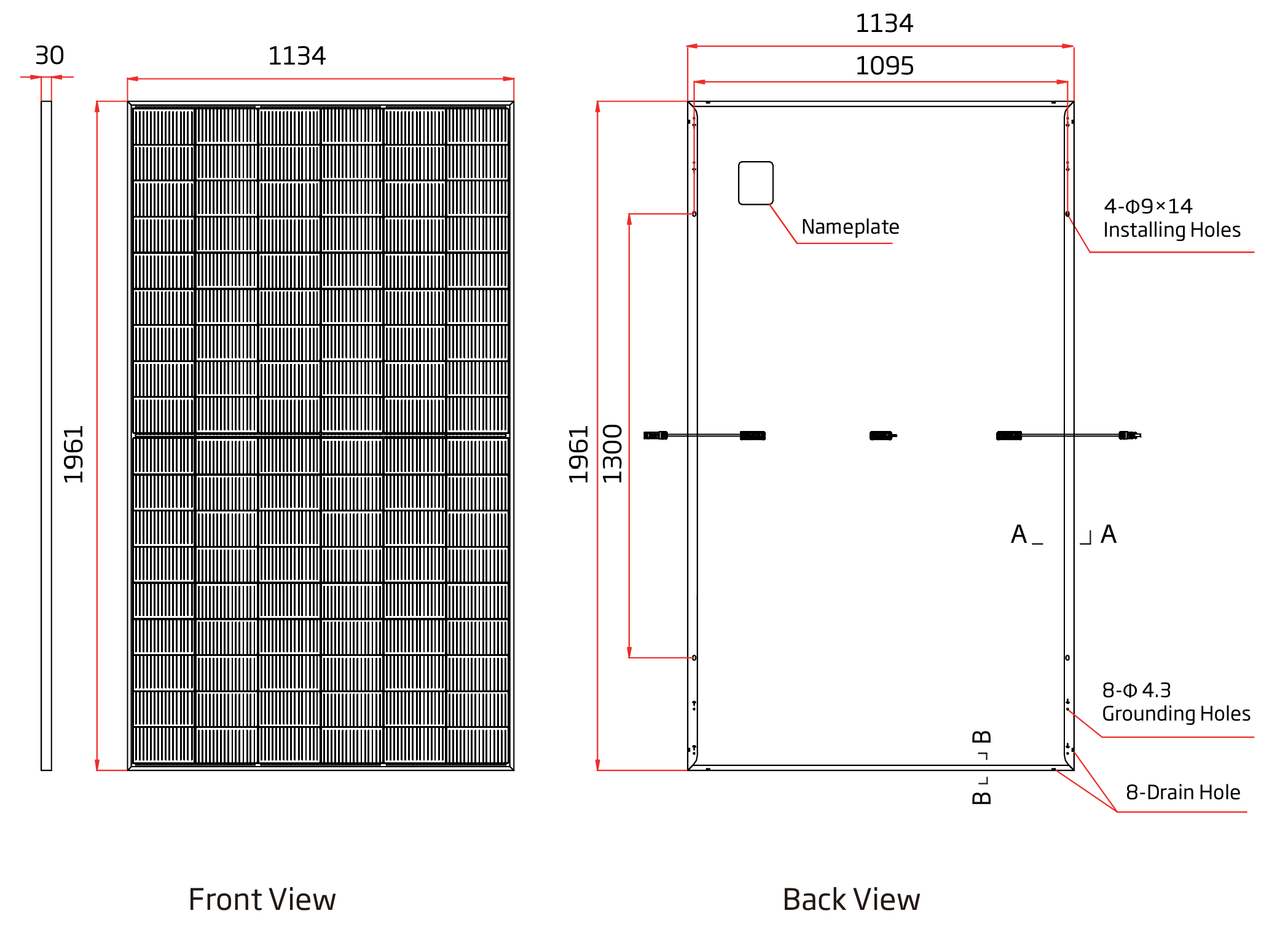

With dimensions of 1961 × 1134 mm and a weight of 23.5 kg, this panel is larger than many standard residential modules but remains suitable for spacious residential roofs and commercial rooftop systems.
In practical Australian installations, it can suit:
Large Colorbond and other metal roofs with compatible rail systems
Concrete or terracotta tiled roofs with sufficient clear roof area
Large residential roof sections where higher wattage per panel is preferred
Commercial and light-industrial rooftops where fewer high-power modules can reduce panel count
Installations using mainstream inverters and mounting systems
These roof-type examples are practical inferences based on the module size, weight and stated system compatibility; the datasheet does not specify individual roof materials.
The module uses:
Front glass: 1.6 mm AR-coated heat-strengthened glass
Back glass: 1.6 mm heat-strengthened glass
The dual-glass design is intended to reduce susceptibility to rear-side scratches and micro-cracks during installation while improving overall module durability.
The Pmax temperature coefficient is: -0.29%/°C.
The operating temperature range is: -40°C to +70°C.
This low temperature coefficient helps limit output losses as panel temperature rises, which is relevant for Australian rooftop systems exposed to high summer temperatures.
| Specification | TSM-515NEG18R.28 |
|---|---|
| Solar Cells | N-type i-TOPCon monocrystalline |
| No. of Cells | 108 |
| Module Dimensions | 1961 × 1134 × 30 mm |
| Weight | 23.5 kg |
| Front Glass | 1.6 mm AR-coated heat-strengthened glass |
| Back Glass | 1.6 mm heat-strengthened glass |
| Frame | 30 mm anodised aluminium alloy, black |
| Junction Box | IP68 |
| Cable | 4.0 mm², 1300 / 1300 mm |
| Connector | Stäubli EVO2 / EVO2A |
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Specification | TSM-515NEG18R.28 |
|---|---|
| Maximum Power – Pmax | 515W |
| Maximum Power Voltage – Vmp | 33.9V |
| Maximum Power Current – Imp | 15.20A |
| Open Circuit Voltage – Voc | 40.9V |
| Short Circuit Current – Isc | 15.96A |
| Module Efficiency | 23.2% |
| Power Selection | 0 to +5W |
Values are specified under STC conditions of 1000 W/m² irradiance, 25°C cell temperature and AM1.5.
| Parameter | Rating |
|---|---|
| NOCT | 43°C ±2°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.24%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
First-year degradation is: 1%.
Annual power attenuation is: 0.4%.
Guaranteed power after 30 years is: 87.4%.
25-year product warranty
30-year power guarantee
Products installed in Australia and New Zealand are covered by the applicable regional warranty terms.
IEC 61215
IEC 61730
ISO 9001
ISO 14001
ISO 14064
ISO 45001
The TSM-515NEG18R.28 is well suited to larger Australian residential and commercial rooftops where higher output per panel can help reduce total module count. Its 515W power rating, N-type i-TOPCon technology, black frame and dual-glass construction make it a strong option for projects prioritising power density, durability and long-term energy yield.
