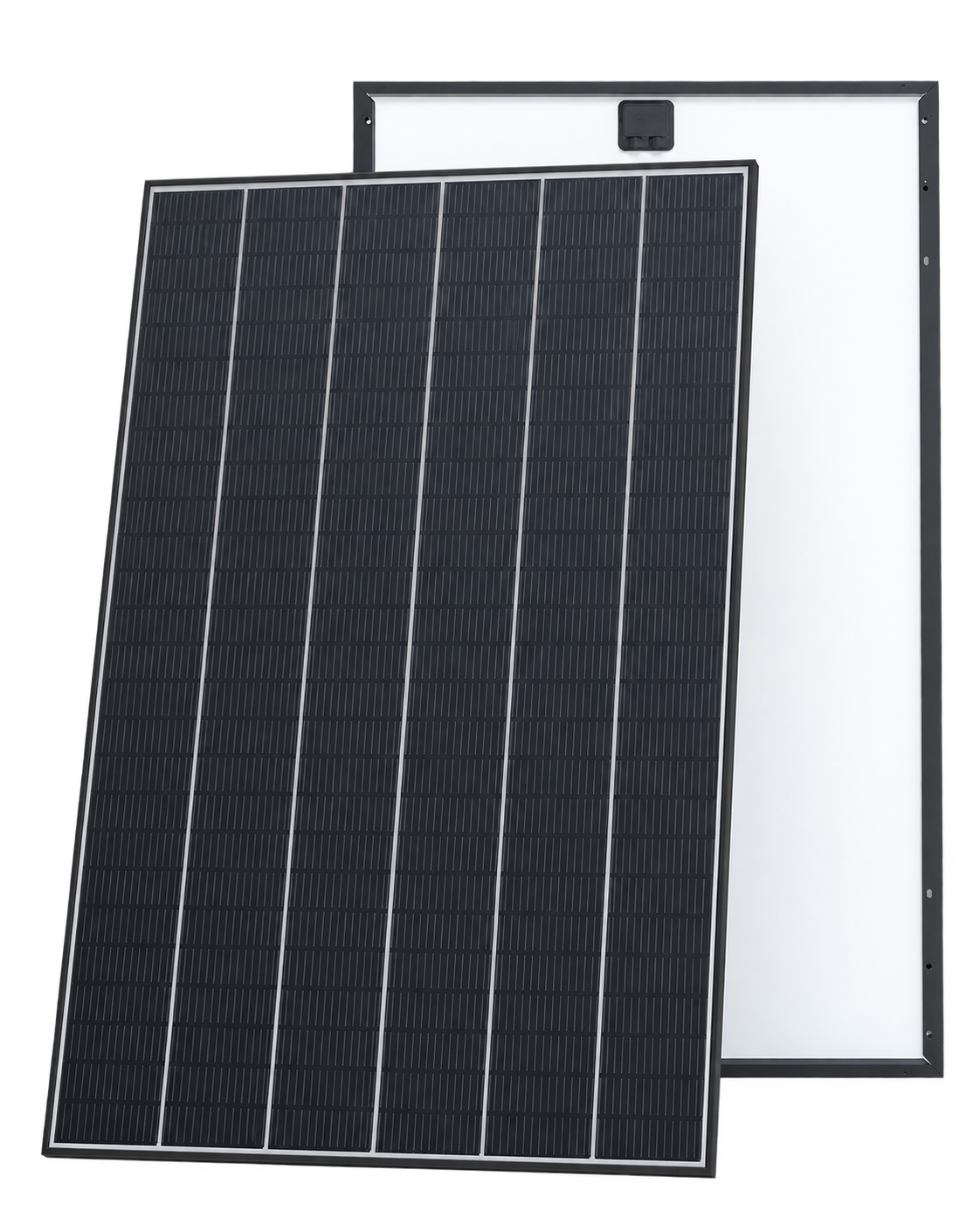

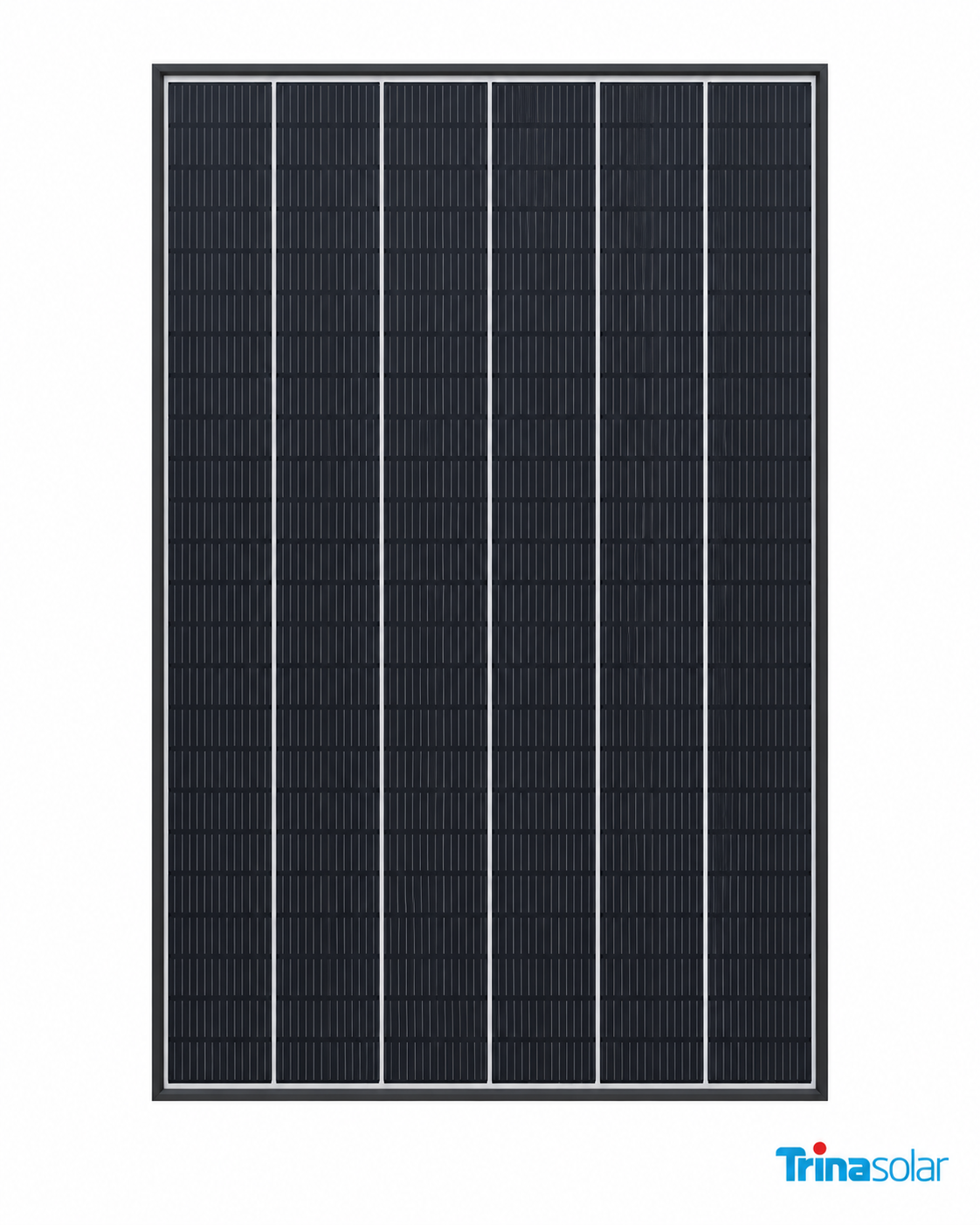

The Trina Solar Panel Vertex S+ G3 TSM-505NEG10R.28Z is a high-efficiency 505W N-type i-TOPCon dual-glass developed for premium residential rooftop applications in Australia. It delivers 24.18% module efficiency in a compact 1842 Γ 1134 mm format, helping maximise system capacity where usable roof space is limited.
Built on Trina Solarβs TOPCon 3.0 platform, the module combines high power density, light dual-glass construction and a black anodised aluminium frame with strong mechanical and temperature performance.
505W rated power
24.18% module efficiency
N-type i-TOPCon monocrystalline technology
TOPCon 3.0 technology platform
156-cell configuration
1.6 mm + 1.6 mm dual-glass construction
Black anodised aluminium alloy frame
Low Pmax temperature coefficient: -0.26%/Β°C
Mechanical load: 5400 Pa front / 4000 Pa rear
Compatible with mainstream inverters and mounting systems
The TSM-505NEG10R.28Z delivers 505W output with 24.18% module efficiency under STC conditions.
Trina Solarβs TOPCon 3.0 platform incorporates patented i-TOPCon technology together with zero-gap stacked welding and zero-string-bar technologies. The datasheet also highlights improvements in contact resistance, rear reflection and cell-edge performance.
Trina Solar specifically describes the 2.09 mΒ² module format as suitable for premium Australian rooftops.
Based on its 1842 Γ 1134 mm dimensions, 21.95 kg weight and compatibility with mainstream mounting systems, it can be a practical option for:
Colorbond and other metal roofs using compatible rail mounting
Concrete or terracotta tiled roofs using suitable mounting hardware
Medium to large residential roof sections with clear panel areas
Homes where higher wattage per panel helps make better use of limited north-, east- or west-facing roof space
These roof-type examples are practical installation inferences from the module size and mounting compatibility; the datasheet itself does not specify individual roofing materials.
The module uses 1.6 mm AR-coated heat-strengthened front glass and 1.6 mm heat-strengthened rear glass.
This light dual-glass design helps reduce susceptibility to rear-side scratches and micro-cracks while keeping module weight to 21.95 kg.
The Pmax temperature coefficient is: -0.26%/Β°C.
This helps limit power loss as module temperature rises, an important consideration for solar panels operating on hot Australian rooftops.
Maximum mechanical load is: 5400 Pa front / 4000 Pa rear.
| Specification | TSM-505NEG10R.28Z |
|---|---|
| Solar Cells | N-type i-TOPCon monocrystalline |
| No. of Cells | 156 |

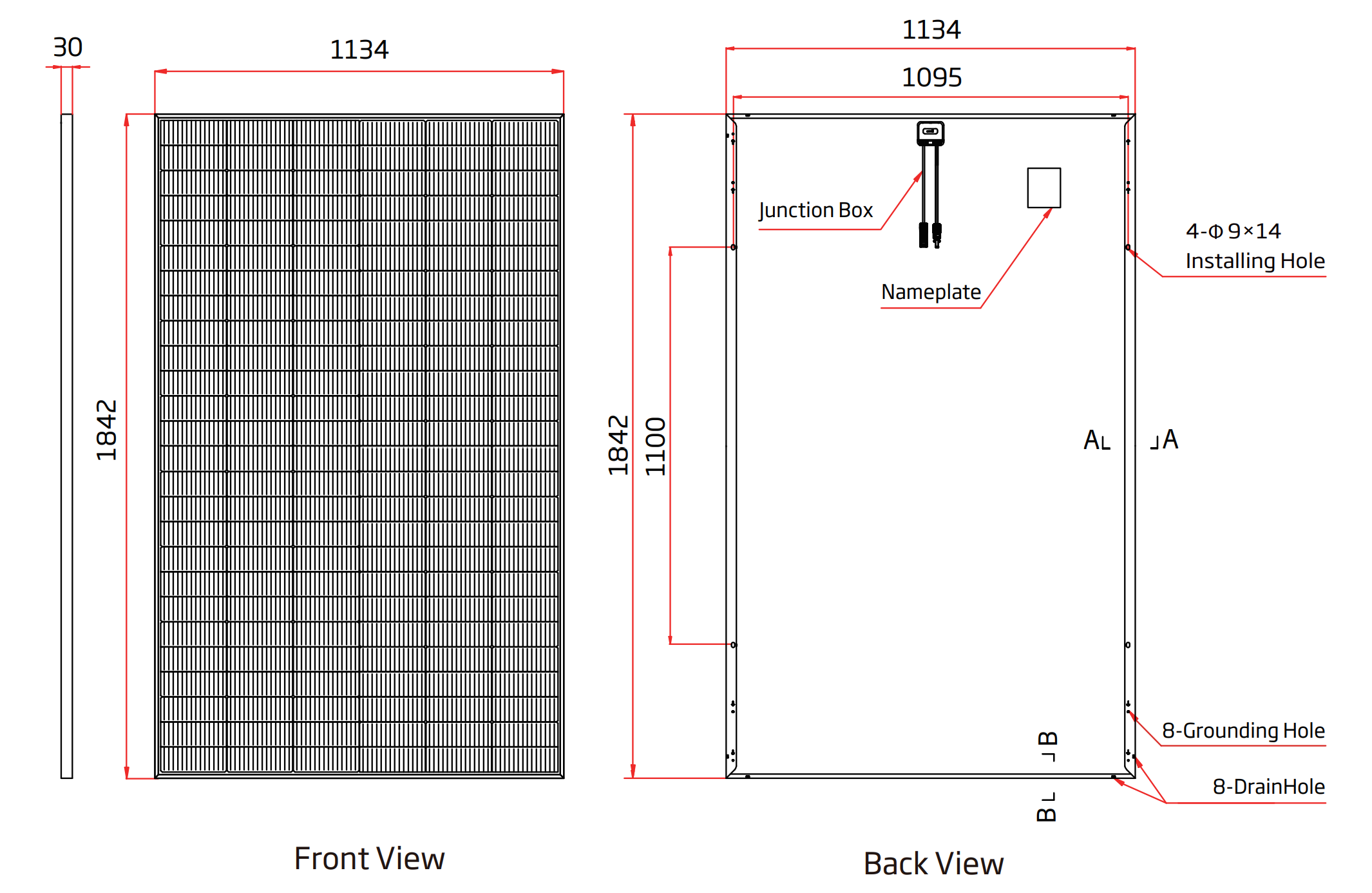

| Module Dimensions | 1842 Γ 1134 Γ 30 mm |
| Weight | 21.95 kg |
| Front Glass | 1.6 mm AR-coated heat-strengthened glass |
| Back Glass | 1.6 mm heat-strengthened glass |
| Frame | 30 mm black anodised aluminium alloy |
| Junction Box | IP68 |
| Cable | 6.0 mmΒ², 1200 / 1200 mm |
| Connector | StΓ€ubli EVO2 / EVO2A |
| Operating Temperature | -40Β°C to +70Β°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 30A |
Β
| Specification | TSM-505NEG10R.28Z |
|---|---|
| Maximum Power β Pmax | 505W |
| Maximum Power Voltage β Vmp | 33.35V |
| Maximum Power Current β Imp | 15.15A |
| Open Circuit Voltage β Voc | 39.85V |
| Short Circuit Current β Isc | 15.96A |
| Module Efficiency | 24.18% |
Values are specified under STC conditions of 1000 W/mΒ² irradiance, 25Β°C cell temperature and AM1.5.
| Parameter | Rating |
|---|---|
| NOCT | 43Β°C Β±2Β°C |
| Temperature Coefficient of Pmax | -0.26%/Β°C |
| Temperature Coefficient of Voc | -0.24%/Β°C |
| Temperature Coefficient of Isc | +0.04%/Β°C |
First-year degradation is: 1%.
Annual degradation from years 2β30 is: 0.35%.
Guaranteed power after 30 years is: 88.85%.
Up to 25-year product warranty
30-year power warranty
The datasheet notes that a specific limited warranty supplement applies to products supplied and installed in Australia and New Zealand.
IEC 61215
IEC 61730
ISO 9001
ISO 14001
ISO 14064
ISO 45001
With 505W output, 24.18% efficiency and a relatively compact 1.84 m module length, the TSM-505NEG10R.28Z is well suited to Australian residential projects where installers want high power density without moving to an oversized commercial-format panel. Its low temperature coefficient, dual-glass construction and strong mechanical loading also support reliable long-term rooftop performance.
