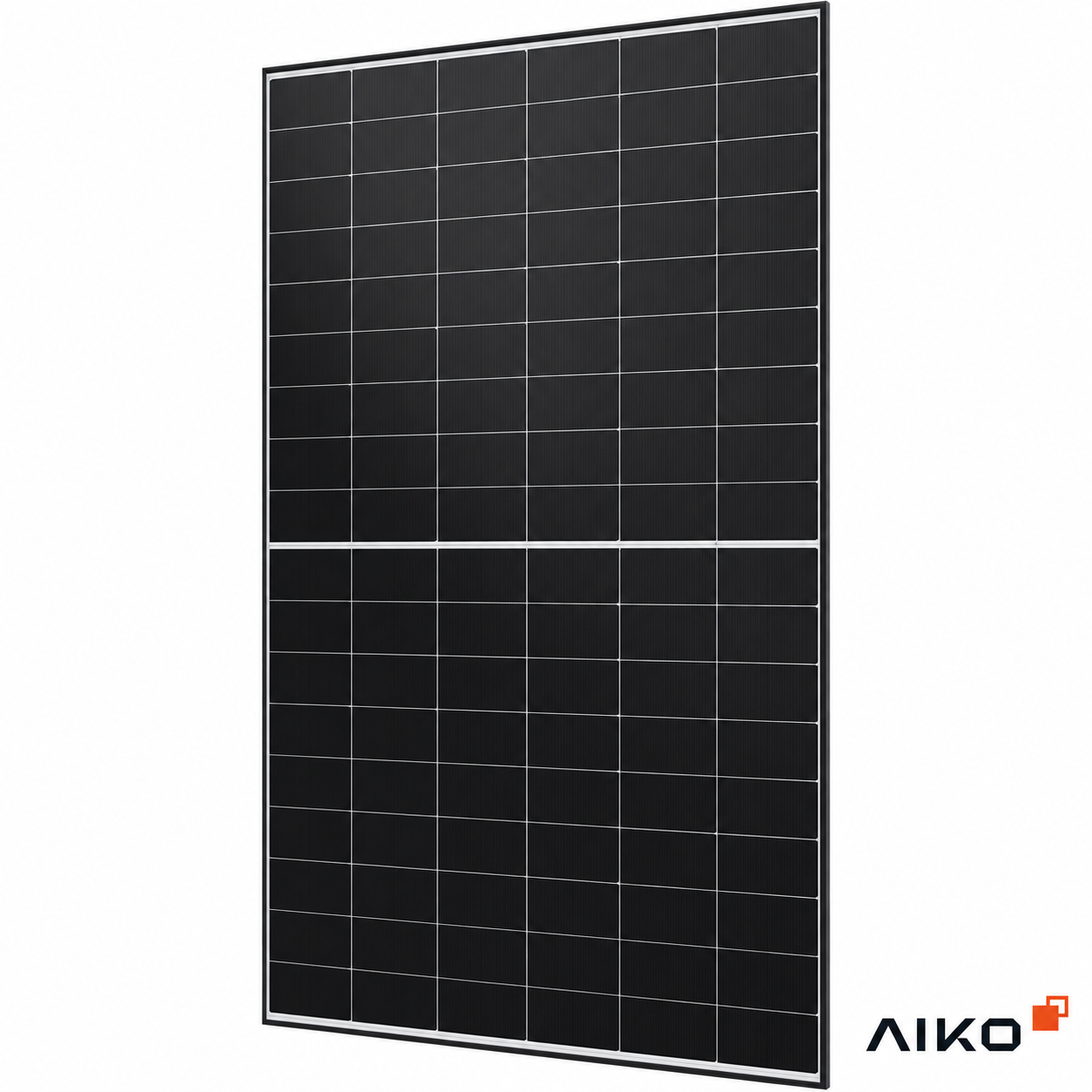

The AIKO Neostar 2P AIKO-A475-MAH54Mw is a high-efficiency 475W N-type ABC mono-glass solar panel designed for residential rooftop systems. It delivers 23.8% module efficiency in a compact 1757 × 1134 × 30 mm format, combining high power density with AIKO’s distinctive no-front-grid design.
Its N-type ABC cell technology, partial-shading optimisation, improved temperature performance and 21.5 kg module weight make it a practical option where rooftop space, appearance and long-term energy generation are priorities.
475W rated power
23.8% module efficiency
N-type ABC cell technology
No-front-grid design
Partial-shading optimisation
108-cell configuration: 6 × 18
3.2 mm tempered mono-glass construction
Black anodised aluminium frame
Low Pmax temperature coefficient: -0.26%/°C
Mechanical load: 5400 Pa front / 2400 Pa rear
AIKO’s ABC cell architecture removes conventional front-side electrical contacts from view, creating a clean surface while increasing the area available for light absorption.
The Neostar 2P also incorporates partial-shading optimisation, micro-crack resistance and high-temperature restriction features to support reliable rooftop performance.
At 1757 × 1134 mm, the Neostar 2P is relatively compact for a 475W panel. This makes it particularly suitable for:
Colorbond and other metal roofs using compatible mounting systems
Concrete and terracotta tiled roofs
Homes with multiple or segmented roof sections
Roofs where higher wattage is required from limited usable area
Visible residential roof areas where a clean, grid-free appearance is preferred
Its shorter 1.76 m module length can provide greater layout flexibility than larger-format 500W+ commercial panels.
The Pmax temperature coefficient is: -0.26%/°C.
The operating temperature range is: -40°C to +85°C.
Maximum static load is: 5400 Pa front / 2400 Pa rear.
The module is also tested against 25 mm hailstones travelling at 23 m/s.
| Specification | AIKO-A475-MAH54Mw |
|---|---|
| Cell Type | N-Type ABC |
| No. of Cells | 108 (6 × 18) |
| Module Dimensions | 1757 × 1134 × 30 mm |
| Weight | 21.5 kg ±3% |
| Front Cover | 3.2 mm tempered glass |
| Construction | Mono-glass |
| Frame | Black anodised aluminium |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4 mm², 1200 mm or customised length |
| Connector | MC4 EVOA / MC4 EVO2 |
| Maximum System Voltage | DC 1500V |
| Maximum Series Fuse Rating | 25A |
| Fire Rating | IEC Class C |
| Specification | AIKO-A475-MAH54Mw |
|---|---|
| Maximum Power – Pmax | 475W |
| Maximum Power Voltage – Vmp | 34.80V |
| Maximum Power Current – Imp | 13.66A |
| Open Circuit Voltage – Voc | 41.24V |
| Short Circuit Current – Isc | 14.35A |
| Module Efficiency | 23.8% |
| Power Tolerance | 0 to +3% |
Values are measured under STC conditions of AM1.5, 1000 W/m² irradiance and 25°C cell temperature.
| Parameter | Rating |
|---|---|
| Temperature Coefficient of Isc | +0.05%/°C |
| Temperature Coefficient of Voc | -0.22%/°C |
| Temperature Coefficient of Pmax | -0.26%/°C |
First-year degradation is: ≤1%.
Annual degradation from years 2–30 is: ≤0.35%.
Guaranteed power after 30 years is: 88.85%.
25-year product warranty
30-year performance warranty
IEC 61215:2021
IEC 61730:2023
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
The AIKO Neostar 2P 475W combines 23.8% efficiency, N-type ABC technology and a compact 1.76 m module length, making it particularly attractive for residential roofs where usable space is limited. Its no-front-grid appearance, strong temperature performance and partial-shading optimisation also make it a good fit for premium rooftop installations where both appearance and energy yield matter.
