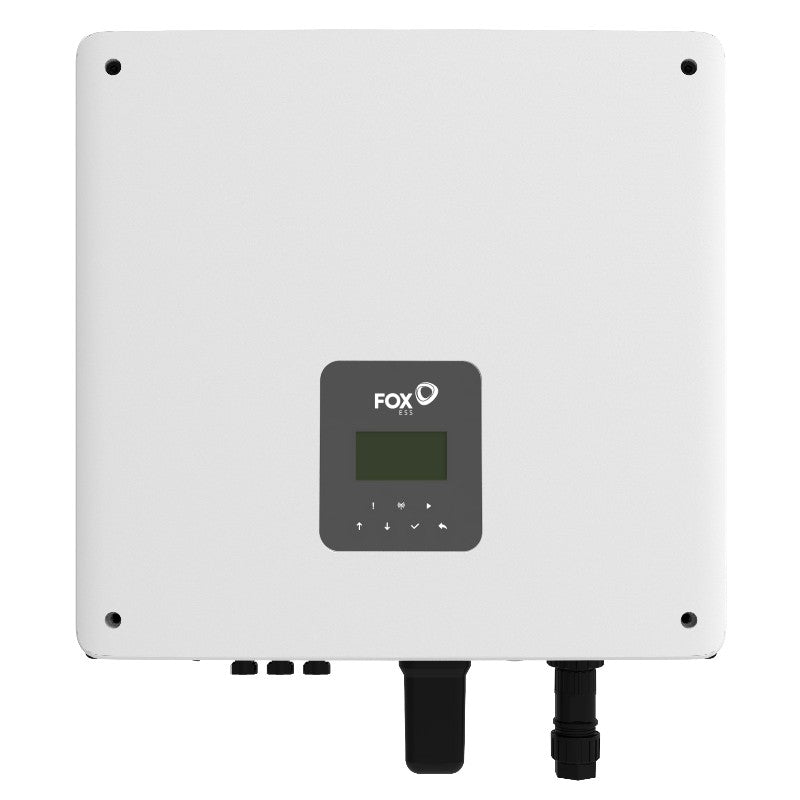

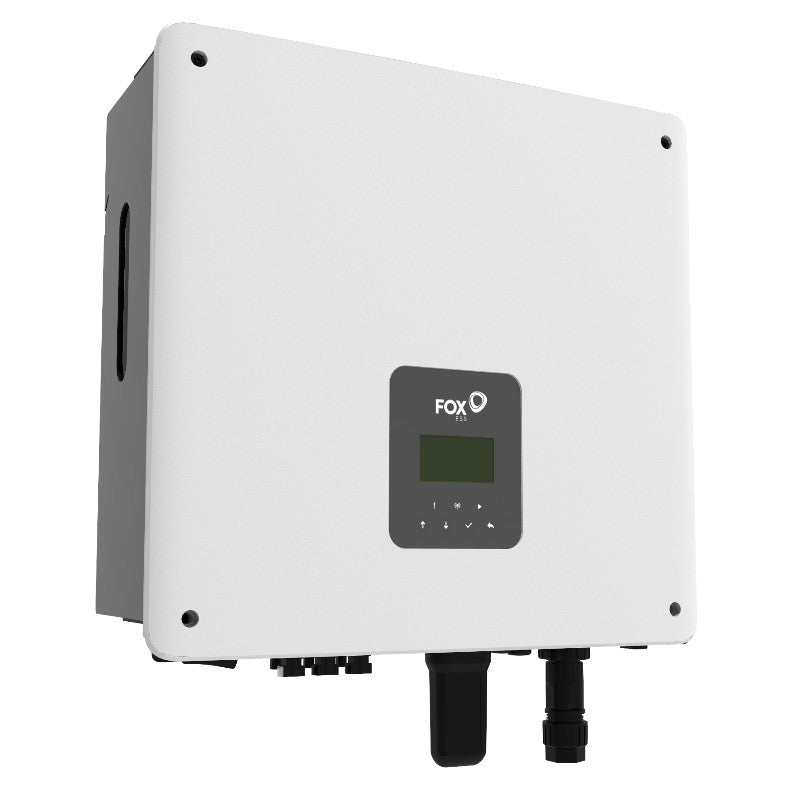

The Fox ESS H1-5.0-E-G2 is a 5kW single-phase hybrid inverter designed for residential solar and battery storage systems. It combines solar generation, high-voltage battery integration and intelligent energy management in one system, with remote monitoring through FoxCloud V2.0.
5kW single-phase hybrid inverter
Up to 10,000W recommended PV array power
2 independent MPPT trackers
1 string per MPPT
80β550V MPPT operating range
600V maximum PV input voltage
Compatible with high-voltage LFP batteries
80β480V battery voltage range
Up to 40A battery charge/discharge current
5kW EPS/backup output
Up to 6kVA peak EPS output for 60 seconds
Maximum efficiency of 97.08%
IP65 rated for indoor or outdoor installation
Natural cooling with low operating noise
Wi-Fi standard, with optional LAN and 4G monitoring
Monitoring through LCD, app and website
Wall-mounted design
AS/NZS 4777.2 grid compliance
The H1-5.0-E-G2 is designed to manage both solar generation and high-voltage battery storage. The 5kW model supports up to a 10kW PV array and uses two MPPT trackers, providing greater flexibility when designing residential solar arrays with different roof orientations.
The inverter supports lithium iron phosphate (LFP) high-voltage batteries across an 80β480V operating range, with CAN communication between the inverter and battery BMS.
When paired with a compatible battery system, the inverter provides EPS backup capability with up to 5,000VA continuous apparent power and up to 6,000VA peak output for 60 seconds.
Its specified EPS switching time is less than 10ms, helping maintain power to compatible backed-up household circuits during a grid outage.
FoxCloud V2.0 allows system performance to be monitored remotely using a smartphone app or web portal. The inverter supports Wi-Fi as standard, with optional LAN and 4G connectivity.
The H1(G2) incorporates a comprehensive range of protection functions, including insulation monitoring, residual-current monitoring, DC reverse-polarity protection, anti-islanding protection, AC short-circuit protection and AC overcurrent/overvoltage protection. DC Type II and AC Type III surge protection is also specified, while AFCI is optional.
With an IP65 enclosure and operating temperature range of -25Β°C to +60Β°C, the inverter is suitable for appropriately installed indoor and outdoor residential applications.
| Specification | H1-5.0-E-G2 |
|---|---|
| Rated AC Output | 5,000W |
| Max. AC Apparent Power | 5,500VA |
| Max. PV Array Power | 10,000Wp |
| Max. DC Input Power | 10,000W |
| MPPT Trackers | 2 |
| Strings per MPPT | 1 |
| Max. PV Voltage | 600V |
| MPPT Range | 80β550V |
| Battery Type | Lithium Battery (LFP) |
| Battery Voltage | 80β480V |
| Max. Charge/Discharge Current | 40A |
| EPS Output | 5,000VA |
| EPS Peak Output | 6,000VA / 60 sec |
| Max. Efficiency | 97.08% |
| Dimensions | 434 Γ 418 Γ 185mm |
| Weight | 22kg |
| Ingress Protection | IP65 |
| Cooling | Natural |
| Noise | β€35dB |
| Monitoring | Wi-Fi; LAN/4G optional |
| Display | LCD / App / Website |
| Grid Standard | AS/NZS 4777.2 |
The page 2 specification table identifies H1-5.0-E-G2 as the 5kW hybrid model in the H1(G2) range.
